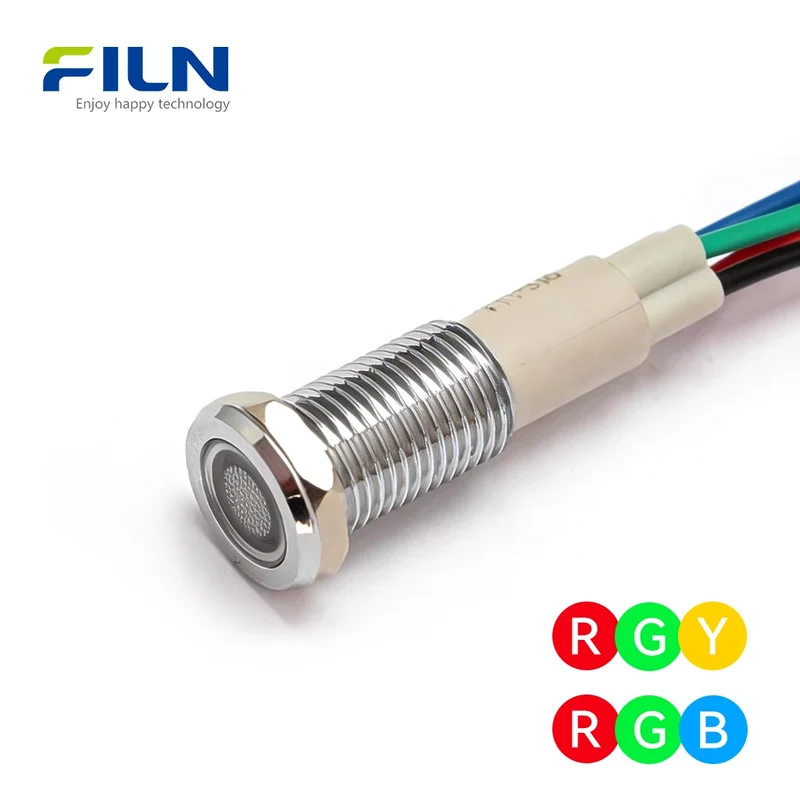

10mm 3 Color Indicator Light RGB Tri-color LED Metal Signal Lamp | IP67 Waterproof Panel Mount

2,17 €1,18 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

The 3 color indicator light is a high-performance 10mm tri-color LED solution engineered for complex status signaling. Manufactured by FILN [cite: 1], these indicators boast comprehensive certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/IP67[cite: 1]. Available in Flat, High-dome, and Concave head types, they offer distinct visual advantages for industrial control, automation, medical devices, and smart appliances. Featuring a robust metal housing (Silver or Black) and pre-wired leads, these lights provide long lifespan and easy installation for multi-state monitoring in a compact M10 footprint.

Quick Specifications

Mounting Hole 10mm / 0.39 inch
Voltage 12-24V, 110-220V (Customizable)
LED Color Tri-color (Red/Green/Blue/Yellow/White Combinations)
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours
Wiring Type Pre-wired Lead Type

Rated Working Parameters

Rated Voltage Customized
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Stainless Steel / Nickel-plated Brass (Silver/Black)
Lens High-transparency PC
Seal Ring 10mm O-ring Silicone
Terminal Pre-wired Leads
Wire Material UL Standard Copper Wire

General Characteristics

Part Name FL1M-10FW/SW/CW-T
Operating Temp -40℃～80℃
Relative Humidity ≤85% at +40℃
Ambient Temp 5~35℃
Air Pressure 86~106Kpa

Key Features & Advantages

  • Triple Head Options:

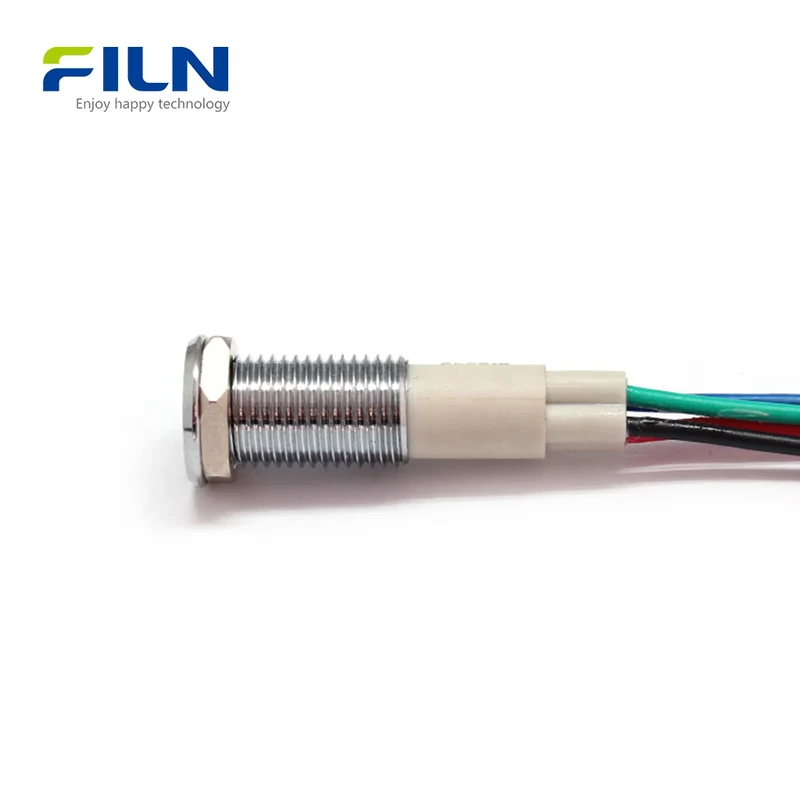

    • Flat Head (FW): Sleek, flush mount design for easy cleaning and a modern aesthetic.

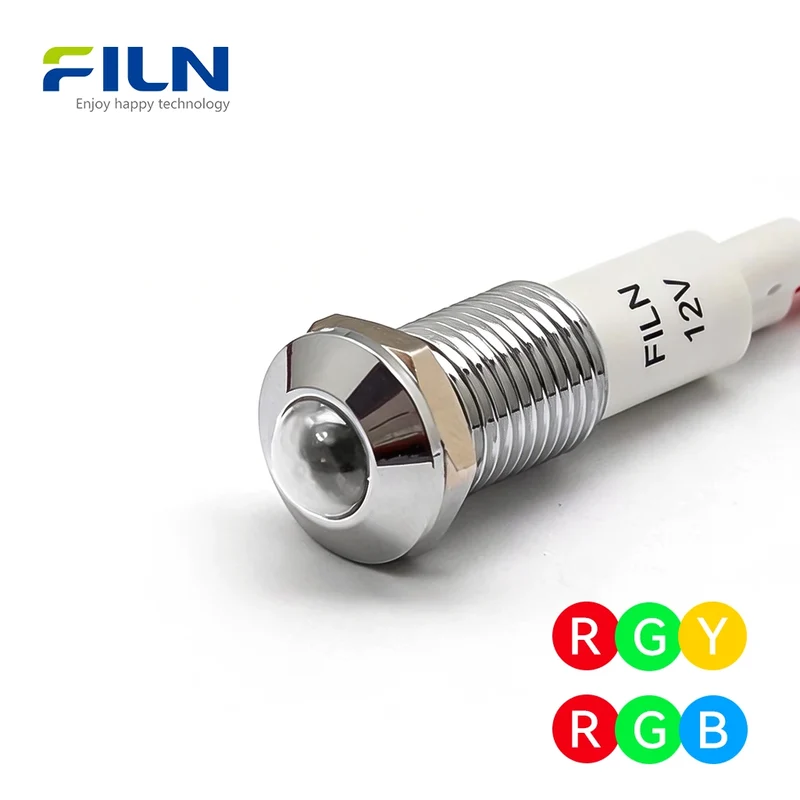

    • High-dome (SW): Superior 180° side visibility, perfect for safety critical signals.

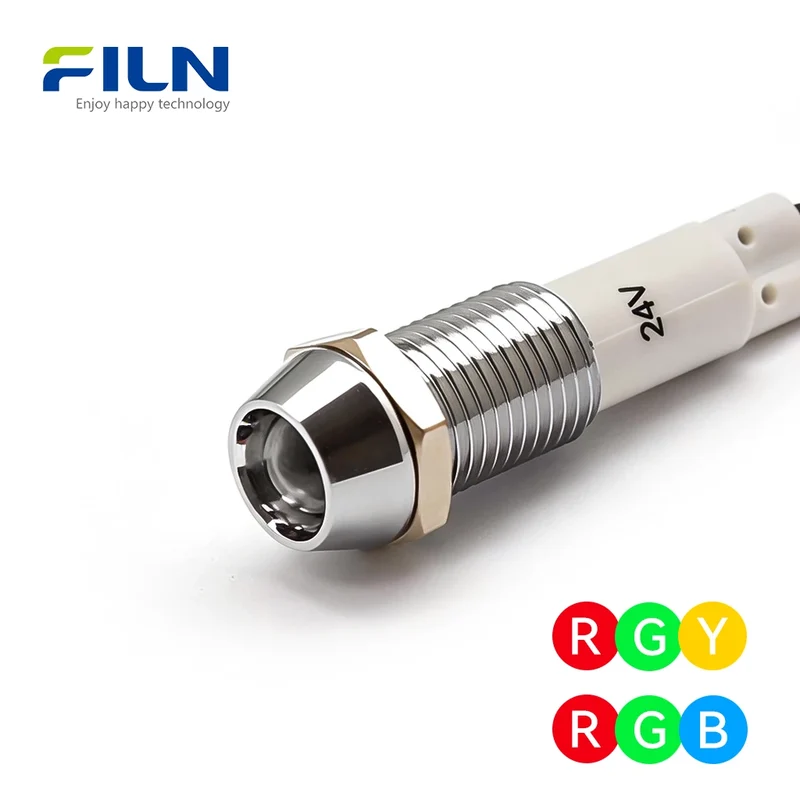

    • Concave Head (CW): Recessed lens prevents accidental damage and reduces glare.

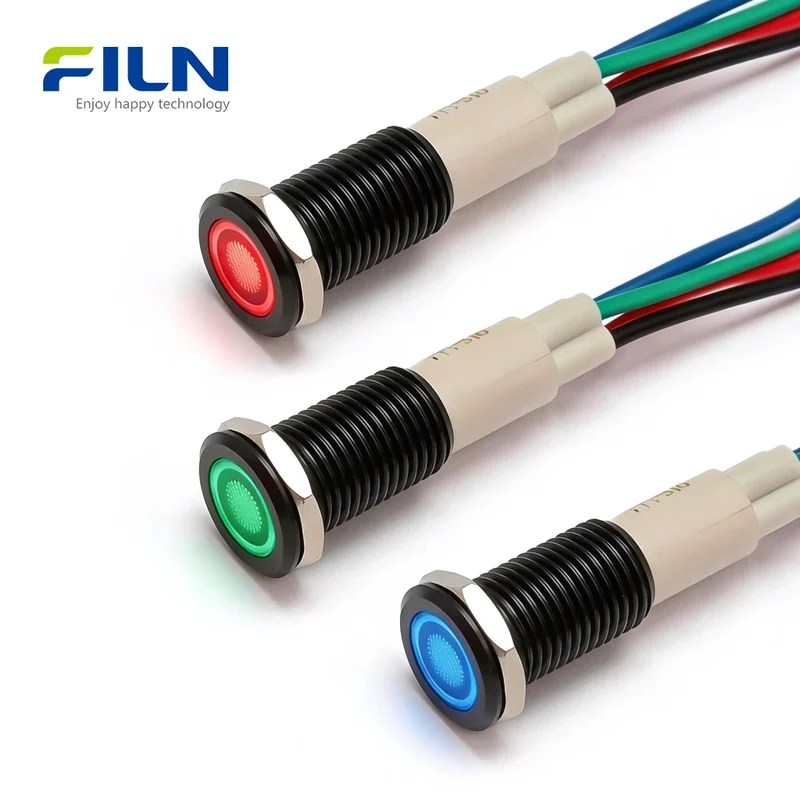

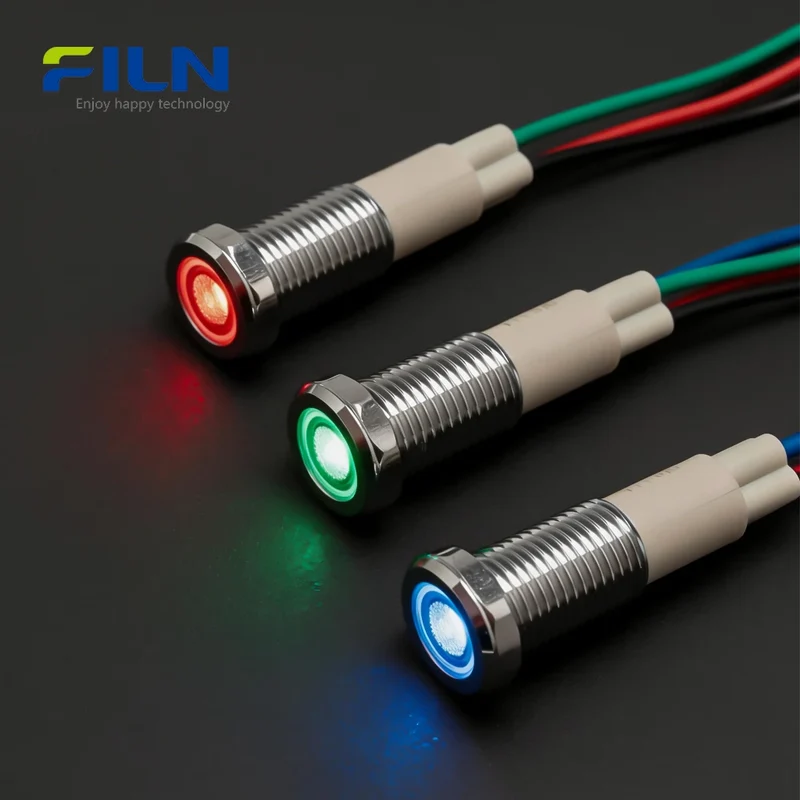

  • Advanced Tri-color Signaling: Three LED colors in one 10mm unit provide complex status feedback (e.g., Red-Error, Green-Normal, Blue-Process) without multiple panel holes.

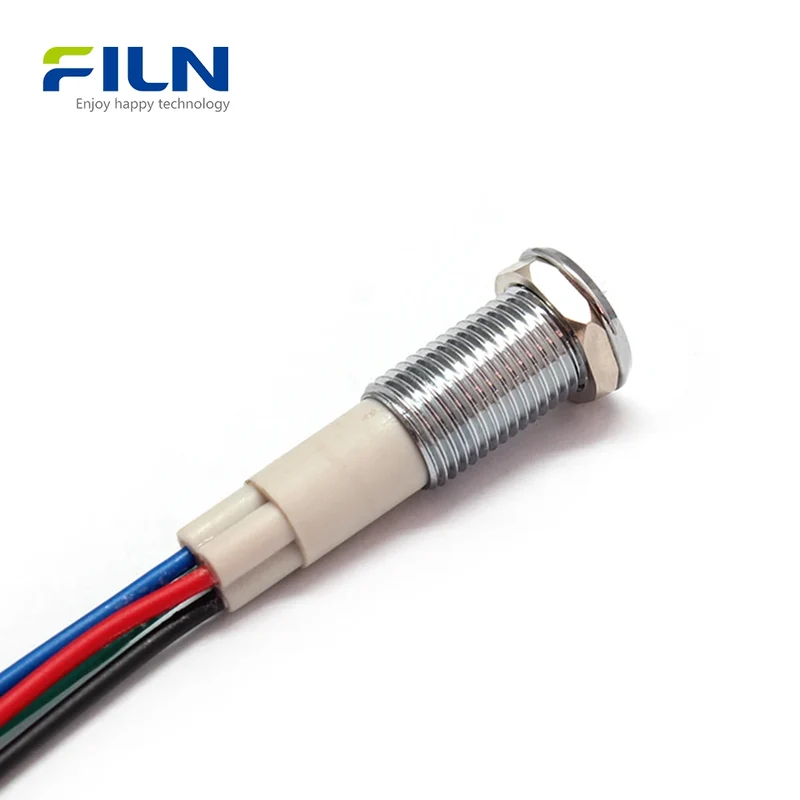

  • Superior Wiring: Pre-wired leads offer better vibration resistance and faster installation compared to standard pin terminals.

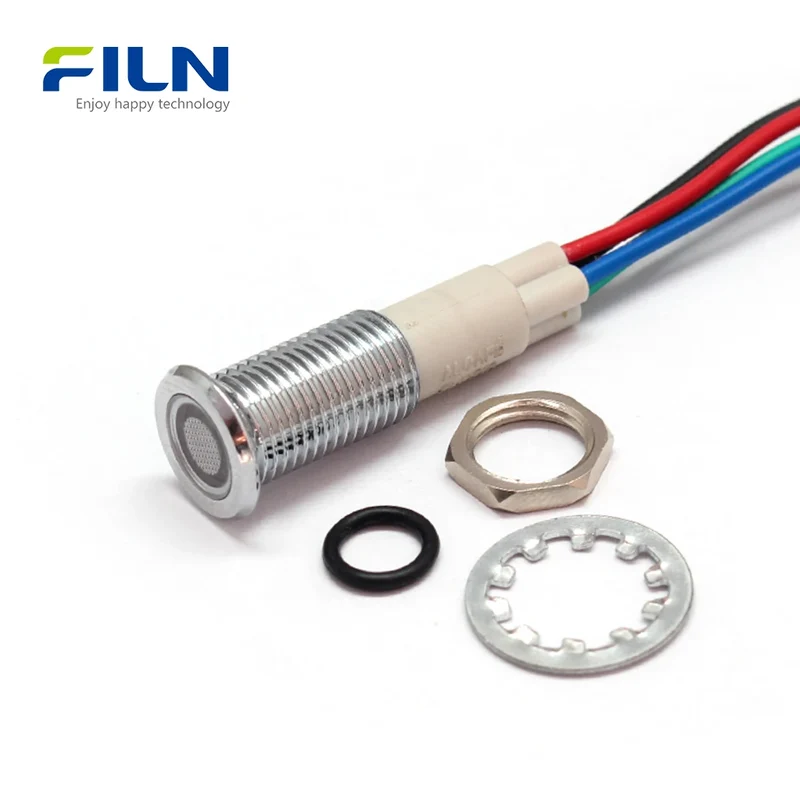

  • Robust Hardware: Includes a smooth M10 thread, 10mm O-ring, and hex nut for a perfect, waterproof seal.
  • Industrial Durability: Metal housing with high-brightness LEDs ensures a 50,000-hour lifespan.

Versatile Applications

  • Industrial: CNC control panels, automation lines, electrical cabinets.
  • Commercial: High-end coffee machines, professional kitchen equipment.
  • Transportation: Marine dashboards, automotive status displays, EV chargers.
  • Consumer: Smart home interfaces, gaming consoles, custom PC builds.
  • Medical: Patient monitoring equipment, lab diagnostic tools.

Installation Steps

  1. Drill a 10mm hole in the mounting panel.
  2. Place the silicone O-ring onto the indicator light base.
  3. Insert the 3-color indicator light through the hole from the front.
  4. Thread the M10 nut onto the back of the indicator and tighten to secure against the panel.
  5. Connect the color-coded wires to your power supply and control circuit.

What Is a 3 Color Indicator Light?

A 3 color indicator light (often RGB or tri-color) is an advanced signaling component that integrates three different LED chips into a single housing. In modern equipment, it acts as a space-saving communication interface. Unlike pin terminals, which require soldering and can be brittle, pre-wired lead indicators provide a flexible, ready-to-use solution that excels in high-vibration environments. These lights are essential for displaying multiple machine states—such as "Safe," "Warning," and "Emergency"—within a single visual point, significantly improving operator efficiency and safety.

FILN Factory Direct Supply

  • ✅ Factory Direct: Direct sourcing for the best B2B value[cite: 4].
  • ✅ Voltage Customization: Tailored for 12V, 24V, 110V, 220V, etc[cite: 4].
  • ✅ Custom Leads: Wire length and connector customization available[cite: 4].
  • ✅ Fast Global Shipping: Rapid delivery for global engineering projects[cite: 4].

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: What are the benefits of the different head shapes?
Flat is for aesthetic flush mounting; High-dome offers the best visibility; Concave prevents accidental activation/damage.

Q2: Can I get 3 colors in one light?
Yes, our tri-color series allows for three distinct signals (e.g., RGB) in a single 10mm unit.

Q3: Is the wiring difficult?
Not at all. The pre-wired design is ready for immediate connection, saving you time and cost.

Q4: Do you offer black housing?
Yes, we provide both silver nickel-plated and professional black anodized finishes.

Q5: Can I use these on a boat?
Yes, the IP67 waterproof rating and metal housing make them perfect for marine environments.

Q6: Are samples available?
Please contact [email protected] for sample requests for your B2B project.

Q7: What is the mounting size?
It fits a standard 10mm (M10) hole.

Q8: Is the thread smooth for installation?
Yes, our high-precision machining ensures the M10 nut threads on smoothly for secure mounting.

Q9: Does it come with a seal?
Every light includes a custom-fit 10mm O-ring to ensure a waterproof front-panel seal.

Q10: Can I get custom wire connectors?
Yes, as a factory, we can add specific connectors to the leads per your requirements.
