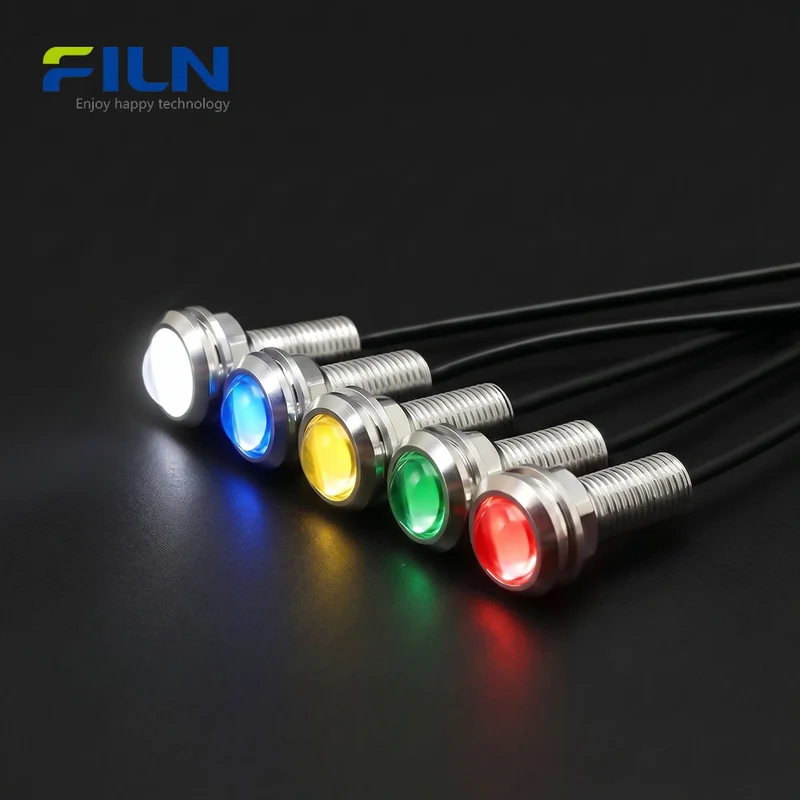

10mm Light Indicator Pilot 12V 220V Pre-wired for Panel Signal LED Light

Product Overview

This premium 10mm light indicator pilot (Model: FL1A-10FW-2) is now available for sale directly from the FILN factory. Designed for heavy-duty industrial signaling, this 10mm LED indicator features a unique spherical (ball) head design that provides superior visibility from multiple angles compared to flat-head versions. Whether you need 12V, 24V, 110V, or 220V, our pre-wired indicator lights are ready for immediate online purchase. These lights are essential for signal transmission in automation, CNC machinery, and marine systems. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications, FILN ensures the highest quality standards for global industrial applications.

Quick Specifications

Mounting Hole	10mm (0.39 inch)
Voltage Range	12V-24V, 110V-220V (Customizable)

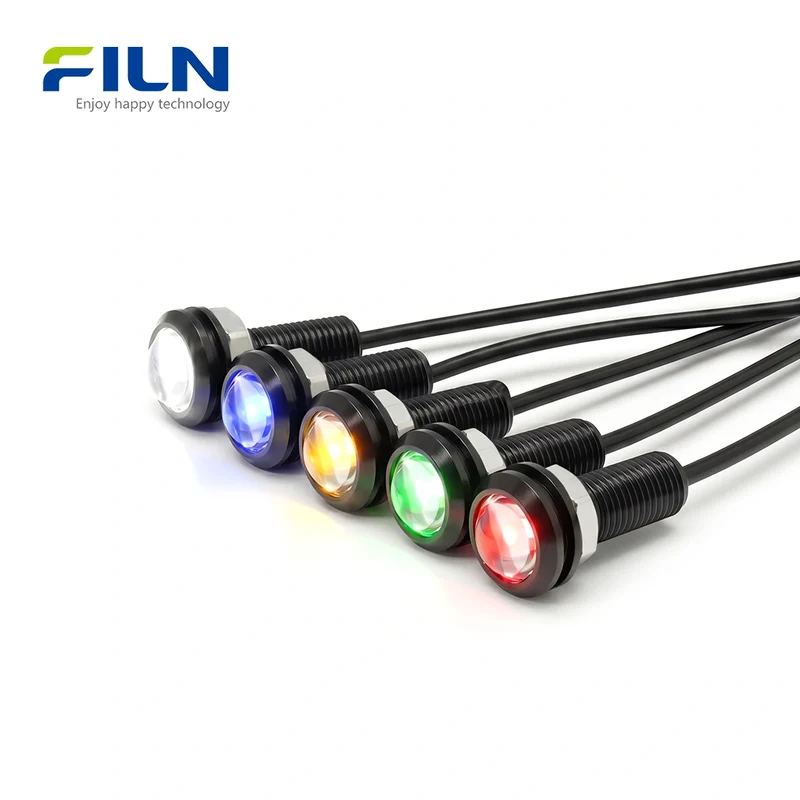

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Wiring Type	Pre-wired Lead Type (20cm Standard)
Housing Color	Silver (Chrome) / Black (Anodized)
Certifications	UL, CE, VDE, RoHS, ISO9001

Component Material List

Component Name	Material	Note
Shell	Copper Alloy	Nickel or Chrome plated for corrosion resistance
Lamp Holder	PA66 Nylon	High temperature resistance
Lampshade	PC Polycarbonate	High light transmission & impact resistance
Light Source	LED	Long life, low energy consumption
O-ring	Silica gel	IP67 waterproof sealing protection
Nut & Gasket	Brass/Stainless Steel	M10 Secure panel mounting

Rated Working Parameters

Rated Voltage	Customized (3V to 380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Nickel-plated Brass / Black Anodized Aluminum
Lens	Epoxy Resin / PC
Seal Ring	Silicone Rubber
Wire Material	UL1007 / UL1569 PVC Wire

General Characteristics

Operating Temperature	-40℃～80℃
Relative Humidity	≤85% at +40℃
Storage Temperature	-40℃～85℃
Air Pressure	86~106Kpa

Electric Property

Property	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown or flashover

Durability Characteristics

Item	Test Condition	Expected Life
Working Life	30mA Continuous @ 25℃	≥50,000 Hours

Resistant Performance

Test Type	Parameter
High Temperature Resistance	80℃ for 96 hours
Low Temperature Resistance	-40℃ for 96 hours
Moisture Resistance	40℃, 90-95%RH for 96 hours

Key Features

• LED High Brightness: Utilizes high-efficiency chips for clear visibility in daylight.

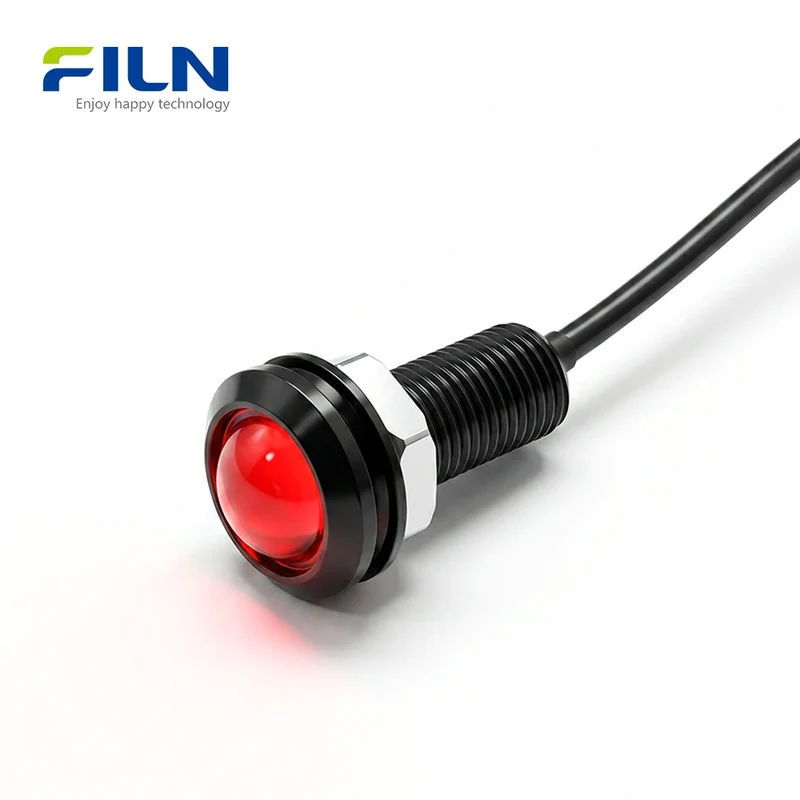

• Ball Head Design: 10mm spherical lens offers a wider viewing angle than flat indicators.
• IP67 Waterproof: Includes a silicone O-ring for full protection against dust and water immersion.

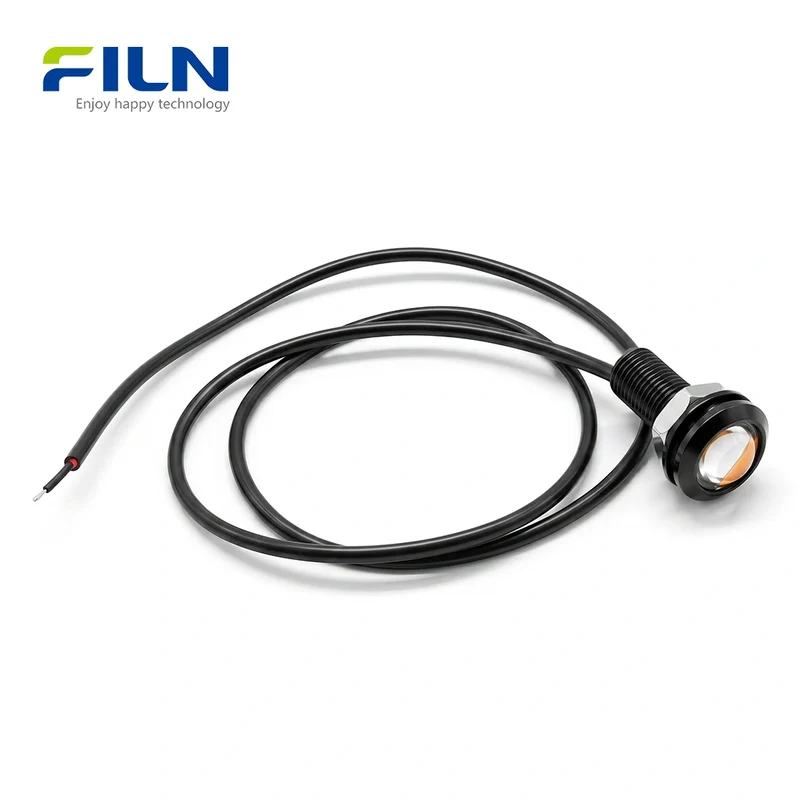

• Direct Wiring: Pre-wired with 20cm leads for faster installation compared to pin terminals.

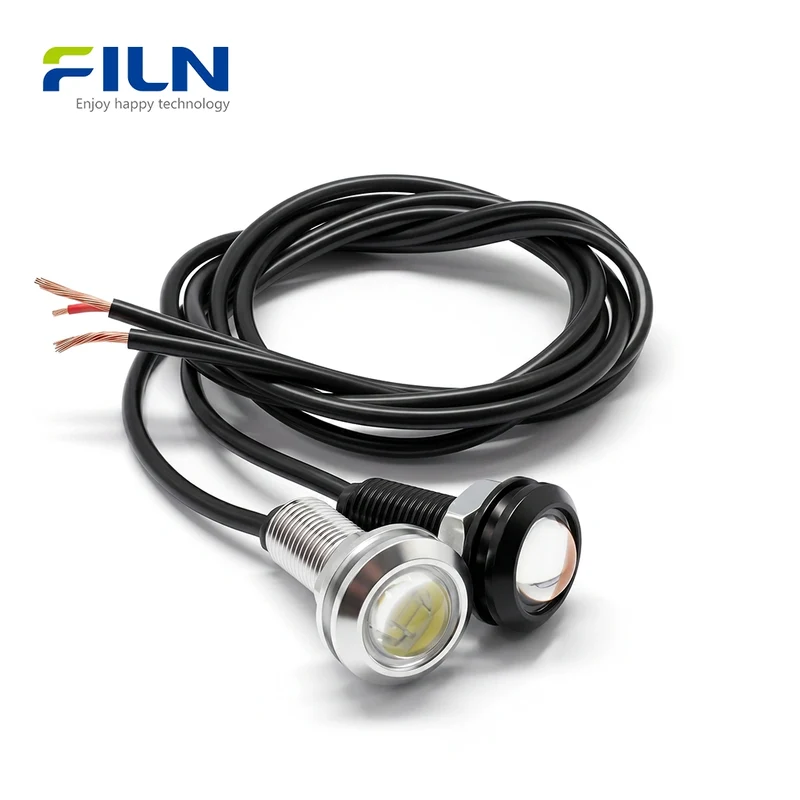

• Rugged Metal Shell: Available in chrome or black finishes to match industrial aesthetics.

Applications

• Industrial Control Panels: Status monitoring for machines.
• CNC Machinery: Fault and power-on signaling.
• Marine Systems: Weather-resistant dashboard indicators.
• Automation Equipment: High-reliability signal feedback.
• Medical Devices: Long-life, safe operating indicators.

Installation Guide

1. Drill a 10mm diameter hole in the mounting panel.
2. Ensure the silicone O-ring is placed between the head and the panel for waterproofing.
3. Insert the 10mm light indicator pilot through the front of the panel.

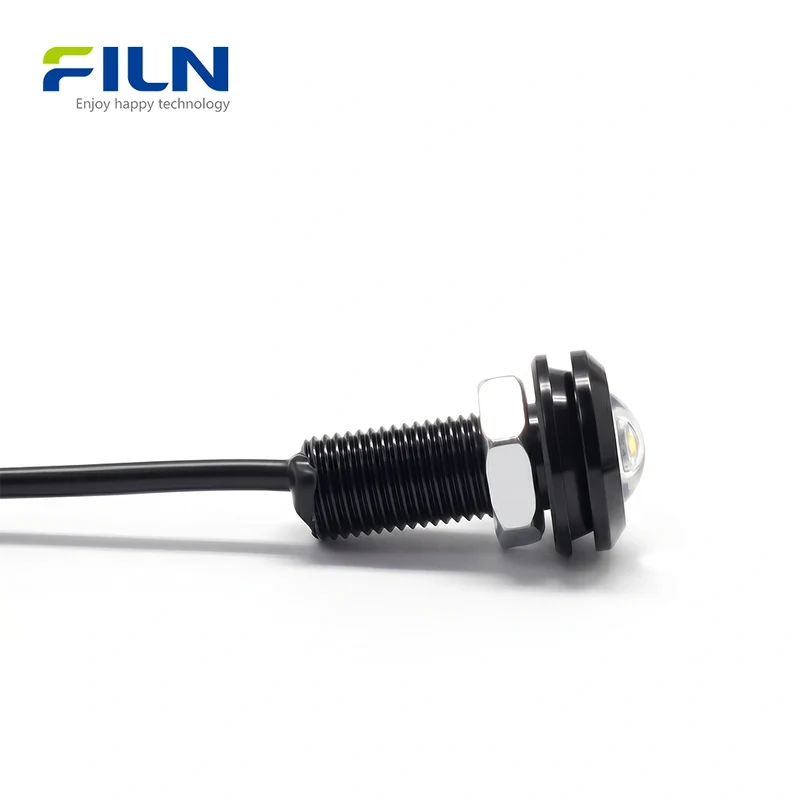

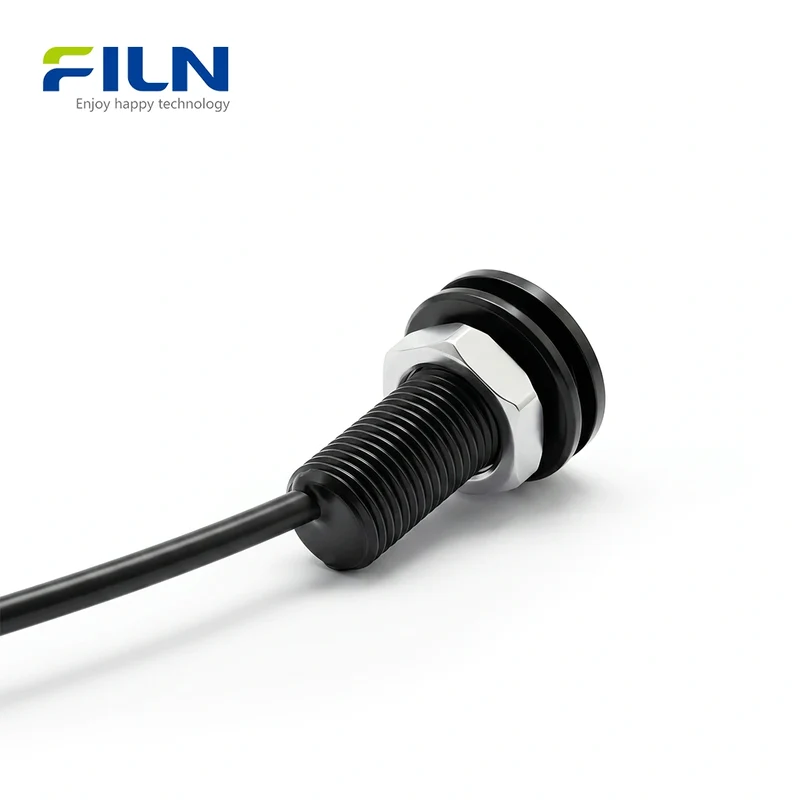

4. Slide the plum gasket and M10 nut from the back and tighten securely.
5. Connect the 20cm wires to your power source (check voltage compatibility).

What Is an 10mm Light Indicator Pilot?

An 10mm light indicator pilot is a compact electrical signaling device used to visually communicate the operational status of a machine or system. Unlike larger 22mm indicators, the 10mm size is ideal for high-density control panels where space is limited. The metal ball head design is particularly favored because it provides a "dome" of light, making it visible even from a side profile. In industrial environments, these are often used as power-on lights, fault alarms, or cycle indicators. By choosing a pre-wired (wire lead) model over a pin-terminal type, engineers can save significant assembly time, as the leads can be directly spliced or connected to terminal blocks without soldering.

Factory Direct Supply from FILN

FILN is a leading manufacturer specializing in high-performance indicator lights. We offer:

• Factory Direct Pricing
• Custom Voltage (3V-380V)
• Custom Wire Lengths
• Pre-installed Connectors
• Fast Global Shipping
• OEM/ODM Support

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can I buy these 10mm light indicator pilots directly?
Yes, they are available for sale online with factory-direct shipping options.

2. What is the advantage of the ball head design?
The spherical head allows the light to be seen from the side, providing a 180-degree visual range.

3. Are these indicators waterproof?
Yes, with the included O-ring and correct installation, they achieve IP67 rating.

4. What is the difference between wire lead and pin types?
Wire lead types are pre-wired for fast connection, while pin types require soldering or female terminals.

5. Can you customize the wire length?
Absolutely. While 20cm is standard, we can customize wires to any length for your project.

6. What voltages are available?
Common voltages are 12V, 24V, 110V, and 220V, but we can produce any voltage from 3V to 380V.

7. Does the 10mm light indicator pilot include mounting hardware?
Yes, each unit comes with a silicone waterproof ring, a metal gasket, and an M10 nut.

8. Are the LED colors interchangeable?
We offer Red, Green, Yellow, Blue, and White. The color is determined by the internal LED.

9. Is there a black shell option?
Yes, we provide both silver (chrome) and black anodized aluminum shells.

10. What certifications do your products have?
Our lights are UL, CE, VDE, RoHS, and ISO9001 certified for international compliance.
