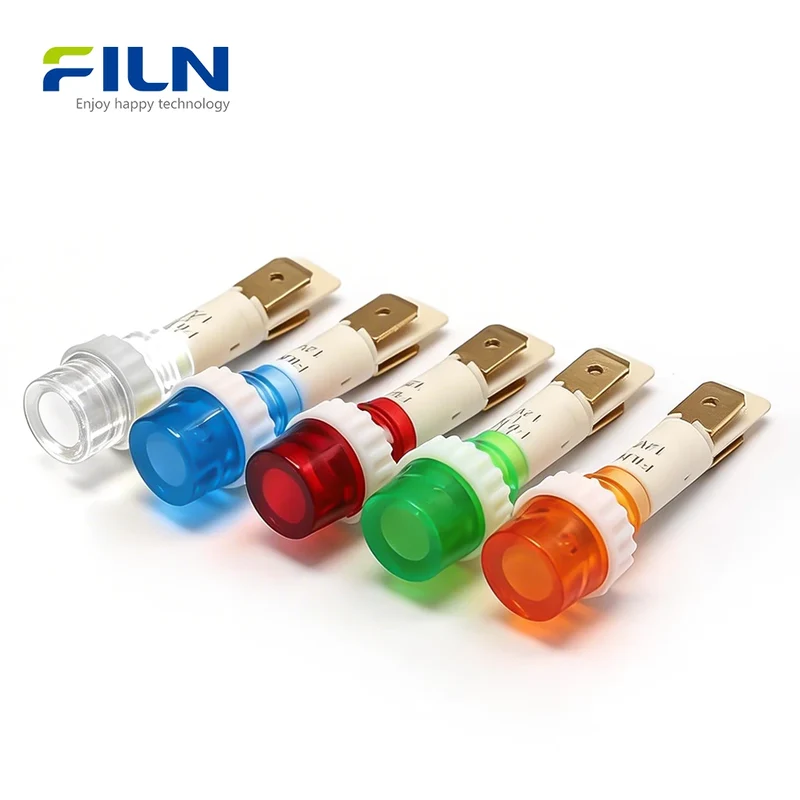

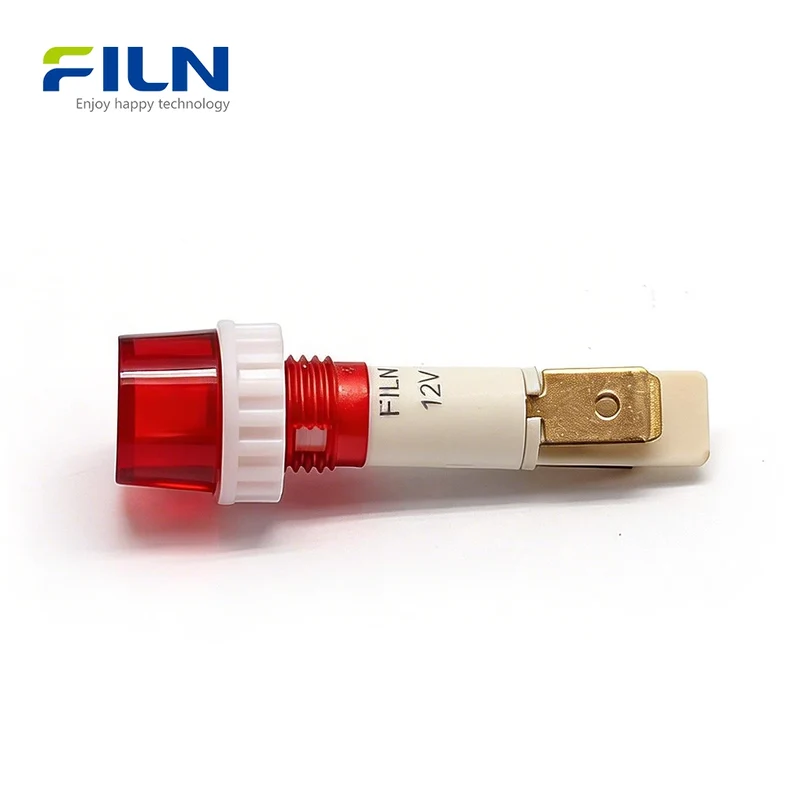

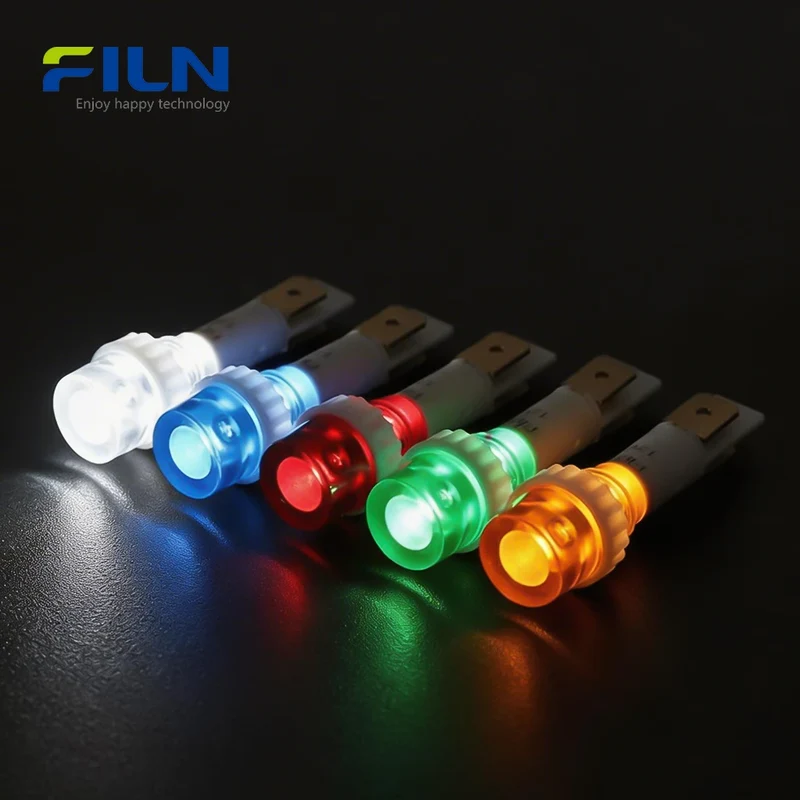

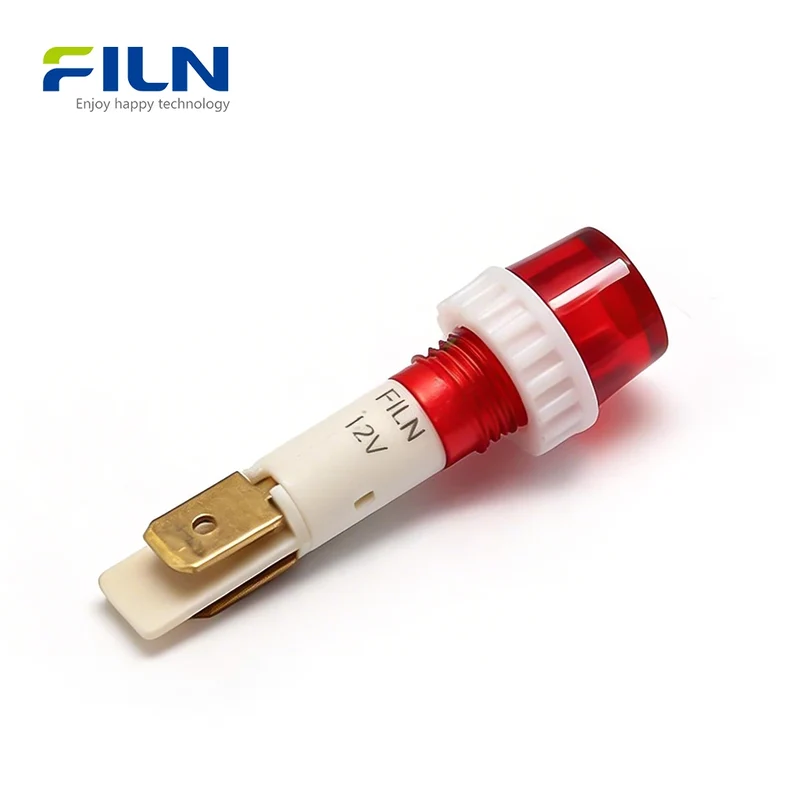

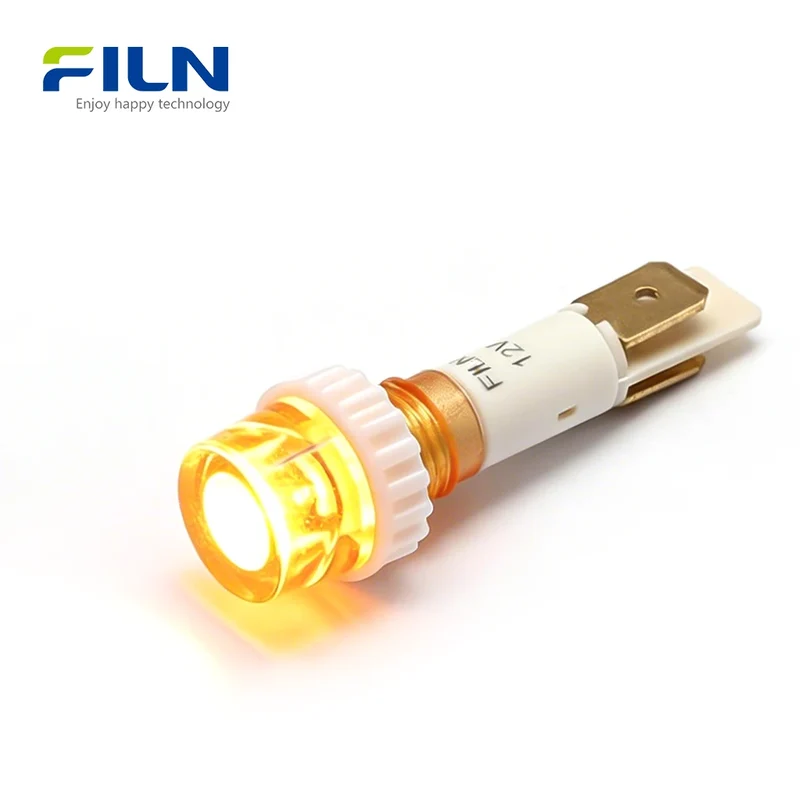

10mm Plastic 12V LED Indicator Lamp PA66 2-Pin High-Head Indicator Light for FILN

Product Overview

The FL1P-10NJ-3 is a premium 12v led indicator lamp featuring a sophisticated 10mm plastic high-head design. This 10mm-plastic-12v-led-indicator-lamp-for-sale is crafted from high-grade PA66 nylon, providing an "atmospheric" and professional look for any control interface. As a direct-to-customer filn-brand-plastic-indicator-wholesale product, it is available for purchase immediately with support for custom-voltage-led-indicator-lamp requirements (12V to 220V). The high-head-round-led-signal-lamp design ensures 360-degree visibility, while the 2-pin-terminal-plastic-indicator base allows for rapid, secure connections in industrial environments. Certified by ISO9001, CE, UL, and RoHS, this lamp is built for reliability and global compliance.

Quick Specifications

Mounting Hole	10mm / 0.39 inch
Voltage Options	12V-24V, 110V-220V (Custom Support)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating (Head)	IP65 Waterproof
Wiring Type	2-PIN Terminal (Pin Type)
Terminal Size	2.8mm Terminal
Installation Method	Plastic Nut Fixing
Lifespan	60,000 Hours

Rated Working Parameters

Rated Voltage	12V / 24V / 110V / 220V (Standard)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Component Name	Material
Shell & Lamp Holder	PA66 Nylon (High Temperature Resistant)
Lampshade (High Head)	Transparent PC (Polycarbonate)
Terminal Pins	H59 Copper (Brass) with 2.8mm spacing
Nut	Reinforced Plastic M10 Nut

General Characteristics

Environmental Criteria	Specifications
Operating Temperature	-40℃ ～ +80℃
Relative Humidity	≤85% at +40℃
Insulation Voltage	1800V / 5s

Electric Property & Durability

Performance Item	Test Condition	Requirement
Insulation Resistance	DC500V 1 min	≥100MΩ
High Temp Resistance	80℃ for 96h	No structural damage
Working Life	30mA / 1000h test	50,000+ Hours

Key Features

• High-Head Visual Effect: The high-head-round-led-signal-lamp provides an elevated light source for better visibility from the side.
• 2-PIN Design: The 2-pin-terminal-plastic-indicator offers quick plug-and-play installation without wire tangling.
• PA66 Shell: Superior insulation and flame retardancy compared to standard plastics.
• Long Life: Industrial-grade LEDs designed for 60,000 hours of uptime.
• Atmospheric Design: Sleek 10mm round profile enhances the appearance of industrial panels.

Applications & LED Color Meanings

This 12v led indicator lamp is used in power cabinets, CNC controllers, and consumer electronics. Each color communicates a critical status:

• Red: Stop, Danger, or System Fault.
• Green: Ready, Safe, or Power On.
• Yellow: Warning, Transition, or Process Pending.
• Blue: Specific Function active or Remote Reset.
• White: Power Indicator or General illumination.

Installation Guide

1. Precision drill a 10mm hole in the desired panel location.
2. Clean any burrs around the hole for a smooth seal.
3. Insert the FL1P-10NJ-3-pin-indicator-light from the front of the panel.
4. Slide the plastic M10 nut over the 2-pin terminals from the back side.
5. Securely tighten the plastic nut until the indicator is firmly fixed.
6. Connect 2.8mm female terminals to the 2-pin connectors.

What is a 12V LED Indicator Lamp?

An 12v led indicator lamp is a essential component for providing visual cues to operators about system status.

Pin Type vs. Wired Type: Pin type terminals like our 2-pin-terminal-plastic-indicator are designed for users who prefer quick-connect terminals or PCB integration. Unlike wired indicators, which come with fixed leads, pin types offer the flexibility of changing wire lengths or connectors without replacing the entire lamp.

Plastic vs. Metal: Plastic indicator lights are lightweight, rust-proof, and provide superior electrical insulation. Metal indicators are more resistant to mechanical impact but are significantly heavier. For most industrial control panels, the high-temperature PA66 nylon used by FILN offers the perfect balance of durability and cost-efficiency.

Factory Direct Supply

Purchase directly from the filn-brand-plastic-indicator-wholesale source for the best prices:

• ✅ Fast Shipping: Global logistics for B2B orders.
• ✅ Customization: Tailored voltage and terminal options.
• ✅ Bulk Pricing: Significant savings for manufacturing.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions (FAQ)

Q1: Is this 12v led indicator lamp for sale online?
A: Yes, you can buy the FL1P-10NJ-3 model directly from our Shopify store.

Q2: What is the benefit of the high-head design?
A: The high-head-round-led-signal-lamp increases the light emission area, making it easier to see from steep angles.

Q3: Can I use this lamp at 220V?
A: Yes, we provide 220v-plastic-panel-mount-indicator versions upon request.

Q4: How do I connect wires to the pins?
A: You can use 2.8mm female spade connectors or solder wires directly to the 2-pin-terminal-plastic-indicator pins.

Q5: What certifications does FILN have?
A: We hold CE, UL, RoHS, and ISO9001 certifications for all our indicator lights.

Q6: Is the plastic nut as strong as a metal one?
A: Yes, our reinforced plastic nuts are designed to handle industrial vibration while protecting the PA66 threads.

Q7: Can I customize the LED color?
A: We offer Red, Green, Yellow, Blue, and White as standard. Special combinations are available for bulk orders.

Q8: What is the minimum order quantity?
A: We support both small retail orders and large wholesale batches.

Q9: How long does the LED last?
A: Our LEDs are rated for 60,000 hours, significantly longer than halogen or neon lamps.

Q10: Is it suitable for outdoor use?
A: With an IP65 head rating, it can handle light moisture and dust common in industrial settings.
