10mm Plastic Indicator Pilot Lamp 220V PA66 Wired Screw Mount FILN

Product Overview

The FL1P-10NW-4 series is a high-quality indicator pilot lamp specifically designed for modern industrial aesthetics. Featuring a 10mm plastic body made of premium PA66 nylon, this 10mm-plastic-indicator-pilot-lamp-for-sale offers a sleek, "atmospheric" round-head appearance. It is available for sale directly from our factory, ensuring competitive pricing and reliable stock. This round-head-plastic-signal-lamp comes pre-wired with 15cm leads, making it ideal for industrial control panels, automation systems, and power distribution units. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, FILN ensures global compliance. Whether you need a 220v-wired-pilot-lamp-industrial or a 12V version, we support full voltage customization.

Quick Specifications

Mounting Hole	10mm / 0.39 inch
Voltage	12V-24V, 110V-220V (Customized Support)

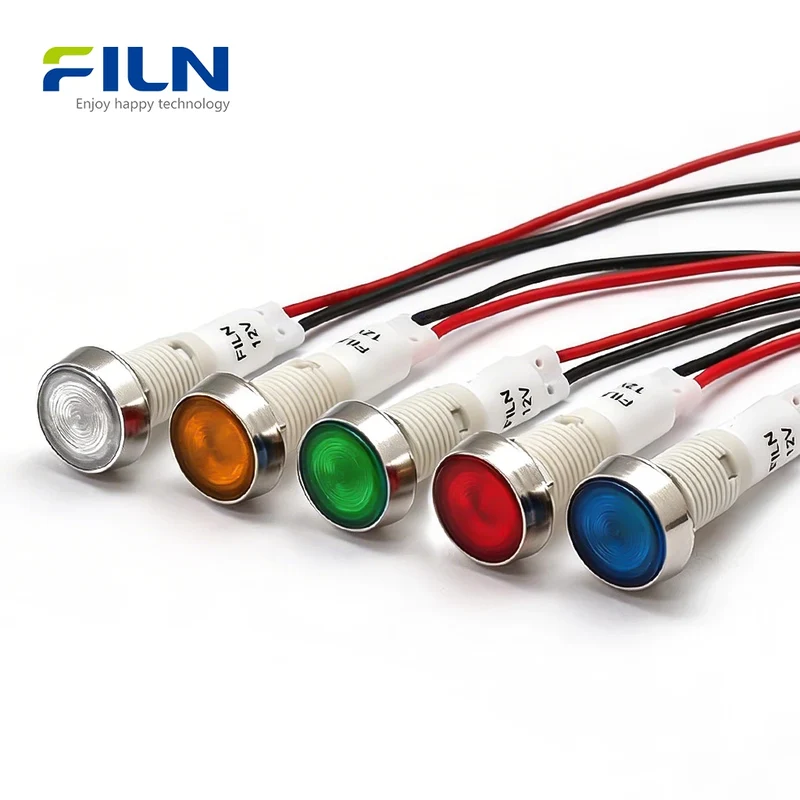

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating (Head)	IP65 (Screw Mounting)
Wiring Type	Wire Lead Type (15cm length)
Operating Temperature	-40℃ ～ +80℃
Installation Method	Nut Fixing (Metal M10 Nut)
Lifespan	60,000 Hours

Rated Working Parameters

Rated Voltage	Customized (up to 380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Component Name	Material
Shell (Housing)	PA66 Nylon (High Temperature Resistant)
Lampshade (Lens)	Transparent PC (Polycarbonate)
Luminescent Source	High Brightness LED
Nut	Nickel-plated Brass M10 Nut
Wire Specification	15cm PVC Insulated Wire

General Characteristics

Items	Parameter
Insulation and Voltage Resistance	1800V / 5s
Working Life	60,000h
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Durability & Resistance Performance

Test Category	Condition	Requirement
Insulation Resistance	DC500V 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No Breakdown
Temperature Cycle	-40℃ → 25℃ → 85℃	5 Rounds OK

Key Features

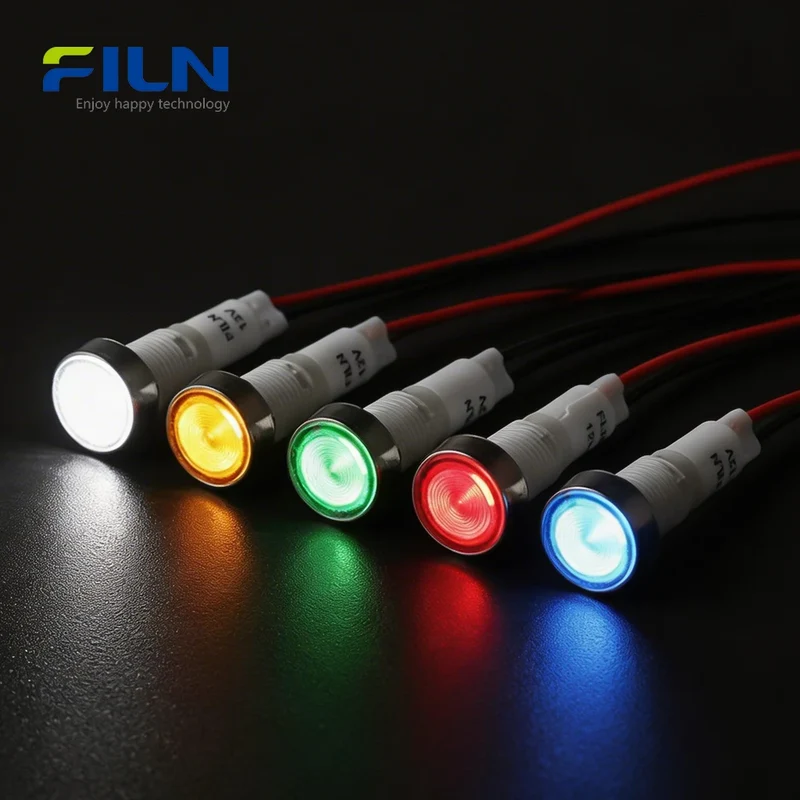

• LED High Brightness: Utilizes premium red-green-yellow-blue-white-led-indicators for vivid light output.
• Long Lifespan: Rated for over 60,000 hours of continuous operation.
• Premium PA66 Material: The pa66-nylon-indicator-light-housing provides superior insulation and heat resistance.

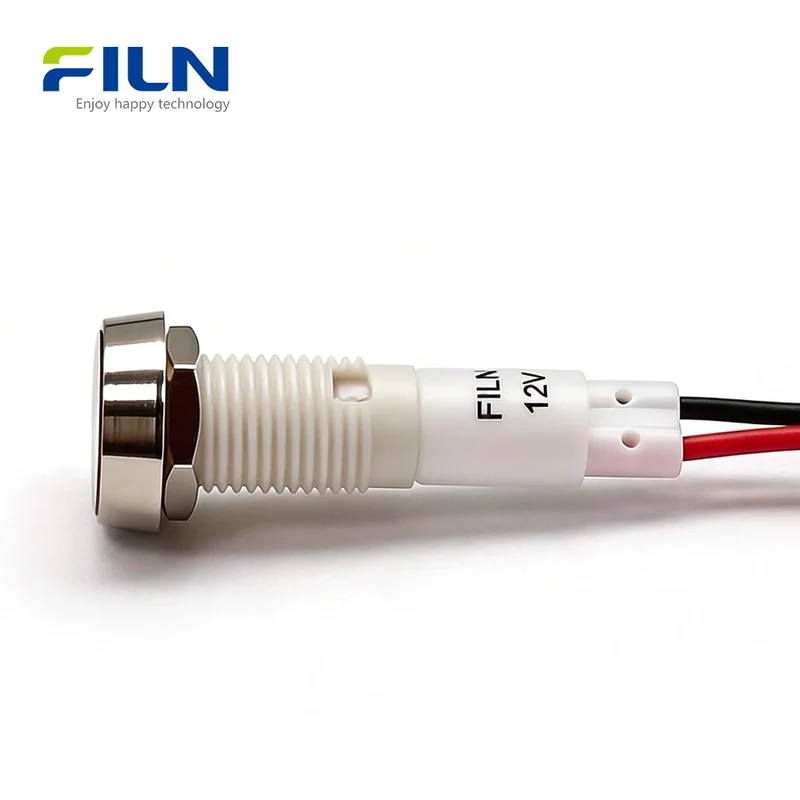

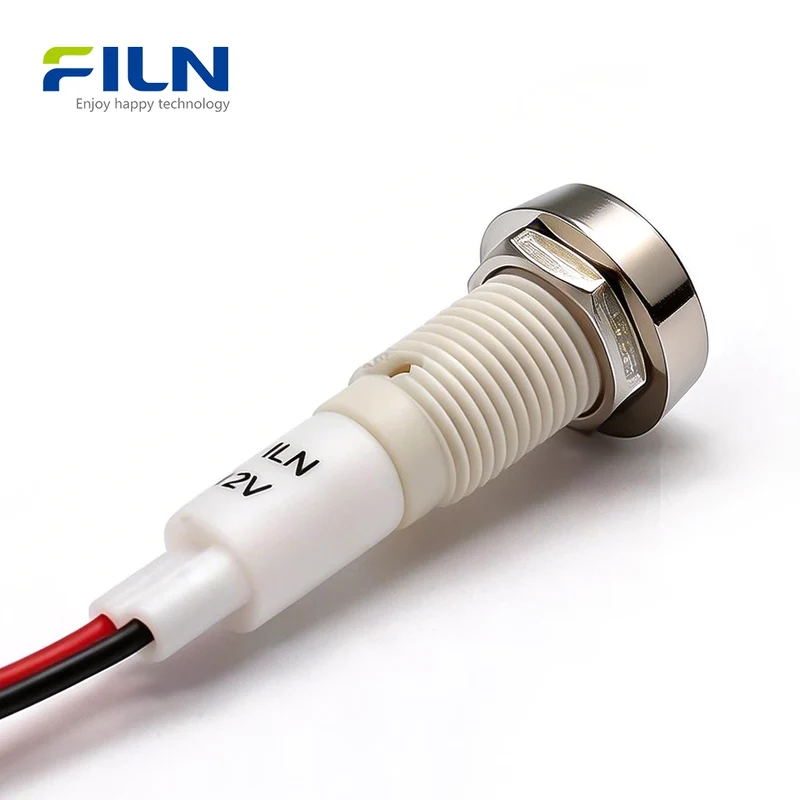

• Screw Mount Reliability: Uses a sturdy M10 metal nut for vibration-proof installation.
• Industrial Aesthetic: Features a round-head design that provides an atmospheric and professional appearance on panels.

Applications & LED Color Meanings

This indicator pilot lamp is widely used in CNC machines, marine systems, and automation panels. Each color represents a specific industrial status:

• Red: Emergency stop, danger, or failure.

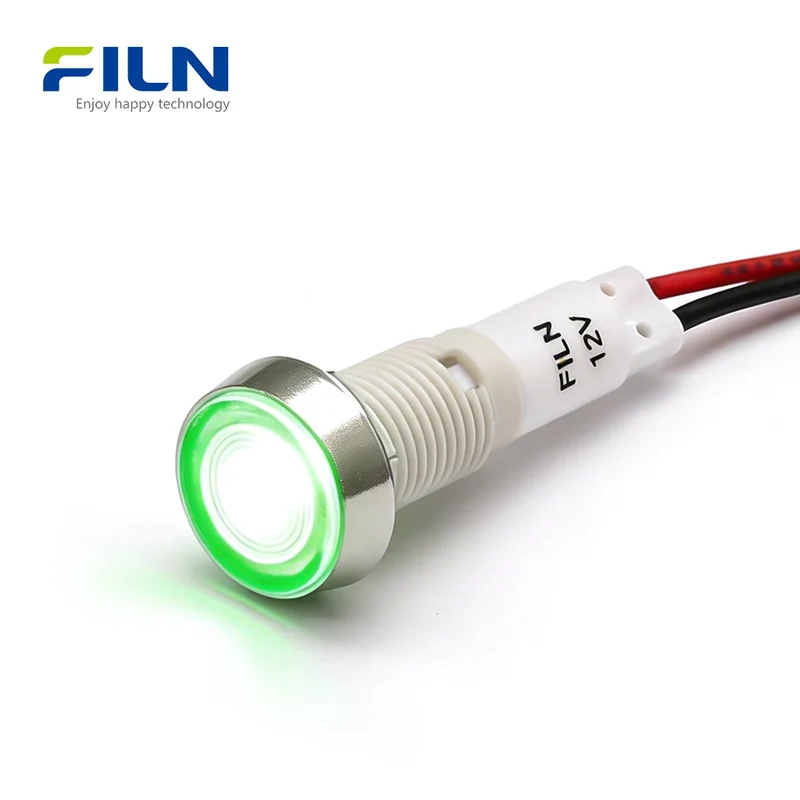

• Green: System ready, normal operation, or safety.
• Yellow: Warning, standby, or attention required.
• Blue: Specific mandatory action or remote monitoring status.
• White: Power supply on or general illumination status.

Installation Guide

1. Drill a 10mm diameter hole on the control panel.
2. Insert the FL1P-10NW-4-indicator-light into the hole from the front side.
3. Slide the large M10 metal nut through the 15cm wires from the back of the panel.
4. Tighten the nut against the panel to lock the screw-mount-plastic-indicator-lamp in place.
5. Connect the PVC wires to the power supply (12V-220V depending on your order).

What Is an Indicator Pilot Lamp?

An indicator pilot lamp is a visual signaling device used in electrical circuits to indicate status (On/Off/Fault).

Plastic vs. Metal Indicators: While metal indicators are more robust, plastic indicator lights offer superior corrosion resistance and better electrical insulation at a more economical price point. Our pa66-nylon-indicator-light-housing is designed to withstand harsh industrial heat while maintaining its color.

Wired vs. Pin Type: This custom-wire-length-indicator-pilot-lamp features pre-soldered 15cm wires. Unlike pin-type terminals which require soldering or crimping by the user, the wired design makes 接线方便 (convenient wiring), reducing installation time and potential connection failures in high-vibration environments.

Factory Direct Supply

As the original filn-factory-direct-indicator-lamps provider, we offer:

• ✅ Fast Global Shipping
• ✅ Voltage & Wire Customization
• ✅ High Volume Discounts

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions (FAQ)

Q1: Is this indicator pilot lamp for sale online?
A: Yes, you can purchase it directly from our Shopify store with global delivery.

Q2: Can I get a 220v-wired-pilot-lamp-industrial with a longer wire?
A: Yes! We support custom wire lengths beyond the standard 15cm to suit your application.

Q3: What is the main benefit of the FL1P-10NW-4 model?
A: It combines a sleek 10mm round design with a secure screw-mount installation, ideal for vibrating panels.

Q4: Is the head of the lamp waterproof?
A: Yes, the waterproof-ip65-plastic-pilot-light head protects against dust and water splashes.

Q5: Can this lamp work on both AC and DC?
A: Our LEDs are designed for versatility. Please specify your voltage (12V, 24V, 110V, 220V) when ordering.

Q6: Why use PA66 plastic instead of ABS?
A: PA66 has a much higher melting point and better chemical resistance, essential for industrial safety.

Q7: What is the lifespan of the red-green-yellow-blue-white-led-indicators?
A: They are rated for 60,000 hours, which is over 6 years of continuous use.

Q8: Does it come with the metal nut?

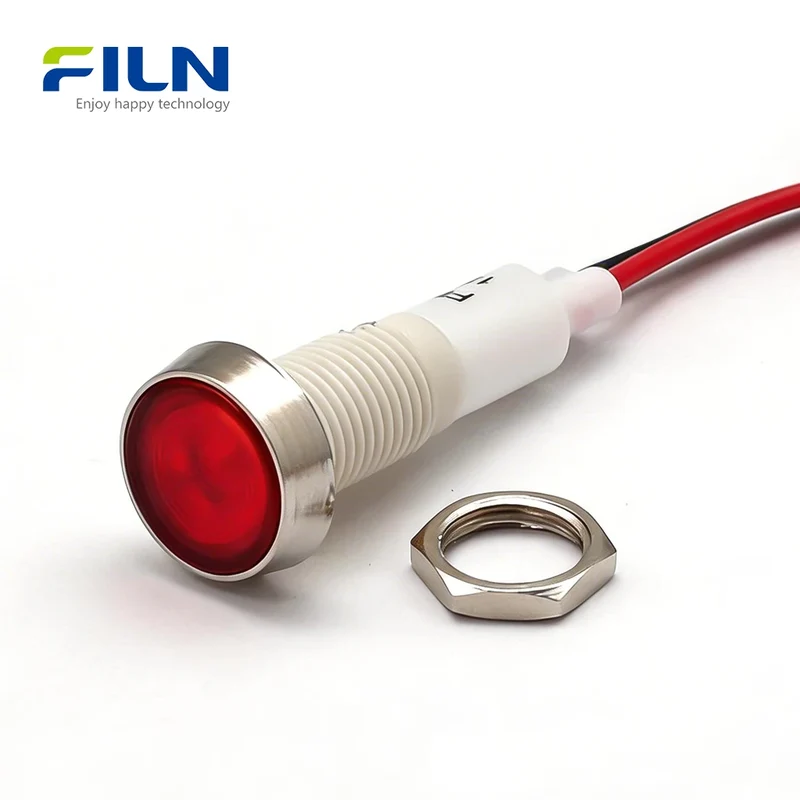

A: Yes, every unit includes a matching M10 nickel-plated brass nut for secure fixing.

Q9: How do I choose between a plastic and a metal indicator?
A: Choose plastic for cost-efficiency and insulation; choose metal for extreme impact resistance.

Q10: Does FILN provide bulk customization for B2B clients?
A: Yes, we are a factory and specialize in OEM/ODM services for industrial clients.
