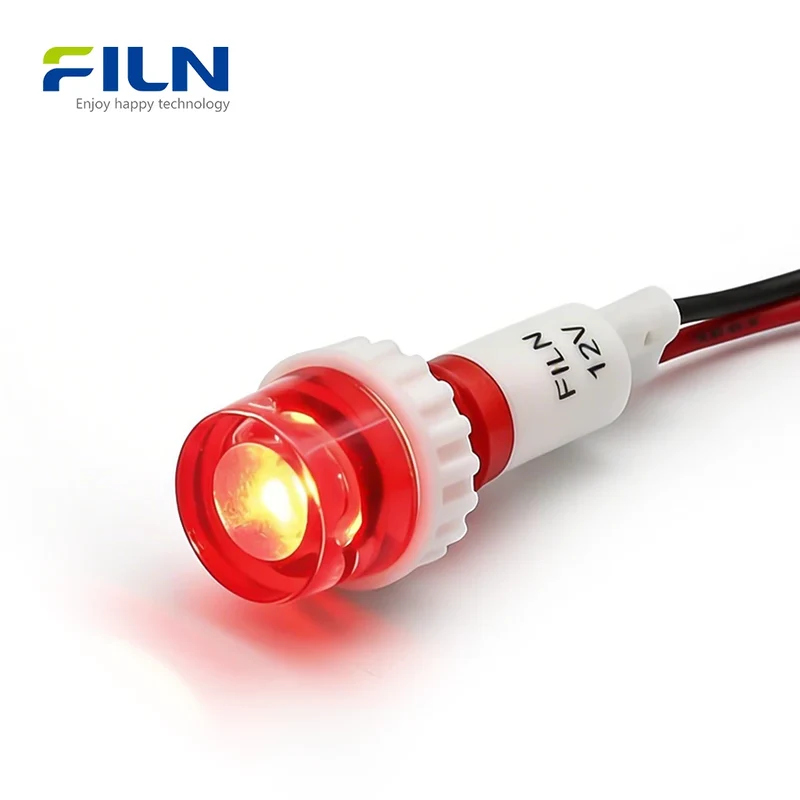

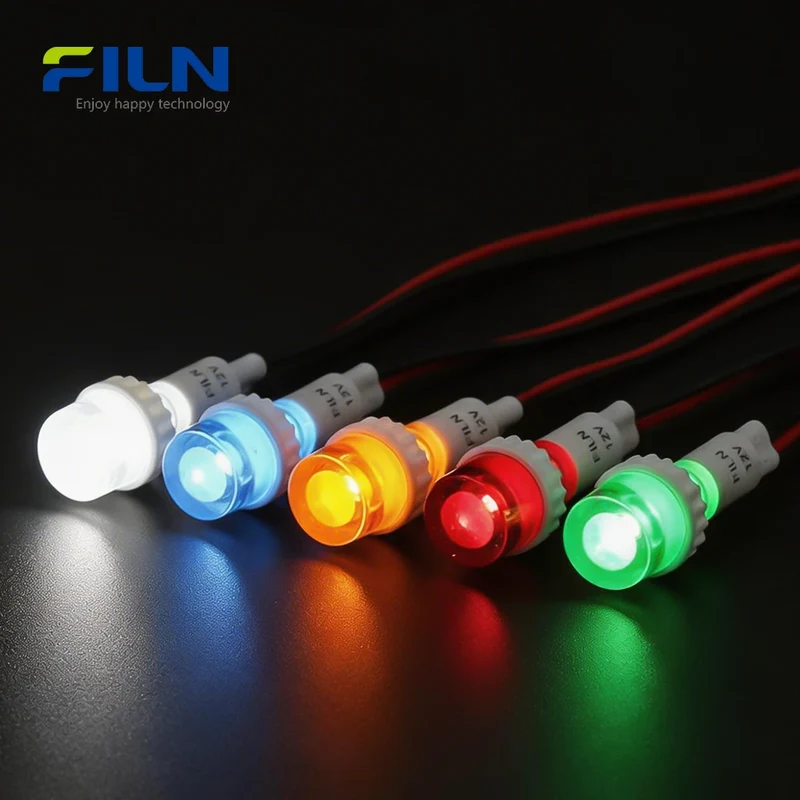

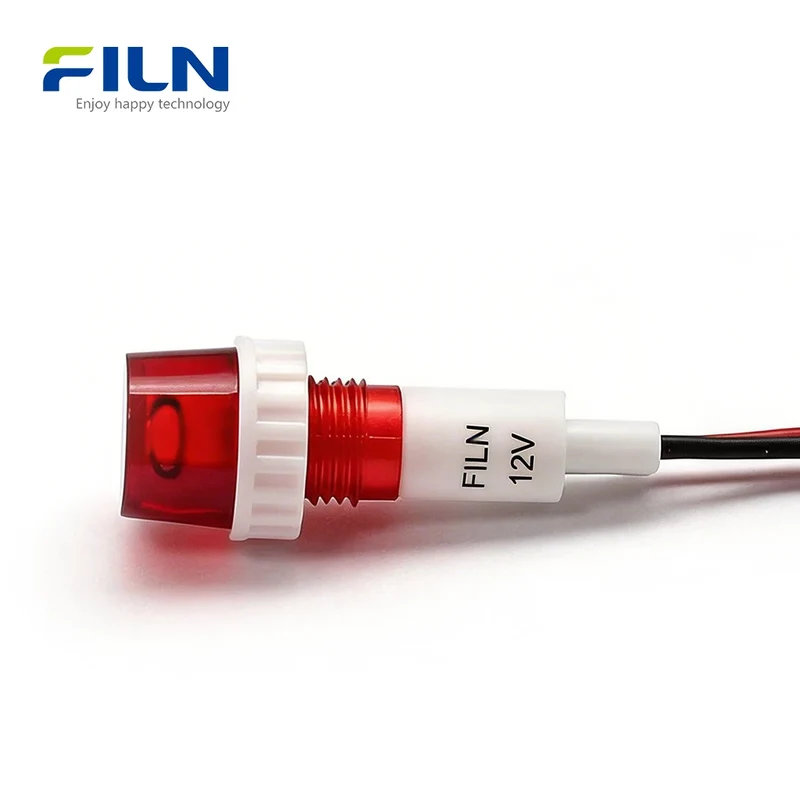

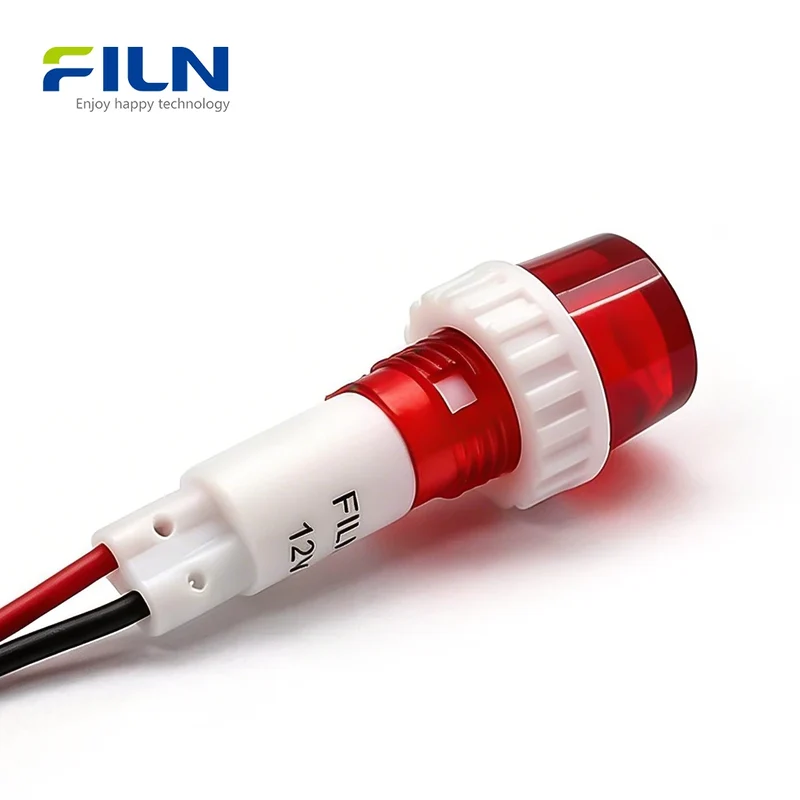

10mm Plastic Pilot Lamp 220V LED High Head Wire Lead Panel Mount FILN

Product Overview

The 10mm plastic pilot lamp (Model: FL1P-10NW-3) is a high-performance industrial led signal light 10mm designed for panel status indication. Featuring a distinctive "High Head" round profile, this high-head plastic pilot lamp 220v offers an atmospheric and professional aesthetic for any control interface. This 10mm plastic pilot lamp for sale is manufactured by FILN, a leading factory certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Designed for versatility, it supports 12V, 24V, 110V, and 220V, with full customization available. Whether you are looking for high-brightness led pilot lamp waterproof solutions for commercial kitchens or automation, these units are available for immediate online purchase to streamline your procurement process.

Quick Specifications

Mounting Hole	10mm / 0.39 inch	Voltage	12-24V / 110-220V (Customized)

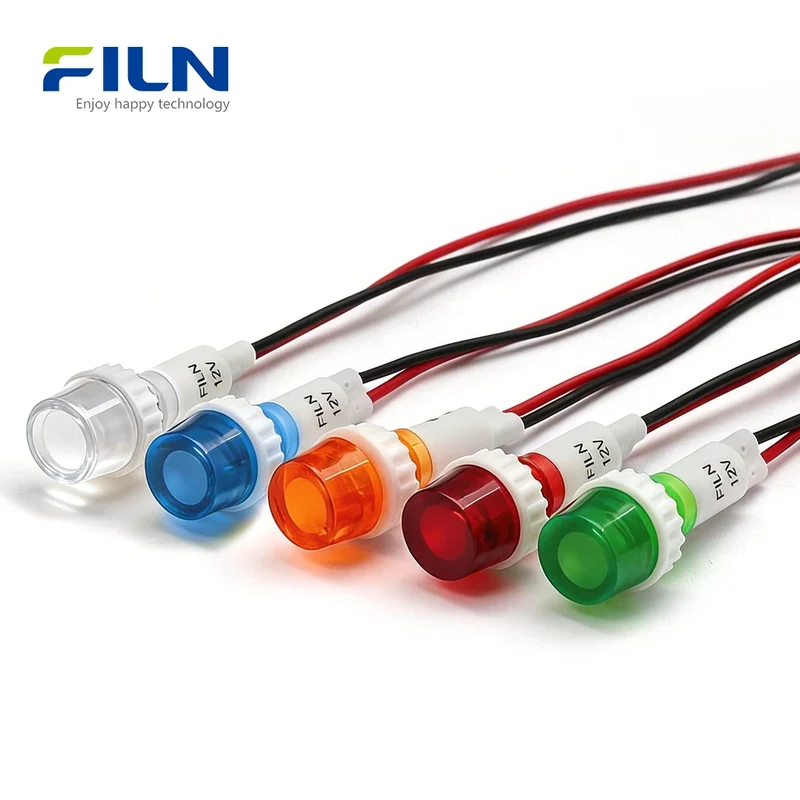

LED Color	Red, Green, Yellow, Blue, White	Lifespan	60,000 Hours
Waterproof Rating	IP65 (Head for Threaded Type)	Wire Length	15cm (Standard)
Mounting Type	Plastic Nut Fixation	Wiring Type	Wire Lead / 2.8mm Pin

Component Name	Material
Shell / Lamp holder	PA66 Nylon
Lampshade	PC (High Transparency)
Luminescent Source	LED
Resistance	Carbon film resistance
2.8mm Terminal	H59 Copper (Brass)
Wire specification	PVC (15cm Length)

Rated Working Parameters

Rated Voltage	Customized (3V-380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

General Characteristics

Item	Parameter
Insulation and voltage resistance	1800V/5s
Cold-Resistant	-40℃
Heat-Resistant	+80℃
Operating Temperature	-40℃～80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric & Durability Property

Test Item	Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown
Continuous Working Life	30mA 1000h	50,000 - 60,000 Hours

Resistant Performance

High Temperature	80℃ for 96h
Low Temperature	-40℃ for 96h
Moisture Resistance	40℃ 90-95%RH for 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 rounds)

Key Features & Industrial Applications

• High Head Design: Atmospheric round head for superior visibility and aesthetic appeal.
• Durable PA66 Shell: Better insulation and corrosion resistance than standard metals.
• LED High Brightness: Equipped with premium LEDs for clear signaling in all lighting conditions.
• Tail Design: 2.8mm terminal plastic pilot lamp pins allow for easy plugging or pre-wired options.
• Long Lifespan: Designed for over 60,000 hours of industrial-grade operation.

Common Applications: Industrial control panels, CNC machinery, kitchen appliance indicator light plastic, power cabinets, marine systems, and medical devices.

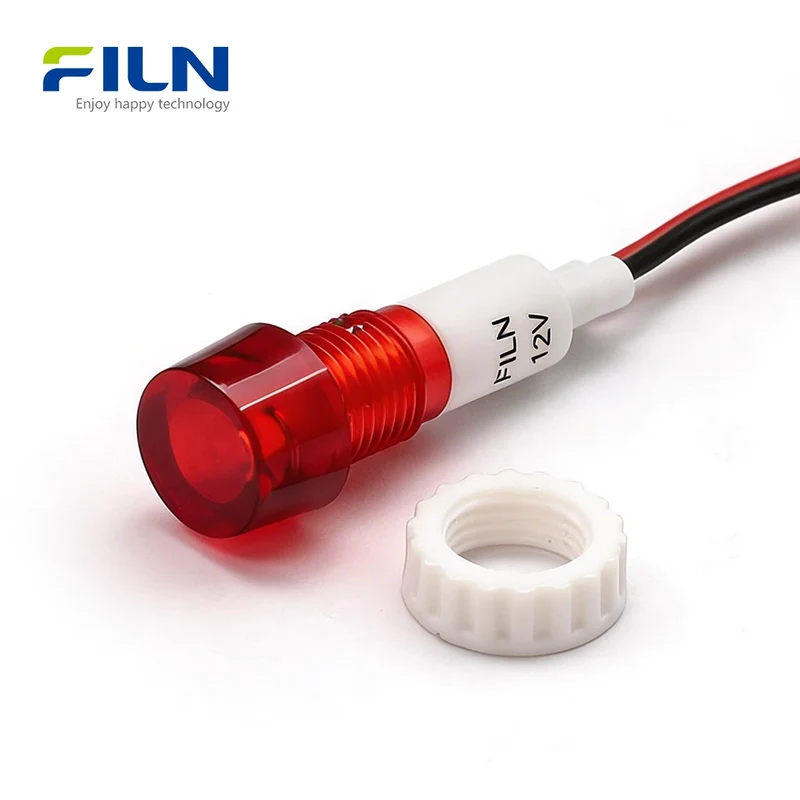

Installation Guide (Threaded Nut Fixation)

1. Drill a 10mm hole in the control panel.
2. Insert the threaded mount plastic pilot lamp 10mm through the hole from the front side.
3. Position the plastic nut from the back of the panel.
4. Tighten the nut until the lamp is securely fixed to the panel.
5. Connect your power source to the pre-wired 15cm leads or use the 2.8mm terminals.

What Is a 10mm Plastic Pilot Lamp?

A 10mm plastic pilot lamp is an essential signaling component used in industrial and commercial environments to indicate power status, operation, or faults.

Plastic vs Metal Indicator Light:
Plastic indicators (PA66) offer superior electrical insulation and resistance to chemical corrosion, making them ideal for kitchen appliance indicator light plastic. Metal indicators are often chosen for mechanical impact resistance, but plastic models are lightweight, cost-effective, and rust-proof.

Wiring vs. Pin Terminals:
Wire lead models (like our 15cm PVC lead) are perfect for direct soldering or splicing into existing harnesses. Pin terminal models (using the 2.8mm terminal plastic pilot lamp) allow for rapid assembly and replacement using standardized female spade connectors.

LED Color Meanings:
• Red: Emergency, danger, or machine fault.
• Green: Normal operation, safety, or power on.
• Yellow: Warning, caution, or abnormal condition.
• Blue: Specific action required or information status.
• White: Generic status or neutral power indication.

FILN Factory Direct Supply

As a professional filn factory custom pilot lamp manufacturer, we provide direct wholesale and custom solutions for global buyers.

• ✅ Fast Shipping: Order directly from our factory stock.
• ✅ Customization: Voltage, wire length (15cm to 5m), and connector types tailored to your project.
• ✅ Global Support: Trusted by B2B clients in over 50 countries.

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Is the 10mm plastic pilot lamp for sale for retail customers?
Yes, we support both small retail orders and large-scale B2B wholesale directly from our factory.

2. Can the fl1p-10nw-3-led-indicator-12v be used with 220V?
We have specific models for 12V and 220V. Please select the voltage that matches your power supply during purchase.

3. Why choose a high-head plastic pilot lamp 220v over a flat head?
The high-head design provides 180-degree visibility, ensuring the signal is seen even from the side of the machine.

4. What are the advantages of a 2.8mm terminal plastic pilot lamp?
The 2.8mm pin allows for "plug-and-play" installation with standardized connectors, making maintenance much faster.

5. Can I customize the wire length of my industrial led signal light 10mm?
Absolutely. While our standard is 15cm, as a filn factory custom pilot lamp provider, we can provide any length you need.

6. Is the plastic used in these lamps flame retardant?
Yes, we use PA66 Nylon, which is flame-retardant and high-temperature resistant, suitable for industrial safety standards.

7. What does a blinking red pilot lamp usually mean?
Generally, a red pilot lamp indicates an emergency or critical error that requires immediate intervention.

8. Are these pilot lamps suitable for high-humidity environments?
Yes, the high-brightness led pilot lamp waterproof head is IP65 rated, protecting against moisture and dust ingress.

9. How do I choose between metal and plastic indicators?
Choose plastic for chemical resistance and electrical insulation; choose metal for high-impact industrial environments.

10. Does FILN offer international shipping for these lights?
Yes, we offer fast global shipping via express and sea freight to ensure you get your components on time.
