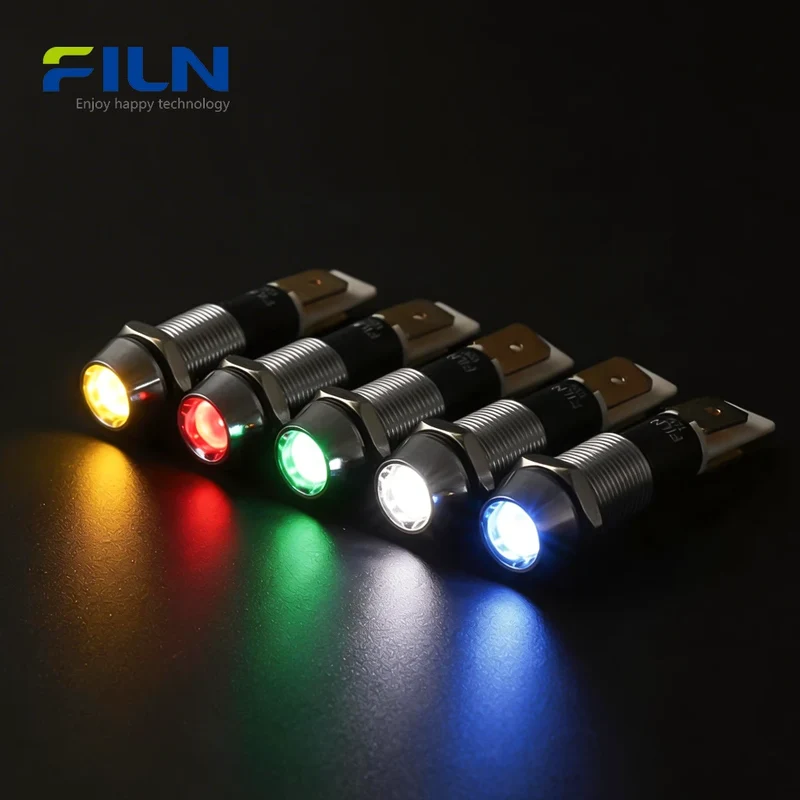

12 Volt DC Indicator Lights 10mm IP67 Waterproof Metal LED Panel Mount FILN

1,65 €0,94 €Im Angebot
Housing color
Light Color
Voltage
Menge

Beschreibung

Product Overview

The FILN 12 Volt DC Indicator Lights (Model: FL1M-10CJ-1) are premium 10mm metal concave head signal lamps designed for extreme reliability. Featuring IP65/IP67 waterproof ratings, these indicators are fully certified with ISO9001, CE, VDE, RoHS, SGS, UL, ensuring global compliance. These versatile lights support 12V, 24V, 110V, and 220V configurations, making them ideal for industrial control panels, CNC machinery, marine systems, and automation equipment. With a robust metal housing available in silver or black and long-life LED technology, they provide clear visual status updates in even the harshest environments.

Quick Specifications

Mounting Hole 10mm / 0.39 inch
Voltage 12V-24V DC / 110V-220V AC (Customizable)
LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Wiring Type Pin Type (Terminal)

Rated Working Parameters

Rated Voltage Customized per order
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Brass (Chrome/Black) or Stainless Steel
Lens Polycarbonate (PC)
Seal Ring Silica Gel / O-ring
Terminal Copper Pillar with Silver Plate

General Characteristics

Operating Temperature -40℃ ～ +80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86～106Kpa

Key Features

  • LED High Brightness: Ultra-bright visibility even in daylight conditions.
  • Long Lifespan: Engineered for over 50,000 hours of continuous operation.
  • IP67 Waterproof: Completely sealed against dust and water immersion.
  • Easy Installation: Smooth M10 threading with included O-ring and nut.
  • Industrial Grade Reliability: Robust metal construction with vibration resistance.

Applications

  • Industrial Control Panels & Automation
  • CNC Machines & Metalworking Equipment
  • Marine Electronics & Dashboard Displays
  • Automotive Customization (12V/24V)
  • Medical Diagnostic Equipment
  • Coffee Machines & Commercial Appliances

Installation Guide

  1. Drill a 10mm (M10) diameter hole in your mounting panel[cite: 1, 3].
  2. Insert the indicator light through the hole from the front side of the panel[cite: 1, 3].
  3. Place the waterproof O-ring and the M10 nut onto the indicator from the rear[cite: 1, 3].
  4. Tighten the nut securely to fix the indicator in place[cite: 1, 3].
  5. Solder your wires to the pin terminals or use compatible connectors[cite: 1, 3].

What Is a 12 Volt DC Indicator Light?

A 12 Volt DC Indicator Light is a critical signaling component used to convey the operational status of a circuit. Unlike wire-lead indicators, this pin-type (terminal) model allows for modular connections, making maintenance easier in dense electrical cabinets. The concave head design protects the lens from physical impact, while the 12V DC rating is the industry standard for automotive, marine, and low-voltage industrial control systems. These lights act as the primary interface between the machine's logic and the human operator.

FILN Factory Direct Benefits

  • ✅ Factory Direct Pricing - No middleman markups.
  • ✅ Customization - Voltage, Wire Length, and Connectors tailored to your project.
  • ✅ Fast Shipping - Rapid global logistics from our ISO-certified facility.

FILN Official Website: www.filn.com

Contact Us: [email protected]

Frequently Asked Questions

Q1: What is the difference between pin-type and wire-lead indicators?
A: Pin-type (like this 10mm model) uses metal terminals for soldering or quick-connectors, offering a cleaner look in tight spaces. Wire-lead models come with pre-attached cables for faster installation but less flexibility.

Q2: Can I use this 12V indicator on a 220V circuit?
A: Only if you order the 220V specific version. FILN offers voltage customization for all models.

Q3: Is the 10mm mounting hole standard?
A: Yes, M10 is a common size for industrial panels and automotive dash modifications.

Q4: What colors are available for the 12 Volt DC Indicator Lights?
A: We provide Red, Green, Yellow, Blue, and White LEDs.

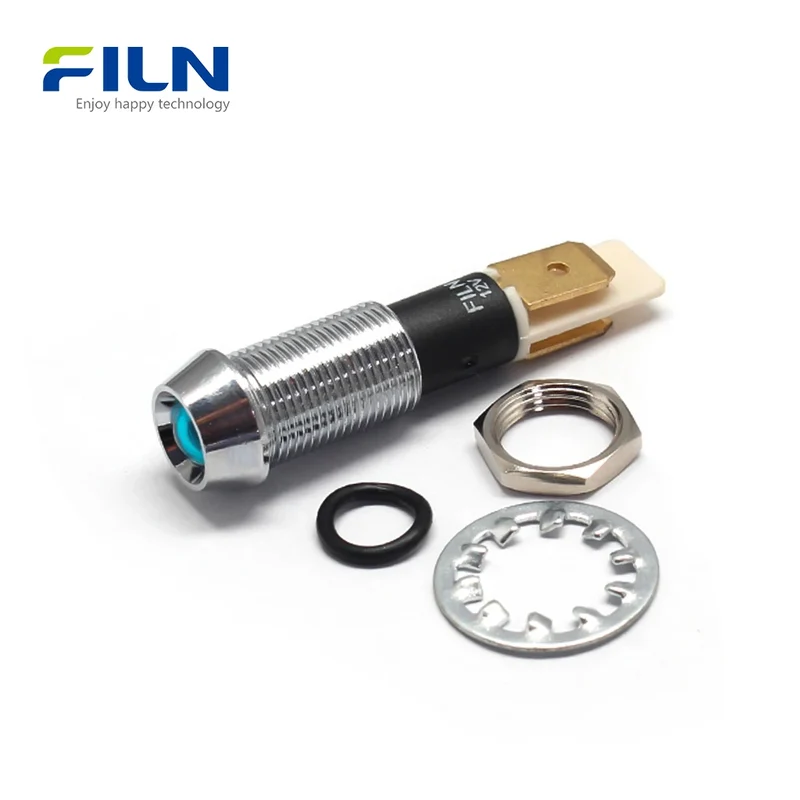

Q5: Does it come with mounting hardware?
A: Yes, each light includes a high-quality M10 nut and a waterproof O-ring.

Q6: Is the metal housing corrosion-resistant?
A: Yes, our chrome-plated brass and black aluminum housings are designed for marine and industrial use.

Q7: What is the IP rating for these lights?
A: They are rated IP65/IP67, meaning they are dust-tight and protected against water immersion.

Q8: Can these be used on a boat?
A: Absolutely. The waterproof rating and metal construction make them perfect for marine dashboards.

Q9: Do you offer bulk discounts for B2B?
A: Yes, as a factory, FILN provides competitive pricing for wholesale orders.

Q10: Are these LEDs replaceable?
A: The LED is integrated into the sealed unit for maximum waterproofing and longevity; the entire unit is replaced if needed, though they last 50,000+ hours.
