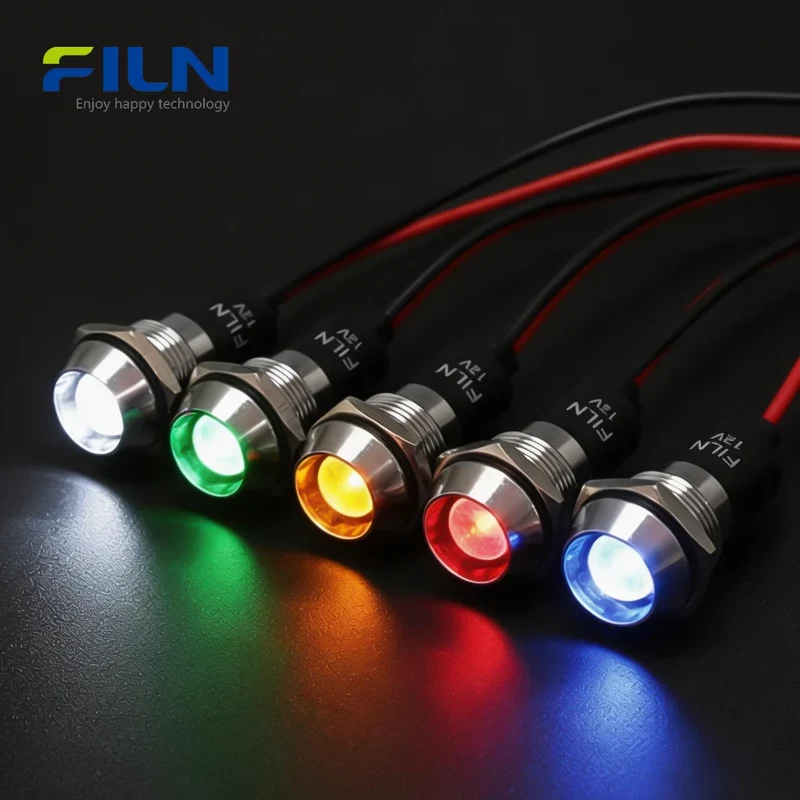

120V LED Indicator Light 16mm Metal Recessed Head Wire Leads 15cm IP67 FILN

2,60 €1,46 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

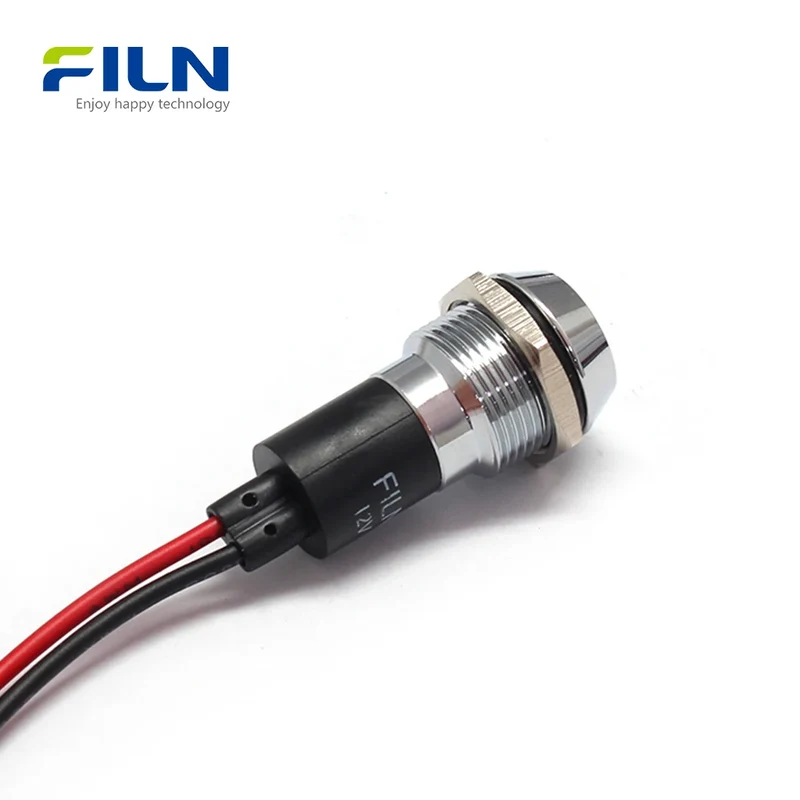

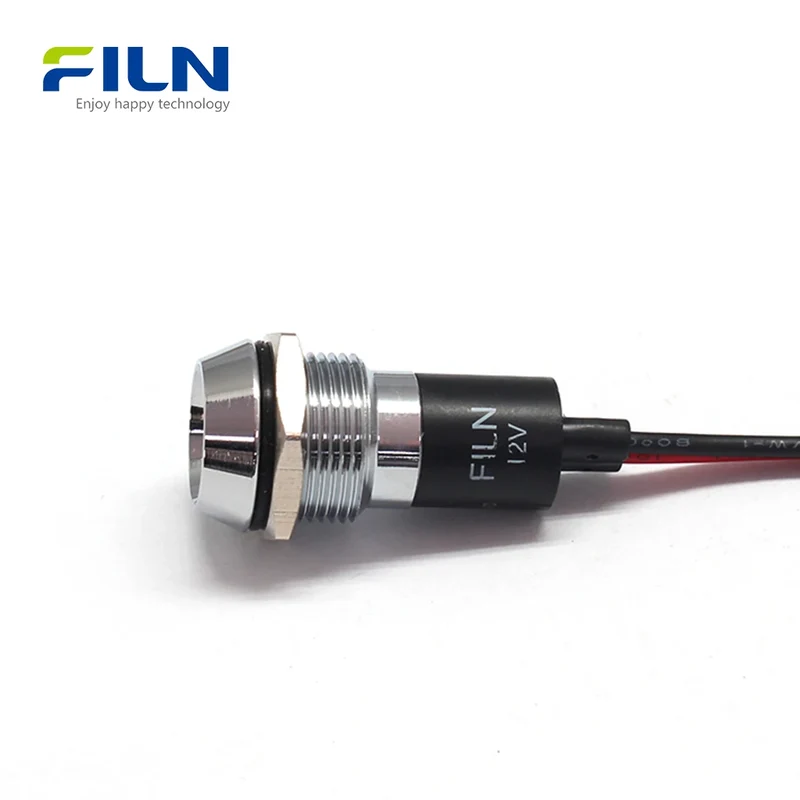

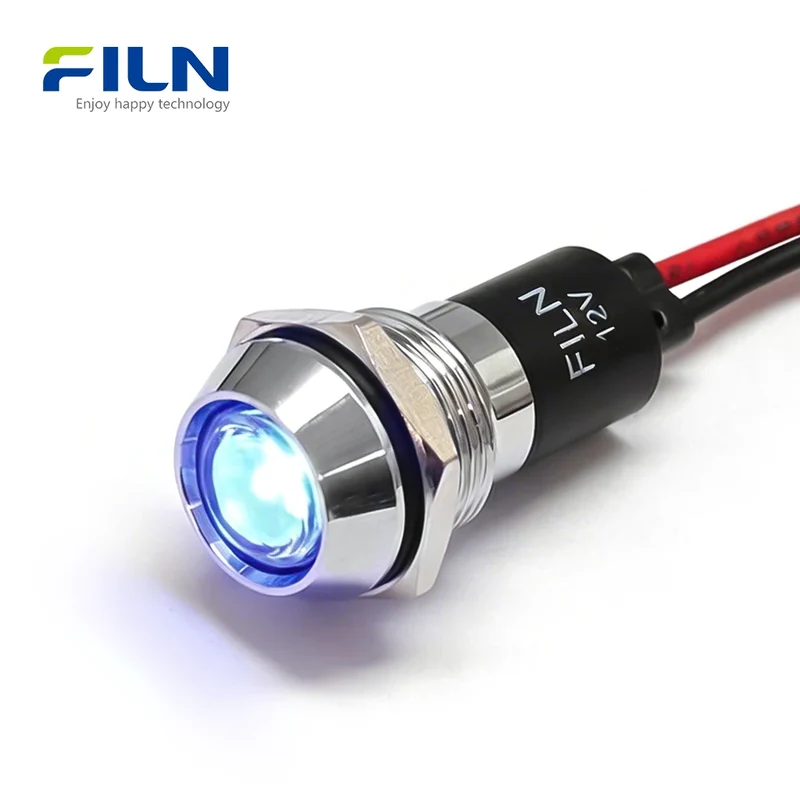

The 120v LED indicator light (Model: FL1M-16CW-1) by FILN is a high-performance industrial signaling solution designed for demanding environments. Featuring a 16mm mounting hole and a recessed metal head, this indicator provides superior durability and a sleek, professional aesthetic. Our products carry global certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, ensuring compliance for international B2B procurement. These lights are ideal for industrial control panels, CNC machinery, and automation equipment. The core advantage lies in the pre-wired 15cm leads, offering faster installation compared to standard pin-type terminals, combined with an ultra-long lifespan and IP67 waterproof reliability.

Quick Specifications

Mounting Hole 16mm (0.63 inch)
Voltage 12-24V, 110-220V (Customizable)
LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Wiring Type 15cm Wire Lead Type
Certifications UL, CE, VDE, RoHS, SGS, ISO9001

Component Material List

Component Name Material Note
Shell Copper Alloy Silver or Black Nickel/Chrome Plated
Lamp Holder PA66 Nylon High temperature resistance
Lampshade PC Polycarbonate High light transmission
O-ring Silica gel IP67 waterproof sealing

Rated Working Parameters

Rated Voltage 120V (Customized available)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

General Characteristics

Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Key Features

  • LED high brightness: Clear visibility even in high-ambient light environments.
  • Recessed Head Advantage: The concave head design prevents accidental triggering and provides a modern flush-mount look.
  • Easy Wiring: Unlike the FL1M-16CJ-1 pin type, this version features 15cm wire leads for quick connection without soldering.
  • IP67 Waterproof: Includes a high-quality silicone O-ring for superior sealing.

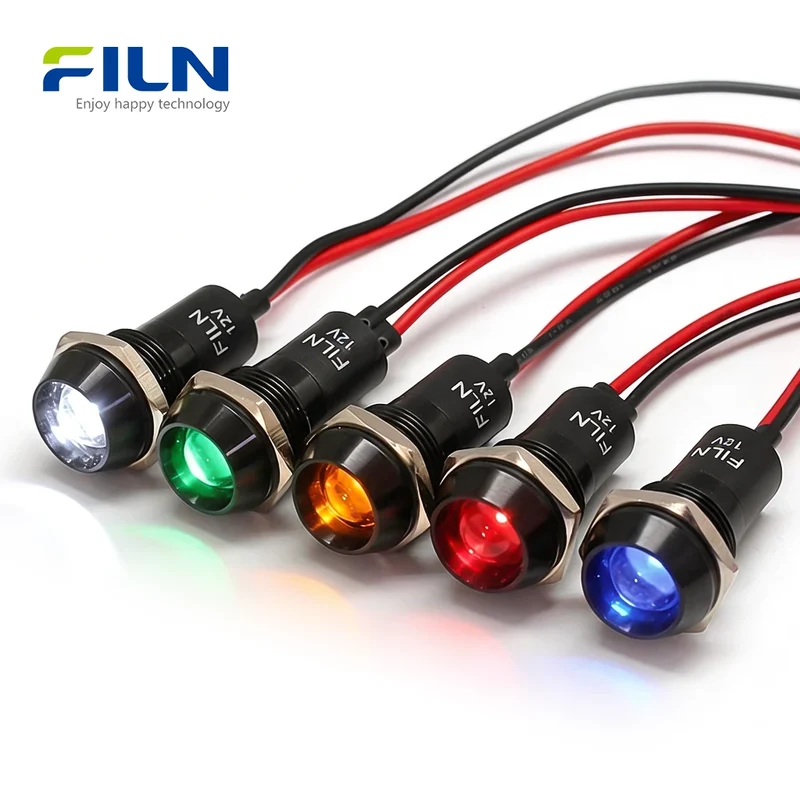

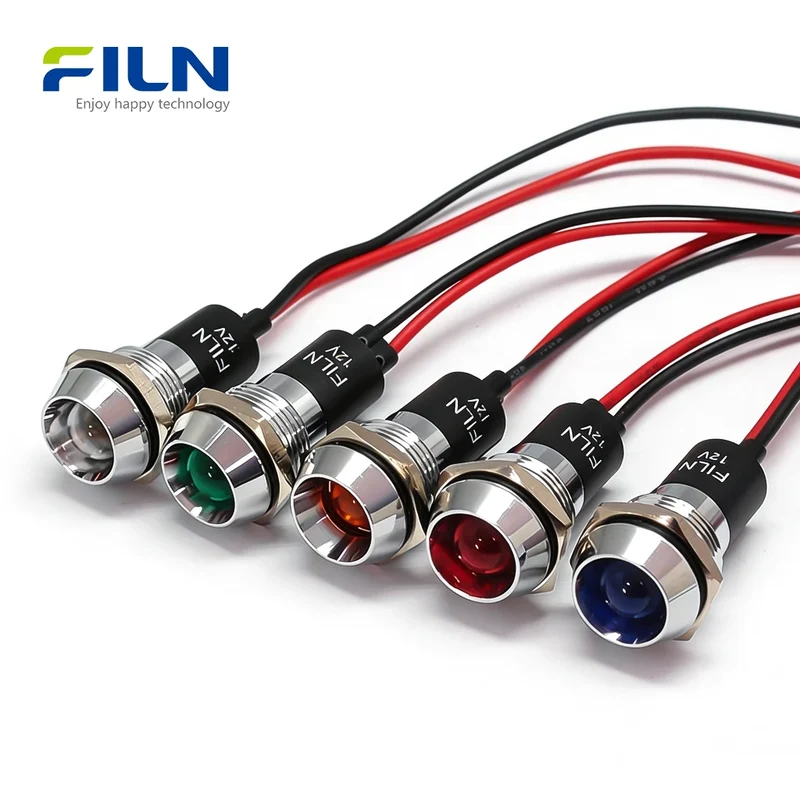

  • Industrial grade reliability: Durable copper alloy shell available in silver or black finish.

Installation Guide

  1. Drill a 16mm hole in the mounting panel.
  2. Insert the indicator light through the front of the panel.
  3. Slide the silicone O-ring and M16 nut onto the back of the light.
  4. Tighten the nut securely to the panel; the smooth threads ensure a firm grip.

What Is a 120v LED Indicator Light?

A 120v LED indicator light is a critical visual signaling component used in electrical circuits to communicate the status of machinery or power systems. Operating directly on standard North American line voltage, these units eliminate the need for step-down transformers in control cabinets. The recessed head style (concave) is specifically favored in industrial design because it protects the lens from physical impact and accidental contact, making it a "safety-first" choice for heavy-duty CNC machines and marine systems.

Factory Direct Supply

FILN is a direct manufacturer specializing in indicator lights and switches. We offer:

  • Voltage Customization
  • Wire Length Customization
  • Connector Customization
  • Fast Global Shipping

Official Website: www.filn.com

Contact Us: [email protected]

Frequently Asked Questions

1. Can this 120v LED indicator light handle 110V systems?
Yes, the internal resistor is designed to operate safely between 110V and 120V AC.

2. What is the difference between this and the FL1M-16CJ-1 pin type?
The wire lead version comes with 15cm of pre-attached wire, making it easier to install in tight spaces without soldering, whereas the pin type requires crimp connectors or soldering.

3. Is the metal shell corrosion-resistant?
Yes, our copper alloy shells are nickel-plated or chrome-plated to resist oxidation in humid environments.

4. Does it include the mounting hardware?

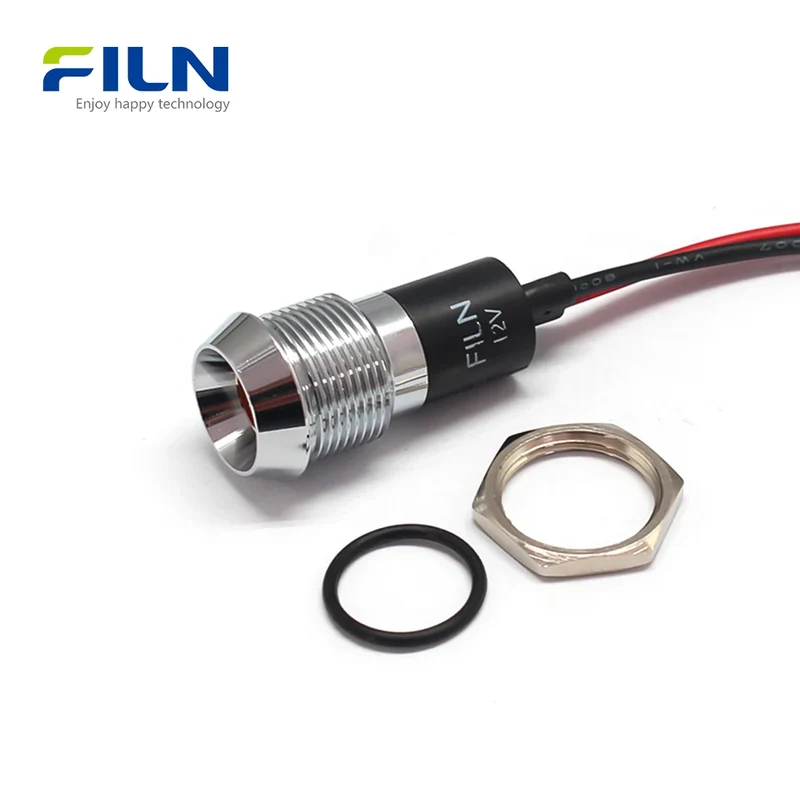

Yes, every unit comes with a silicone O-ring and a precision-threaded M16 nut.

5. Can I get a black shell instead of silver?
Absolutely. We provide both silver and black shell options for all 16mm models.

6. Is it truly IP67 waterproof?
Yes, when installed with the provided O-ring, it is fully sealed against dust and temporary immersion in water.

7. Do you offer different wire lengths?
Yes, as a factory, we can customize the wire length to your specific project needs.

8. What colors are available for the 120v model?
We stock Red, Green, Yellow, Blue, and White LEDs.

9. Are these lights UL certified?
Yes, FILN indicator lights carry UL certification for the US market.

10. What is the expected lifespan of the LED?
The LED is rated for over 50,000 hours of continuous operation.
