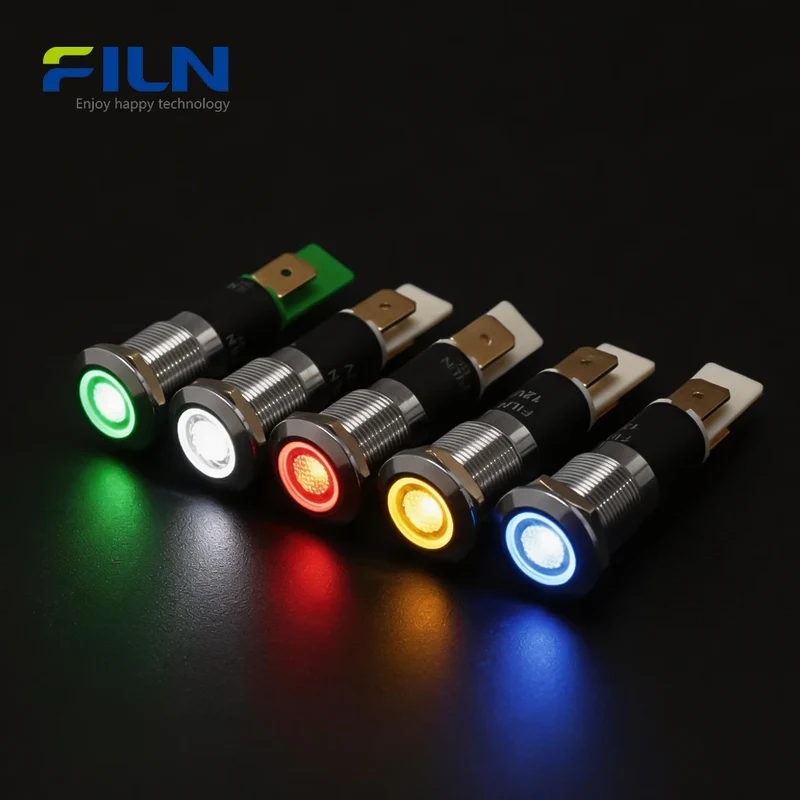

120V LED Panel Indicator Lights 12mm 2PIN Flat Haed Metal Pilot Lamp FILN

Product Overview

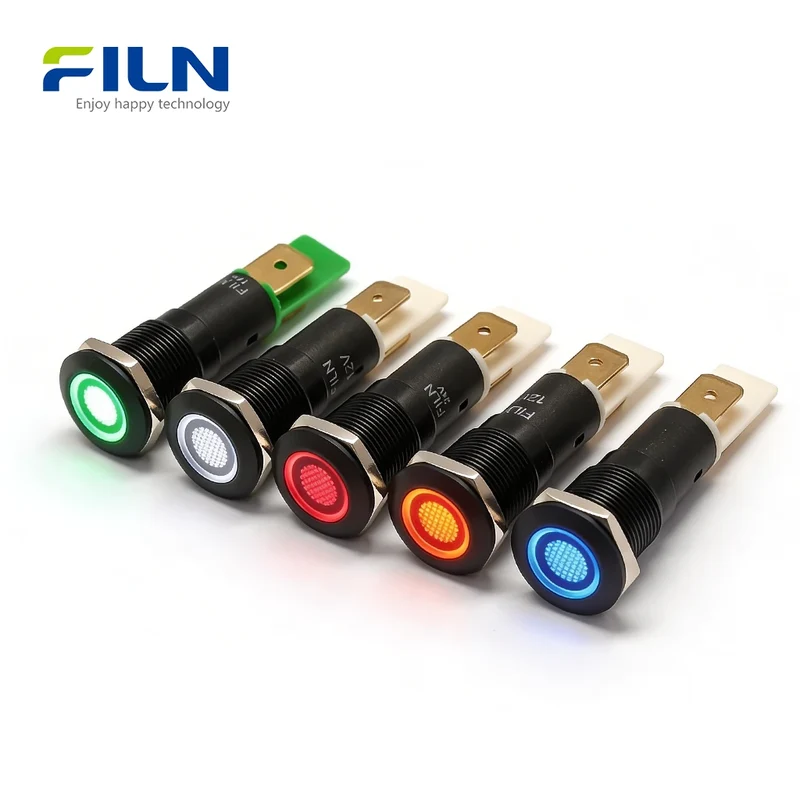

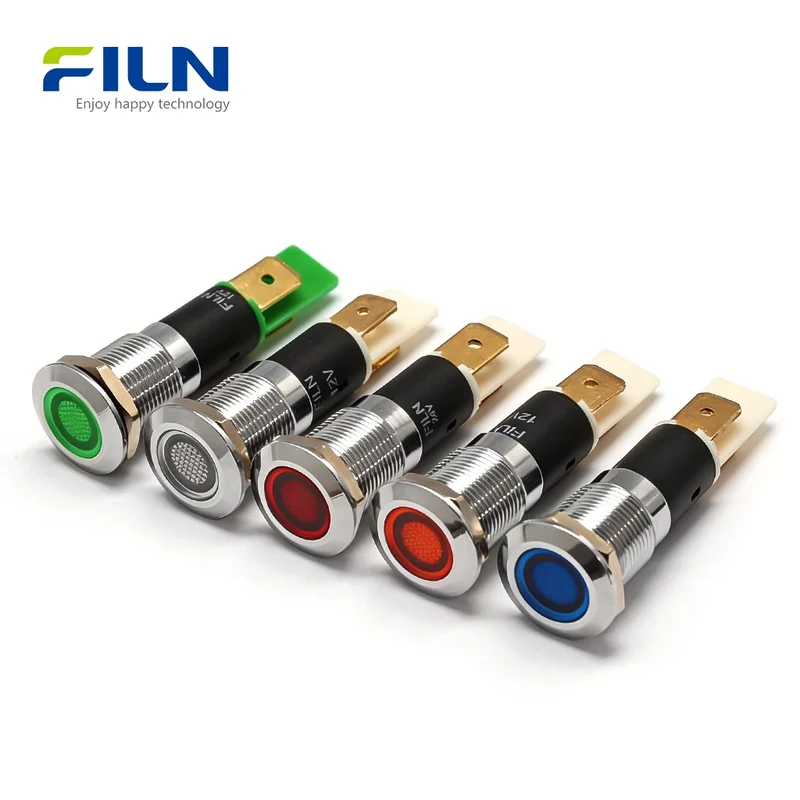

The 120V LED panel indicator lights (Model: FL1M-12FJ-1) are professional-grade signaling solutions designed for durability and clarity. These 12mm metal pilot lamps feature a robust flat-head design and 2-pin terminals for secure electrical connectivity. Engineered for global industrial standards, FILN indicator lights carry ISO9001, CE, VDE, RoHS, SGS, UL, and IP67 certifications[cite: 2]. They are primarily used in CNC machinery, industrial control panels, medical devices, and marine systems. The core advantage lies in the high-brightness LED chip and the corrosion-resistant metal housing (available in silver or black), ensuring reliable performance in harsh environments with an IP67 waterproof rating.

Quick Specifications

Mounting Hole	12mm (approx. 0.47 inches)
Voltage	12V-24V / 110V-220V (120V Standard)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Operating Temperature	-40℃ to +80℃
Lifespan	50,000 Hours
Wiring Type	2-Pin Plug-in Type (Fast Connection)

Rated Working Parameters

Rated Voltage	Customized (12V/24V/110V/120V/220V)
Frequency (AC)	50Hz ～ 60Hz
Rated Current	≤ 20mA

Component Materials

Housing	Nickel-plated Brass / Stainless Steel (Silver or Black)
Lens	Polycarbonate (PC)
Seal Ring	Silicone (O-Ring included)
Terminal	2-Pin Solder/Plug Lug

General Characteristics

Operating Temp	-40℃ ～ 80℃
Relative Humidity	≤85% at +40℃
Ambient Temp	5 ~ 35℃
Air Pressure	86 ~ 106Kpa

Electric Property

Insulation Resistance
Test Condition	DC500V for 1 minute
Requirement	≥100MΩ
Dielectric Strength
Test Condition	1500VAC / 5mA / 60s
Requirement	No breakdown or flashover

Key Features

• LED High Brightness: Ensures clear visibility even in well-lit factory environments.
• Long Lifespan: Rated for 50,000 hours of continuous operation.
• IP67 Waterproof: Full protection against dust and temporary immersion in water.
• Easy Installation: Features a 12mm thread with a smooth nut for rapid mounting.
• Industrial Grade Reliability: Metal housing provides impact resistance and electrical safety.

Applications

• Industrial control panels
• CNC machines & Lathes
• Automation equipment
• Testing & Measurement tools
• Marine & Yacht dashboards
• New energy charging piles
• Medical diagnostics gear
• Electrical cabinets

Installation Guide

1. Prepare a mounting hole on your panel with a diameter of 12mm.
2. Insert the indicator light from the front/top of the panel.
3. Ensure the O-ring waterproof washer is positioned between the light head and the panel.
4. From the back of the panel, slide the M12 metal nut onto the threads.
5. Tighten the nut to secure the unit firmly against the panel.
6. Connect the power source to the 2-pin terminals.

What Is a 120V LED Panel Indicator Light?

A 120V LED panel indicator light is a critical visual signaling component used in electrical systems to communicate the status of a machine or circuit. Unlike traditional incandescent bulbs, these LED versions are energy-efficient and highly resistant to vibration. The flat-head design is particularly advantageous in industrial settings as it offers a sleek profile that is less likely to be accidentally struck or damaged. Furthermore, the pin-type terminal design allows for quick soldering or plug-in connections, which is often preferred over wire-lead types in high-density control panels where space-saving and clean cable management are priorities.

Factory Direct Supply & Customization

FILN is a premier manufacturer specializing in signal indicator lights. We offer:

• Factory Direct Pricing: No middleman costs.
• Voltage Customization: Available from 3V to 380V[cite: 4].
• Connector & Wire Customization: Custom harness and terminal types available.
• Fast Global Shipping: Reliable logistics for international B2B orders.

FILN Official Website: www.filn.com

Contact Us: [email protected]

Frequently Asked Questions

Q1: Are these 120V LED indicator lights suitable for outdoor use?
A: Yes, with an IP67 rating, they are fully waterproof and dustproof.

Q2: Can I get a black housing instead of silver?
A: Yes, we offer both silver nickel-plated brass and black anodized finishes.

Q3: What is the benefit of a flat-head design?
A: It provides a low profile, making the panel easier to clean and preventing snagging.

Q4: Do these require a resistor for 120V AC?
A: No, the resistor is built-in for the specified voltage.

Q5: What is the difference between pin terminals and wire leads?
A: Pin terminals are better for PCB or quick-connect plugs, while wire leads offer more flexibility in routing.

Q6: Are these compatible with 110V systems?
A: Yes, our 110V-220V wide-voltage range covers 120V standard applications.

Q7: Can I use these on a yacht?
A: Absolutely, the IP67 rating and corrosion-resistant metal make them ideal for marine environments.

Q8: What certifications do FILN lights have?
A: We hold UL, CE, RoHS, VDE, and ISO9001 certifications[cite: 2].

Q9: Is the mounting hardware included?

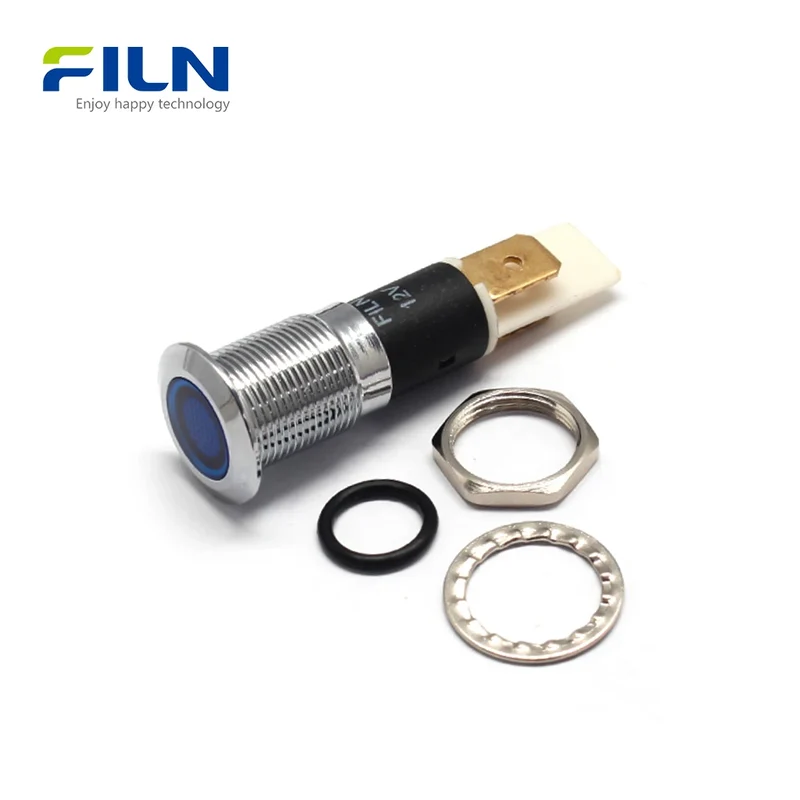

A: Yes, each light comes with a silicone O-ring and a metal M12 nut.

Q10: Do you support custom wire lengths?
A: Yes, we are a factory and can customize wire length and connectors upon request[cite: 4].
