120V Power Indicator Light 10mm Waterproof LED Signal Lamp for Panels FILN

1,51 €0,76 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

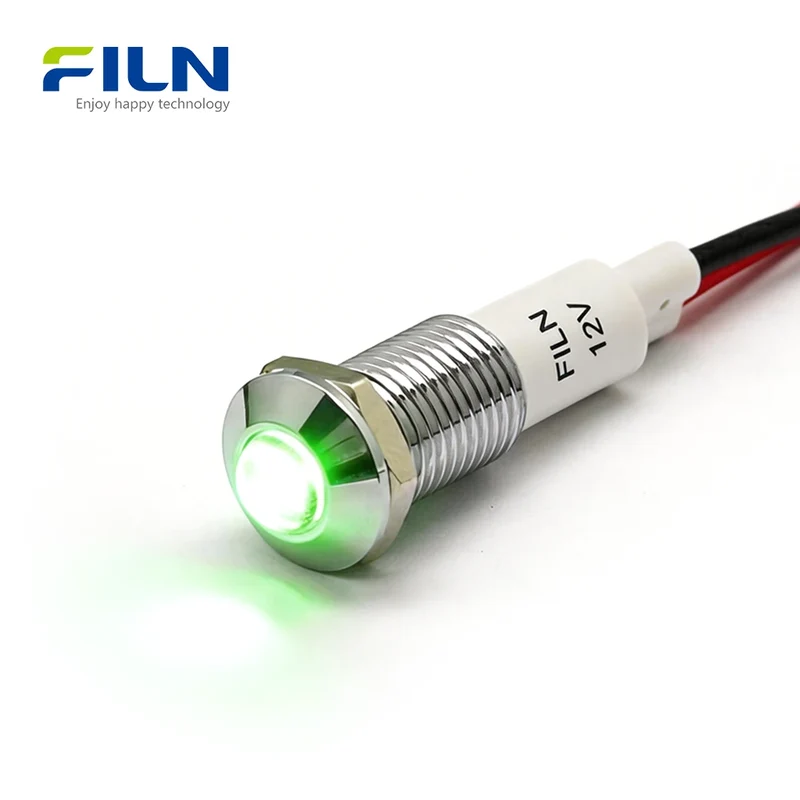

The 120V power indicator light (Model: FL1M-10SW-1) is a high-performance 10mm LED signal lamp engineered by FILN. This industrial-grade indicator features a metal high-head design available in silver or black finishes. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/IP67 certifications, it guarantees reliability across diverse environments. Designed for automation, CNC machinery, and electrical cabinets, its core advantages include a long lifespan, pre-wired leads for easy installation, and a robust waterproof seal. Whether used in marine systems or medical devices, this indicator provides superior visibility and high brightness durability.

Quick Specifications


Mounting Hole 10mm (0.39")
Voltage 12V-24V, 110V-220V (120V Support)

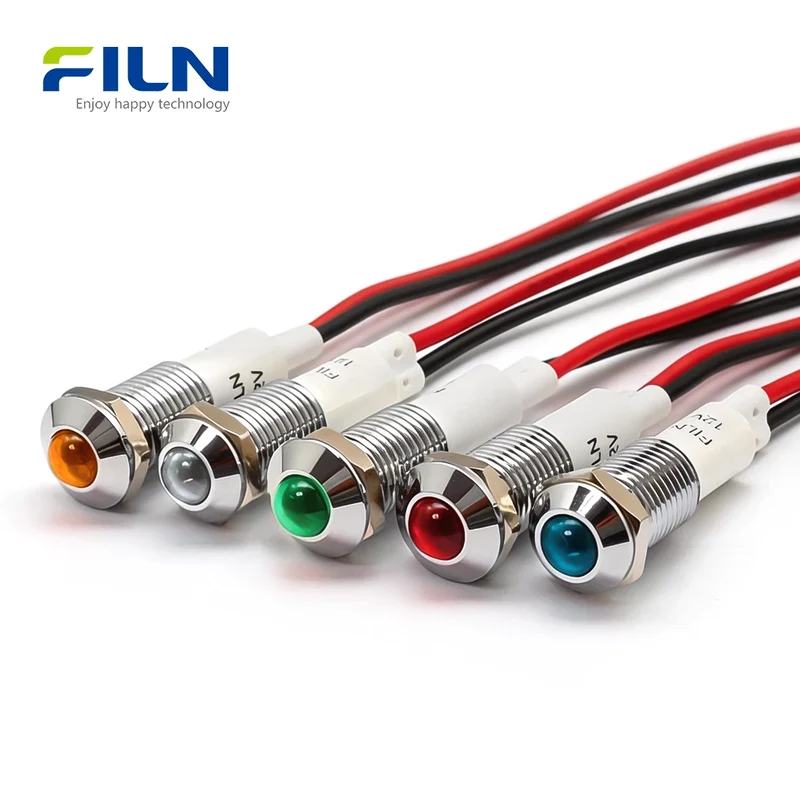

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65/IP67
Operating Temperature -40℃～80℃
Lifespan 50,000+ Hours

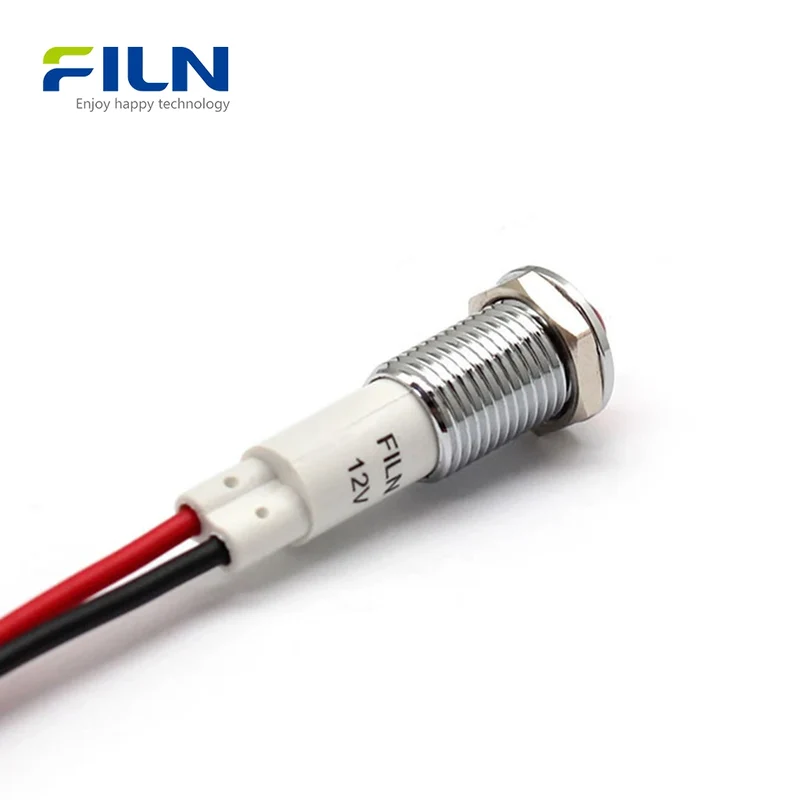

Wiring Type Pre-wired Lead Type

Rated Working Parameters


Rated Voltage Customized (incl. 120V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials


Housing Nickel-plated Brass / Black Aluminum
Lens High-Transmittance PC
Seal Ring Silicone Rubber
Terminal Lead Wire
Wire Material Standard PVC/UL Wire

General Characteristics


Application Status Indication
Operating Temperature -40℃～80℃
Relative Humidity (Operating) ≤85% at +40℃
Ambient Temperature 5~35℃
Relative Humidity (Ambient) 45~85%
Air Pressure 86~106Kpa

Electric Property


Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Durability Characteristics


Test Item Test Condition Requirement
Continuous Working Life 30mA 1000h 50,000 hours

Resistant Performance


High Temperature 80℃ 96h Pass
Low Temperature -40℃ 96h Pass
Moisture Resistance 40℃ 90-95%RH 96h Pass
Temperature Cycling -40℃ → 25℃ → 85℃ (5 rounds) Pass

Key Features


  • LED high brightness: Clear visibility even in high-ambient light environments.
  • Long lifespan: Maintenance-free operation for over 50,000 hours.
  • IP67 waterproof: Reliable performance in marine or high-moisture settings.
  • Easy installation: Smooth M10 threading and pre-wired tail design.
  • Industrial grade reliability: Metal high-head design resists impact and environmental wear.

Applications


  • Industrial control panels and electrical cabinets.
  • CNC machines and automation systems.
  • Marine dashboards and nautical equipment.
  • Medical diagnostic devices.
  • Commercial kitchen appliances (coffee machines, ovens).
  • Custom automotive dashboards and DIY electronics.

Installation Guide


  1. Drill a 10mm hole in your control panel or dashboard.
  2. Place the O-shaped waterproof ring onto the indicator light head.
  3. Insert the indicator light into the hole from the front side of the panel.
  4. Thread the M10 nut from the back side and tighten securely.
  5. Connect the pre-wired leads to your 120V power source.

What Is a 120V Power Indicator Light?


A 120V power indicator light is a critical visual signaling component used to monitor the status of electrical circuits. In industrial settings, the high-head design is preferred because it offers wider viewing angles and is easier to spot from a distance compared to flat-head models.

The primary difference between wire-lead (pre-wired) indicators and pin-type terminals is the installation convenience; pre-wired versions eliminate the need for soldering or crimping on-site, which significantly reduces labor time and prevents connection failures in high-vibration environments.

FILN Factory Direct Supply

  • ✅ Factory Direct Pricing: No middlemen.
  • ✅ Voltage Customization: Supports 12V to 380V.
  • ✅ Wire Length & Connector Customization: Tailored to your project.
  • ✅ Fast Global Shipping: Reliable logistics for B2B.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions


Q1: What are the advantages of the high-head design?
A: High-head indicators protrude slightly from the panel, providing better side visibility and a more tactile feel for industrial status monitoring.

Q2: Is the 120V power indicator light suitable for outdoor use?
A: Yes, with an IP67 rating and a silicone seal, it is fully protected against dust and heavy water immersion.

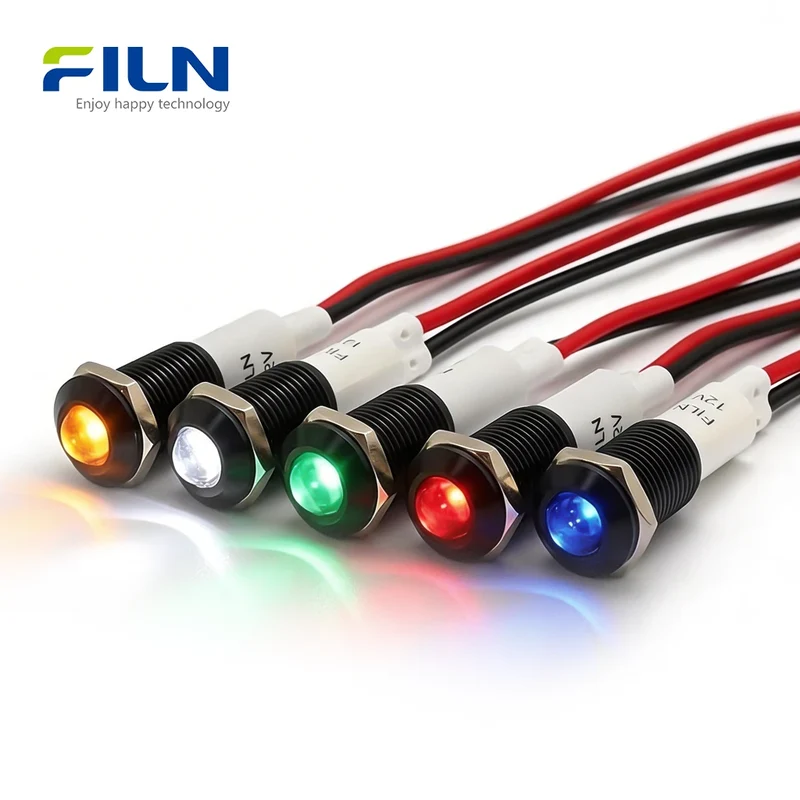

Q3: Can I choose between a silver or black shell?
A: Yes, we offer both nickel-plated brass (silver) and black anodized aluminum finishes.

Q4: Why choose wire leads over terminal pins?
A: Wire leads are more convenient for quick wiring and are more reliable in environments prone to vibration.

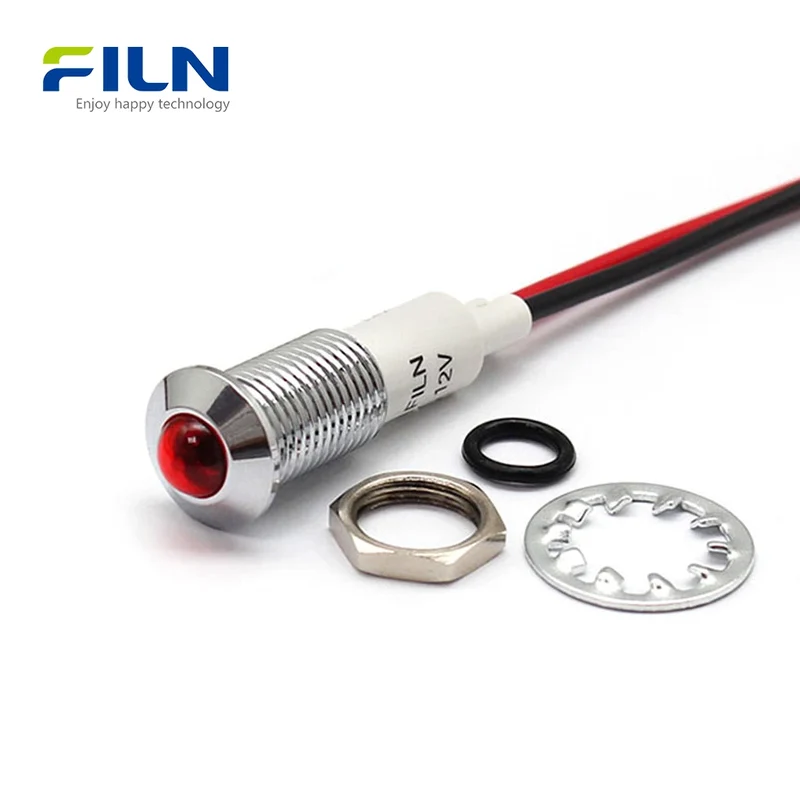

Q5: Does this model come with mounting hardware?
A: Yes, each indicator includes a 10mm waterproof O-ring and a smooth-threading M10 nut.

Q6: Can I use this for a 110V household application?
A: Yes, the 110V-220V range covers standard 120V North American household power.

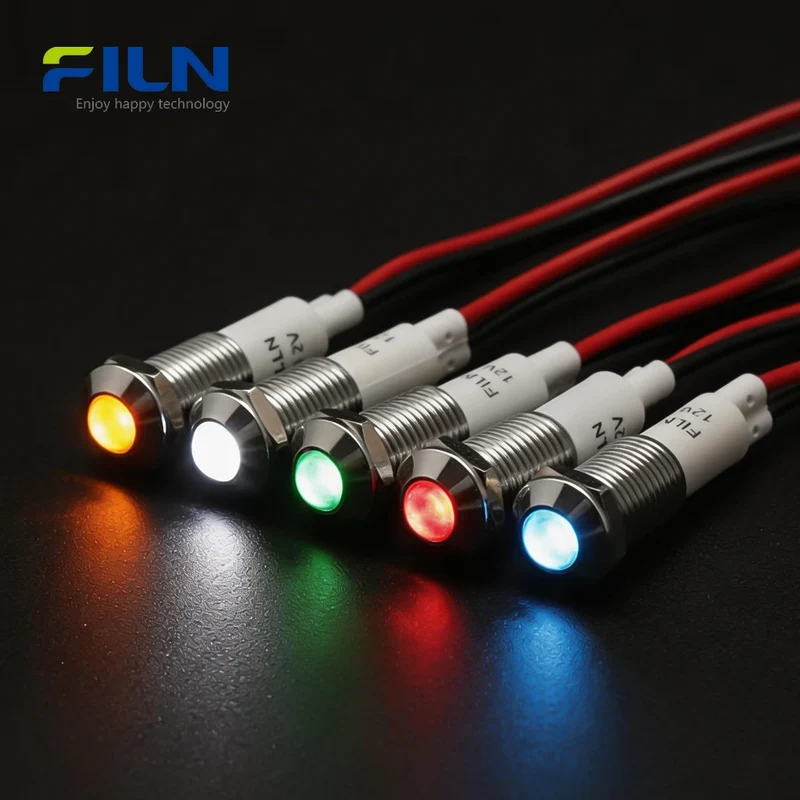

Q7: What colors are available for the LED?
A: We provide Red, Green, Yellow, Blue, and White LED options.

Q8: What is the lifespan of this indicator?
A: The high-quality LED is rated for over 50,000 hours of continuous use.

Q9: Are these certified for the US market?
A: Yes, our products are UL, CE, and RoHS certified to meet international safety standards.

Q10: Can FILN customize the wire length?
A: Absolutely. As a factory, we can customize wire lengths and add specific connectors to meet your needs.
