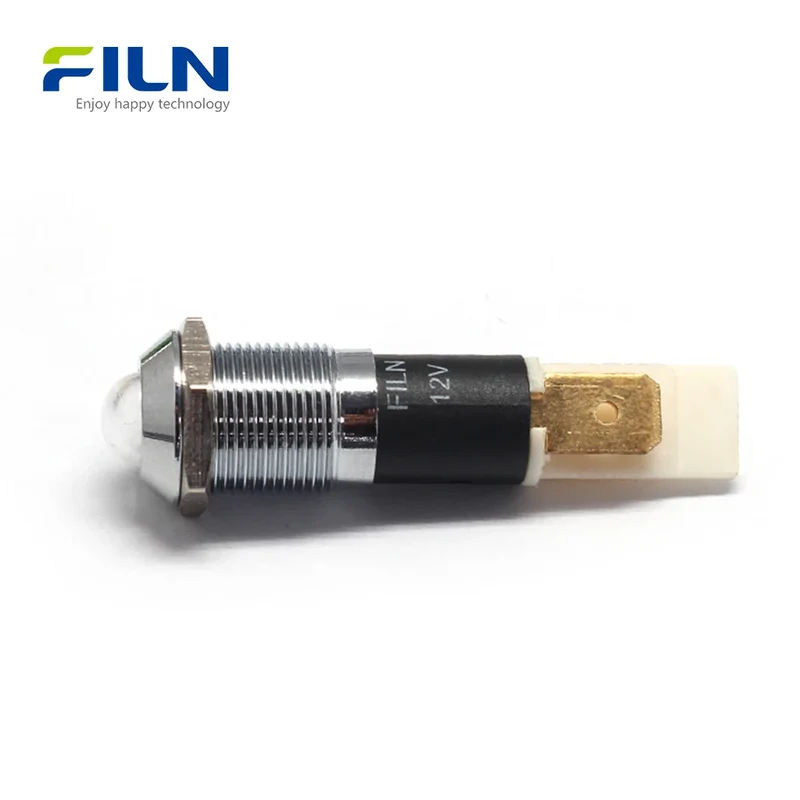

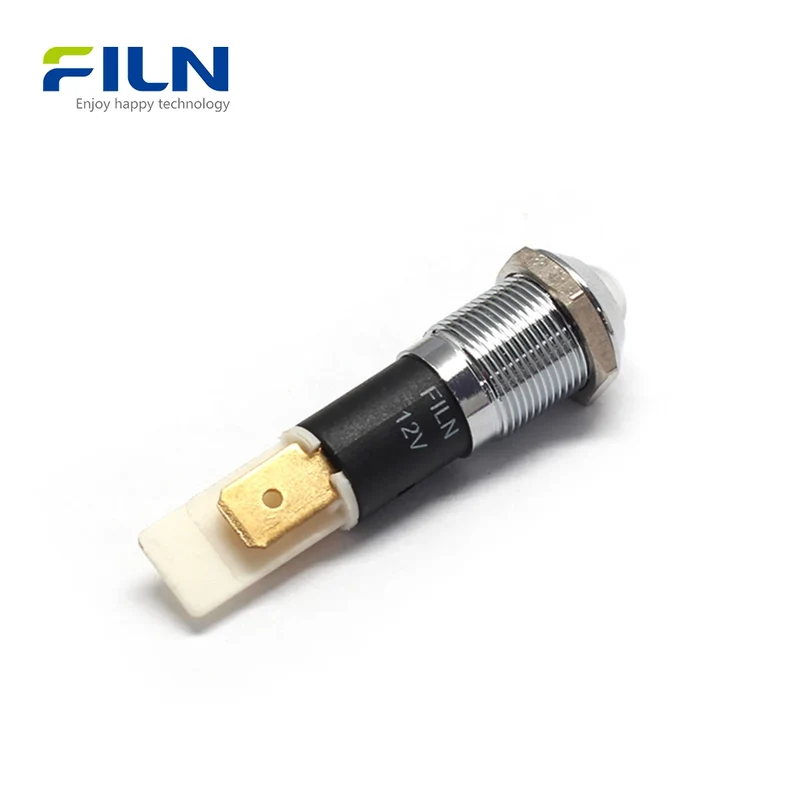

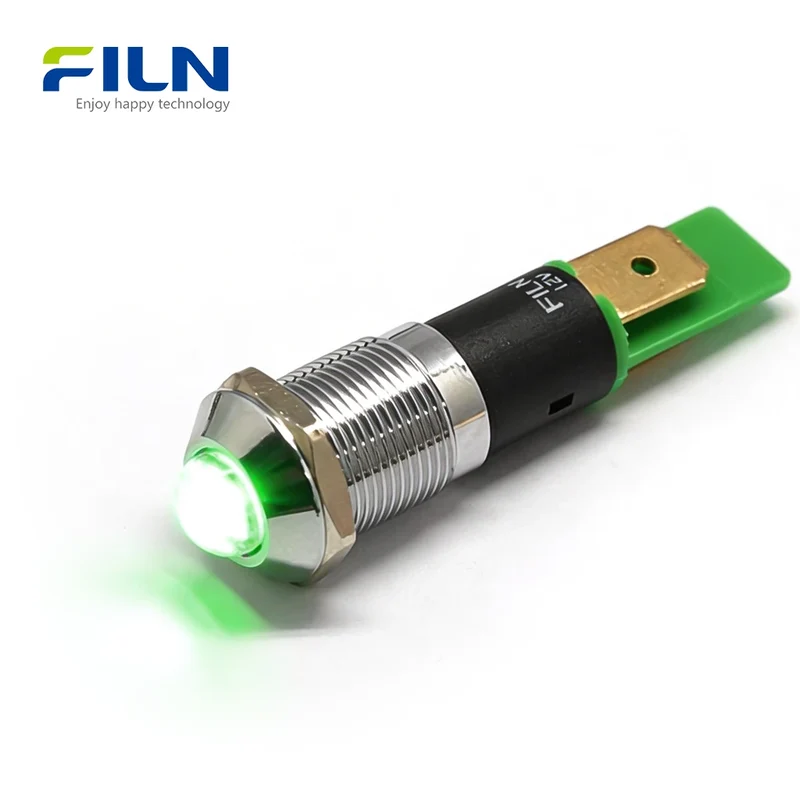

120VAC Indicator Light 12mm 3V-220V Metal High Head Pilot Lamp FILN

1,46 €0,87 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

The 120VAC indicator light (Model: FL1M-12SJ-1) is a premium 12mm metal high-head pilot lamp designed for diverse applications including medical devices, testing equipment, yachts, and new energy systems. Engineered by FILN, this product carries ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications. Its high-head design offers superior side-angle visibility and tactile feedback, while the 2-pin terminal ensures a secure, high-current connection compared to standard wire leads. With a robust industrial-grade metal housing available in silver or black, these indicators provide long-lasting reliability and are easy to install in demanding environments.

Quick Specifications

Mounting Hole 12mm / 0.47"
Voltage 12-24V, 110-220V (Customized Support)

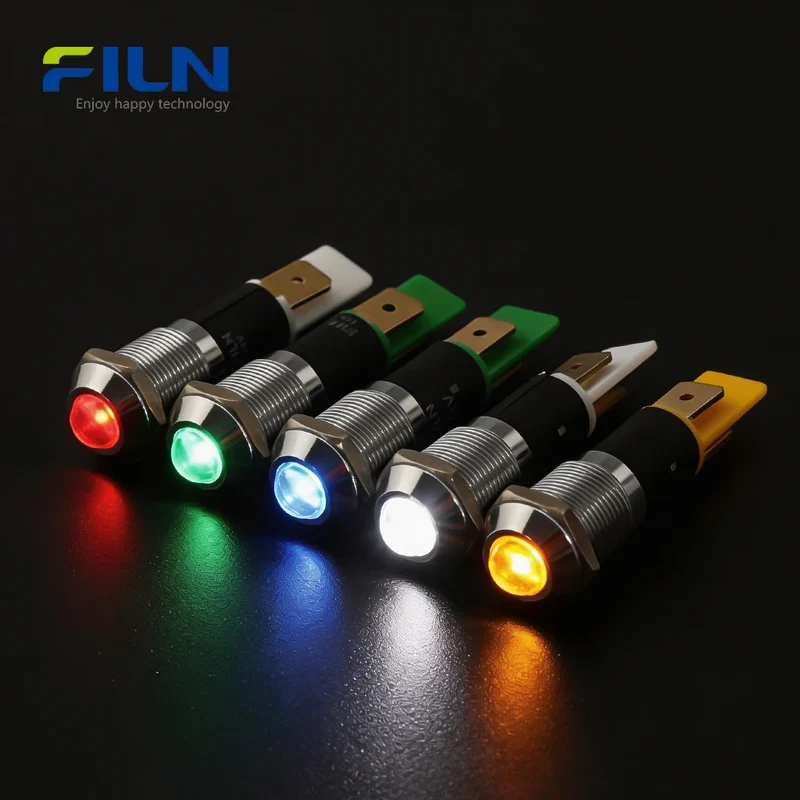

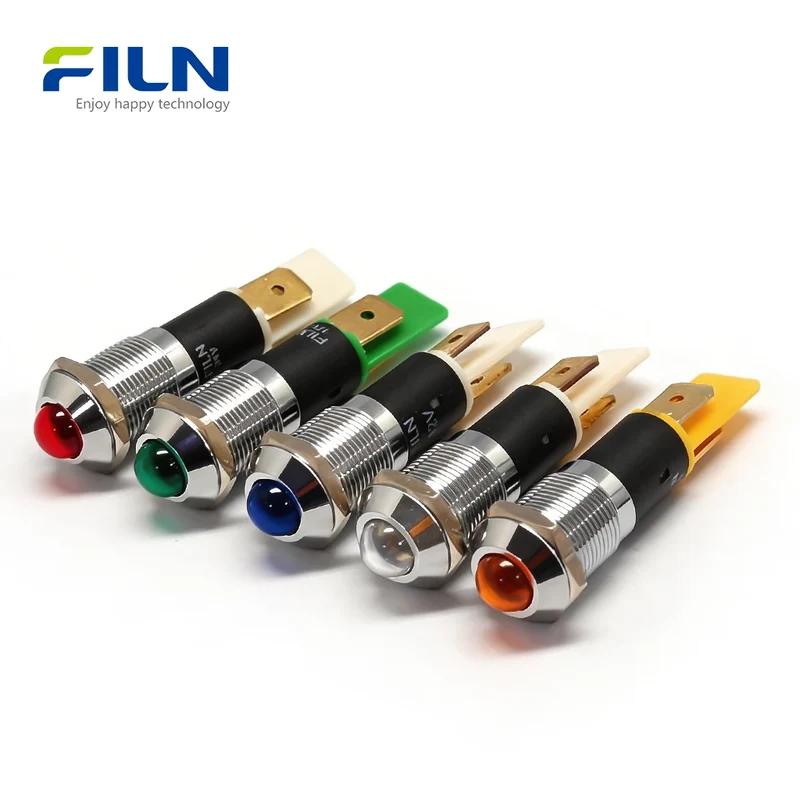

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃～80℃
Lifespan 50,000 Hours
Wiring Type 2-PIN Plug-in Terminal

Rated Working Parameters

Rated Voltage Customized (120VAC Included)
Frequency(AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Stainless Steel / Nickel-plated Brass (Silver or Black)
Lens Polycarbonate (PC)
Seal Ring Silicone O-ring
Terminal Copper Alloy with Silver Plating
Wire Material Customized upon request

General Characteristics

Application Medical, Marine, Industrial Control
Part Name LED Indicator Light
Operating Temperature -40℃～80℃
Storage Temperature -40℃～85℃
Relative Humidity ≤85% at +40℃
Waterproof Rating IP67
Ambient Temp: 5~35℃ | Relative Humidity: 45~85% | Air Pressure: 86~106Kpa

Electric Property

Insulation Resistance Test Condition: DC500V 1min | Req: ≥100MΩ
Dielectric Strength Test Condition: 1500VAC / 5mA / 60s | Req: No breakdown

Durability Characteristics

Continuous Working Life 50,000 Hours (Tested at 30mA 1000h)

Resistant Performance

High Temperature 80℃ 96h
Low Temperature -40℃ 96h
Moisture Resistance 40℃ 90-95%RH 96h
Temperature Cycling -40℃ → 25℃ → 85℃ (5 rounds)

Key Features

  • High Head Visibility: Elevated lens provides 360-degree signal recognition.
  • Metal Durability: CNC-machined shell available in silver nickel-plating or black oxide.
  • 2-PIN Terminal: Superior for vibration resistance and high-current stability compared to standard wiring.
  • IP67 Waterproof: Includes an oversized O-ring for absolute sealing in marine and medical environments.
  • Long Service Life: Advanced LED chips ensure over 50,000 hours of operation.

Applications

  • Medical Devices: Sterilizers, patient monitors, and diagnostic equipment.
  • Marine Systems: Yacht control panels and navigation lighting.
  • Testing Equipment: Laboratory power supplies and quality control sensors.
  • New Energy: EV charging stations and solar inverters.
  • Industrial Machinery: CNC centers and automated production lines.

Installation Guide

  1. Drill a 12mm diameter hole in the mounting panel.
  2. Place the oversized O-ring onto the indicator body to ensure a waterproof seal.
  3. Insert the indicator light into the hole from the top/front of the panel.
  4. From the back, thread the M12 nut onto the smooth-running metal threads.
  5. Tighten the nut to secure the indicator light firmly against the panel.
  6. Connect your 120VAC power source to the 2-PIN terminals.

What Is an 120VAC Indicator Light?

A 120VAC indicator light is a critical visual status component used to monitor the power state of electrical systems. The high-head design is specifically engineered for environments where operators need to see signals from the side, providing an advantage over flat-head models. Furthermore, the pin-type terminal offers a significant advantage over pre-wired versions by allowing for modular maintenance—if a wire is damaged, the indicator does not need to be replaced, just re-plugged. This makes them ideal for industrial control panels and high-reliability medical equipment where downtime must be minimized.

Factory Direct Supply

  • Voltage Customization: Wide range from 3V to 380V.
  • Custom Wire Lengths: Tailored to your specific cabinet dimensions.
  • Connector Customization: Professional crimping and harness assembly.
  • Fast Global Shipping: Rapid lead times for B2B orders.

FILN Official Website: www.filn.com

Contact Us: [email protected]

Frequently Asked Questions

1. Can I use this 120VAC indicator light on a yacht?
Yes, with an IP67 waterproof rating and marine-grade metal housing, it is perfect for yacht control panels.

2. What is the benefit of the high-head design?
The high-head lens allows the light to be visible from wider angles, ensuring safety signals are seen clearly from any direction.

3. Does the metal housing rust?
No, our housings are made of stainless steel or nickel-plated brass, providing excellent corrosion resistance.

4. What is the difference between 2-PIN terminals and wire leads?
2-PIN terminals are more convenient for high-current applications and allow for modular connection/disconnection during maintenance.

5. Are these lights compatible with medical equipment standards?
Yes, they are UL and CE certified, making them suitable for healthcare and medical diagnostic devices.

6. What colors are available?
We offer Red, Green, Yellow, Blue, and White LED options.

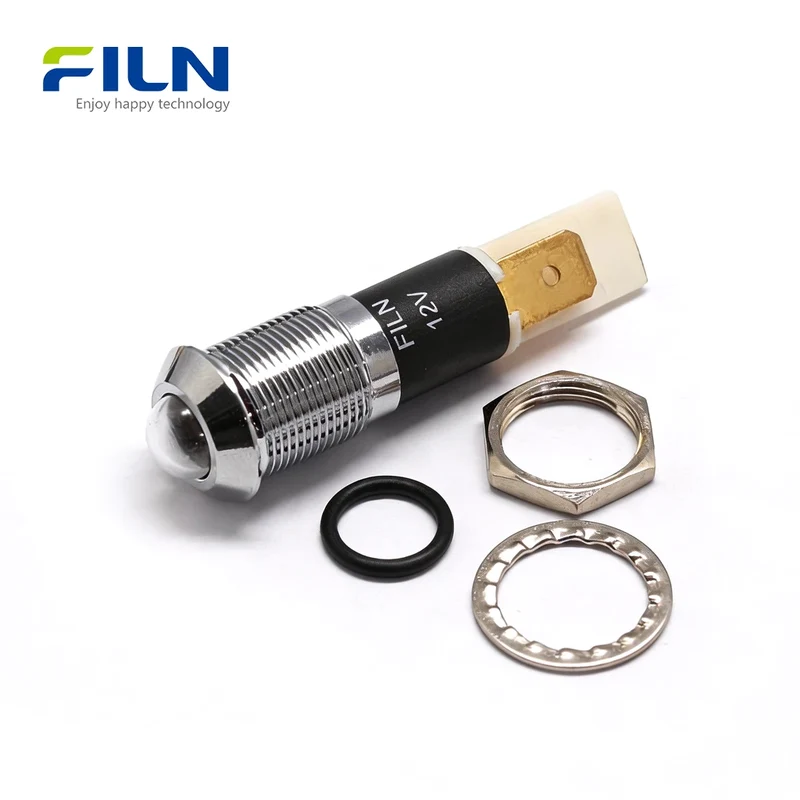

7. Is the installation nut included?
Yes, each unit includes an M12 nut and an oversized O-ring for waterproof sealing.

8. Can the voltage be customized for 24V?
Yes, we support customization for 12-24V as well as standard 110-220V.

9. How long is the service life?
Our LED indicator lights are rated for over 50,000 hours of continuous use.

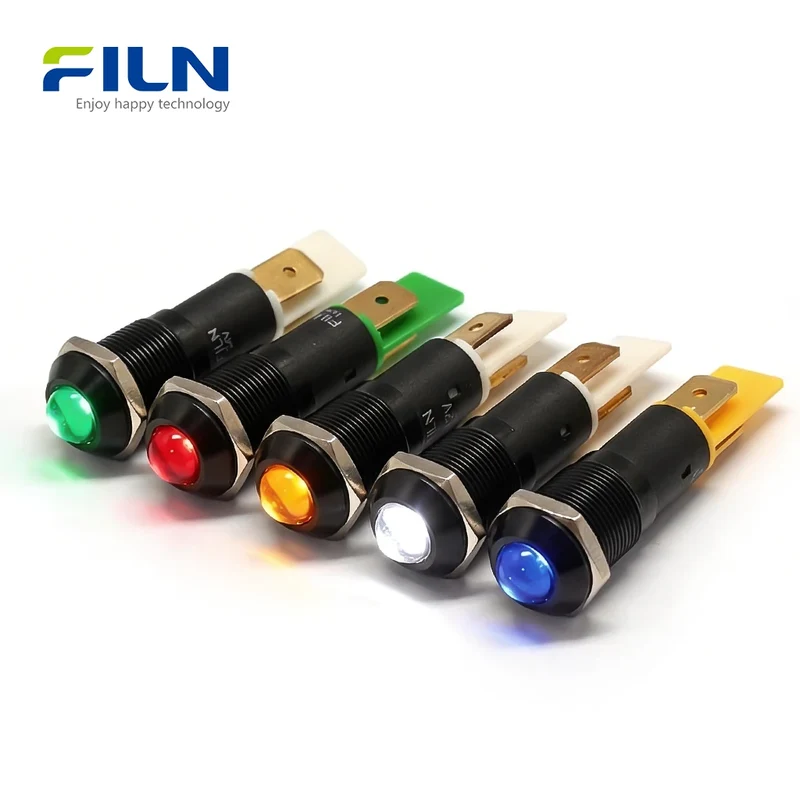

10. Do you offer black housings?
Yes, we provide both silver (nickel-plated) and black (anodized/oxide) housing options.
