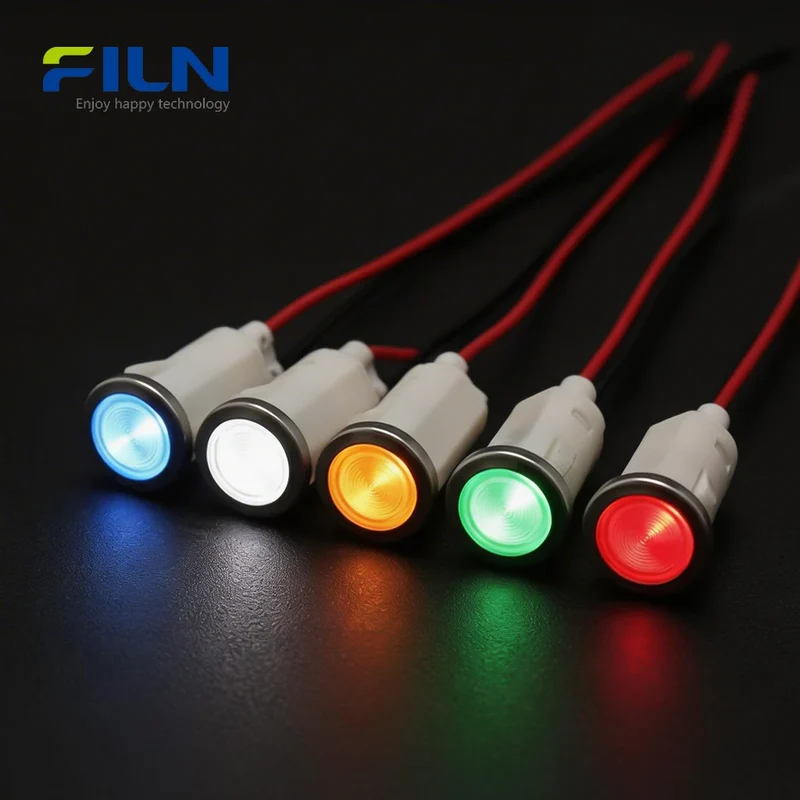

12.5mm PA66 Plastic Indicator Pilot Light Pre-wired Round Top Snap-in FILN

Product Overview

The FL1P-12.5QW-2 series is a professional-grade indicator pilot light designed for streamlined industrial integration. These 12.5mm units are for sale directly from the FILN factory, featuring a robust PA66 Nylon housing and a high-visibility round high-head lens. This plastic indicator pilot light is engineered with a convenient pre-wired lead design (15cm standard), eliminating the need for complex terminal soldering. With its snap-in mounting system, it offers a tool-free installation perfect for high-volume assembly. Certified by ISO9001, CE, UL, VDE, and RoHS, these lights ensure reliable performance across automation, electrical panels, and machinery. You can purchase these indicator pilot lights directly to benefit from factory-direct pricing and full customization of voltage and wire specifications.

Quick Specifications

Mounting Hole	12.5mm / 0.49 inch
Voltage	12V, 24V, 110V, 220V (Customizable)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 (Threaded version only)
Operating Temperature	-40℃ to +80℃
Lifespan	60,000 Hours
Installation Method	Snap-in Mounting
Wiring Type	Pre-wired Lead (15cm PVC)

Certifications: ISO9001, CE, VDE, RoHS, SGS, UL

Rated Working Parameters

Rated Voltage	Customized (3V-380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Component Name	Material
Shell (Housing)	PA66 Nylon
Lamp Holder	PA66 Nylon
Lampshade (Lens)	PC (Polycarbonate)
Luminescent Source	LED
Resistance	Carbon Film Resistance
Terminal/Wire	1007 PVC Wire (15cm)

General Characteristics

Insulation Resistance	1800V/5s
Working Life	60,000 Hours
Relative Humidity	45%~85%
Air Pressure	86~106Kpa

Electric Property

Test Condition	DC500V 1min / 1500VAC 60s
Requirement	≥100MΩ / No breakdown

Durability Characteristics

Continuous Working Life	50,000h (Requirement)
Test Load	30mA 1000h

Resistant Performance

High Temperature	80℃ 96h
Low Temperature	-40℃ 96h
Moisture Resistance	40℃ 95%RH 96h

Key Features

• LED High Brightness: Equipped with premium LEDs for clear signal status.
• Long Lifespan: Designed for up to 60,000 hours of continuous use.
• Pre-wired Design: 15cm wire leads for fast and convenient electrical connection.
• PA66 Plastic Shell: Superior chemical resistance and electrical insulation.
• Snap-in Mounting: Push-fit design significantly reduces installation labor.

Applications

• Industrial control panels and monitoring systems.
• Automation equipment and CNC machine tools.
• Electrical cabinets and power distribution boxes.
• Marine electronics and automotive dashboard indicators.
• Commercial appliances and medical devices.

Installation Guide (Snap-in)

1. Panel Cutout: Prepare a precise 12.5mm hole on the mounting surface.
2. Insertion: Push the indicator pilot light through the hole from the front.
3. Locking: The flexible PA66 "ears" will snap into place, securing the light against the panel.
4. Connection: Connect the pre-wired leads to the circuit according to the rated voltage.

Industry Knowledge: Indicator Pilot Light Selection

Choosing the right indicator pilot light involves understanding material and connection trade-offs. Plastic indicators (PA66) are corrosion-resistant and cost-effective, while Metal indicators offer high impact resistance.

Pre-wired vs. Pin Type: Pre-wired units (direct lead design) are faster to install and offer better vibration resistance, making them ideal for mobile machinery. Pin types (plug-in) allow for easier maintenance if the light needs frequent swapping.

LED Color Standard Definitions:
• Red: Emergency, danger, or circuit failure.
• Green: Safe, normal operation, or circuit ready.
• Yellow: Warning, caution, or abnormal state.
• Blue: Mandatory action or special operator attention required.
• White: Power status indicator or circuit monitoring.

Factory Direct Supply

FILN factory provides high-volume indicator pilot light solutions with full customization support:

• Voltage: Custom 3V - 380V support.
• Wire Leads: Custom lengths and connectors available.
• Branding: OEM/ODM services for industrial buyers.

Website: www.filn.com
Email: [email protected]

Frequently Asked Questions

1. Are these 12.5mm indicator pilot lights for sale with bulk discounts?
Yes, as a factory direct supplier, FILN offers tiered wholesale pricing for large industrial orders.

2. What is the benefit of the round high-head lens?
The round high-head design provides enhanced lateral visibility, allowing the signal to be seen from various angles on a control panel.

3. Can I order these for 110V AC systems?
Yes, we support multiple voltages including 12V, 24V, 110V, and 220V AC/DC configurations.

4. Why is PA66 Nylon used for the housing?
PA66 Nylon offers excellent thermal stability and insulation, making it safer and more durable than standard plastics in electrical environments.

5. Is the 15cm wire length customizable?
Absolutely. We can produce wire leads of any length requested (e.g., 50cm, 1m) to fit your specific cabinet layout.

6. How does the snap-in mounting compare to screw-in?
Snap-in is much faster to install as it requires no tools or nuts, though threaded screw-in models offer higher IP ratings.

7. What does a yellow indicator pilot light represent?
In industrial environments, yellow typically warns of a non-critical anomaly or a caution state that requires operator attention.

8. Do these indicators come with internal resistors?
Yes, all LED indicators include the necessary resistors for the specified voltage, ensuring long life and stable brightness.

9. Are FILN indicator pilot lights UL certified?
Yes, our products carry major certifications including UL, CE, and VDE for global compliance.

10. What is the MOQ for custom voltage indicator lights?
Contact our sales team at [email protected] for specific MOQ details, as we are flexible with industrial orders.
