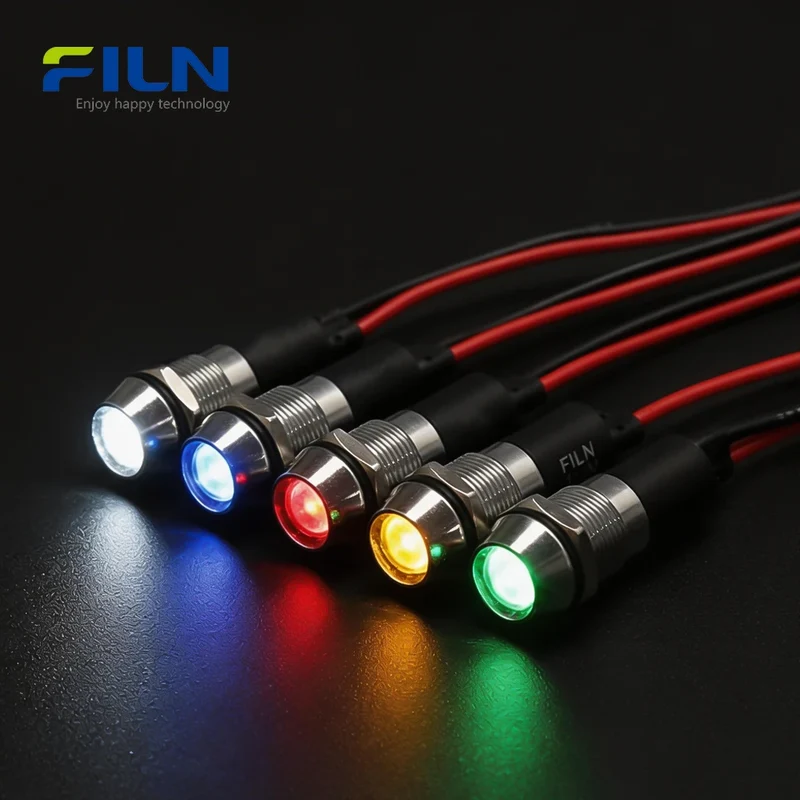

12mm LED Indicator Light 12V Black IP67 Waterproof Concave Head Signal Lamp FILN

1,45 €0,76 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

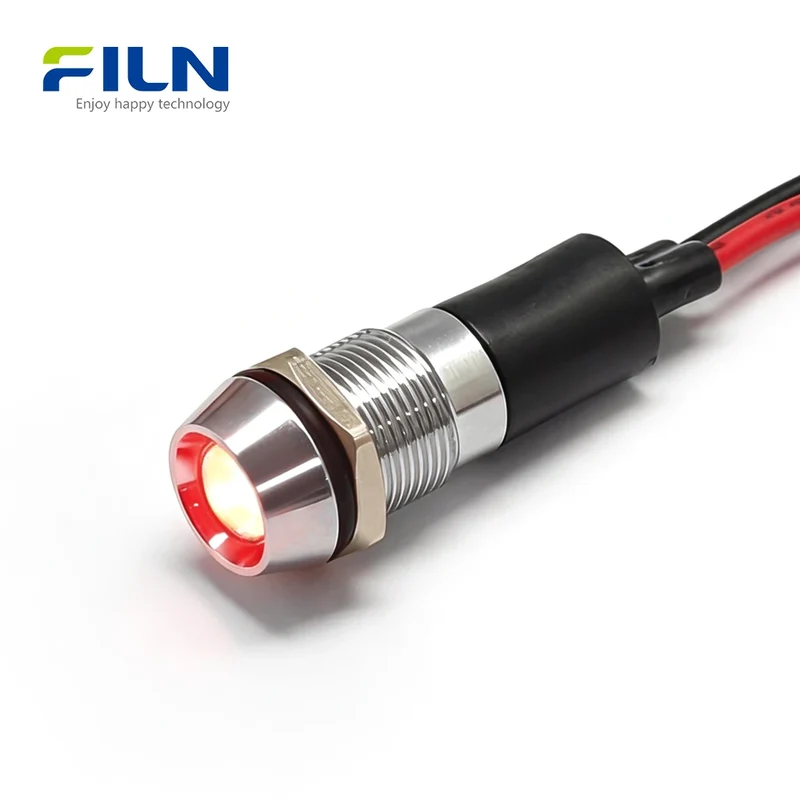

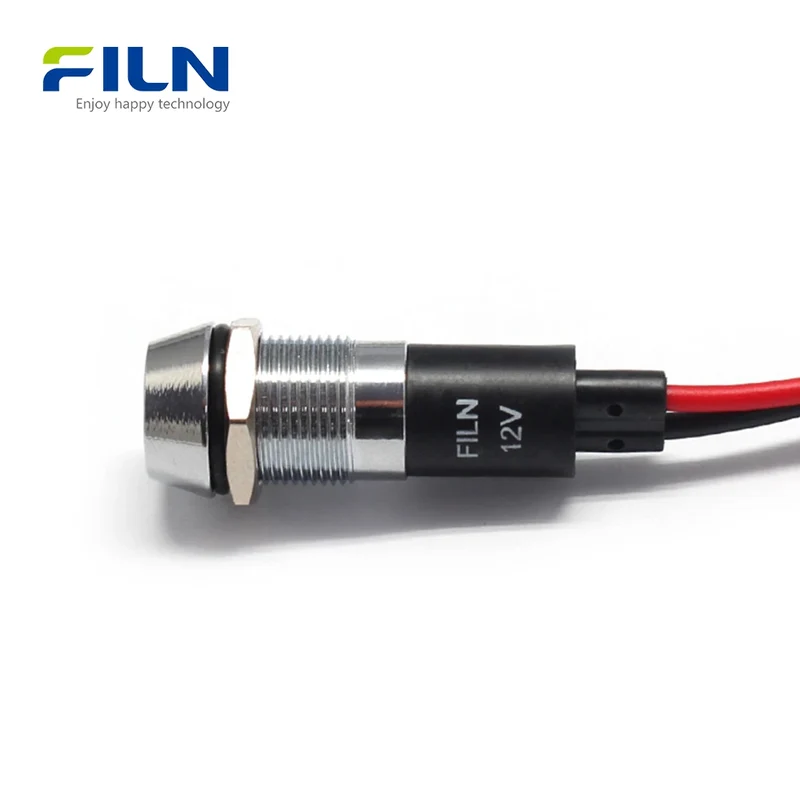

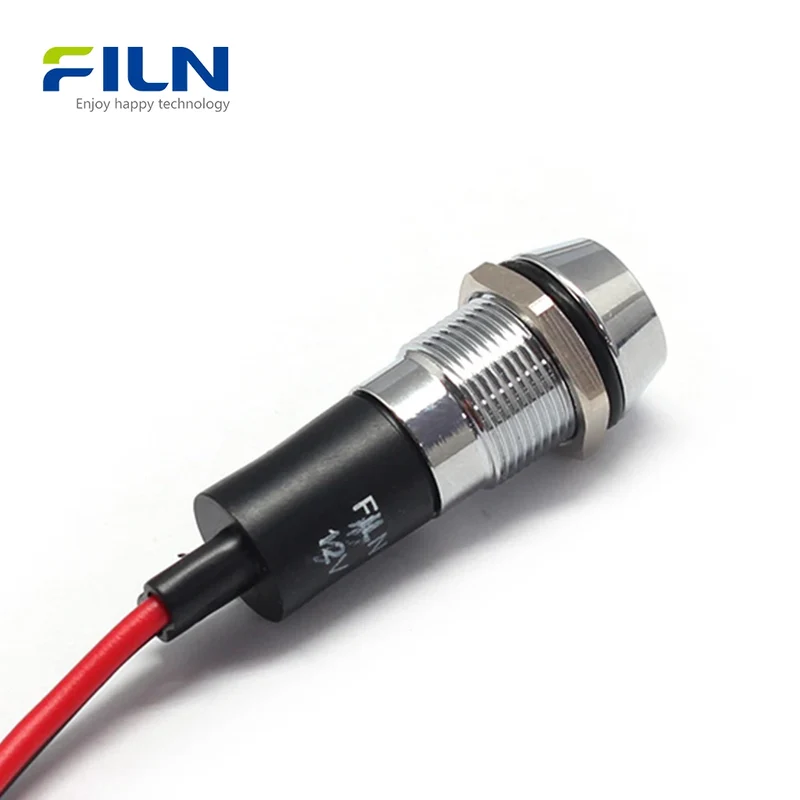

The led indicator light 12v black (Model: FL1M-12CW-1) by FILN is a premium 12mm signaling solution designed for extreme reliability. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, this concave head metal indicator provides a sleek, low-profile aesthetic that prevents accidental impacts. Engineered for industrial control panels, medical devices, marine yachts, and new energy equipment, it features a durable black or silver housing and IP67 waterproof protection. Its core advantage lies in the pre-wired 15cm leads, offering a secure, vibration-resistant connection that outperforms standard pin terminals in harsh environments.

Quick Specifications

Mounting Hole 12mm (0.47")
Voltage 12V, 24V, 110V, 220V (Supports Customization)

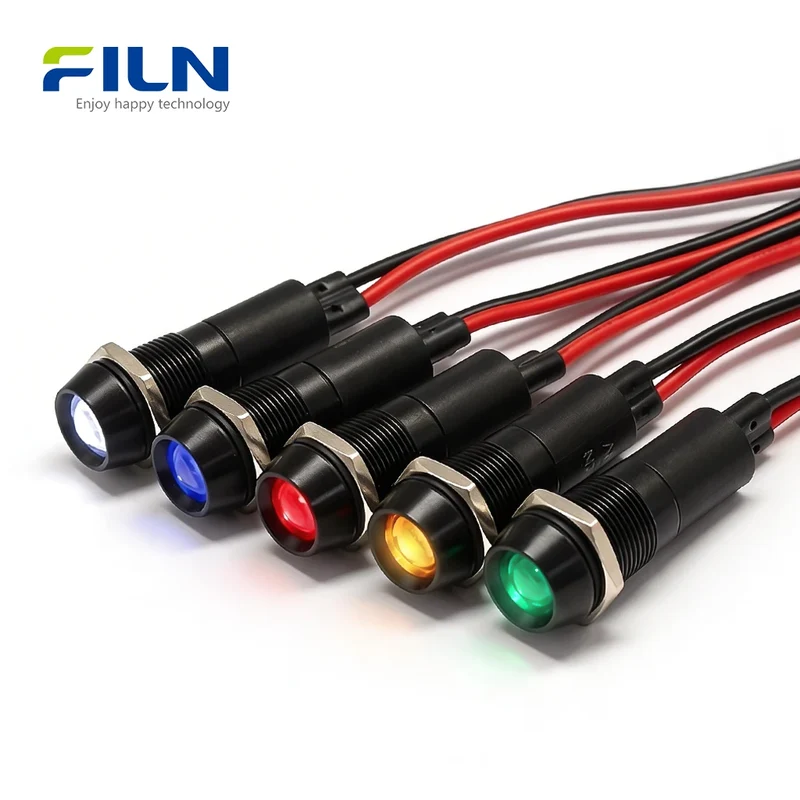

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Wiring Type Wire Lead Type (15cm Standard)
Lifespan 50,000 Hours

Rated Working Parameters

Rated Voltage Customized (3V to 380V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Black Anodized Aluminum / Chrome Brass
Lens Polycarbonate (PC)
Seal Ring SIL Silica Gel
Wire Material UL1007 Copper Wire (15cm)

General Characteristics

Operating Temperature -40℃～80℃
Storage Temperature -40℃～85℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Test Item Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown or flashover

Durability Characteristics

Continuous Working Life 50,000 Hours (Tested at 30mA for 1000h)

Key Features

  • Concave Head Design: Protects the lens from physical damage and provides a modern, recessed light aesthetic.
  • Pre-Wired Convenience: 15cm wire leads allow for direct connection, eliminating the need for soldering or crimping terminals.
  • IP67 Waterproofing: Includes a high-grade O-ring and M12 nut, ensuring complete protection against dust and moisture.

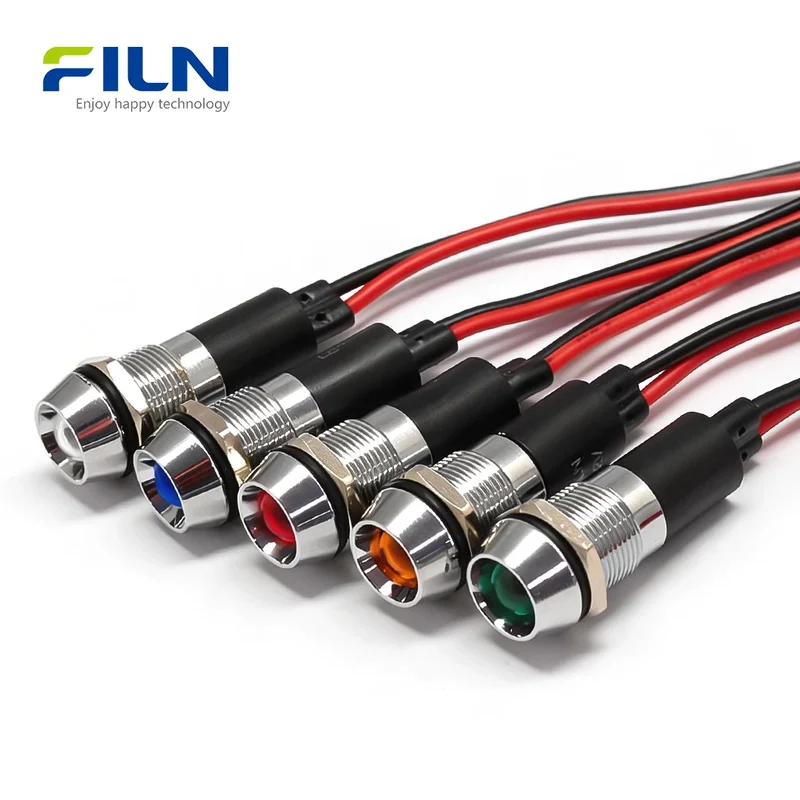

  • Versatile Housing: Available in sleek black anodized aluminum or classic silver finishes.
  • Industrial Grade Reliability: Built with UL-certified copper wire and high-brightness LEDs for 50,000 hours of service.

Applications

  • Industrial: Control panels, CNC machining centers, and automation lines.
  • Marine & Transportation: Yacht dashboards, RV control panels, and electric vehicles.
  • New Energy: Charging piles, solar energy storage systems, and battery management cabinets.
  • Medical & Lab: Diagnostic equipment, testing instruments, and sterilization devices.

Installation Guide

  1. Drill a 12mm diameter hole on your control panel.
  2. Insert the indicator light through the hole from the top/front side of the panel.
  3. Place the included O-type waterproof seal ring onto the threaded body from behind.
  4. Thread the M12 nut onto the housing and tighten until the light is securely fixed.
  5. Connect the 15cm wire leads to your power source (Polarity: Red for Positive, Black for Negative).

What Is an LED Indicator Light 12V Black?

An led indicator light 12v black is a critical visual signaling device used to communicate system status to operators. The 12mm size is a global standard for space-constrained panels. The "Concave Head" design is specifically used to prevent the light source from being hit or damaged by moving parts or accidental contact. Unlike pin-type indicators which require manual soldering or specialized connectors, wire lead indicators (like the FL1M-12CW-1) come pre-assembled with 15cm of wire. This "Direct Lead" approach is preferred in high-vibration industries like marine or heavy machinery because it creates a more permanent, fail-safe electrical connection.

FILN Factory Direct & Customization

Get factory-direct pricing and full technical support for your B2B requirements:

  • Custom Voltages (3V-380V) [cite: 4]
  • Custom Wire Lengths
  • Custom Terminal/Connector Types
  • Bulk Branding & OEM Support
  • Fast Global Shipping

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: What are the benefits of the concave head design?
A1: The recessed lens is protected from side impacts and accidental bumps, making it ideal for high-traffic panels.

Q2: Is the black housing scratch-resistant?
A2: Yes, our black anodized aluminum housing is treated for high durability and corrosion resistance.

Q3: Can I use this 12V light in a marine yacht environment?
A3: Absolutely. The IP67 rating and metal housing provide excellent protection against salt spray and moisture.

Q4: Why choose wire leads over pin terminals?
A4: Wire leads offer faster installation and better resistance to vibration, as there is no risk of a terminal popping off.

Q5: What colors are available for the 12mm indicator?
A5: We offer Red, Green, Yellow, Blue, and White high-brightness LEDs.

Q6: Is the mounting nut included with the light?

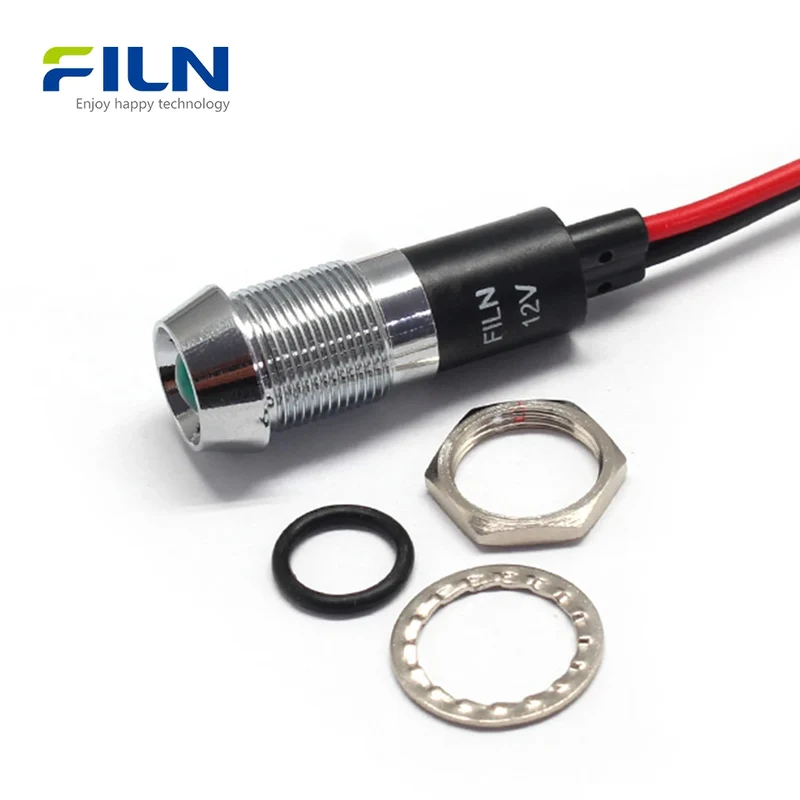

A6: Yes, each indicator comes with one M12 nut and one waterproof O-ring.

Q7: Can these indicators be used with 220V AC?
A7: Yes, while the standard is 12V, we support custom production for 110V-220V AC/DC.

Q8: What is the standard wire length?
A8: The standard length is 15cm, but we can customize this to any length for bulk orders.

Q9: Are these lights suitable for medical equipment?
A9: Yes, our products are CE and UL certified, meeting the safety standards required for medical devices.

Q10: Do you provide samples for testing?
A10: Yes, as a factory-direct supplier, we can provide samples for project evaluation.
