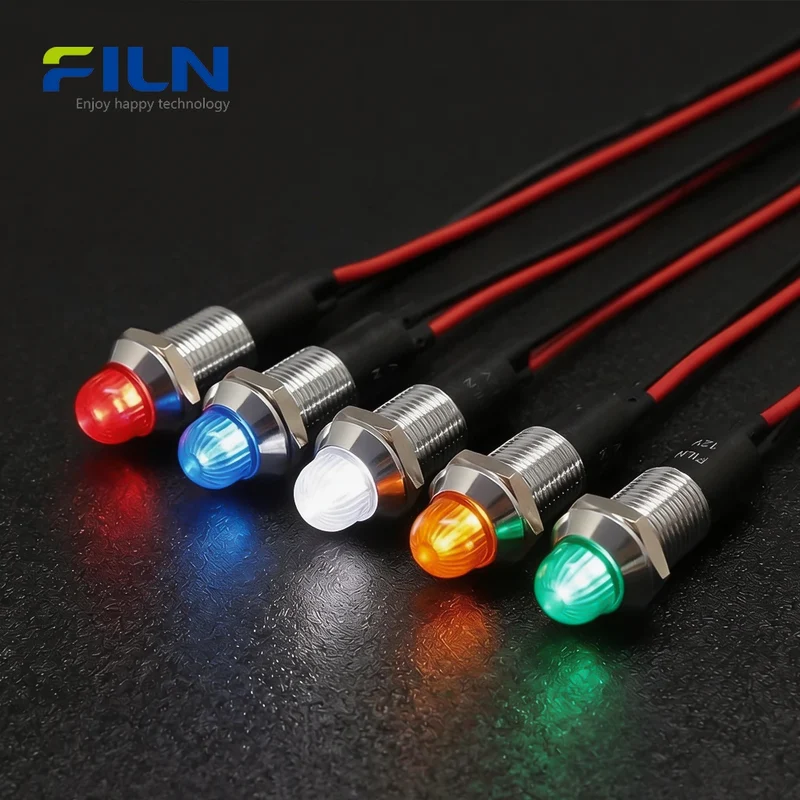

12mm LED Panel Indicator Lights UL IP67 Waterproof Domed Signal Lamp FILN

Product Overview

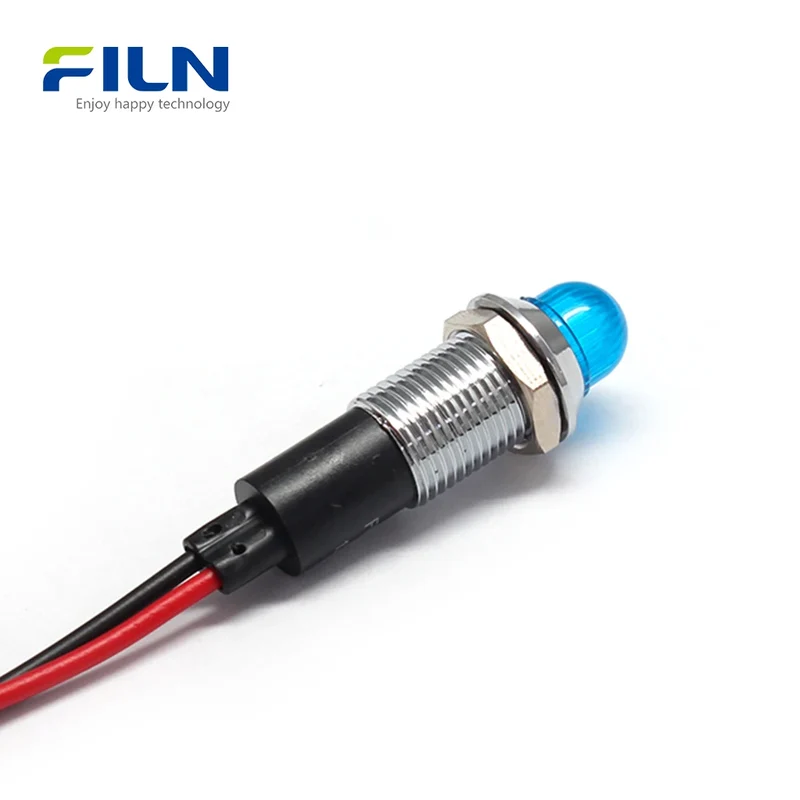

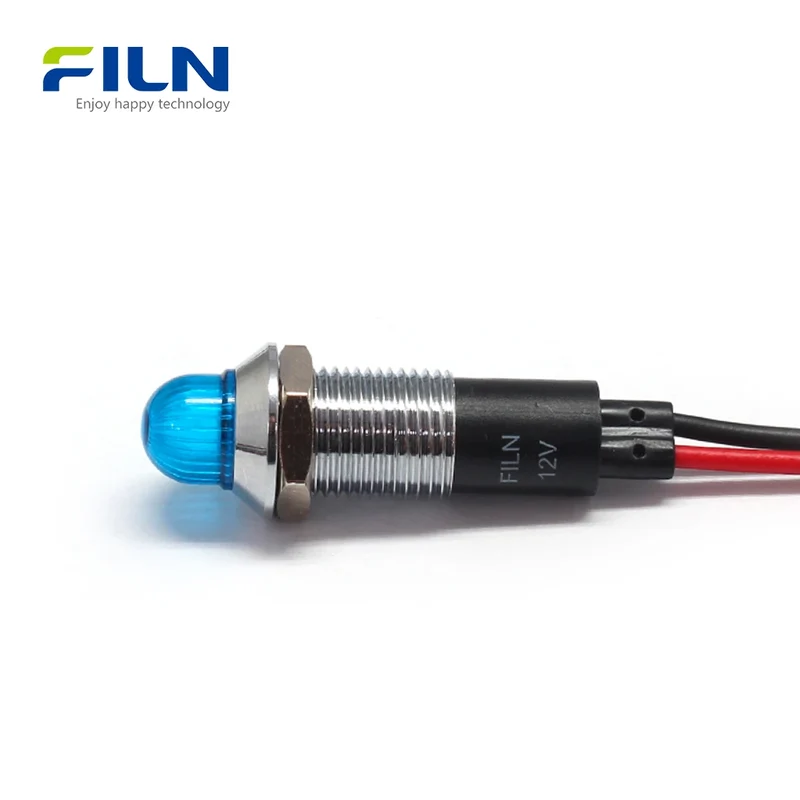

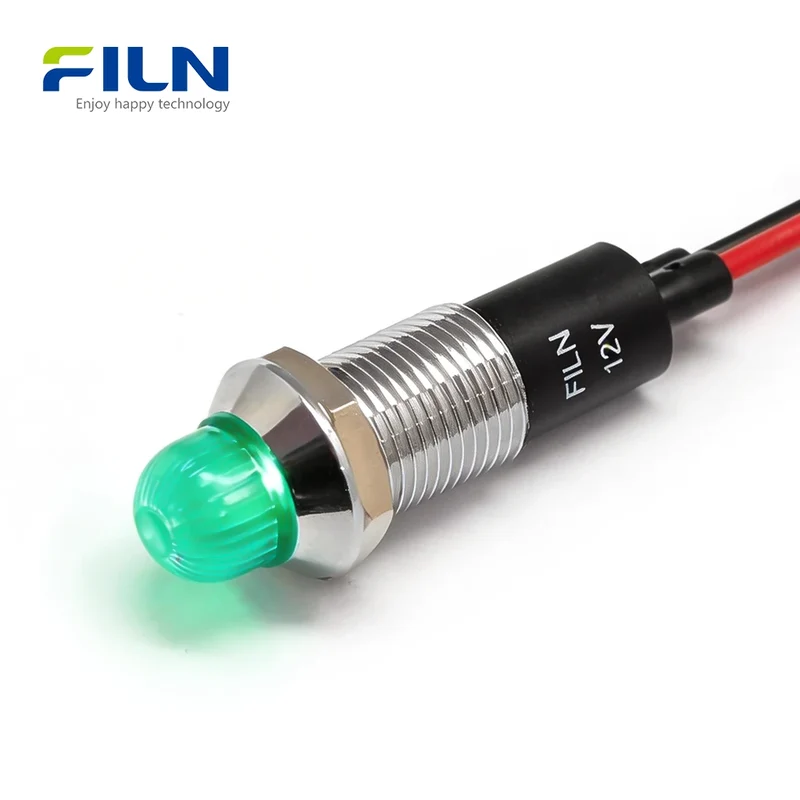

The led panel indicator lights (Model: FL1M-12BW-1) by FILN are high-performance signaling components engineered for demanding environments. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, these 12mm indicators feature a robust metal domed head (球头) design for maximum 180-degree visibility. Ideal for industrial control panels, medical devices, marine yachts, and new energy systems, they offer a sleek finish in silver or black. The 15cm pre-wired leads provide a superior, vibration-resistant connection compared to traditional pin terminals, ensuring easy installation and a long service life of 50,000 hours.

Quick Specifications

Mounting Hole	12mm / 0.47"
Voltage	12-24V, 110-220V (Customizable)

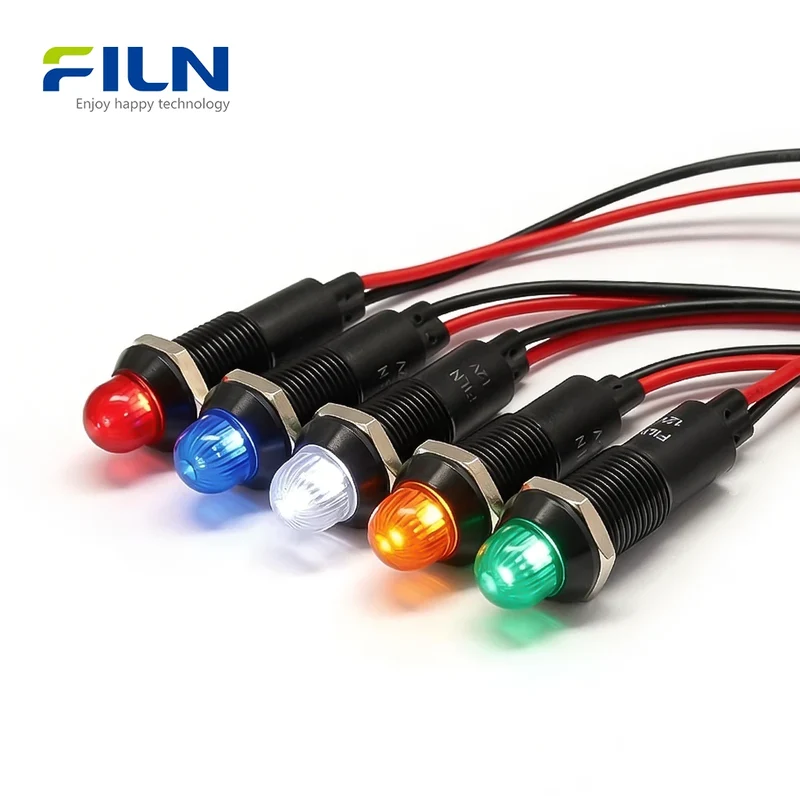

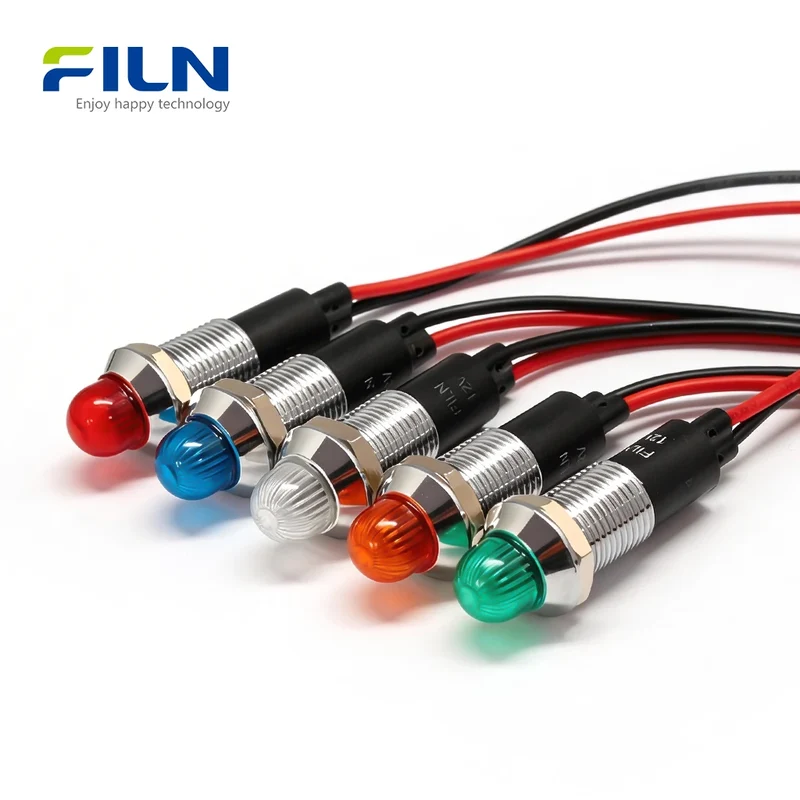

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Operating Temperature	-40℃～80℃
Lifespan	50,000 Hours
Wiring Type	Wire Lead Type (15cm length)

Rated Working Parameters

Rated Voltage	Customized
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Brass with Nickel Plated / Black Aluminum
Lens	Polycarbonate (PC)
Seal Ring	SIL Silica Gel
Terminal	Pre-wired Lead
Wire Material	UL Standard Copper Wire (15cm)

General Characteristics

Application	Industrial, Medical, Marine, New Energy
Part Name	LED Indicator Light
Operating Temperature	-40℃～80℃
Storage Temperature	-40℃～85℃
Relative Humidity	≤85% at +40℃
Waterproof Rating	IP67

*Ambient Temperature: 5~35℃; Air Pressure: 86~106Kpa

Electric Property

Test Item	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown or flashover

Durability Characteristics

Item	Test Condition	Requirement
Continuous Working Life	30mA 1000h	50,000 hours

Resistant Performance

Test Type	Condition	Duration/Cycles
High Temperature	80℃	96h
Low Temperature	-40℃	96h
Moisture Resistance	40℃ 90-95%RH	96h
Temperature Cycling	-40℃ → 25℃ → 85℃	5 Rounds

Key Features

• Domed Head Design: Provides wide-angle 180-degree visibility for status alerts from any direction.
• High Durability: Rated for over 50,000 hours of continuous operation with high-brightness LEDs.
• Superior Sealing: IP67 waterproof rating with a large O-type ring ensures reliability in wet or dusty environments.
• Easy Installation: Smooth M12 threads and included nuts allow for fast, secure mounting on various panel thicknesses.
• Vibration Resistant: Pre-wired 15cm leads eliminate the risk of loose connections common with traditional pin terminals.

Applications

• Industrial Automation: Control panels, CNC machinery, and factory production lines.
• Marine & Yachting: Deck instrumentation, bilge pump alerts, and navigation panel lighting.
• Medical Equipment: Patient monitoring status lights and diagnostic instrument indicators.
• New Energy: EV charging piles, solar inverter monitoring, and battery storage cabinets.
• Transportation: Dashboard signaling for specialized vehicles and testing equipment.

Installation Guide

1. Drill a 12mm diameter hole in your panel.
2. Place the O-type waterproof ring onto the indicator body.
3. Insert the indicator light through the hole from the front side of the panel.
4. Slide the M12 nut onto the threaded body from the back of the panel.
5. Tighten the nut until the unit is securely fixed and the seal is compressed.
6. Connect the 15cm wire leads to your power source.

What Is an LED Panel Indicator Light?

An led panel indicator light is a visual signaling device used in modern interfaces to provide real-time status updates—such as power status, system errors, or process completion—to operators. The domed head (球头) variant is specifically designed to extend beyond the panel surface, allowing the light to be seen from the side, which is critical for safety in large factory floors or marine environments. While traditional pin terminals (插脚) are common for PCB mounting, pre-wired leads are preferred for panel mounting as they offer easier wiring in tight spaces and superior protection against vibration-induced failure.

FILN Factory Direct Supply

Benefit from manufacturer direct pricing and full customization support

• Voltage Customization
• Wire Length Customization
• Connector Integration
• Custom Logo Engraving
• Fast Global Shipping

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: Are these 12mm indicator lights suitable for outdoor marine use?
A1: Yes, with an IP67 waterproof rating and metal housing, they are highly resistant to salt spray and moisture.

Q2: What is the benefit of the domed (ball) head over a flat head?
A2: The domed head protrudes from the panel, offering a much wider viewing angle (180 degrees) for improved safety monitoring.

Q3: Can I get a custom wire length longer than 15cm?
A3: Absolutely. As a direct factory, we support customization for wire length and connector types[cite: 4].

Q4: Why choose wire leads over pin/solder terminals?
A4: Pre-wired leads simplify installation in tight cabinets and provide a more secure connection in high-vibration environments.

Q5: Do you offer these in 220V for industrial machinery?
A5: Yes, we support standard voltages like 12V, 24V, 110V, and 220V, with custom options available.

Q6: What certifications do these lights have?
A6: Our products are certified by UL, CE, VDE, RoHS, SGS, and ISO9001.

Q7: Can I request a black housing instead of silver?
A7: Yes, we offer both nickel-plated brass (silver) and black anodized aluminum finishes.

Q8: What is included in the package?

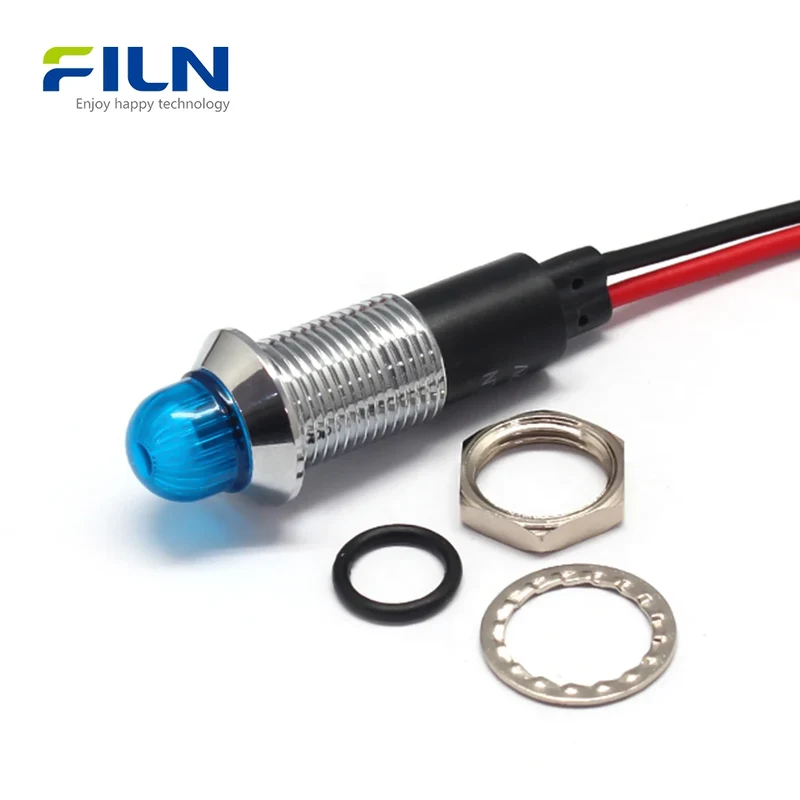

A8: Each light includes the indicator unit with 15cm leads, one M12 nut, and a waterproof O-ring.

Q9: Are these suitable for medical diagnostic equipment?
A9: Yes, the high reliability and certified materials make them ideal for medical and lab instrumentation.

Q10: Is the thread pitch standard for easy mounting?
A10: Yes, the M12 threads are precision-engineered for smooth rotation and secure locking with the included nut.
