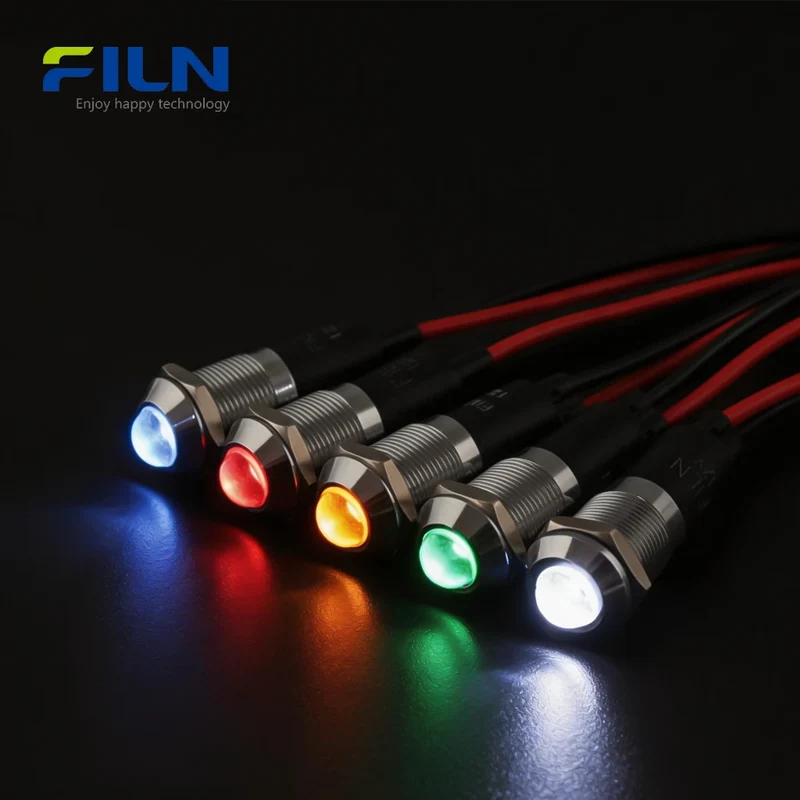

12mm Panel Mount Indicator Lights IP67 Waterproof LED Signal Lamp for Industrial & Marine FILN

1,60 €0,95 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

The FILN 12mm panel mount indicator lights (Model: FL1M-12SW-1) are engineered for high-performance signaling in demanding environments. Featuring a robust metal high-head design and IP67 waterproof rating, these lights offer superior visibility and durability compared to standard flat-head versions. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65[cite: 1], they ensure global compliance for industrial control panels, CNC machines, medical devices, and marine systems. The pre-wired 15cm wire lead design simplifies installation compared to traditional pin terminals, providing a secure, vibration-resistant connection[cite: 4].

Quick Specifications

Mounting Hole 12mm / 0.47 inch
Voltage 12V, 24V, 110V, 220V (Customizable)
LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Wiring Type 15cm Wire Lead Type
Lifespan 50,000 Hours

Rated Working Parameters

Rated Voltage 3V - 380V (Customized)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Brass with Nickel Plating / Black Anodized Aluminum
Lens Polycarbonate (PC)
Seal Ring SIL Silica Gel
Wire Material AWG Standard UL Copper Wire

General Characteristics

Operating Temperature -40℃ ～ 80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86 ～ 106Kpa

Electric Property

Test Item Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown/flashover

Key Features

  • LED High Brightness: Exceptional visibility from all angles with high-head lens design.
  • Long Lifespan: Rated for over 50,000 hours of continuous operation.
  • IP67 Waterproof: Includes an O-type waterproof ring for reliable performance in wet environments.
  • Easy Installation: Pre-wired 15cm leads with smooth M12 threads and nuts for fast mounting.
  • Industrial Grade: High-quality metal housing available in silver or black finishes.

Applications

  • Industrial Control Panels & Automation Equipment
  • CNC Machining Centers & Test Equipment
  • Marine Instrumentation & Yacht Control Systems
  • Medical Monitoring Devices
  • New Energy Charging Stations & Electrical Cabinets

Installation Guide

  1. Drill a 12mm hole in the desired position on your panel.
  2. Insert the indicator light through the hole from the front side.
  3. Slide the O-type waterproof ring onto the light body behind the panel.
  4. Tighten the M12 nut onto the threaded body to secure the light firmly.
  5. Connect the 15cm wire leads to your power source (Red: Positive, Black: Negative for DC).

What is a Panel Mount Indicator Light?

A panel mount indicator light is a critical visual signaling component used in human-machine interfaces (HMI). Its primary role is to provide real-time status updates—such as "Power On," "System Error," or "Cycle Complete"—to operators. The 12mm size is a global standard for compact yet highly visible status indication. High-head designs are preferred in industrial settings because they offer a wider viewing angle compared to flush-mount versions. By using wire lead connections instead of pin terminals, these lights offer better resistance to mechanical stress and vibration, making them ideal for mobile machinery and marine applications. [cite: 1, 2, 3]

FILN Factory Direct Supply

Benefit from direct manufacturer pricing and comprehensive customization options:

  • Custom Voltage Support
  • Wire Length Customization [cite: 4]
  • Connector Integration
  • Custom Logo Engraving
  • Fast Global Shipping

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: Are these 12mm indicator lights suitable for outdoor use?
A1: Yes, the IP67 rating ensures they are completely protected against dust and water immersion up to 1 meter.

Q2: Can I get a custom wire length longer than 15cm?
A2: Absolutely. As a factory, FILN supports custom wire lengths to fit your specific cabinet layout.

Q3: What is the advantage of the high-head design?
A3: The high-head protrudes from the panel, making the light visible from the side, which is crucial for safety monitoring.

Q4: Do you offer different housing colors?

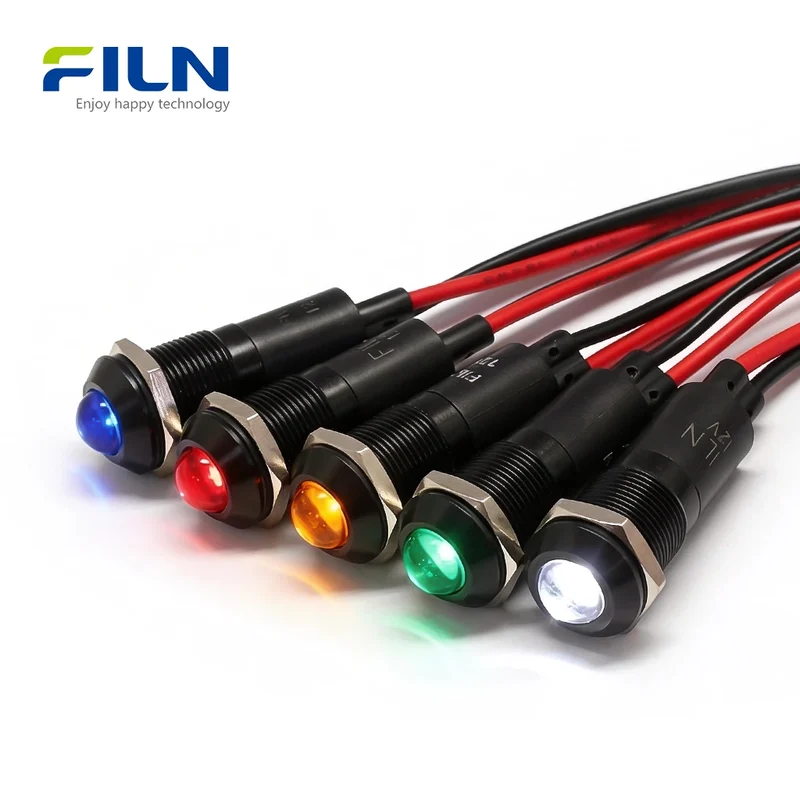

A4: Yes, we provide standard silver nickel-plated brass and premium black anodized aluminum housings.

Q5: Can these be used with 220V AC power?
A5: Yes, our 12mm lights support a wide range of voltages from 12V to 220V AC/DC.

Q6: Is the mounting nut included?

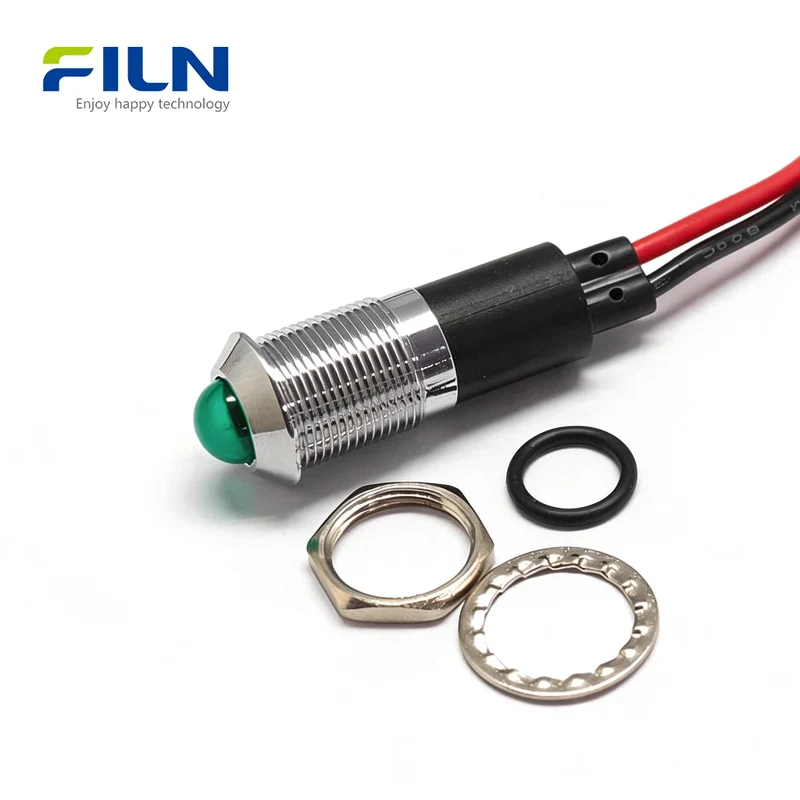

A6: Each light comes with a high-quality M12 nut and a waterproof O-ring for a complete installation.

Q7: What is the lifespan of the internal LED?
A7: The high-brightness LED is rated for over 50,000 hours of continuous use.

Q8: Can these be used in medical equipment?
A8: Yes, with UL and CE certifications, they are suitable for medical and testing instruments.

Q9: How do I choose between wire leads and pin terminals?
A9: Wire leads (this model) are easier for manual wiring and better for vibration-heavy environments, while pins are often used for PCB or quick-connect headers.

Q10: Are they resistant to chemicals for marine use?
A10: The metal housing and PC lens are designed to withstand salt spray and harsh environmental conditions common in marine applications.
