12V Indicator Light 8mm Panel Mount IP67 Waterproof for CNC FILN

The FILN 8mm 12V indicator light is a high-performance industrial signaling solution designed for demanding environments. This metal LED indicator features a robust IP67 waterproof rating, making it resistant to dust and moisture ingress. Engineered with a high-head design and available in both silver and black anodized finishes, it offers superior visibility for industrial control panels and CNC machinery. Its non-polar LED beads allow for flexible wiring without worrying about positive or negative poles, while the 15cm pre-wired leads ensure a fast, reliable installation. Whether you require 12-24V or 110-220V configurations, this 8mm signal lamp provides long-lasting durability for automation and electrical cabinets.

Quick Specifications

Mounting Hole	8mm
Voltage Options	12-24V, 110-220V (Supports Customization)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP67
Lifespan	Long service life
Installation Type	Threaded fixing

Component Materials

Housing	Metal (Silver or Black)
Seal Ring	Waterproof Ring included
Terminal	Customizable Terminals
Wire Material	15cm Tail Wire

Performance Parameters

Operating Voltage	12-24V / 110-220V
LED Feature	Non-polar (no positive/negative)
Waterproof Rating	IP67

Key Features

• High-Brightness LED: Provides clear signaling in any industrial environment.
• Long Service Life: Designed for durability and reduced maintenance costs.
• IP67 Waterproof Design: Features a high-quality seal for wet or dusty conditions.
• Easy Installation: Pre-wired with 15cm leads and included nut/washer for fast setup.
• Industrial Grade Quality: Robust metal housing available in silver and black.

Installation Guide

1. Drill an 8mm diameter hole in the mounting panel.
2. Place the waterproof ring onto the metal housing of the indicator light.
3. Insert the indicator through the hole from the front.
4. Secure the light from the back using the provided mounting nut.
5. Connect the 15cm wires to your power source (non-polar design simplifies wiring).

Applications

• Industrial control panel
• CNC machine
• Automation equipment
• Electrical cabinet
• Marine system
• Medical device

What Is an Indicator Light?

An indicator light is a crucial component in industrial equipment used to provide visual feedback regarding the status of a system. Whether signaling power, faults, or operational cycles, these lights ensure safety and efficiency. A high-quality 8mm metal indicator provides a compact yet highly visible solution for dense control panels where space is limited but reliability is paramount.

FILN Factory Direct Supply

• Factory Direct: Direct sourcing from the FILN brand for the best quality control.
• Voltage Customization: Support for specific voltage requirements beyond standard ranges.
• Wire Customization: Wire lengths can be adjusted to meet your cabinet specifications.
• Connector Customization: Tail ends can be fitted with custom terminals for plug-and-play use.
• Global Shipping: Reliable worldwide logistics for industrial projects.

Frequently Asked Questions

Q: Can these lights work with both AC and DC?
A: Yes, our LED beads are designed to be versatile; please specify your requirements for 12-24V or 110-220V use.

Q: Do I need to worry about positive and negative wires?
A: No, these indicators feature non-polar LED beads for convenient wiring.

Q: What is the standard wire length provided?
A: The standard length is 15cm, but we can customize this at the factory level.

Q: Is the housing made of plastic or metal?
A: This model features a high-quality metal housing available in silver or black finishes.

Q: What accessories are included?

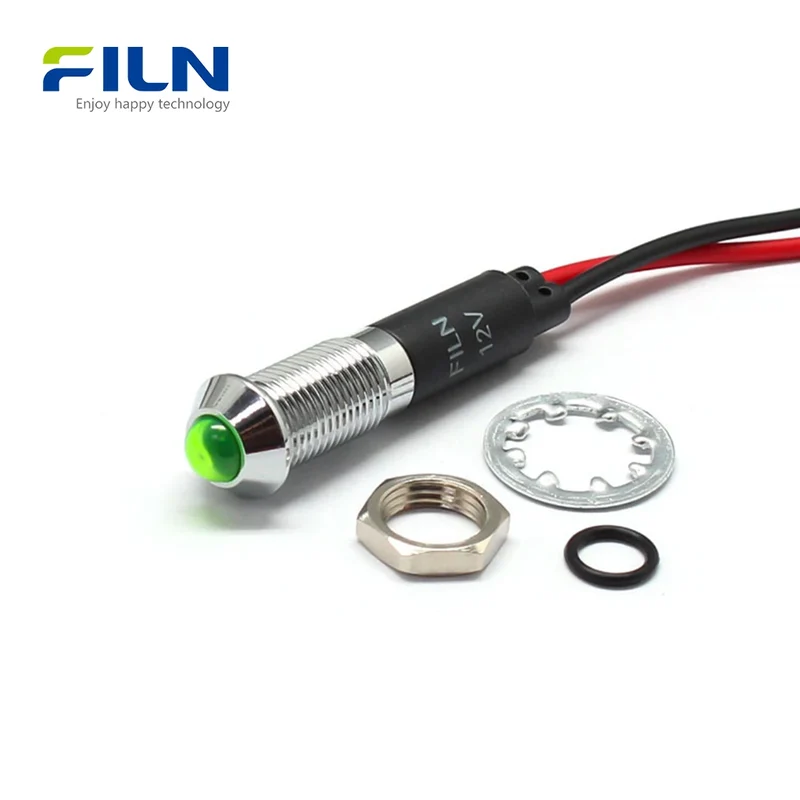

A: Each indicator light comes with one waterproof ring and one nut for secure installation.

Q: Can I use these for outdoor equipment?
A: Yes, the IP67 waterproof rating makes them suitable for outdoor and marine applications.
