Anbieter: 12MM Indicator Light

12V LED Indicator Lights 12mm IP67 Waterproof Metal Flat Head Signal Lamp for CNC & Marine FILN

1,97 €1,10 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

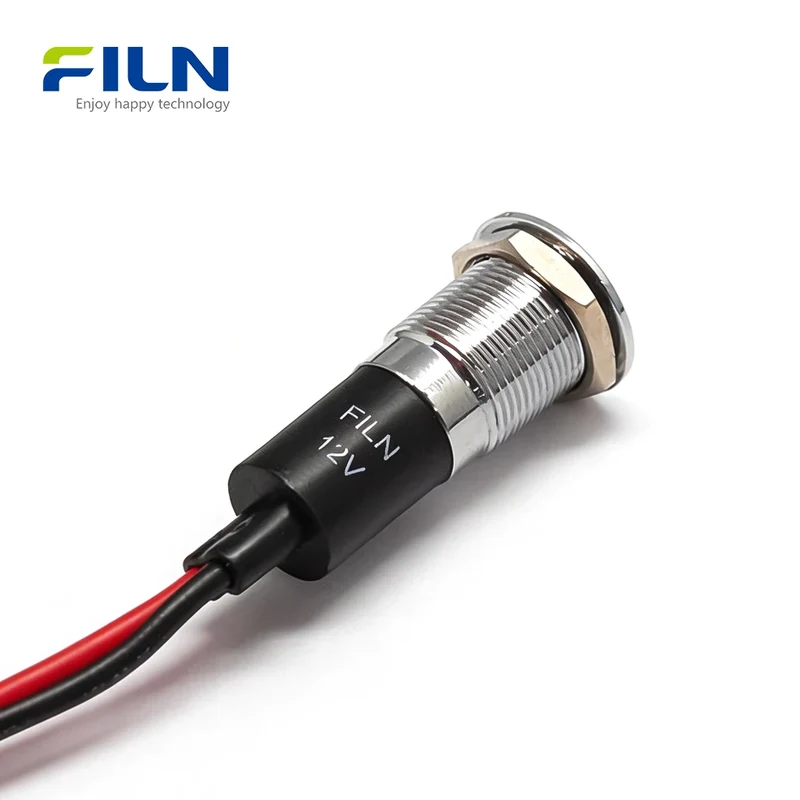

The 12V LED Indicator Lights (Model: FL1M-12FW-1) by FILN are professional-grade signaling solutions engineered for extreme durability. Featuring a 12mm mounting hole and IP67 waterproof rating, these metal flat-head lights are certified by ISO9001, CE, VDE, RoHS, SGS, UL. These indicators excel in industrial control panels, CNC machines, and marine systems. With a robust stainless steel or black aluminum housing and pre-wired 15cm leads, they offer superior vibration resistance and long-term reliability compared to standard plastic alternatives. Available in Red, Green, Yellow, Blue, and White, they support global voltage requirements from 12V to 220V.

Quick Specifications

Mounting Hole 12mm (0.47 inches)
Voltage 12V-24V / 110V-220V (Customizable)

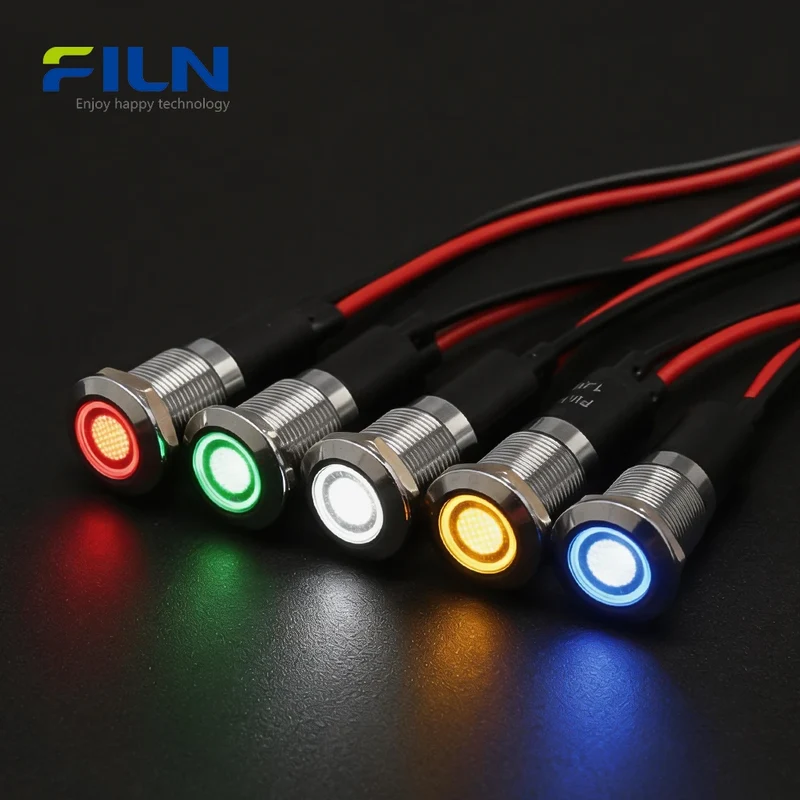

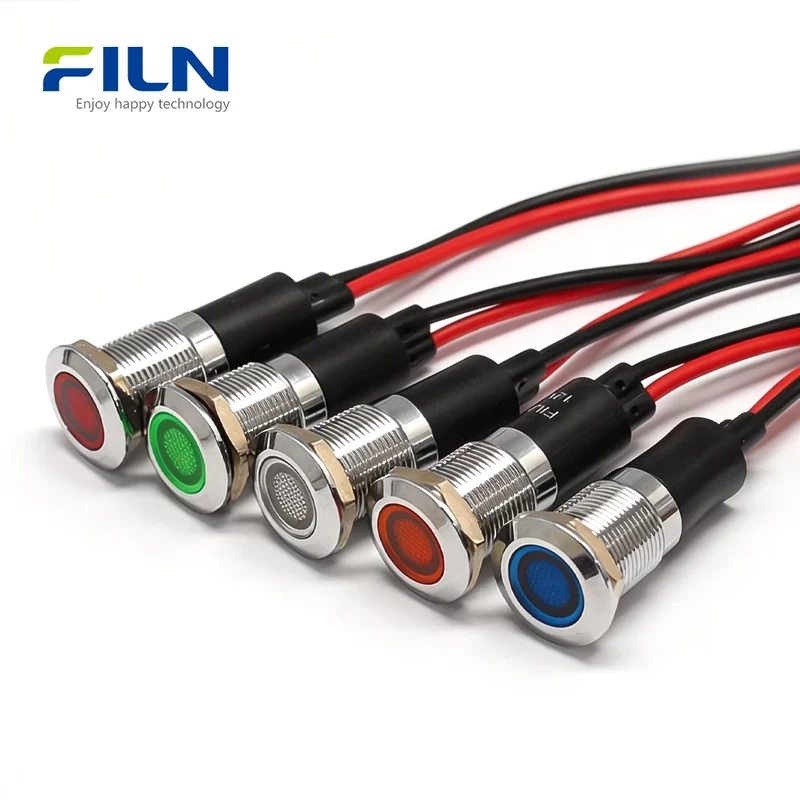

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Wiring Type Wire Lead Type (15cm length)
Lifespan 50,000 Hours

Rated Working Parameters

Rated Voltage 12V DC (Supports Customized AC/DC)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Nickel-plated Brass / Black Aluminum
Lens Polycarbonate (PC)
Seal Ring Silicone (O-ring included)
Wire Material UL1007 22AWG Copper Wire

General Characteristics

Operating Temperature -40℃ ～ 80℃
Relative Humidity ≤85% at +40℃
Ambient Temperature 5~35℃
Air Pressure 86~106Kpa

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown/flashover

Resistant Performance

High Temperature Resistance 80℃ for 96h
Low Temperature Resistance -40℃ for 96h
Moisture Resistance 40℃, 90-95%RH for 96h

Key Features

  • LED High Brightness: Crystal clear visibility even in high-ambient light environments.
  • Long Lifespan: Rated for over 50,000 hours of continuous operation.
  • IP67 Waterproof: Full protection against dust and water immersion.

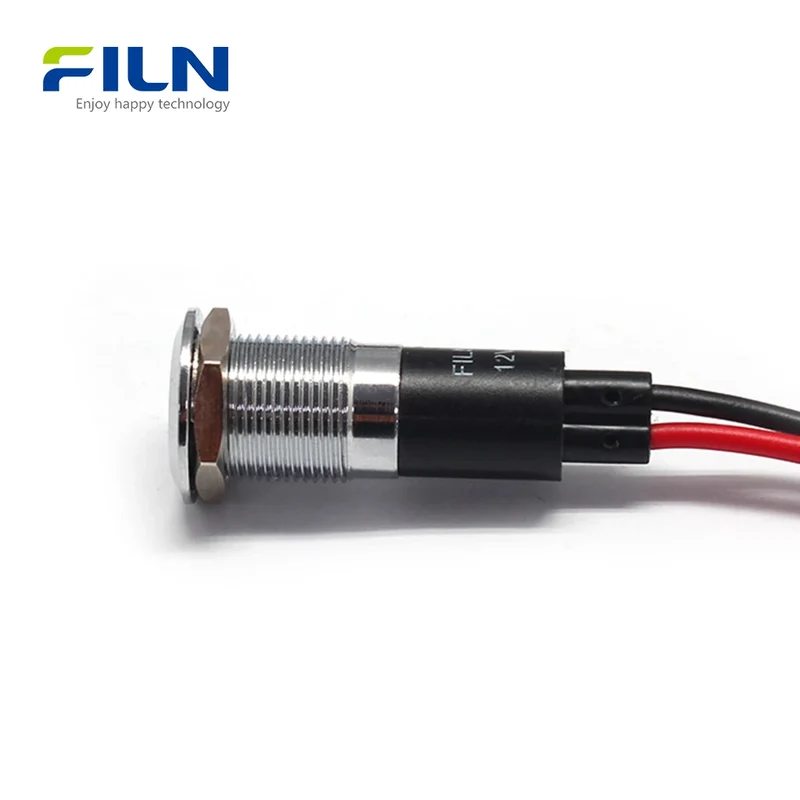

  • Flat Head Design: Aesthetic "flush" look that is easy to clean and hard to snag.
  • Easy Installation: Pre-wired 15cm leads eliminate the need for difficult soldering in tight spaces.

Applications

  • Industrial Control Panels & Automation Equipment
  • CNC Machinery and Heavy Tooling
  • Marine Dashboard Systems & Yachts
  • Medical Testing and Diagnostic Devices
  • New Energy Charging Stations & EV Infrastructure
  • Electrical Distribution Cabinets

Installation Guide

  1. Drill a 12mm diameter hole in your mounting panel.
  2. Insert the LED indicator light from the front of the panel.
  3. Slide the silicone O-ring onto the threaded body from the back.
  4. Secure the unit by tightening the M12 hex nut provided.
  5. Connect the 15cm wire leads to your 12V power source (Polarity independent for AC/DC models).

What Is a 12V LED Indicator Light?

A 12V LED Indicator Light is a critical signaling component used in industrial and consumer electronics to provide visual status feedback. Unlike traditional bulbs, these LED versions consume minimal power and generate almost no heat. In industrial settings, they serve as "pilot lights" to indicate machine power, fault states, or operational cycles. The flat-head design is particularly advantageous as it sits flush against the panel, reducing the risk of accidental damage or interference with other controls.

FILN Factory Direct Supply

  • ✓ Customization: Voltage, Wire Length, and Connectors tailored to your project.
  • ✓ Stock: Silver and Black housing finishes available for immediate dispatch.
  • ✓ Shipping: Fast Global Logistics for B2B procurement.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can I use these 12V LEDs on a 24V system?
While specifically rated for 12V, we offer custom 12-24V wide-voltage versions upon request.

2. What is the advantage of wire leads over pin terminals?
Pre-wired leads (15cm) save time during assembly and provide a more secure connection in high-vibration environments like marine or CNC applications.

3. Are these lights suitable for outdoor marine use?
Yes, the IP67 rating and stainless steel housing options make them highly resistant to saltwater and rain.

4. Does the package include mounting hardware?

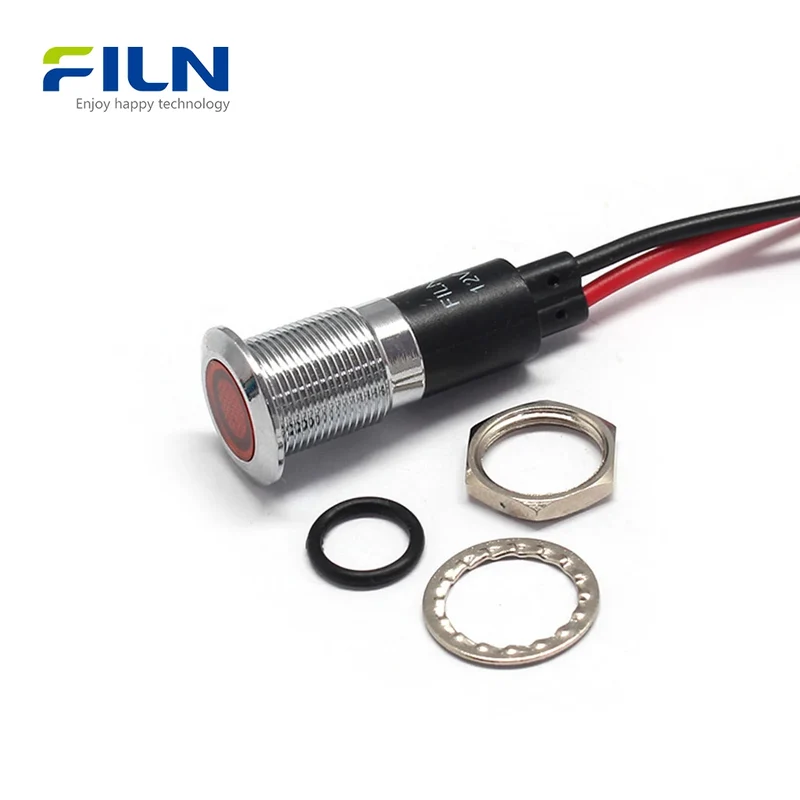

Every FILN 12mm light comes with a silicone O-ring and a smooth-threaded M12 nut.

5. Can I get a black housing instead of silver?

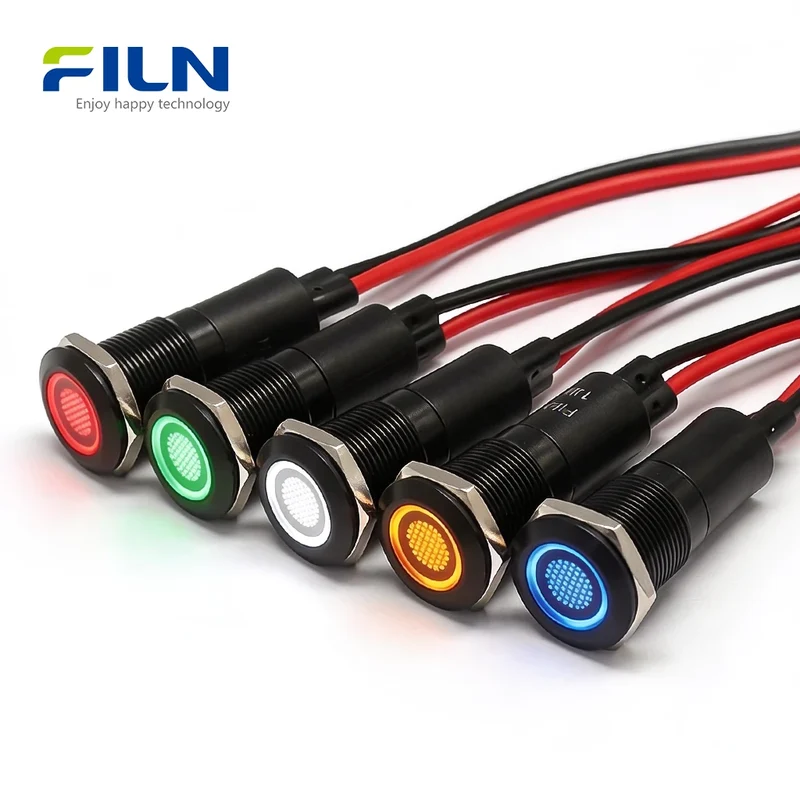

Yes, we supply both silver nickel-plated brass and black anodized aluminum housings.

6. Is it possible to customize the wire length?
Absolutely. As a factory, FILN can customize wire lengths (e.g., 30cm, 50cm) and add specific connectors.

7. What colors are available for the 12mm indicator?
Standard colors include Red, Green, Yellow, Blue, and White.

8. Do these indicators work on AC or DC?
They are available in both DC only and universal AC/DC configurations.

9. Are these certified for medical equipment?
Yes, our lights meet CE and RoHS standards, making them suitable for medical diagnostic devices.

10. How do I install the flat-head version?
Insert through a 12mm hole and tighten the nut from behind; the flat head will sit nearly flush with the panel surface.
