12V LED Panel Indicator Lights 16mm Waterproof Pre-wired for Equipment FILN

Beschreibung

Product Overview

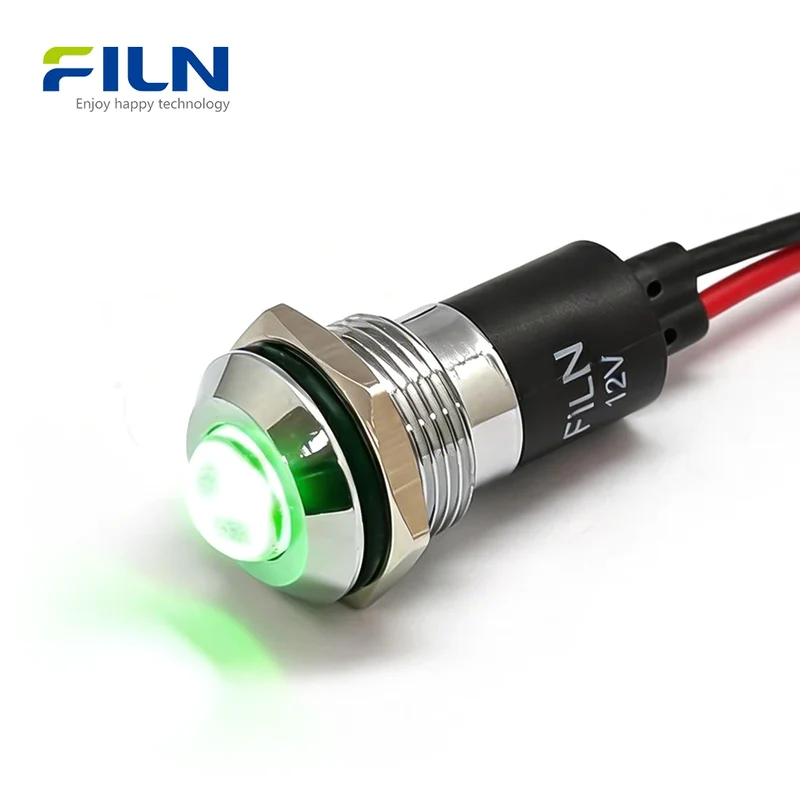

The 12V LED panel indicator lights manufactured by FILN are professional-grade signaling solutions designed for rigorous industrial environments. These 16mm metal high-head indicators feature a robust construction with IP65/IP67 waterproof ratings, making them ideal for CNC machines, automation equipment, and marine systems. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, our products ensure global compliance and safety. The core advantage lies in the pre-wired 15cm leads, which simplify installation compared to traditional pin terminals. Whether used in electrical cabinets or medical devices, these high-brightness LEDs offer exceptional visibility and a 50,000-hour lifespan.

Quick Specifications

Mounting Hole	16mm / 0.63 inch
Voltage	12V-24V, 110V-220V (Customized Support)

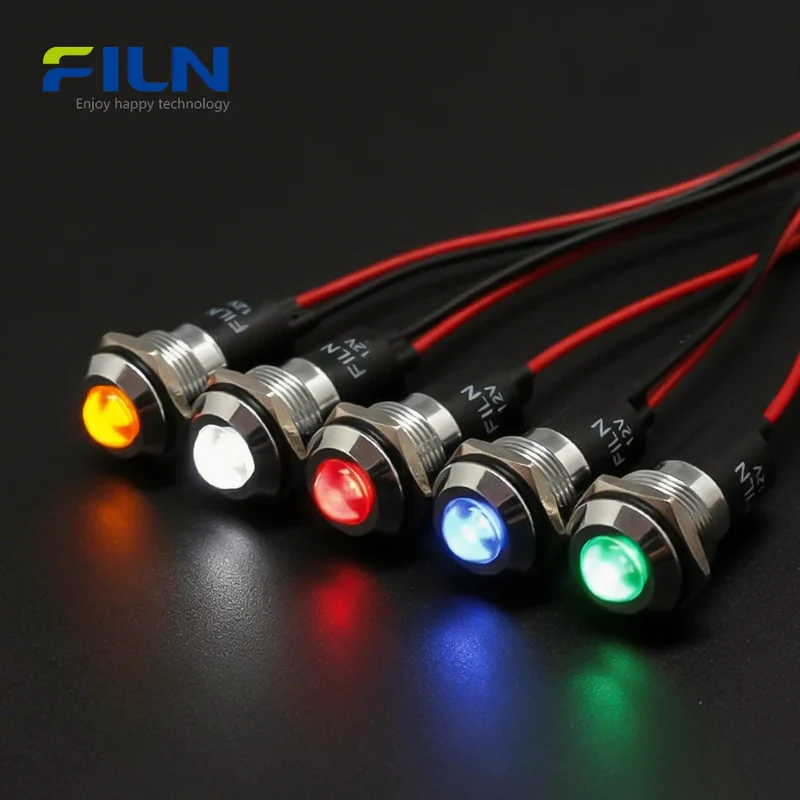

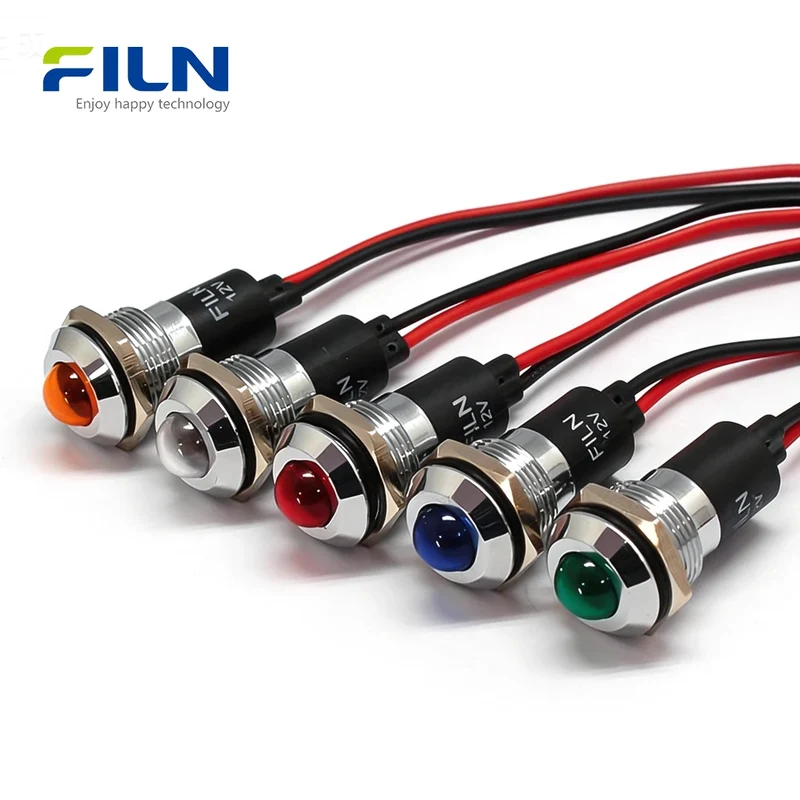

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Wiring Type	Pre-wired Lead (15cm length)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Material List

Component Name	Material	Note
Shell	Copper Alloy	Nickel or Chrome plated for corrosion resistance
Lamp Holder	PA66 Nylon	High strength and temperature resistance
Lampshade	PC Polycarbonate	High light transmission, impact resistant
Light Source	LED	Long life, low energy consumption
Resistor	Carbon Film	Stable current protection
O-ring	Silica Gel	IP67 waterproof sealing

Rated Working Parameters

Rated Voltage	12V (Customized 3V-380V available)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

General Characteristics

Operating Temperature	-40℃ ～ +80℃
Relative Humidity	≤85% at +40℃
Ambient Temperature	5~35℃
Air Pressure	86~106Kpa

Electric Property

Parameter	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability & Reliability

Test Item	Condition	Standard
Continuous Life	30mA 1000h	50,000 hours
High Temp Resistance	80℃ / 96h	Normal function
Low Temp Resistance	-40℃ / 96h	Normal function

Key Features

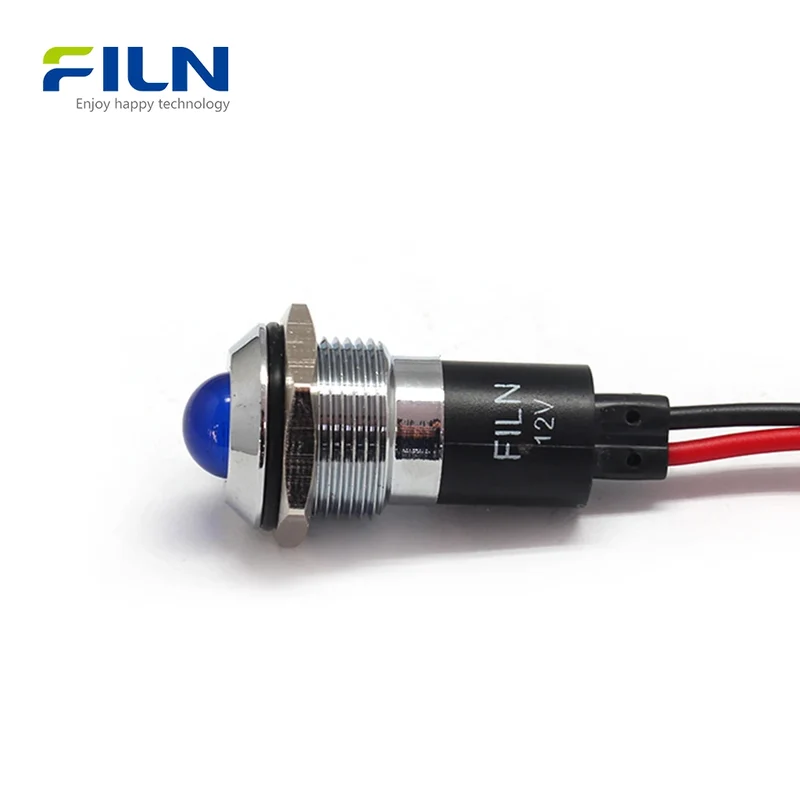

High-Head Metal Design: Enhanced tactile aesthetics and visibility from multiple angles.

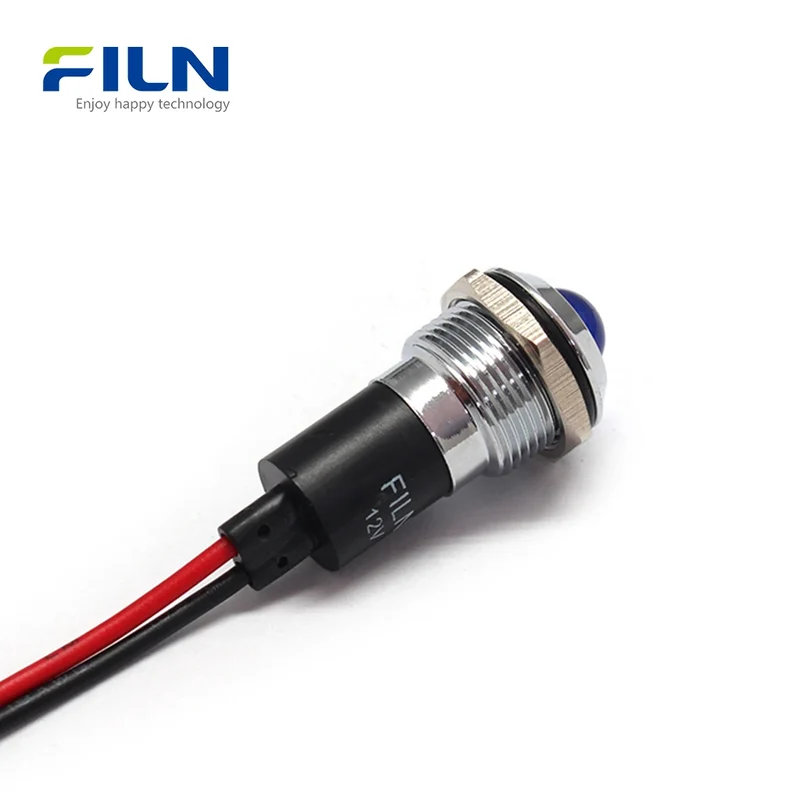

Pre-wired Convenience: 15cm wire leads for rapid connection, saving labor time compared to the FL1M-16SJ-1 pin type.

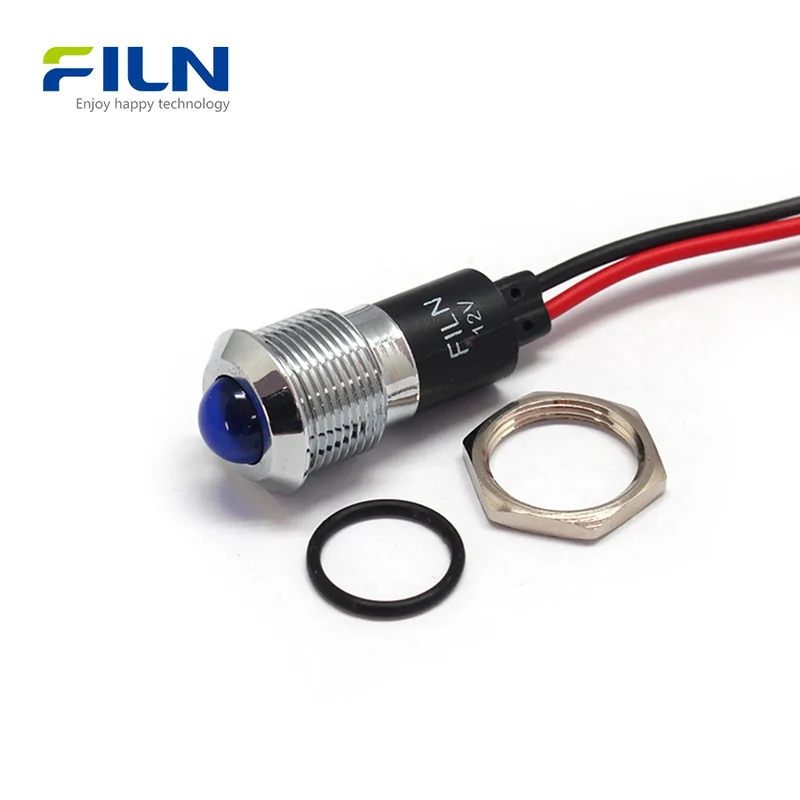

Superior Sealing: Includes a 16mm O-ring and M16 nut, achieving IP67 dust and water protection.
Long-term Reliability: High-brightness LED with 50,000-hour continuous working life.

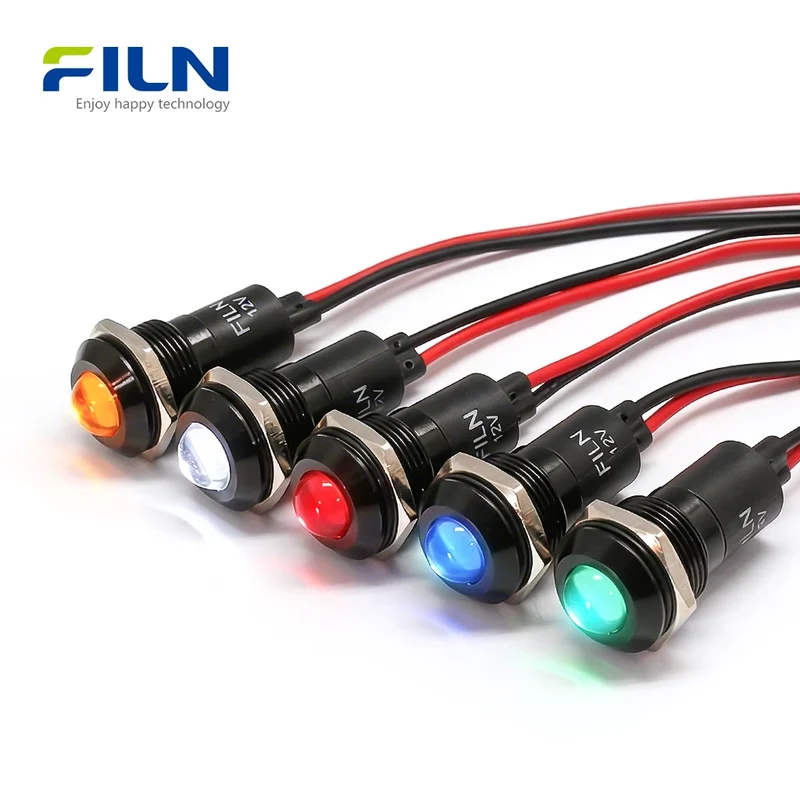

Finish Options: Available in both elegant Silver (Chrome) and sleek Black shells.

Industrial Applications

Industrial control panels and distribution boxes
CNC Machining centers and lathes
Automated production lines
Marine and outdoor equipment signaling
Medical diagnostic devices

Installation Guide

Drill a 16mm (0.63") diameter hole in the mounting panel.
Insert the indicator light from the front side of the panel.
Place the silica gel O-ring and the M16 nut onto the threaded body from behind.
Tighten the nut securely to ensure an IP67 waterproof seal.
Connect the 15cm pre-wired leads to your power source (12V-24V).

What Is a 12V LED Panel Indicator Light?

A 12V LED panel indicator light is a critical signaling component used to communicate the operational status of machinery. Unlike the pin-type FL1M-16SJ-1 which requires soldering or quick-connect terminals, the FL1M-16SW-1 features direct wire leads. The high-head design provides a wider viewing angle than flat-head indicators, ensuring operators can see status alerts even from a distance. Its metal housing provides the durability needed for harsh industrial environments where plastic alternatives might fail.

Factory Direct Supply

FILN is a professional manufacturer specializing in industrial indicator lights. We offer extensive customization services to meet your specific project needs:

Factory Direct Pricing
Voltage Customization (3V-380V)
Wire Length Customization
Connector Assembly
Fast Global Shipping

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. What is the advantage of the high-head 16mm LED indicator?
The high-head design projects the light further from the panel, offering 180-degree visibility for better safety monitoring.

2. Can I use these 12V lights with a 24V system?
Yes, our standard 12V-24V model supports both ranges. We also provide customized versions for 110V and 220V.

3. Is the 15cm wire length fixed?
While 15cm is standard, FILN offers custom wire lengths to fit your specific cabinet layout.

4. How does this differ from the FL1M-16SJ-1?
The 16SW-1 is pre-wired (lead type) for faster installation, while the 16SJ-1 uses pin terminals which are better for modular replacement.

5. What does the IP67 rating mean?
It means the light is totally dust-tight and can withstand temporary immersion in water, perfect for marine use.

6. Are black shells available?
Yes, we offer both silver (chrome) and black anodized aluminum shells for different aesthetic needs.

7. Do you provide UL certification for US markets?
Yes, FILN products carry UL, CE, and VDE certifications for international industrial standards.

8. What is the hole size required for mounting?
A standard M16 (16mm) hole is required. The package includes the necessary nut and O-ring.

9. Can the LED colors be customized?
We offer Red, Green, Yellow, Blue, and White. Dual-color and tri-color versions are also available upon request.

10. Does FILN support small batch B2B orders?
As a factory, we support both large-scale procurement and small trial orders for industrial clients.
