Anbieter: 8MM Metal Indicator Light

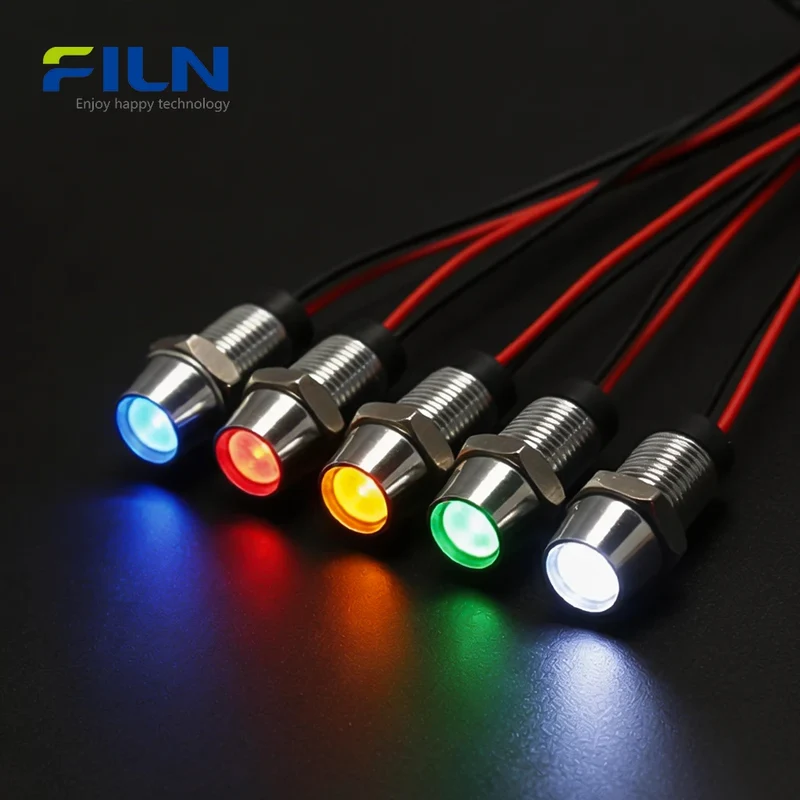

12V Panel Indicator Light 8MM 12-24V IP65 Waterproof Panel Mount FILN

1,04 €0,70 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

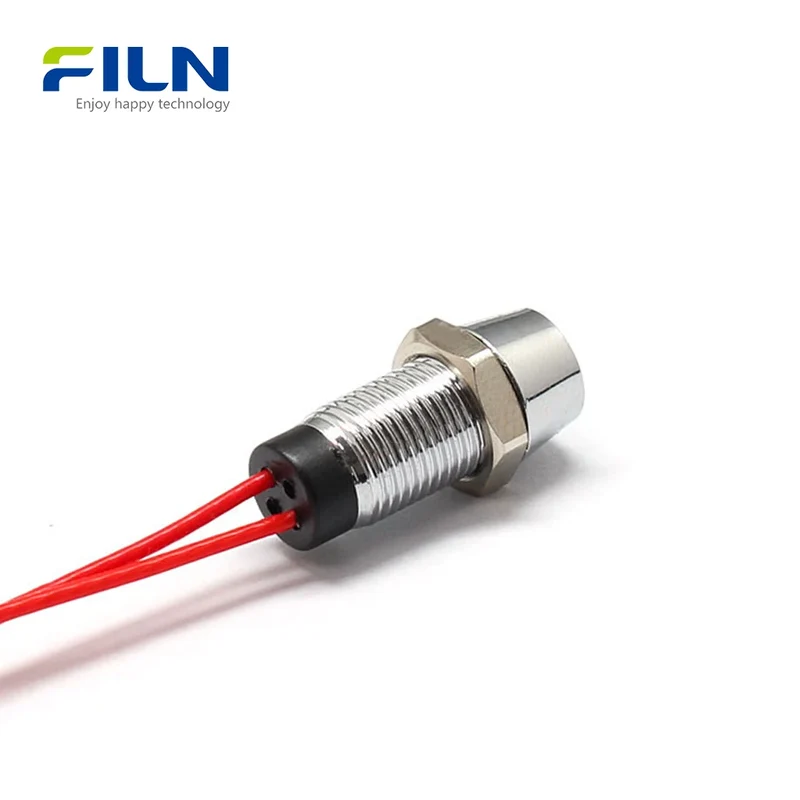

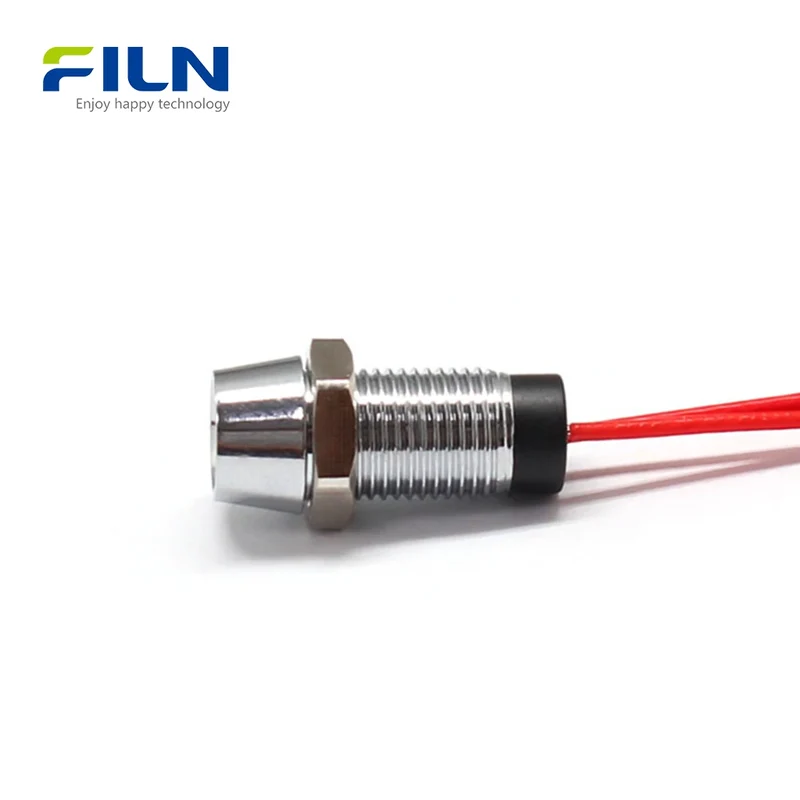

The FL1M-08CW-4 12v panel indicator light is a professional-grade signaling solution designed for high-density industrial environments. As the most compact 8mm indicator light in its series, it features a short-body design perfect for ultra-small installation spaces. This IP67 waterproof metal indicator utilizes a concave head design and pre-installed wire leads for rapid deployment, eliminating the need for complex terminal crimping. Whether integrated into CNC machinery, marine systems, or automation equipment, this 12-24V LED signal lamp ensures long-term reliability with non-polar circuitry for universal wiring.

Quick Specifications

Mounting Hole 8mm (0.315 inch)
Voltage 12-24V / 110-220V (Customizable)

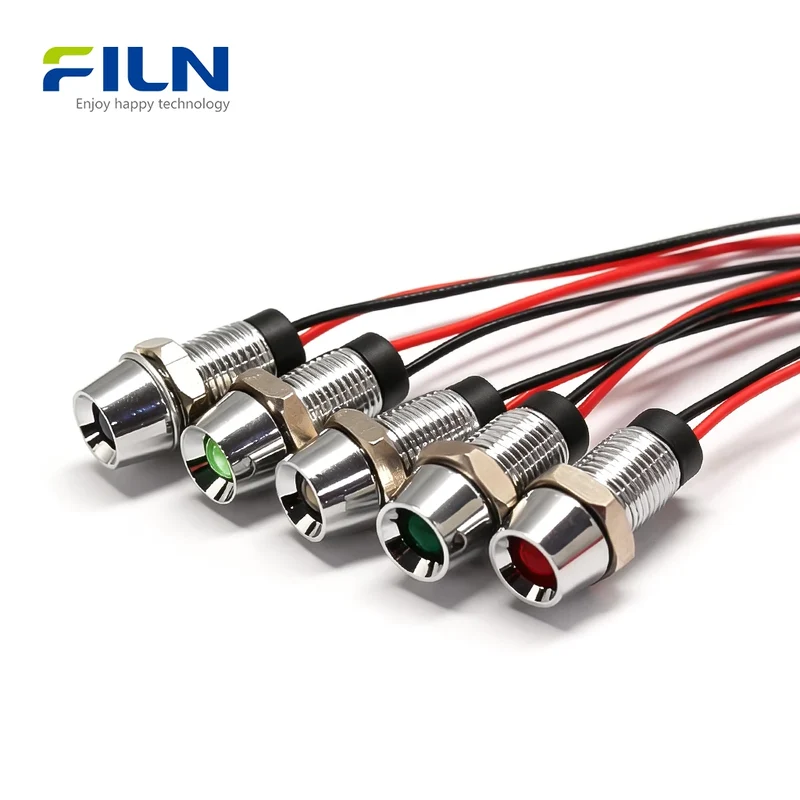

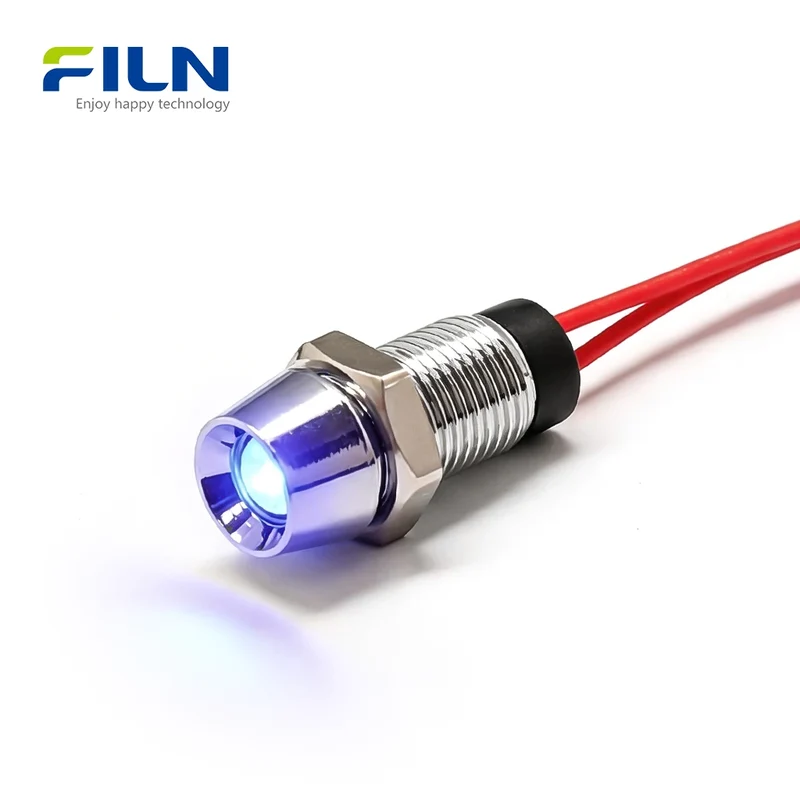

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours
Wiring type Wire lead type

Rated Working Parameters

Rated Voltage Customized
Frequency(AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Metal (Chrome/Black)
Lens Polycarbonate (PC)
Seal Ring Silicone
Terminal Copper
Wire Material UL Standard Wire

General Characteristics

Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Ambient Temperature 5~35℃
Air Pressure 86~106Kpa

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Key Features

  • LED high brightness: Premium signaling visibility in all conditions.
  • Long lifespan: Durable LED rated for over 50,000 hours.
  • IP67 waterproof: Fully sealed against dust and high-pressure water.
  • Easy installation: Short-body design for ultra-small spaces.
  • Industrial grade reliability: Metal housing ensures impact resistance.

Installation Guide

  1. Prepare an 8mm diameter mounting hole on your panel.
  2. Place the rubber gasket onto the indicator light head.
  3. Insert the indicator light through the panel from the front.
  4. Secure the light using the M8 metal nut from the back of the panel.
  5. Connect the pre-installed wire leads to the power source (Non-polar LED).

What Is an 12V Panel Indicator Light?

A 12V panel indicator light is a critical industrial component used to provide visual status feedback for electrical circuits. Unlike traditional pin-type indicators, the pre-wired version (like the FL1M-08CW-4) offers superior vibration resistance and easier integration in confined spaces. These lights are essential for operator safety, indicating whether a system is powered, faulted, or in a specific cycle.

Factory Direct Supply

FILN is a professional manufacturer offering full customization for your B2B needs:

  • ✅ Factory Direct Pricing
  • ✅ Voltage Customization (3V-380V)
  • ✅ Wire Length & Connector Customization
  • ✅ Fast Global Shipping

FILN Official Website: www.filn.com

Contact Us: [email protected]

Frequently Asked Questions

1. Does this 12v panel indicator light have polarity?
No, our LED beads are non-polar, making wiring much easier for any application. 2. What is the benefit of the concave head design?
The concave head offers a sleek aesthetic and provides better lens protection in industrial panels. 3. Can I get this 8mm indicator light in 220V?
Yes, FILN supports customized voltages including 110V, 220V, and even 380V. 4. Is the IP67 rating suitable for marine use?
Absolutely. The IP67 rating ensures it is fully waterproof and dustproof for harsh marine environments. 5. What is the difference between wire lead and pin types?
Wire leads (like this model) are pre-wired for convenience, while pin types require manual soldering or crimping. 6. What is the shortest 8mm indicator available?
The FL1M-08CW-4 is the most compact model in our 8mm series, designed for ultra-small spaces. 7. Does it come with installation accessories?

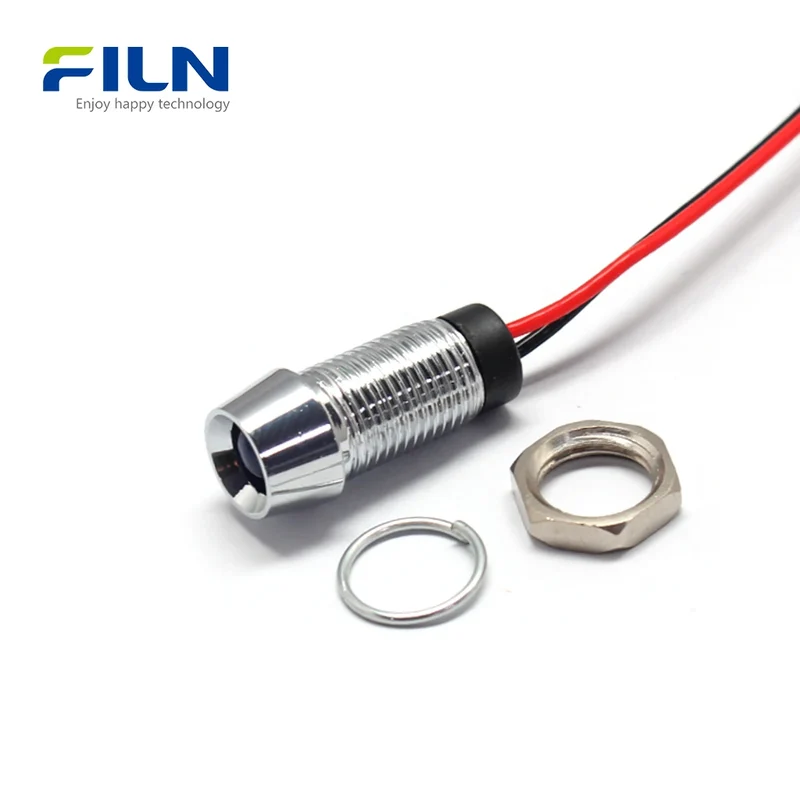

Yes, each unit includes a high-quality M8 nut and a silicone ring gasket. 8. Can the housing color be customized?

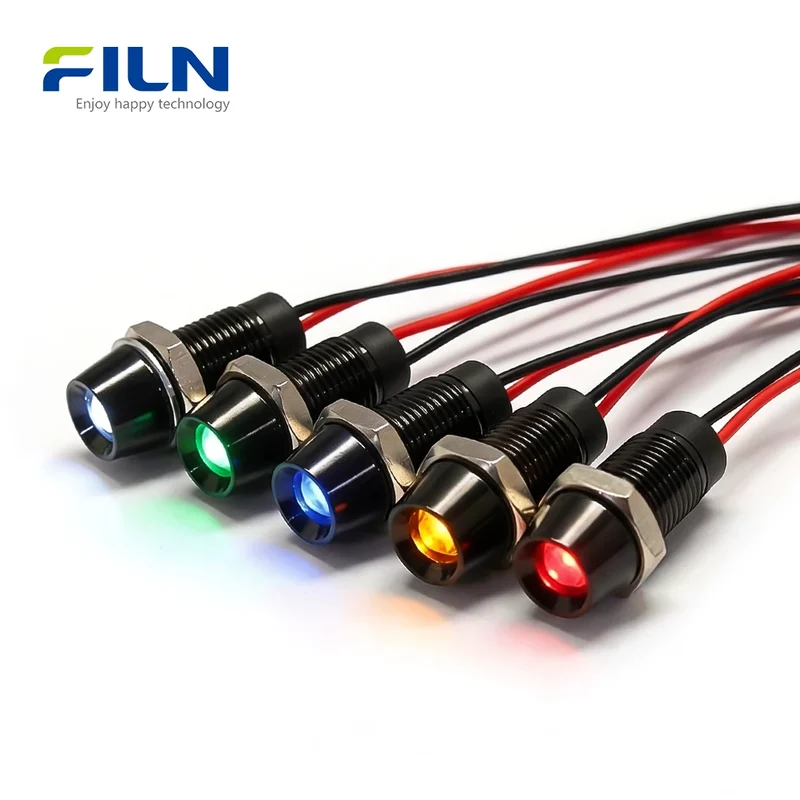

We offer standard chrome (silver) and black housing options to match your equipment style. 9. What is the typical lifespan of the LED?
Our industrial-grade LEDs are rated for a continuous working life of 50,000 hours. 10. Does FILN provide bulk discounts for B2B?
Yes, as a factory-direct supplier, we offer competitive pricing and customization for bulk industrial orders.
