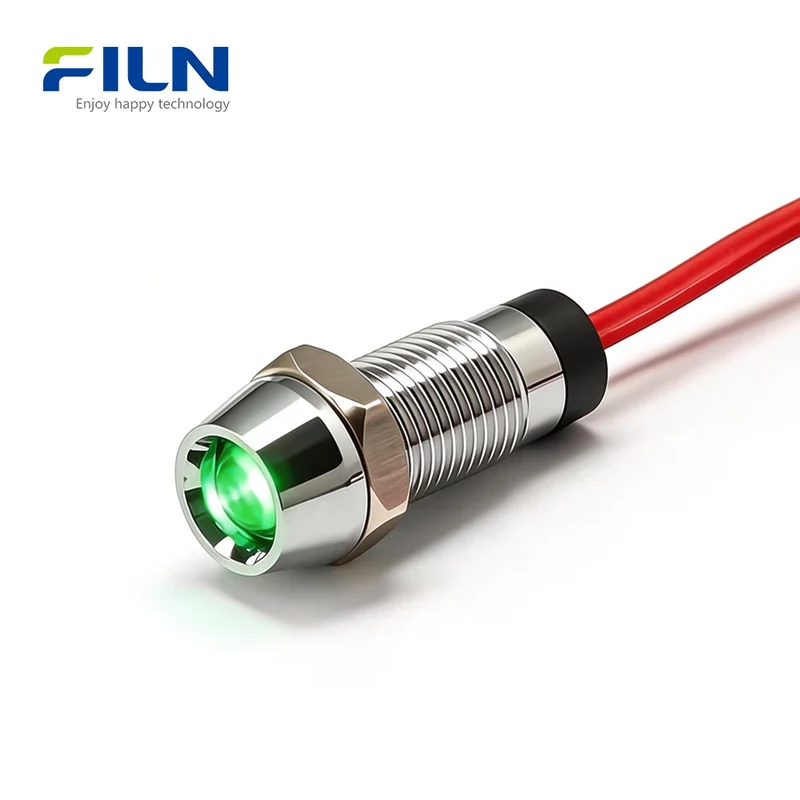

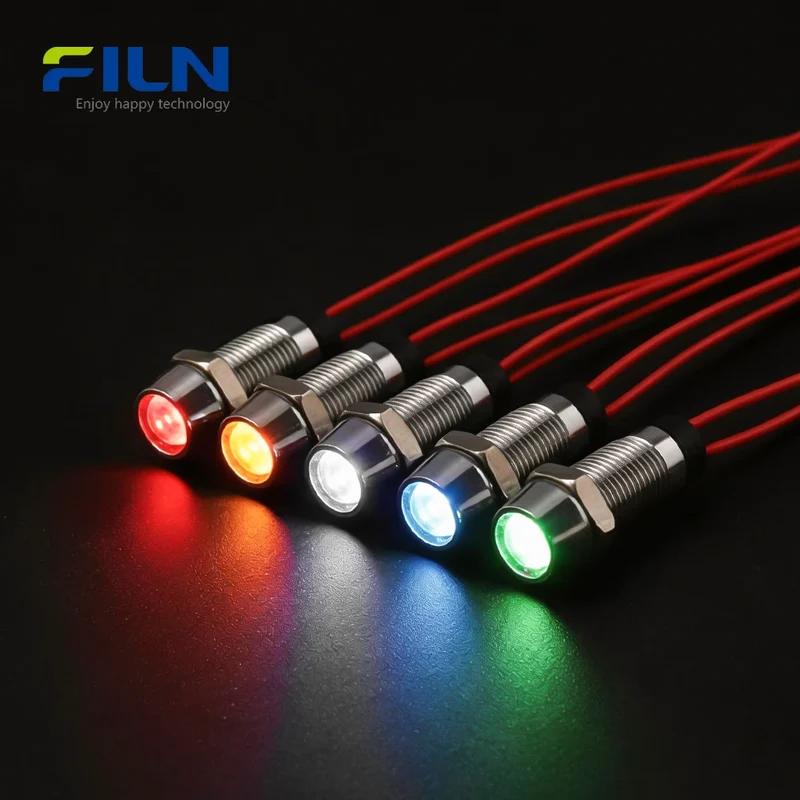

12V Pilot Light 8mm LED Metal Recessed Head IP67 for CNC Panel FILN

1,21 €0,74 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

The 12V pilot light (Model: FL1M-08CW-2) is a professional-grade 8mm LED indicator light designed for precision industrial signaling. Featuring a robust metal recessed head and an IP67 waterproof rating, this compact signal lamp is ideal for CNC machines, automation equipment, and marine systems. Its unique short-body design makes it perfect for small-space installations where standard indicators won't fit. With non-polar LED beads and pre-wired leads, it ensures long-lasting reliability and easy installation in diverse electrical cabinets.

Quick Specifications

Mounting Hole 8mm / 0.315 inch
Voltage 12-24V / 110-220V (Customized)

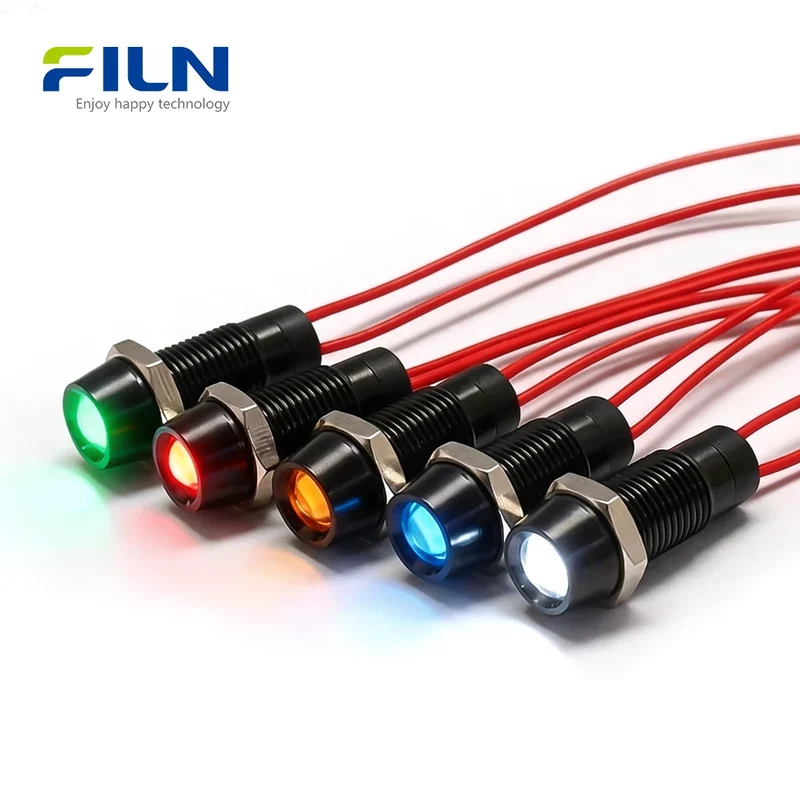

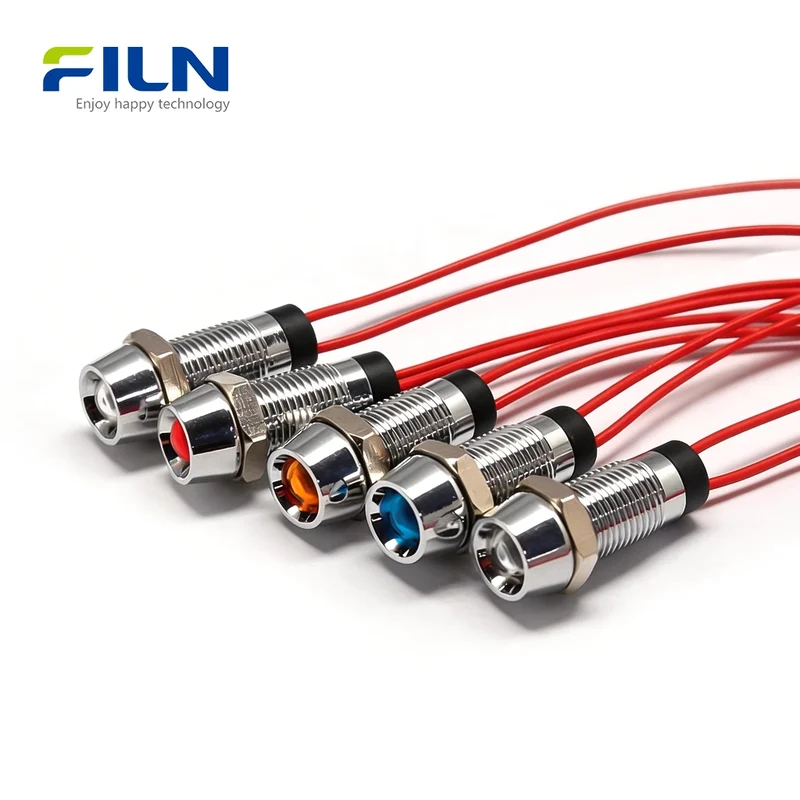

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ ~ +80℃
Lifespan ≥50,000 Hours

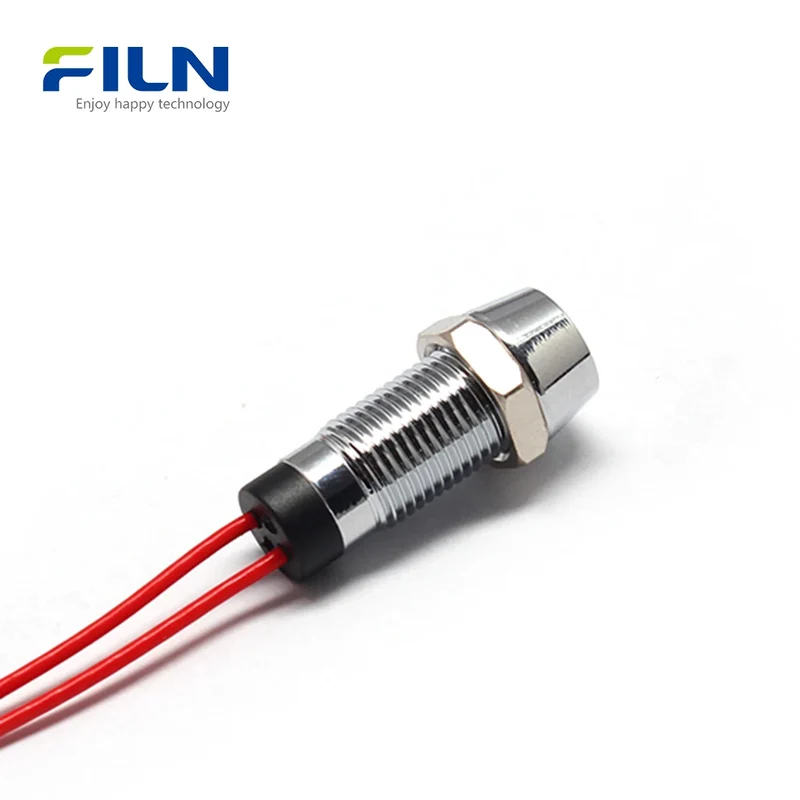

Wiring Type Wire Lead Type

Rated Working Parameters

Rated Voltage Customized (12V/24V/110V/220V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Chrome Plated Brass or Black Aluminum
Lens Polycarbonate (PC)
Seal Ring O-Ring Waterproof Washer
Terminal Brass Leads
Wire Material PVC or Silicone Wire

General Characteristics

Part Name FL1M-08CW-2 Indicator Light
Operating Temperature -40℃～80℃
Ambient Temperature 5~35℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown/flashover

Durability Characteristics

Item Test Condition Requirement
Continuous Working Life 30mA 1000h 50,000 hours

Resistant Performance

High Temperature 80℃ 96h
Low Temperature -40℃ 96h
Moisture Resistance 40℃ 90-95%RH 96h
Temperature Cycling -40℃ → 25℃ → 85℃ (5 Rounds)

Key Features

  • LED High Brightness: Exceptional visibility in all lighting conditions.
  • Long Lifespan: Rated for over 50,000 hours of continuous use.
  • IP67 Waterproof: Full protection against dust and temporary water immersion.

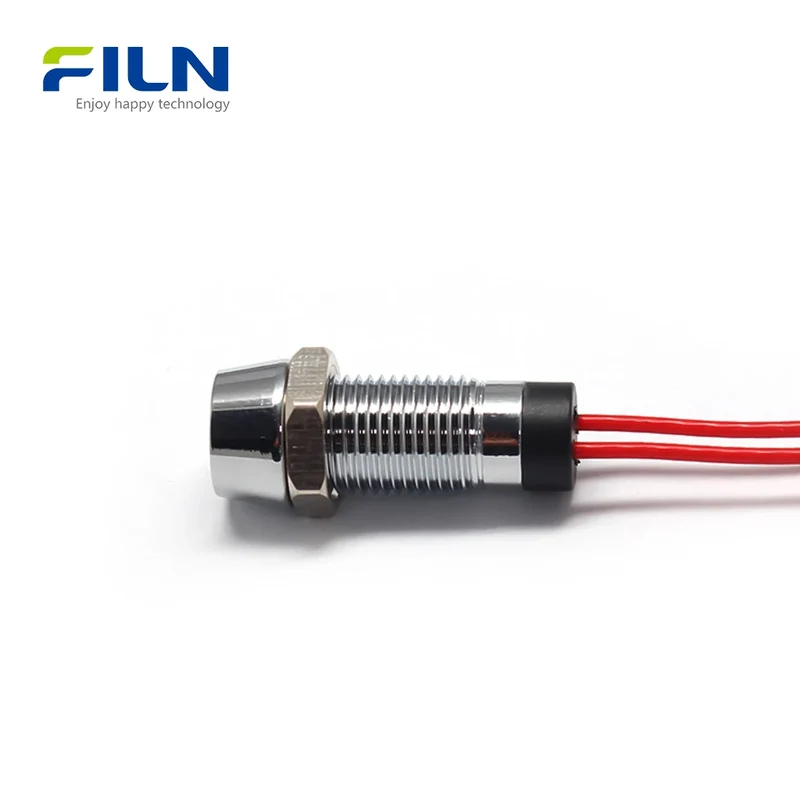

  • Compact Design: Short-body construction specifically for small-space installation.
  • Industrial Grade Reliability: Non-polar LED beads and durable metal housing (Silver/Black).

Applications

  • Industrial control panels and distribution boxes
  • CNC machines and precision manufacturing equipment
  • Automation systems and PLC signaling
  • Electrical cabinets and power monitoring
  • Marine systems and outdoor signage
  • Medical devices and laboratory equipment

Installation Guide

  1. Drill an 8mm (0.315 inch) mounting hole in your control panel.
  2. Insert the indicator light through the hole from the front side of the panel.
  3. Place the O-ring waterproof washer between the light head and the panel.
  4. From the back side, thread the M8 nut onto the indicator body.
  5. Tighten the nut securely to fix the light in place.
  6. Connect the pre-wired leads to your power source (12V-220V depending on model).

What is a 12V Pilot Light?

A 12V pilot light is a critical visual signaling device used in industrial environments to communicate the status of electrical circuits. Its primary role is to provide "at-a-glance" information—such as power status, system errors, or process completion—on control panels and machinery. In industrial equipment, these lights ensure operator safety and operational efficiency by offering clear, high-brightness feedback. The metal 8mm version is particularly valued for its durability and resistance to vibrations, common in CNC and automated production lines.

FILN Factory Direct Supply

Benefit from FILN's 20+ years of industrial expertise:

  • Factory Direct: Competitive pricing and strict quality control.
  • Voltage Customization: Support for 12V, 24V, 110V, 220V, and more.
  • Tailored Solutions: Custom wire lengths and connector types.
  • Fast Global Shipping: Reliable logistics for international B2B orders.

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: Is the 8mm pilot light polarized?

A: No, our 8mm LED beads are non-polar, making wiring much easier and safer.

Q2: What is the benefit of the recessed head?

A: The recessed head design protects the lens and provides a sleek, flush-mounted look on panels.

Q3: Can I use this for outdoor applications?

A: Yes, with an IP67 rating, it is completely waterproof and dustproof.

Q4: Does it come with mounting accessories?

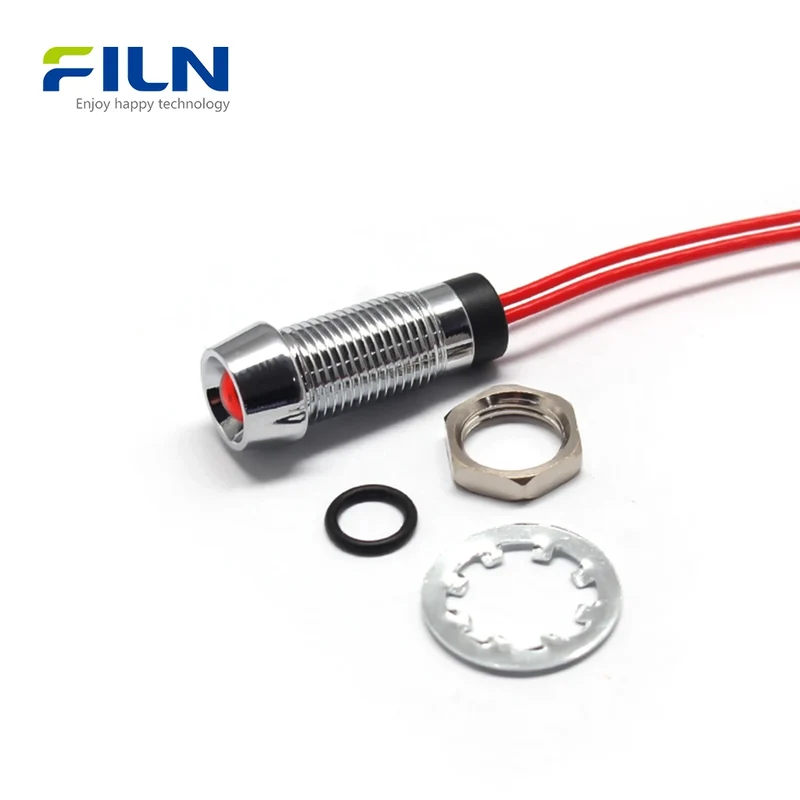

A: Yes, each light includes one O-ring waterproof washer and one M8 nut.

Q5: How does this model differ from the standard FL1M-08CW-1?

A: The FL1M-08CW-2 is shorter, making it ideal for installation in tight or confined spaces.
