14mm Green Light Indicator Plastic 12V 220V Snap-in Wire Lead for FILN

Product Overview

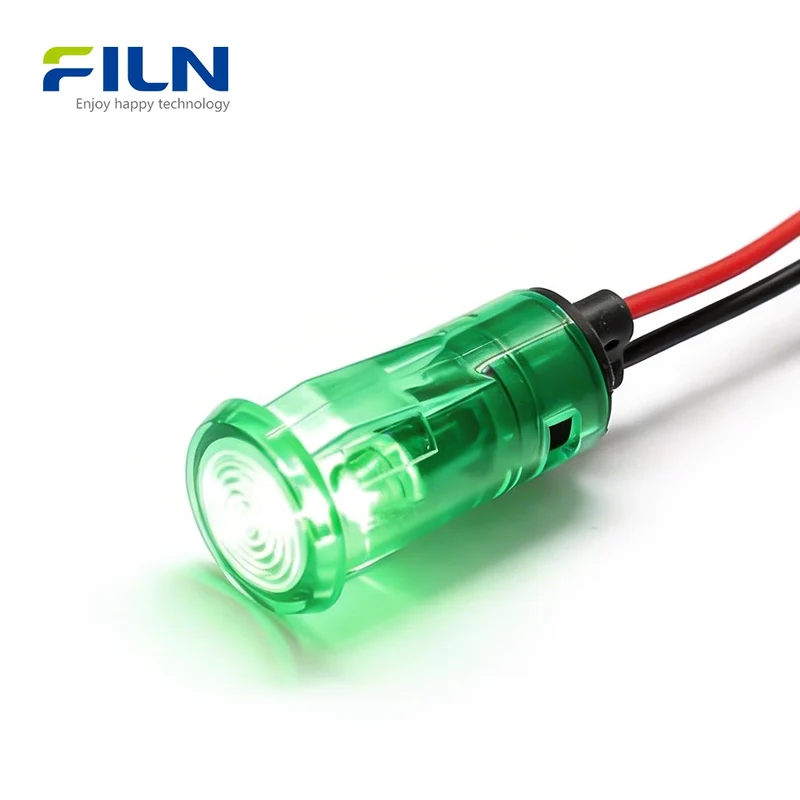

The FILN green light indicator (Model: FL1P-14QW-1) is a professional-grade 14mm plastic signal lamp designed for industrial reliability. This round head plastic pilot lamp features a high-brightness LED and a convenient snap-in mount design for rapid assembly. For those looking for a high-quality 14mm green light indicator for sale, this product offers superior visibility and durability. Our indicators carry prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Designed for industrial control panels, automation equipment, and electrical cabinets, it provides a cost-effective yet robust signaling solution. Whether you need 12V, 24V, 110V, or 220V, FILN provides custom voltage LED indicator lights to meet your exact specifications.

Quick Specifications

Mounting Hole	14mm (0.55 inch)
Voltage	12V-24V, 110V-220V (Customized)

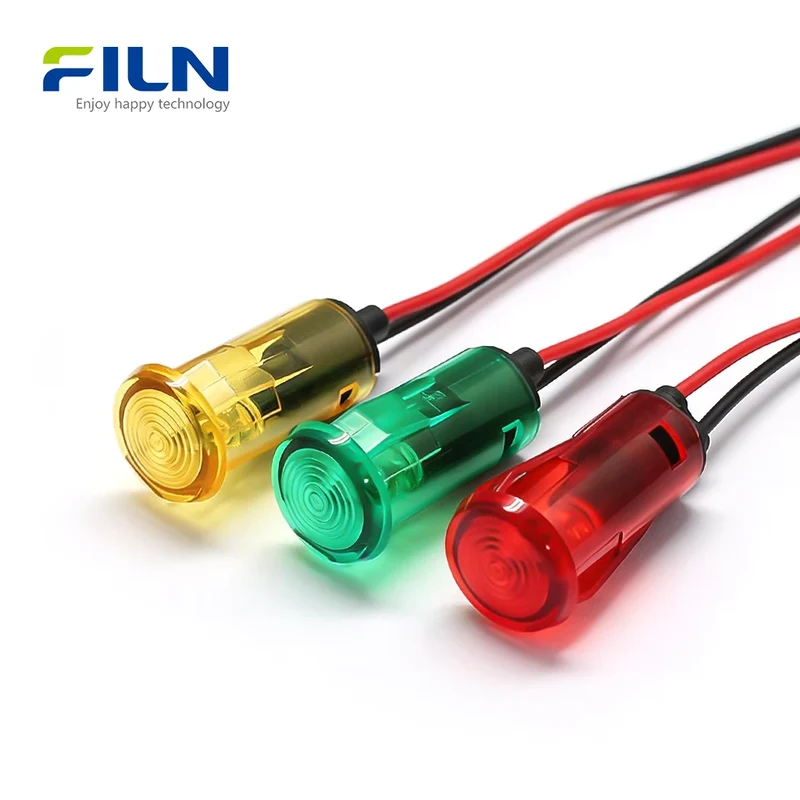

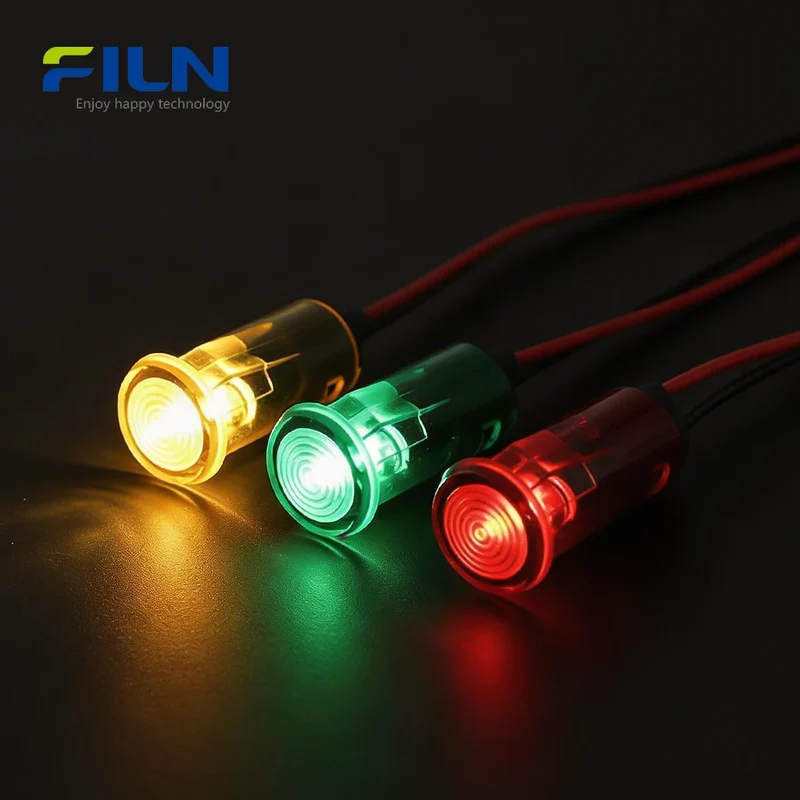

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	Snap-in type (Non-waterproof)
Operating Temperature	-40℃ to +80℃
Lifespan	60,000 Hours
Installation Method	Snap-in Mounting
Wiring Type	Wire Lead (15cm Standard)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Rated Working Parameters

Rated Voltage	Customized (3V to 380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Shell (Housing)	High-quality PA66 Nylon
Lamp Holder	Flame-retardant PA66
Lampshade (Lens)	Transparent PC (Polycarbonate)
Luminescent Source	High-Intensity LED
Resistance	Carbon Film Resistance
Wire Material	PVC Insulated Copper Wire

General Characteristics

Items	Parameter
Voltage Range	3V～250V
Rated Power	0.2W
Insulation Resistance	1800V / 5s
Working Temperature	-40℃ to +80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Test Item	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown or flashover

Durability Characteristics

Continuous Working Life	Test: 30mA 1000h → Expectancy: 50,000+ hours

Resistant Performance

High Temperature Resistance	80℃ for 96h (No deformation)
Low Temperature Resistance	-40℃ for 96h (No cracking)
Moisture Resistance	40℃ 90-95%RH for 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

• LED high brightness: Ensures clear visibility even in well-lit factory environments.
• Long lifespan: Maintenance-free operation for over 60,000 hours.
• Snap-in Mounting: Fast "plug-and-play" installation without additional tools or nuts.
• Integrated Wire Lead: 15cm PVC wires for direct and easy electrical connection.
• Industrial Grade Reliability: Built with flame-retardant PA66 material for safety.

Applications

• Industrial Control Panels: Status monitoring for machine operations.
• CNC Machines: Indicator light for operational safety and power status.
• Automation Equipment: Real-time signal feedback for robotic systems.
• Electrical Cabinets: Power distribution board signal displays.
• Marine & Medical: Durable signaling for demanding environments.

Installation Guide

1. Drill a 14mm hole on your panel board.
2. Insert the 14mm green light indicator from the top of the panel.
3. Push until the side "snap-in clips" (ears) lock the indicator firmly in place.
4. Connect the 15cm wire leads to your power source (Check voltage compatibility).

What Is a Green Light Indicator?

A green light indicator is a visual signaling device used in industrial environments to represent a "Normal," "Safe," or "Ready" status. In the 14mm plastic category, these devices offer several advantages:

Plastic vs. Metal: While metal indicators offer higher physical impact resistance, plastic LED signal lamps are lightweight, corrosion-resistant, and more cost-effective for indoor electronic applications.

Wiring: This model uses wire leads (pre-soldered wires) rather than pin terminals. Wire lead indicators are faster to install as they eliminate the need for manual soldering or terminal connectors, saving time on large-scale production lines.

Color Meanings:
• Green: Safe operation, system ready, or power ON.
• Red: Emergency stop, fault, or danger.
• Yellow: Warning or transitional status.
• Blue/White: Specific machine instructions or auxiliary status.

Factory Direct Supply

FILN is a leading manufacturer specializing in industrial indicators. We offer comprehensive customization options:

• Factory Direct Pricing
• Voltage Customization
• Wire Length Customization
• Connector Customization
• Fast Global Shipping
• B2B Bulk Discounts

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: Is this 14mm green light indicator available for immediate sale?
A: Yes, we maintain stock for standard voltages and offer factory-direct shipping globally.

Q2: What is the benefit of the snap-in mount?
A: The snap-in design allows for tool-less installation, which significantly reduces labor time on assembly lines.

Q3: Can I customize the wire length?
A: Absolutely. While 15cm is standard, we can customize wire lengths from 5cm to 5 meters for B2B orders.

Q4: Do you provide UL certified indicators?
A: Yes, FILN products are UL, CE, and RoHS certified to meet international safety standards.

Q5: What is the difference between plastic and metal indicators?
A: Plastic indicators are lighter and more economical, while metal ones offer higher IP ratings and vandal resistance.

Q6: Does this indicator work with both AC and DC?
A: Yes, our LEDs are designed to handle both AC and DC within the specified voltage range.

Q7: Can I order a 220V green power indicator for industrial use?
A: Yes, we provide 220V versions specifically for electrical panel power status signaling.

Q8: Is the green LED bright enough for outdoor use?
A: It is high-intensity, but for direct sunlight, we recommend our specialized high-lumen series.

Q9: How do I know which mounting size I need?
A: This model requires a precise 14mm mounting hole. We also offer 8mm, 10mm, and 12mm versions.

Q10: What is the MOQ for custom voltage LED indicator lights?
A: We support small trial orders, but bulk discounts are available for larger factory orders.
