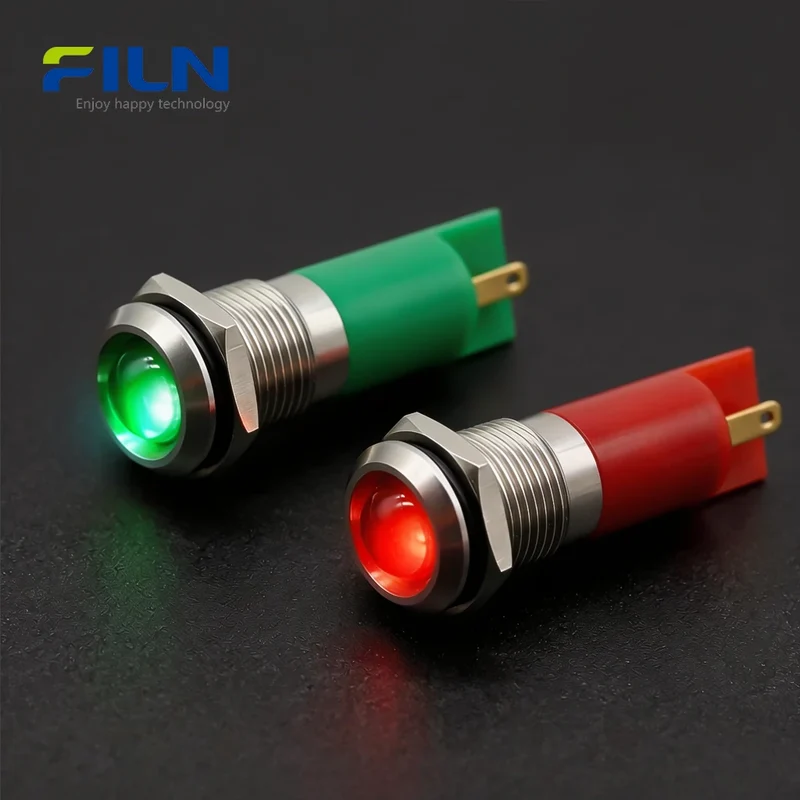

14mm Indicator Lamp 12V 220V Metal High Head 2Pin Signal Light FILN

Product Overview

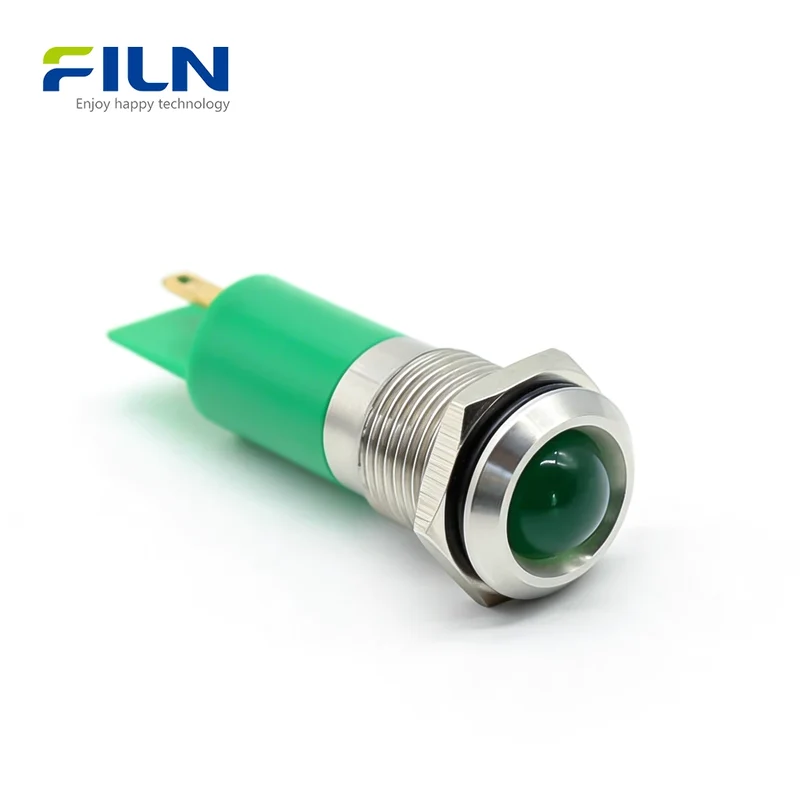

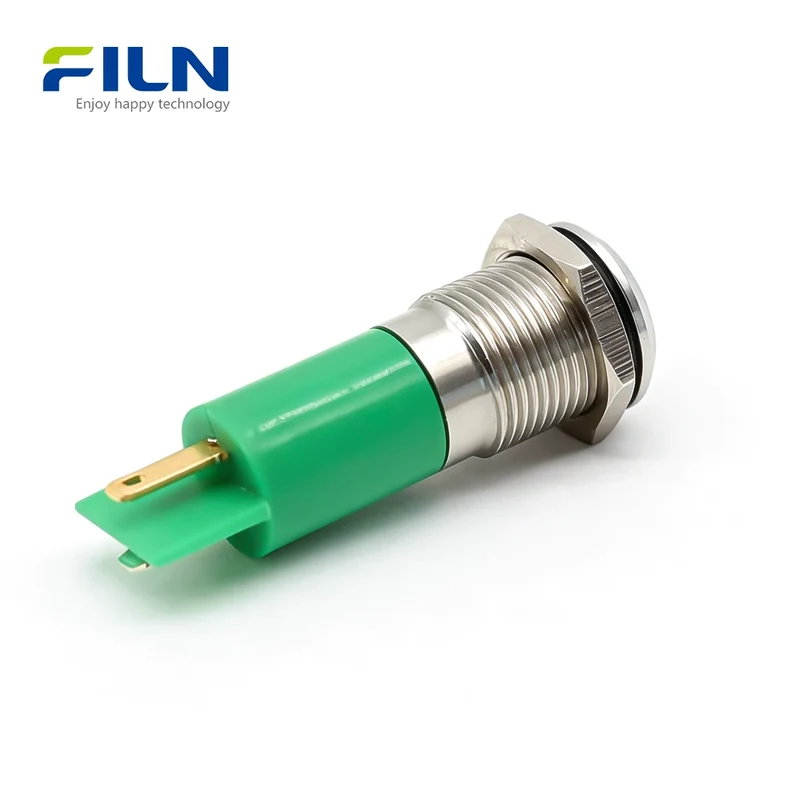

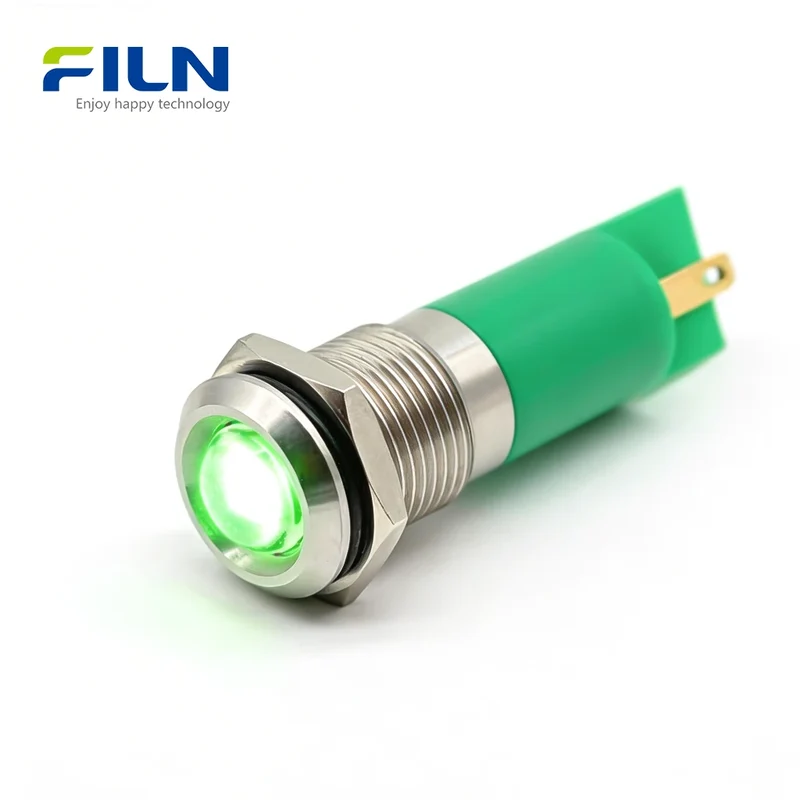

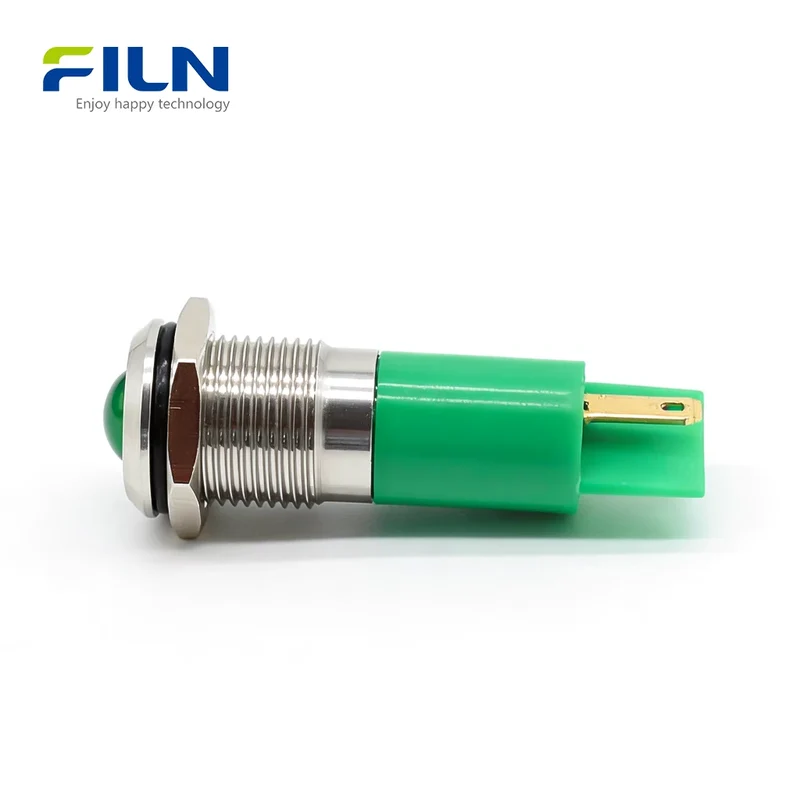

The FILN indicator lamp (Model: FL1M-14SJ-2) is a professional 14mm high-head metal signal light designed for maximum visibility. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, this lamp features an upgraded large LED bead for enhanced light concentration. It is widely used in industrial control panels, medical devices, yachts, and new energy systems. The rugged metal housing (available in silver or black) and high-head design provide 360-degree light indication, outperforming flat or concave alternatives. With long lifespan and efficient 2-pin terminal connections, FILN offers factory-direct reliability with full customization support.

Quick Specifications

Mounting Hole	14mm (0.55 inches)
Voltage	12V-24V / 110V-220V (Customizable)

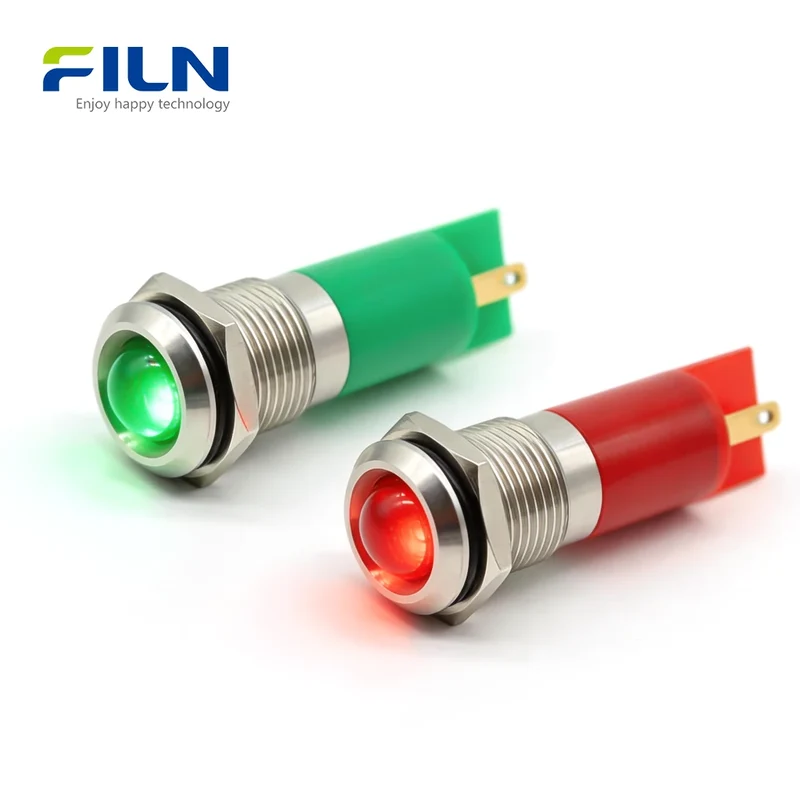

LED Color	Red, Green (Yellow, Blue, White Production lead time: 2 weeks)
Waterproof Rating	IP65 / IP67
Wiring Type	2-PIN Faston Terminal

Rated Working Parameters

Rated Voltage	Customized (e.g., 12V, 24V, 110V, 220V)
Frequency (AC)	50 ～ 60Hz
Rated Current	≤20mA

Component Materials

Housing	Chrome Plated Brass / Black Aluminum
Lens	Polycarbonate (Large LED Bead)
Seal Ring	Silicone O-Ring (14mm)
Terminal	Silver-plated Brass Pin

General Characteristics

Operating Temperature	-40℃ ～ 80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86 ～ 106Kpa

Electric Property

Parameter	Test Condition	Requirement
Insulation Resistance	DC500V for 1 min	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability Characteristics

Continuous Working Life	≥50,000 Hours
Test Condition	30mA for 1000h

Resistant Performance

Test Item	Condition
High/Low Temperature	80℃ / -40℃ for 96h
Moisture Resistance	40℃ 95%RH for 96h

Key Features

• Large LED Bead: Upgraded optics for superior light concentration and brightness.
• High Head Visibility: Protruding design ensures the signal is visible from all angles.
• IP67 Waterproof: Includes a high-grade 14mm O-ring and M14 nut for complete sealing.
• Long Service Life: Industrial-grade components rated for 50,000+ hours.

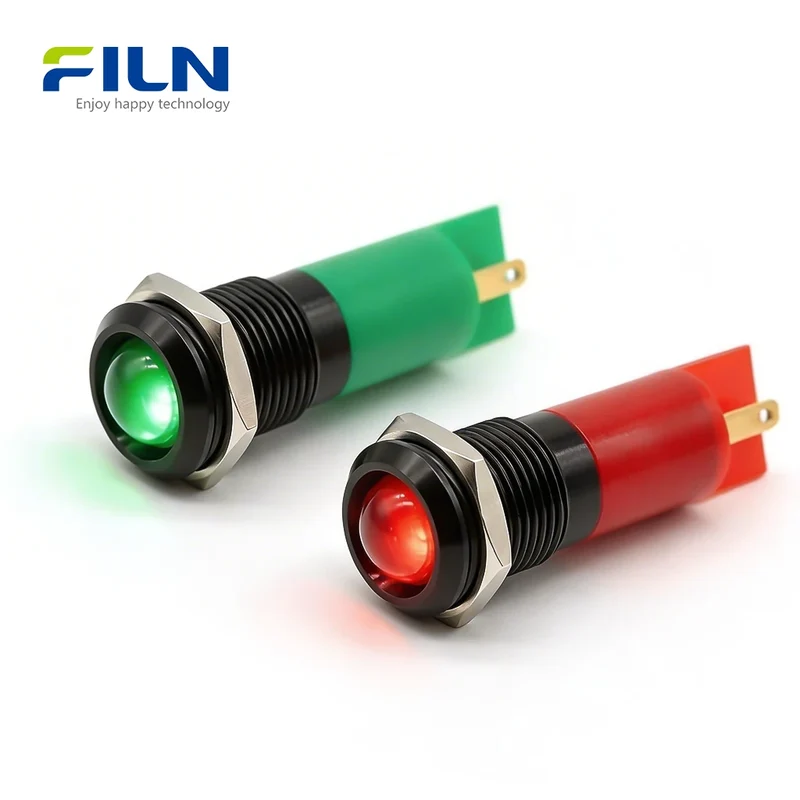

• Rugged Metal Shell: Available in silver chrome or black anodized aluminum.

Applications

• Industrial Control: Panel status for CNC machinery and automation lines.
• Medical Equipment: Clear visual alerts for diagnostic and testing devices.
• Marine & Yachting: Waterproof dash indication for maritime navigation.
• New Energy: Status lights for EV charging stations and battery banks.
• Testing Instruments: High-visibility light indication for laboratory consoles.

Installation Guide

1. Drill a 14mm hole in the mounting panel.
2. Insert the indicator lamp through the hole from the front side.
3. Ensure the 14mm O-ring is positioned against the panel for waterproofing.
4. From the rear, screw the M14 nut onto the smooth threads of the housing.
5. Tighten the nut securely and connect the power supply to the 2-pin terminals.

What Is a 14mm High Head Indicator Lamp?

An indicator lamp is an essential component used to provide visual feedback on circuit status. The FL1M-14SJ-2 model stands out due to its High Head design, which protrudes from the panel surface. Unlike Flat Head or Concave designs, the high head allows the light to be seen clearly even from side viewpoints. Furthermore, this model utilizes Large LED Beads to focus light more effectively, making it ideal for bright environments. The pin terminal design is specifically for quick-connect systems, providing a more compact and faster installation compared to the FL1M-14SW-1 wire-lead version.

Factory Direct Supply & Customization

FILN is an industry-leading manufacturer offering factory-direct advantages:

• Custom Voltage (12V-220V AC/DC)
• Housing Finish Options (Silver/Black)
• Pre-soldered Wire Harness Services
• Fast Global Logistics & OEM Support

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: High Head vs. Flat Head vs. Concave?
A: High head offers the best side visibility; Flat head is flush for safety; Concave (凹头) protects the lens from impact.

Q2: What is the benefit of the large LED bead?
A: Large beads concentrate light better, providing a brighter and more focused signal compared to standard small LEDs.

Q3: SJ-2 (Pin) vs. SW (Wire)?
A: SJ-2 uses 2-pin terminals for rapid plug-in connection. SW models come with pre-soldered wires for deep panel mounts.

Q4: Is the mounting hardware included?

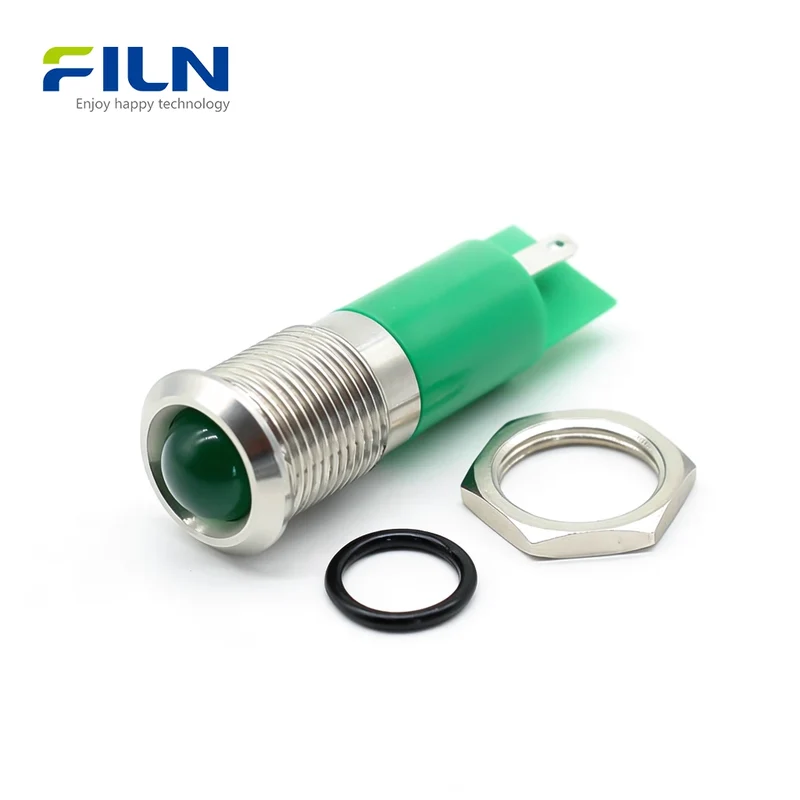

A: Yes, each lamp includes a 14mm O-ring for waterproofing and an M14 nut for secure mounting.

Q5: Can I use this for a 220V system?
A: Yes, we offer models specifically rated for 220V AC, as well as 12V-24V DC versions.

Q6: Is the black housing durable?
A: Our black aluminum housing uses an anodized process that is highly resistant to scratches and corrosion.

Q7: What is the delivery time for custom colors?
A: Yellow, Blue, and White LED versions typically require a 2-week production cycle.

Q8: Is it certified for medical use?
A: Yes, with CE, UL, and RoHS certifications, it meets the safety standards for medical diagnostic equipment.

Q9: How do I ensure it is waterproof?
A: Simply ensure the O-ring is properly seated between the lamp head and the panel before tightening the M14 nut.

Q10: Do you support factory customization?
A: As a direct manufacturer, we support custom voltages, wire lengths, and specialized connector types.
