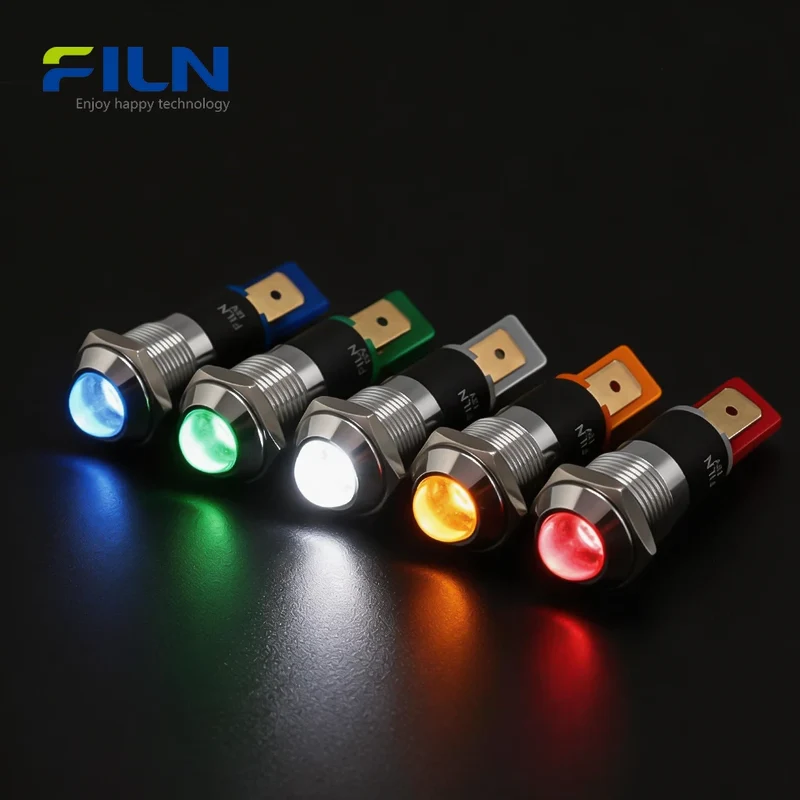

14mm Light Indication Metal LED Light 12V 220V High Head Pin Indicator FILN

2,00 €1,04 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

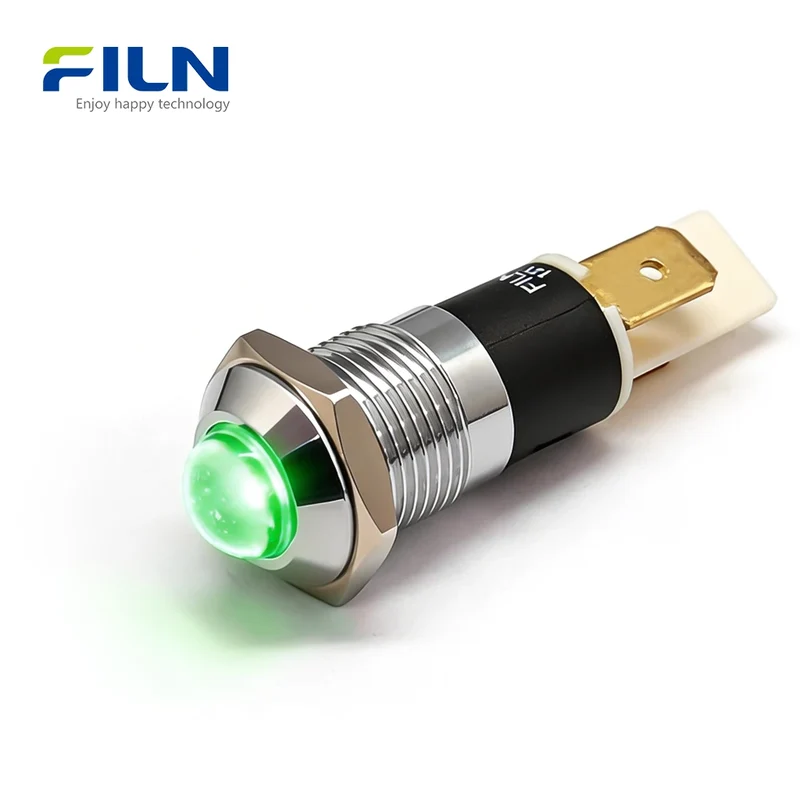

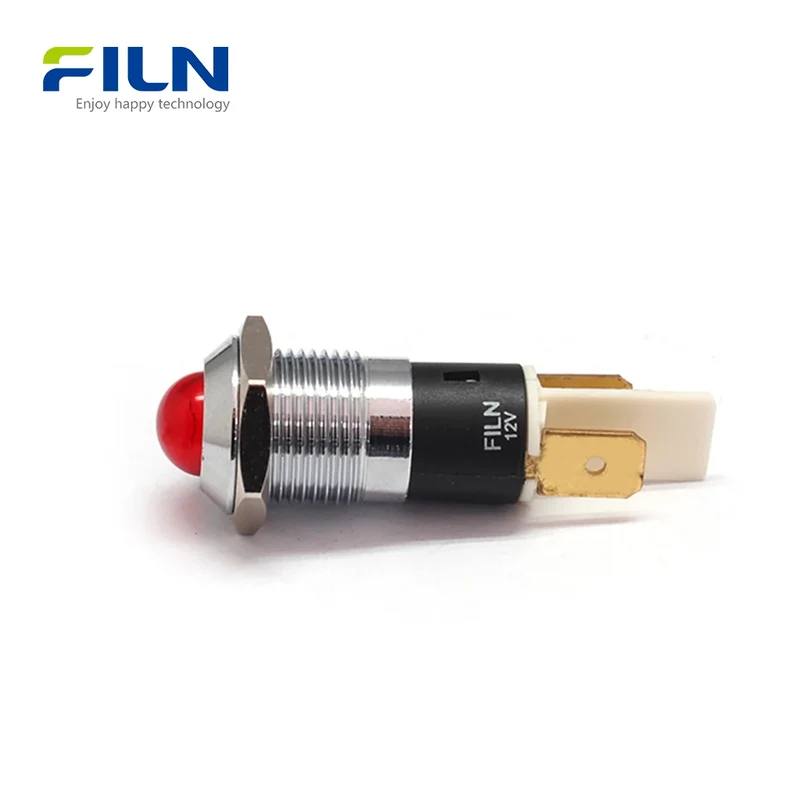

The FILN light indication (Model: FL1M-14SJ-1) is a premium 14mm high-head metal indicator engineered for demanding environments. This product carries global certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67. Designed for versatile use in industrial control panels, medical devices, yachts, and new energy systems, it features a rugged housing available in silver or black. Its primary advantage is the high-head design which offers superior 360-degree visibility compared to flat or concave types. With long lifespan and easy 2-pin terminal installation, FILN provides a reliable factory-direct solution for global B2B procurement.

Quick Specifications

Mounting Hole 14mm (0.55 inches)
Voltage 12V-24V / 110V-220V (Customizable)

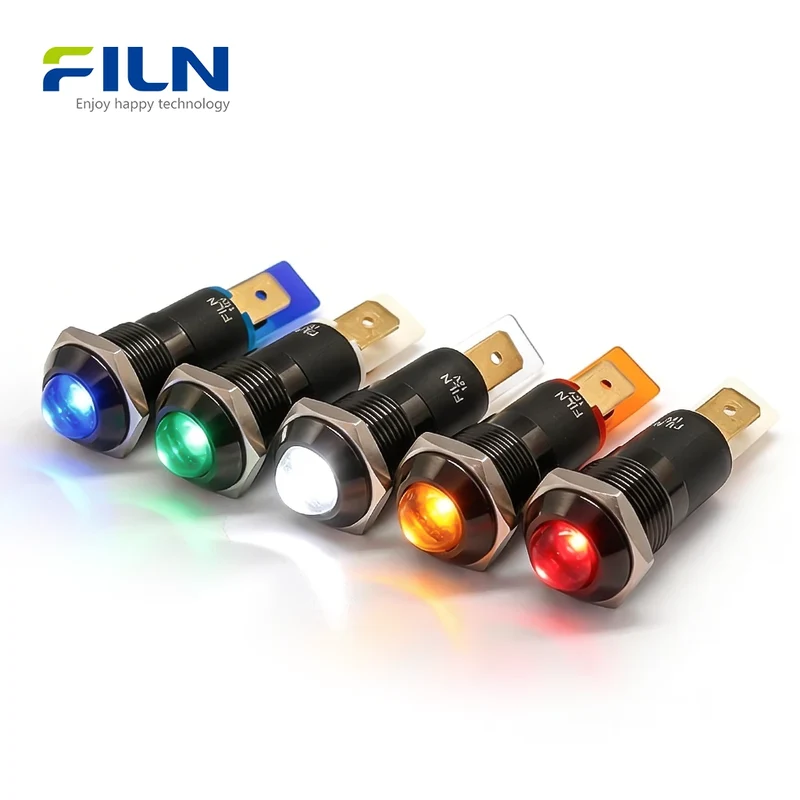

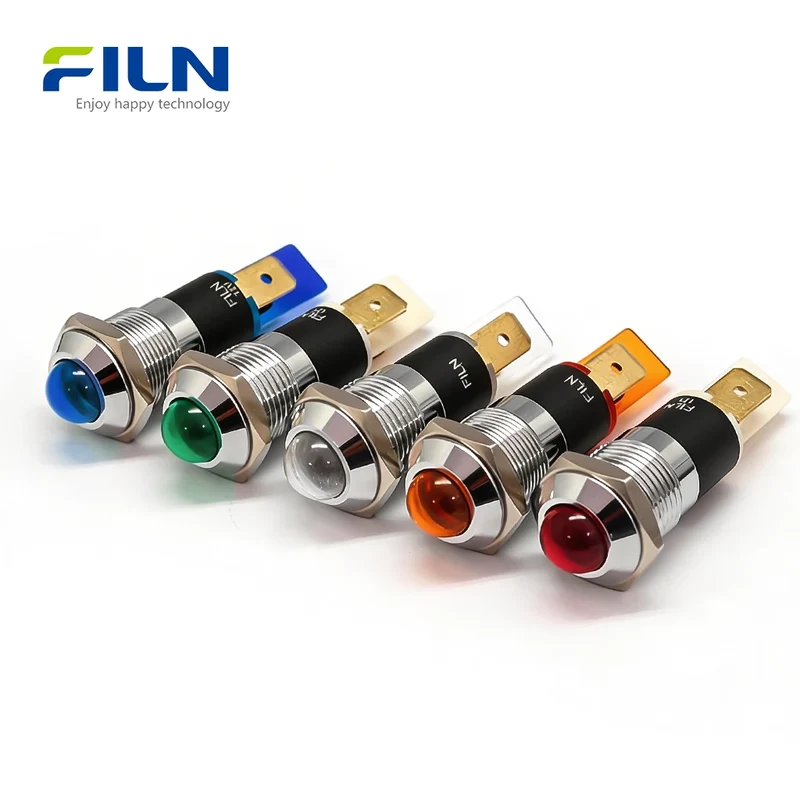

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67

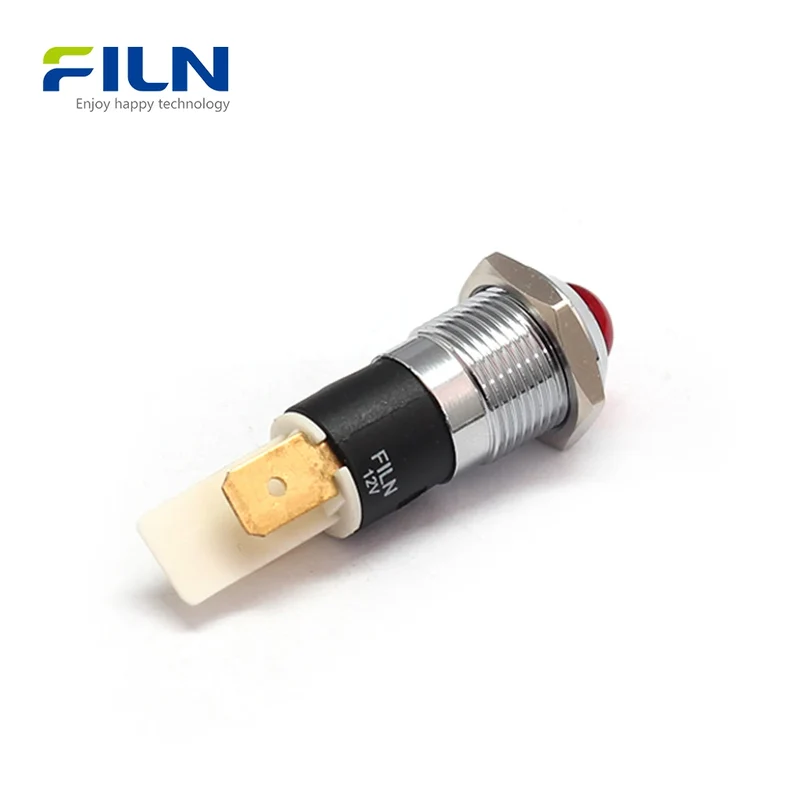

Wiring Type 2-PIN Faston Terminal
Head Type High Head (Prominent)

Rated Working Parameters

Rated Voltage Customized per Requirement
Frequency (AC) 50 ～ 60Hz
Rated Current ≤20mA

Component Materials

Housing Chrome Plated Brass / Black Anodized Al
Lens Epoxy / PC
Seal Ring Silicone O-Ring (14mm)
Terminal Silver-plated Brass Pins

General Characteristics

Operating Temperature -40℃ ～ 80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86 ～ 106Kpa

Electric Property

Parameter Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Durability Characteristics

Continuous Working Life 50,000 hours
Aging Test Condition 30mA 1000h

Resistant Performance

Test Item Parameters
Temperature Cycle -40℃ → 25℃ → 85℃ (5 rounds)
Moisture Resistance 40℃ 90-95%RH 96h

Key Features

  • LED High Brightness: Superior illumination for critical status monitoring.
  • Long Lifespan: Rated for over 50,000 hours of continuous operation.

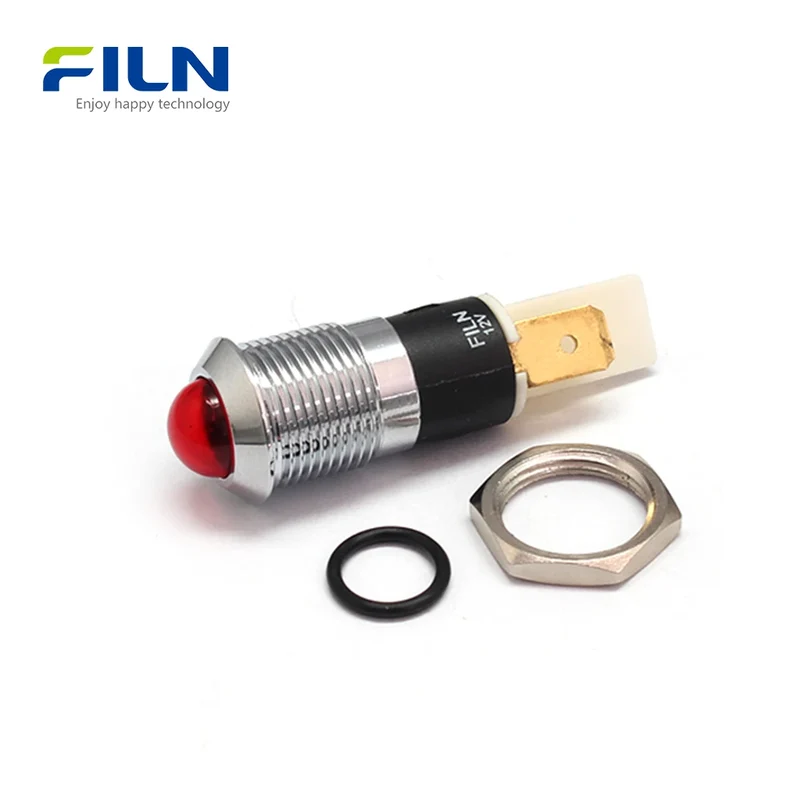

  • IP67 Waterproof: Includes a high-grade 14mm O-ring and M14 nut for complete sealing.
  • Easy Installation: Pin terminal design allows for rapid connection and maintenance.
  • Industrial Grade Reliability: Robust metal shell resistant to impact and vibration.

Applications

  • Industrial Automation: Control panels and CNC machinery status.
  • Medical Devices: Diagnostic equipment and laboratory testing displays.
  • Marine Systems: Dashboard indicators for yachts and commercial vessels.
  • New Energy: EV charging stations and battery storage status.
  • Power Distribution: Electrical cabinets and monitoring consoles.

Installation Guide

  1. Drill a 14mm hole on the intended mounting panel.
  2. Insert the indicator light through the panel hole from the front side.
  3. Ensure the 14mm O-ring is seated against the panel for a waterproof seal.
  4. From the rear of the panel, screw the M14 nut onto the smooth threads.
  5. Tighten the nut securely and connect wires to the 2-pin terminals.

What Is a 14mm Light Indication Signal?

A light indication component is a visual signal used to monitor the status of electrical circuits. The FL1M-14SJ-1 features a High Head design, which protrudes from the panel to allow operators to see the light from side angles (360-degree visibility). This is distinct from Flat Head indicators which are flush for aesthetics, or Concave (凹头) designs that protect the lens but limit viewing angles. Additionally, the pin terminal (插脚) design provides a rigid connection point for quick-connectors, whereas the FL1M-14SW-1 uses wire leads (接线) for remote wiring. Choosing the right head and terminal type is vital for the ergonomics and safety of industrial equipment.

Factory Direct & Customization

FILN is a specialized manufacturer offering factory-direct advantages:

  • Custom Voltage & LED Colors
  • Wire Harness & Connector Customization [cite: 4]
  • Housing Finish Options (Silver/Black)
  • Fast Global Shipping & OEM Support

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: High Head vs. Flat Head vs. Concave?
A: High head offers the best side visibility; Flat head is flush for safety; Concave (凹头) protects the lens surface but narrows the light beam.

Q2: SJ-1 (Pin) vs. SW-1 (Wire)?
A: SJ-1 uses 2-pin terminals for quick connection. SW-1 uses pre-soldered wires for easy wiring in deep panels.

Q3: Is it suitable for yachts?
A: Yes, with IP67 protection and a corrosion-resistant shell, it is marine-ready.

Q4: Do you offer customization?
A: Yes, we customize voltage, wire length, and shell color (Silver/Black).

Q5: What certifications are included?
A: We hold ISO9001, CE, UL, VDE, and RoHS certifications.

Q6: How easy is installation?
A: Very easy; drill 14mm, insert, and tighten the M14 nut. The threads are smooth for fast assembly.

Q7: What is the rated current?
A: The rated current is typically ≤20mA for optimal brightness and longevity.

Q8: Can it handle extreme temperatures?
A: Yes, it is tested to operate reliably from -40℃ to +80℃.

Q9: Is there a MOQ for custom orders?
A: As a factory, we offer flexible solutions for both small batches and large OEM orders.

Q10: Are the LEDs bright enough for daylight?
A: Yes, we use high-brightness industrial chips for clear light indication under various lighting conditions.
