14mm Light On Indicator Metal Indicator Lamp 12V 110V 220V | Pin Terminal | CNC & Medical FILN

2,00 €1,09 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

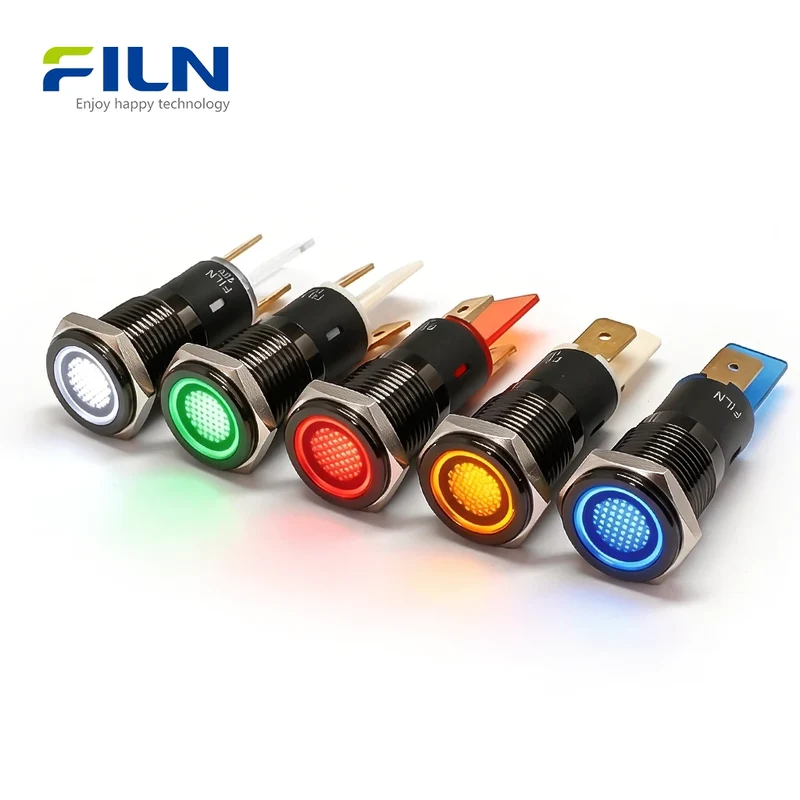

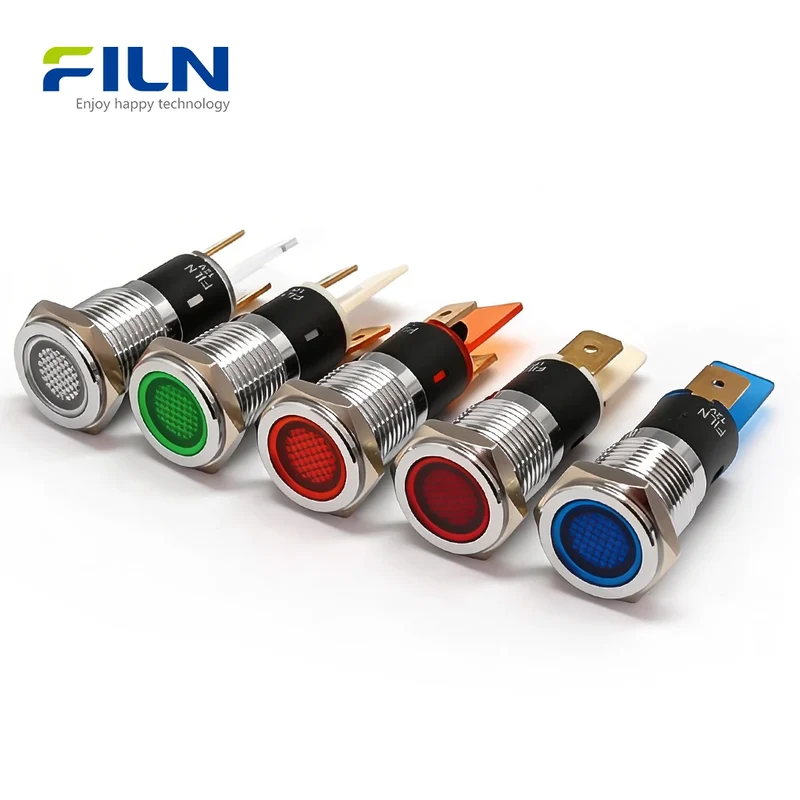

The FILN light on indicator (Model: FL1M-14FJ-1) is a professional-grade 14mm panel mount signal lamp designed for high-visibility status monitoring. Featuring ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications, this indicator ensures global compliance and safety. It is widely utilized in industrial control panels, medical devices, CNC machinery, and marine systems. The core advantages include a rugged metal housing (available in silver or black), high-brightness LED chips, and a space-saving flat-head design. Whether for 12V-24V DC or 110V-220V AC applications, FILN offers factory-direct customization to meet specific engineering requirements.

Quick Specifications

Mounting Hole 14mm (0.55 inches)
Voltage 12V, 24V, 110V, 220V (Customizable)
LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃

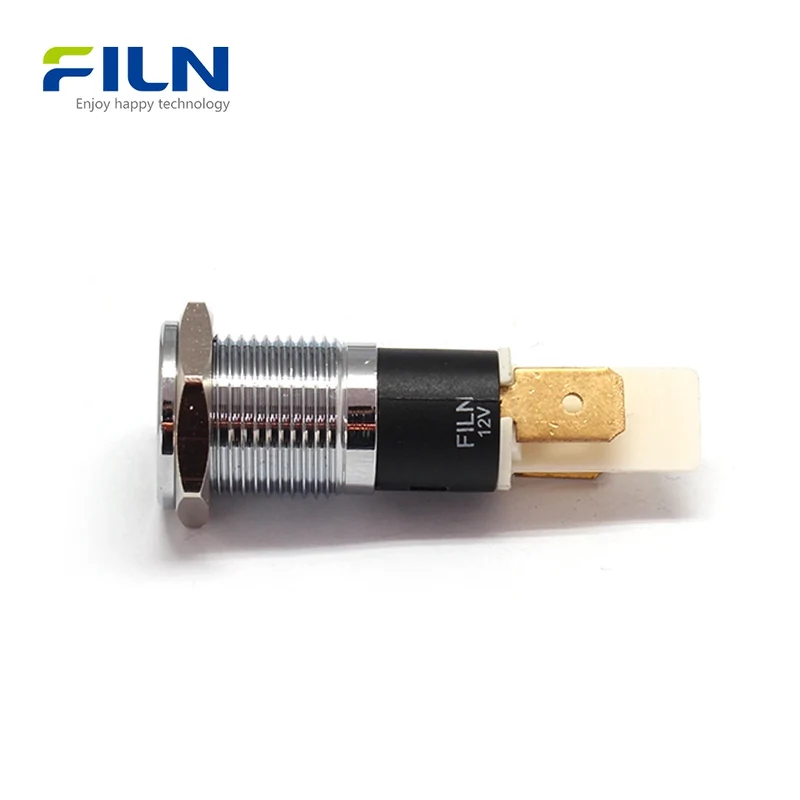

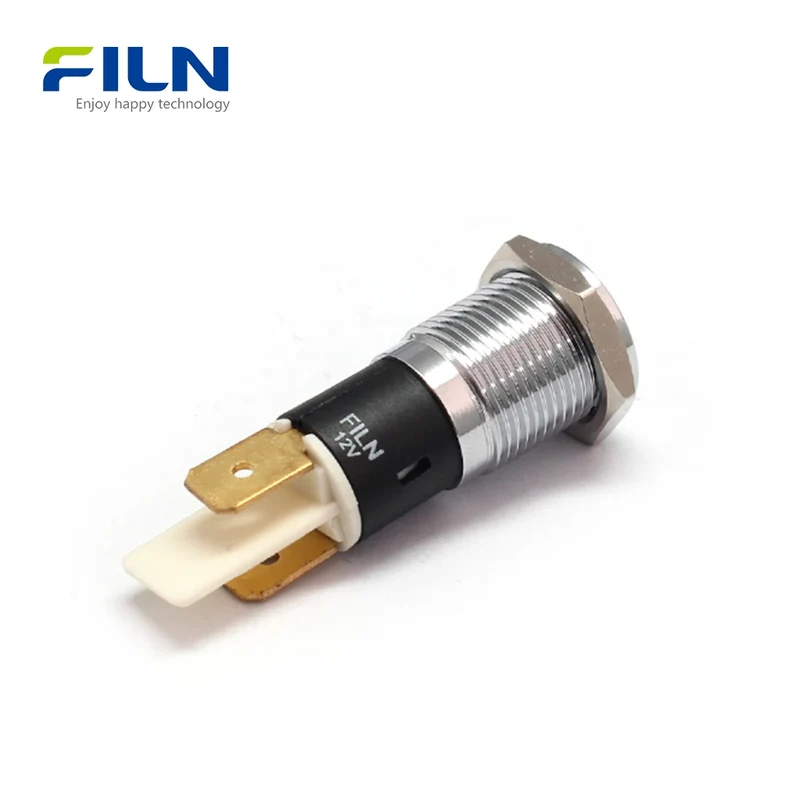

Wiring Type 2-PIN Faston Terminal

Rated Working Parameters

Rated Voltage 12V-220V / Customized
Frequency (AC) 50Hz ～ 60Hz
Rated Current ≤20mA

Component Materials

Housing Chrome Plated Brass / Black Aluminum
Lens Polycarbonate (PC)
Seal Ring Silicone Rubber (O-Ring)
Terminal Silver-plated Brass Pin

General Characteristics

Operating Temperature -40℃ ～ +80℃
Relative Humidity ≤85% at +40℃
Ambient Temperature 5℃ ～ 35℃
Air Pressure 86 ～ 106Kpa

Electric Property

Parameter Test Condition Requirement
Insulation Resistance DC500V for 1 min ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Durability Characteristics

Continuous Working Life ≥50,000 Hours
Aging Test 30mA for 1000h

Resistant Performance

Test Item Condition
High Temperature Resistance 80℃ for 96h
Low Temperature Resistance -40℃ for 96h
Moisture Resistance 40℃, 90-95%RH for 96h

Key Features

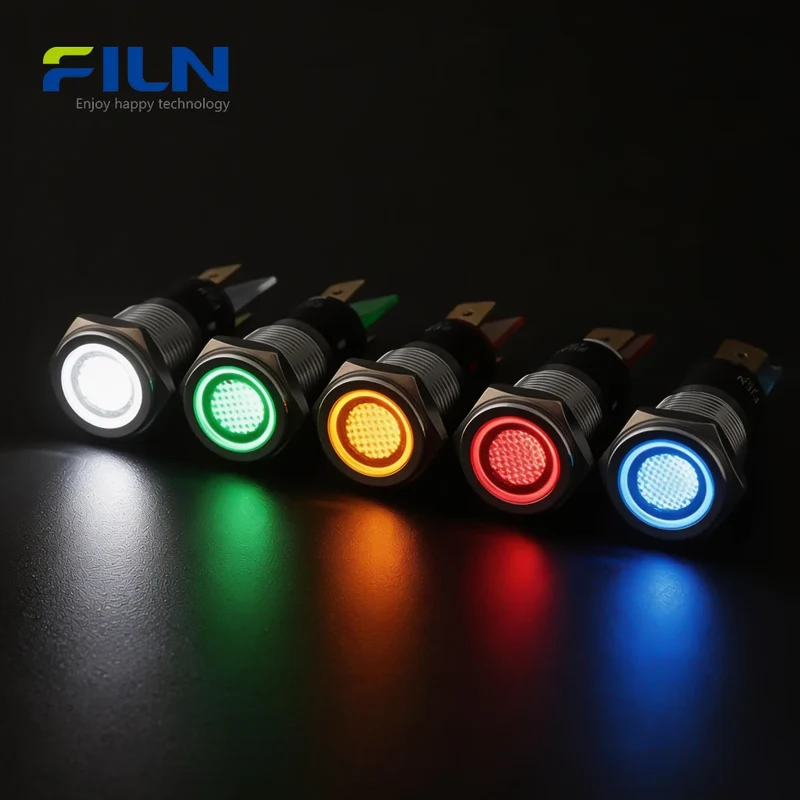

  • LED High Brightness: Utilizes premium LED chips for clear visibility even in bright environments.
  • Flat Head Advantage: The flush design prevents accidental damage and offers a sleek aesthetic for modern panels.
  • Rugged Durability: Metal housing available in silver or black with 50,000+ hours of service life.
  • IP67 Waterproof: Includes a high-quality 14mm O-ring and M14 nut for superior sealing.
  • Easy Installation: Features smooth threading and standard 2-PIN terminals for rapid assembly.

Applications

  • Industrial Control: Panel status indicators for CNC machines and automation.
  • Medical Equipment: Reliable signal lights for diagnostic and testing devices.
  • Marine & Yachting: Waterproof dash lights for boats and marine control systems.
  • New Energy: Charging station status lamps and battery management displays.
  • Commercial Appliances: Electrical cabinets and power distribution units.

Installation Guide

  1. Drill a 14mm hole on your mounting panel.
  2. Insert the light on indicator from the front/top side of the panel.
  3. Place the 14mm O-ring between the head and the panel for waterproofing.
  4. From the back of the panel, screw the M14 nut onto the smooth metal threads.
  5. Connect your 12V-220V power supply to the 2-PIN terminals.

What Is a 14mm Light On Indicator?

A light on indicator is a critical signaling component used in electrical circuits to visually communicate the status of a machine or system. The FL1M-14FJ-1 is specifically engineered as a pin-type indicator, which differs from wire-lead versions (like the FL1M-14FW-1) by offering a rigid terminal for quick-connect or soldering. This provides a more secure and compact connection within tight electrical cabinets. In industrial environments, these lights act as the primary interface between the machine's internal logic and the human operator, ensuring safety and operational efficiency.

Factory Direct Supply & Customization

FILN is a leading manufacturer specializing in industrial signal solutions. We support:

  • Custom Voltage (3V to 380V)
  • Custom Wire Length & Connector Assembly
  • Private Labeling & OEM Branding
  • Fast Global Shipping

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: What is the difference between FL1M-14FJ-1 and FL1M-14FW-1?
A: The FJ-1 uses 2-pin terminals for quick connection, while the FW-1 comes with pre-soldered wire leads for easier installation in remote locations.

Q2: Can I use this 14mm indicator light for marine applications?
A: Yes, it features an IP67 waterproof rating and a corrosion-resistant metal shell, making it ideal for yachts and marine panels.

Q3: Does FILN provide UL certification for the light on indicator?
A: Yes, our products are UL, CE, and VDE certified for international safety standards.

Q4: Is the mounting nut included?

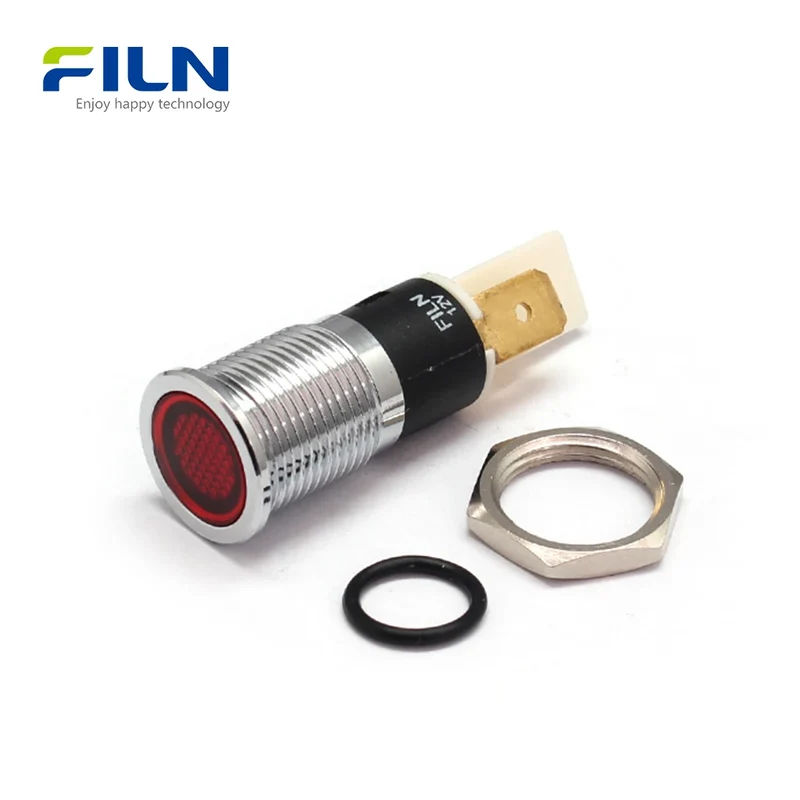

A: Each unit comes with a professional M14 nut and a waterproof O-ring.

Q5: Can you produce a 110V AC version for the US market?
A: Absolutely. We offer standard and custom voltages including 12V, 24V, 110V, and 220V.

Q6: Is the black housing scratch-resistant?
A: Our black aluminum housing uses an anodized finish for superior durability and aesthetics.

Q7: What is the lifespan of the LED?
A: The high-brightness LED is rated for over 50,000 hours of continuous use.

Q8: Can this be used in medical testing equipment?
A: Yes, the 14mm size and high visibility are perfect for medical status monitoring.

Q9: How do I choose between a flat head and a high head indicator?
A: Flat heads are better for clean, low-profile designs where snagging must be avoided; high heads offer wider viewing angles.

Q10: Do you support custom wire connectors?
A: Yes, as a factory, we can crimp specific connectors (like JST or Molex) to meet your wiring harness needs.
