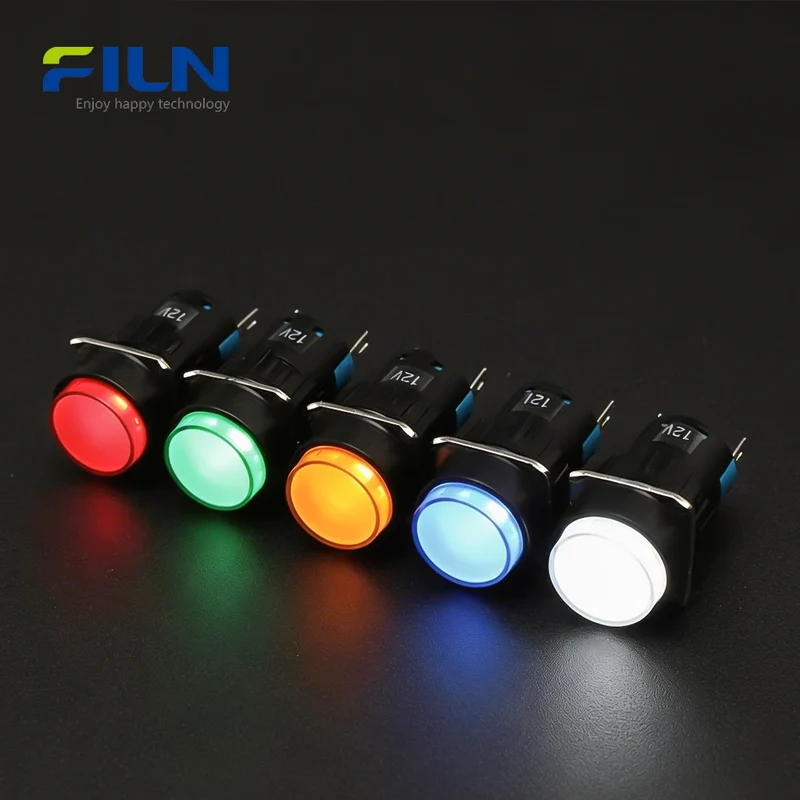

16mm PA66 Plastic 110V Indicator Light Round High Head 2-Pin Terminal FILN

1,19 €0,80 €Im Angebot
Light Color
Voltage
Menge

Beschreibung

Product Overview

The 110V indicator light (Model: FL1P-16NJ-7) is a professional-grade 16mm plastic signal lamp PA66 designed for robust industrial signaling. Featuring a round high head pilot light aesthetic, this indicator provides superior side-visibility on control panels. Manufactured by FILN, a leading 110v indicator light factory, these lamps are built from high-strength PA66 nylon, offering excellent insulation and flame retardancy compared to traditional metal lights. This product is currently available for purchase and ready for immediate deployment in automation, CNC machinery, and electrical cabinets. With certifications like ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it ensures high reliability for global industrial buyers.

Quick Specifications

Mounting Hole 16mm (0.63 inch)
Voltage 12V, 24V, 110V, 220V

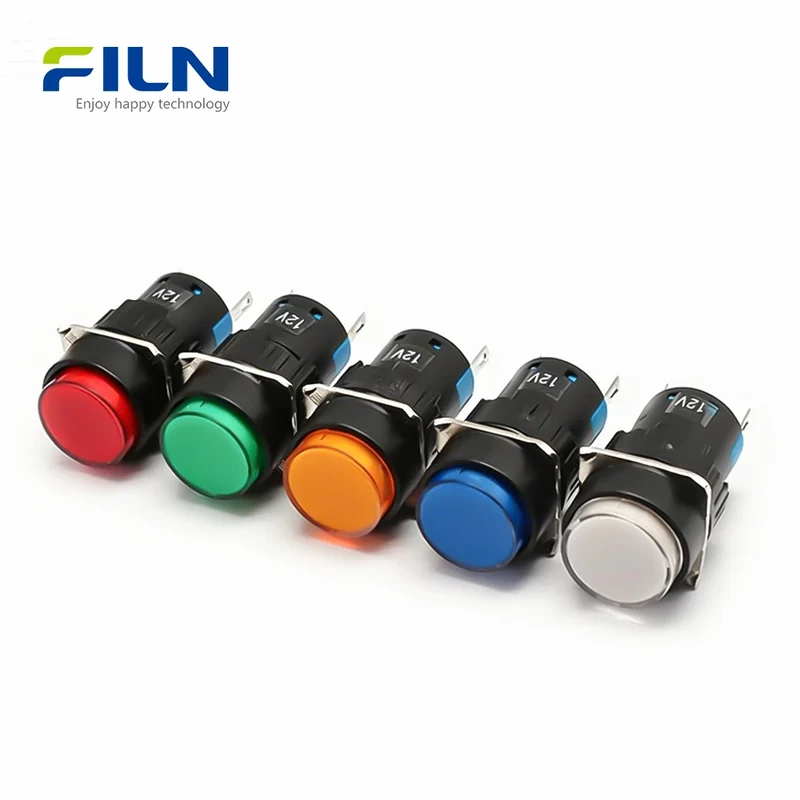

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating Head IP65 (Screw Mount)
Operating Temperature -40℃ ～ 80℃
Lifespan ≥60,000 hours

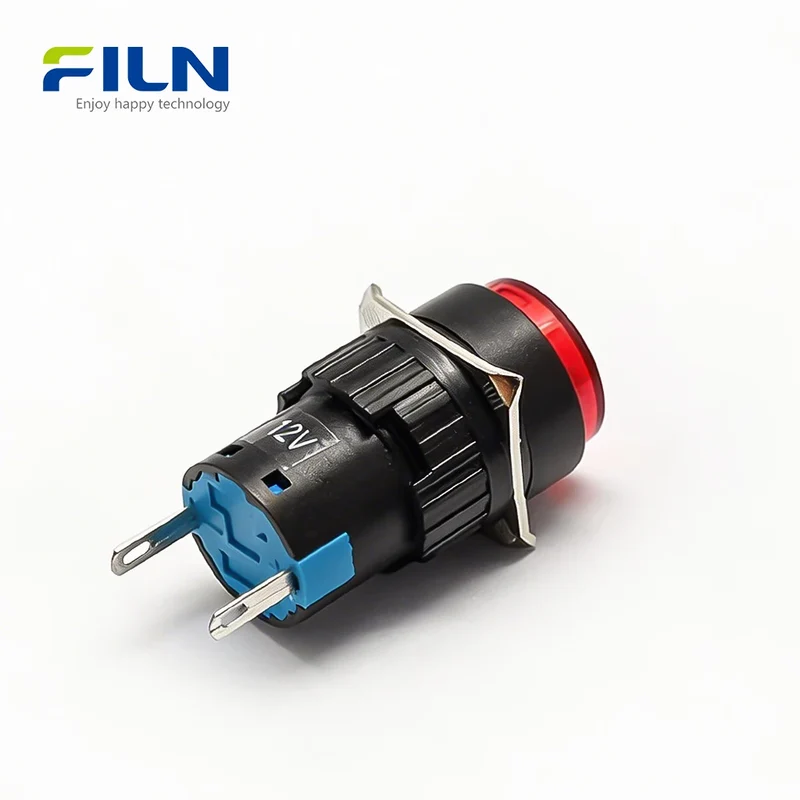

Wiring Type 2-Pin Terminal (2.8mm)

Component Materials

Component Name Material
Shell PA66
Lamp Holder PA66
Lampshade PC
Luminescent Source LED
Resistance Carbon film resistance
2.8mm Terminal Brass H59

Rated Working Parameters

Rated Voltage Customized (110V Standard)
Frequency(AC) 50～60Hz
Rated Current ≤20mA

General Characteristics

Item Parameter
Insulation Resistance 1800V/5s
Working Life 60,000h
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Technical Performance

Category Test Condition Requirement
Insulation DC500V for 1 min ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown
Durability 30mA 1000h 50,000 hours

Key Features

  • High-Head Visibility: The round high head pilot light ensures signals are seen from multiple angles.
  • Easy Installation: Features a simple screw-mount 16mm indicator lighting system with a secure plastic nut.
  • Pin Terminal Advantage: The pin-terminal-led-indicator-110v (2.8mm) design offers faster, cleaner wiring compared to pre-wired versions, allowing for easier maintenance and field repairs.
  • PA66 Durability: Superior mechanical strength and heat resistance for heavy industrial-panel-mount-indicator-light use.
  • Energy Efficient: Uses high-brightness LEDs with minimal power draw (≤20mA).

LED Color Indicators Meaning

  • Red: Emergency stop, danger, or system failure alerts.
  • Green: Normal operation, safety, or "system ready" status.
  • Yellow/Amber: Warnings, caution, or process-in-progress signaling.
  • Blue: Mandatory action, remote control status, or reset indications.
  • White: Power supply presence or general monitoring.

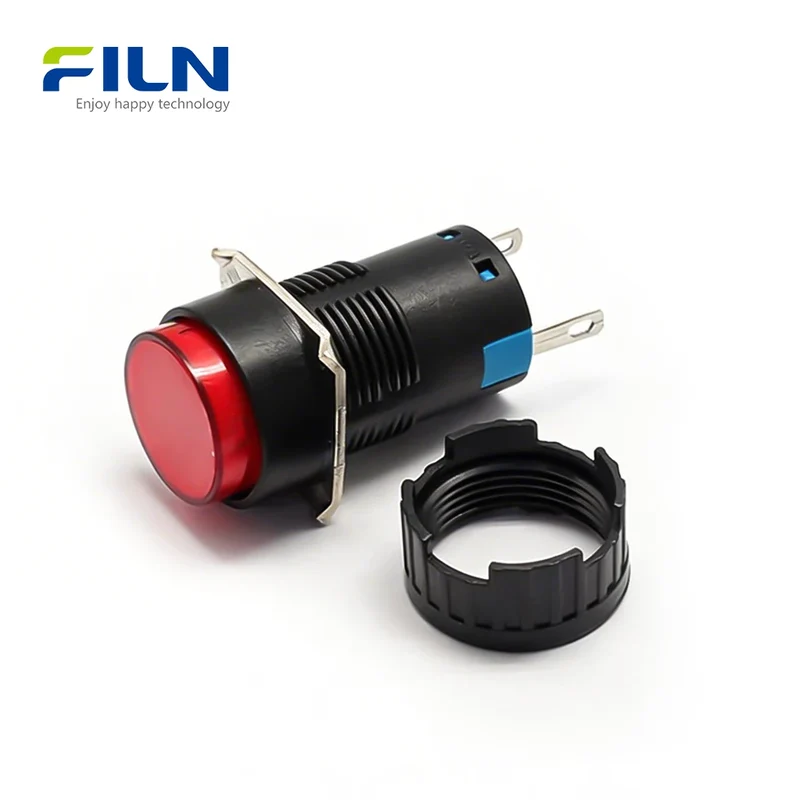

Installation Guide

  1. Drill a 16mm hole into your panel using appropriate tools.
  2. Insert the 110V indicator light through the hole from the front side.
  3. From the rear of the panel, thread the plastic nut onto the light body.
  4. Tighten the nut firmly to secure the light against the panel.
  5. Connect your wiring to the 2.8mm 2-pin terminals.

What Is an 110V Indicator Light?

An 110V indicator light is a critical visual component in industrial control systems. Using a 16mm plastic signal lamp PA66 housing, these devices provide reliable status feedback for operators. The choice between pin terminal and wire lead designs is essential: pin terminals allow for modular wiring and are preferred in high-density panels where cable management is key. By using PA66 nylon, these lights withstand higher temperatures and provide better electrical insulation than many metal-bodied alternatives, making them perfect for modern automation.

Factory Direct Supply

FILN offers direct factory pricing and professional customization for all signaling needs.

  • Voltage Customization: 3V - 380V
  • Wire & Connector Customization
  • Fast Global Logistics

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Why choose the FL1P-16NJ-7 round high head design?
The high head ensures the 110v indicator light is visible even when viewed from the side, improving safety on long control panels.

2. What is the benefit of the pin-terminal-led-indicator-110v over wire leads?
Pin terminals allow you to plug in connectors or use crimped terminals for faster replacement and a more organized cabinet layout.

3. Can I use these for 220V systems?
Yes, while optimized for 110V, the FL1P series is available in 220V and DC variants like 12V/24V.

4. Is the plastic material flame retardant?
Yes, the PA66 material is industrial grade and meets high fire-safety standards.

5. What is the mounting size?
It requires a standard 16mm (0.63 inch) diameter hole.

6. Does the head stay waterproof?
When installed with the provided gasket and screw nut, the head achieves an IP65 rating against dust and water spray.

7. How long will the LED last?
The 110v indicator light has a lifespan of approximately 60,000 hours.

8. Is the color lens replaceable?
The lens is fixed to maintain the IP65 seal and industrial durability.

9. Are these suitable for outdoor use?
They are IP65 rated, suitable for protected outdoor environments or panels with covers.

10. Does FILN provide bulk discounts for B2B?
Yes, as a factory, we offer tiered pricing for 110v indicator light bulk orders.
