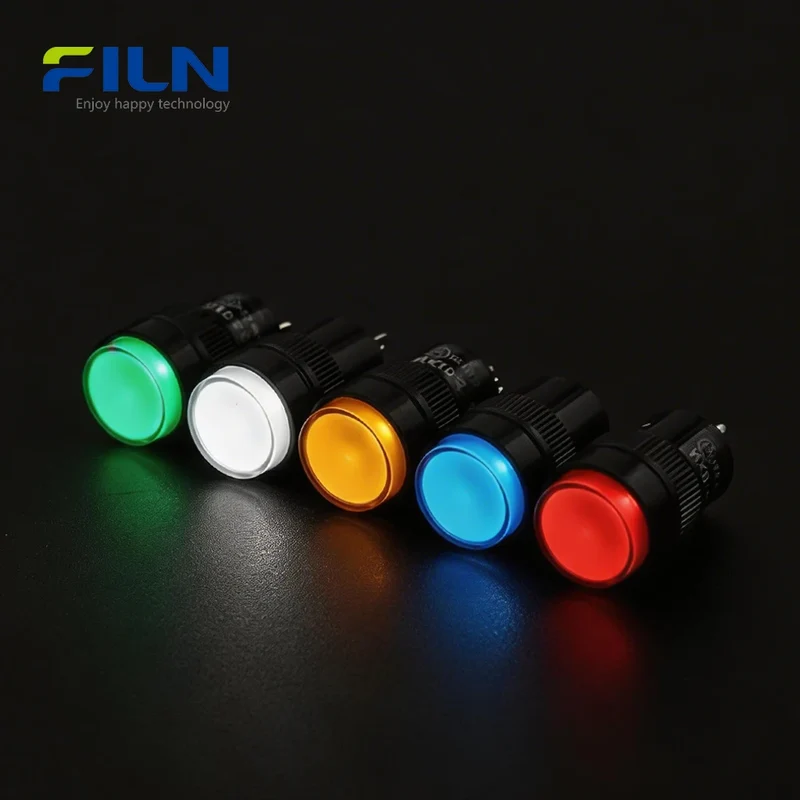

16mm Plastic 12 Volt LED Indicator Lights Pin Terminal Threaded Mount FILN

Product Overview

The FL1P-16NJ-1 is a high-performance 16mm plastic 12 volt led indicator lights solution designed for professional industrial signaling. These high-head round plastic indicator lamps are officially for sale directly from our factory. Utilizing a robust PA66 nylon enclosure and base, the FL1P-16NJ-1 model features a convenient 2-pin terminal tail configuration for rapid deployment. FILN indicator products maintain world-class standards with certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. These lights are essential for industrial control panels, offering an exceptional 70,000-hour LED life. The 16mm-plastic-indicator-light-factory-direct advantage ensures you receive high-quality, non-polarity LED components that are easy to install and maintain.

Quick Specifications

Mounting Hole	16mm (0.63 inch)
Voltage	12V-24V, 110V-220V (Customized Support)

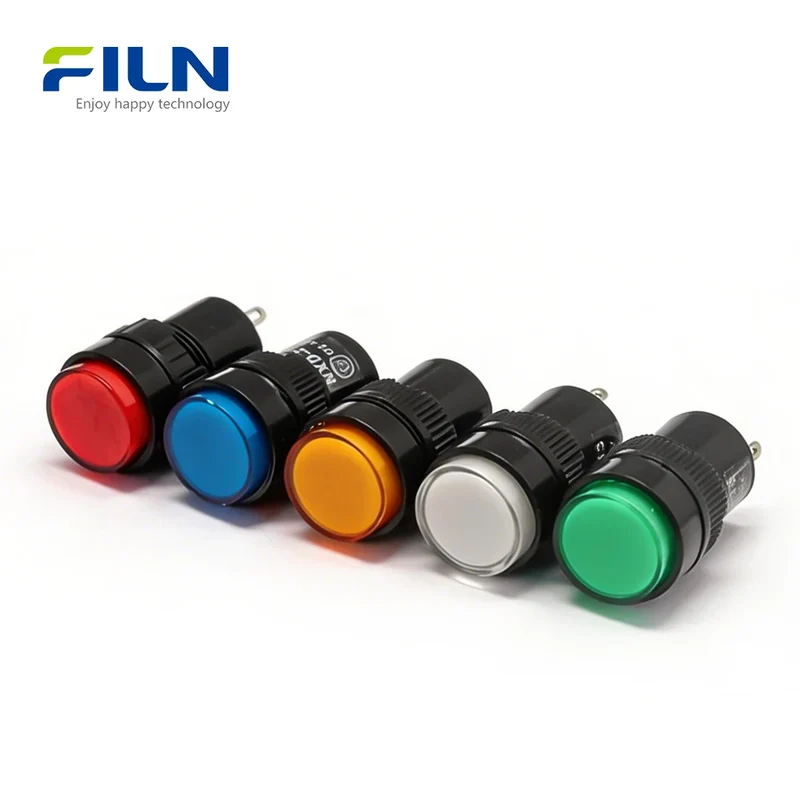

LED Color	Red, Green, Blue, Yellow, White
Waterproof Rating	IP65 (Threaded Head), IP50 (Overall)
Operating Temperature	-15℃ to +80℃
Lifespan	70,000 Hours
Installation Type	Threaded Mounting

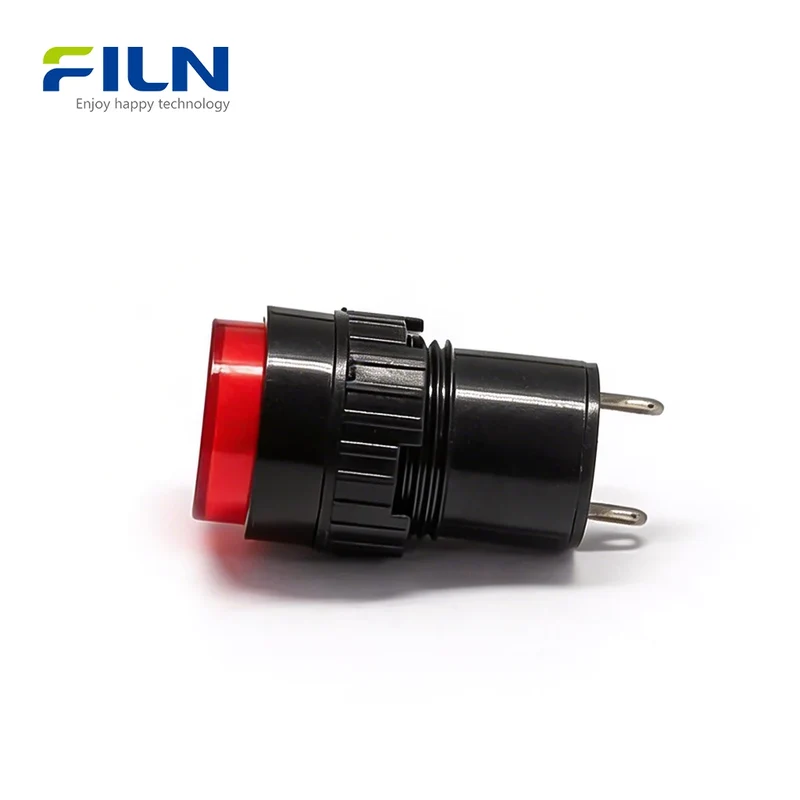

Wiring Type	Pin Terminal (2.5mm Wide)

Rated Working Parameters

Rated Voltage	2V/3V/6V/12V/24V/48V/110V/220V/380V
Frequency (AC)	50～60Hz
Rated Current	20mA

Component Materials

Component	Material
Housing (Enclosure)	PA66 Nylon
Lamp Holder (Base)	PA66 Nylon
Lampshade (Lens)	PA66 & Nickel-plated Brass
Luminescent Source	Non-polarity LED
2.8mm Terminal	2.5mm Wide, 0.6mm Thickness Brass

General Characteristics

Items	Parameter
Voltage Resistance	1500VAC
Nut Torque	Max 25N.m
Panel Thickness	Max 4mm
Operating Temperature	-15℃ to +80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Test Item	Condition	Requirement
Reverse Current	VR=5V	≤3 UA
Dielectric Strength	1500VAC	No breakdown

Durability Characteristics

LED Lifespan	70,000 hours
Forward Current (IF)	20mA

Resistant Performance

High Temperature	80℃ 96h
Low Temperature	-40℃ 96h
Moisture Resistance	40℃ 90-95%RH 96h

Key Features

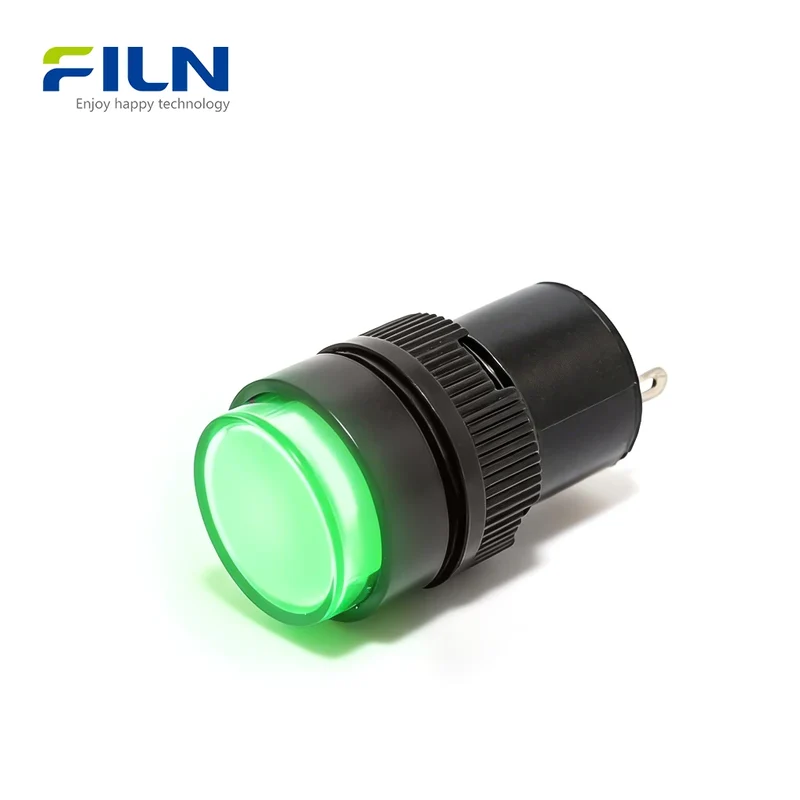

• LED high brightness: Superior luminous intensity reaching up to 10000mcd (Green).
• Long lifespan: Professional grade reliability with a 70,000-hour rating.
• IP65 waterproof: Threaded head design ensures protection in demanding environments.
• Easy installation: Secure threaded mount system with included nut and gasket.
• Industrial grade reliability: Non-polarity LED design simplifies complex wiring tasks.

Color Meanings & Applications

The red-green-yellow-blue-white-indicator-light range provides standard visual cues for machine safety:

• Red: Signal for emergency stop or critical system failure.
• Green: Indicates system is ready or operating under normal conditions.
• Yellow: Cautionary signal or warning of a transitional state.
• Blue: Specific mandatory actions or auxiliary system status.
• White: Power-on confirmation or neutral system monitoring.

Widely used in CNC machines, industrial automation equipment, electrical cabinets, and marine control systems.

Installation Guide

1. Drill a precise 16mm hole into the target panel (Max thickness: 4mm).
2. Insert the high-head-round-plastic-indicator-lamp through the hole from the exterior.
3. From the interior, fit the gasket and tighten the plastic nut (Max torque: 25N.m).

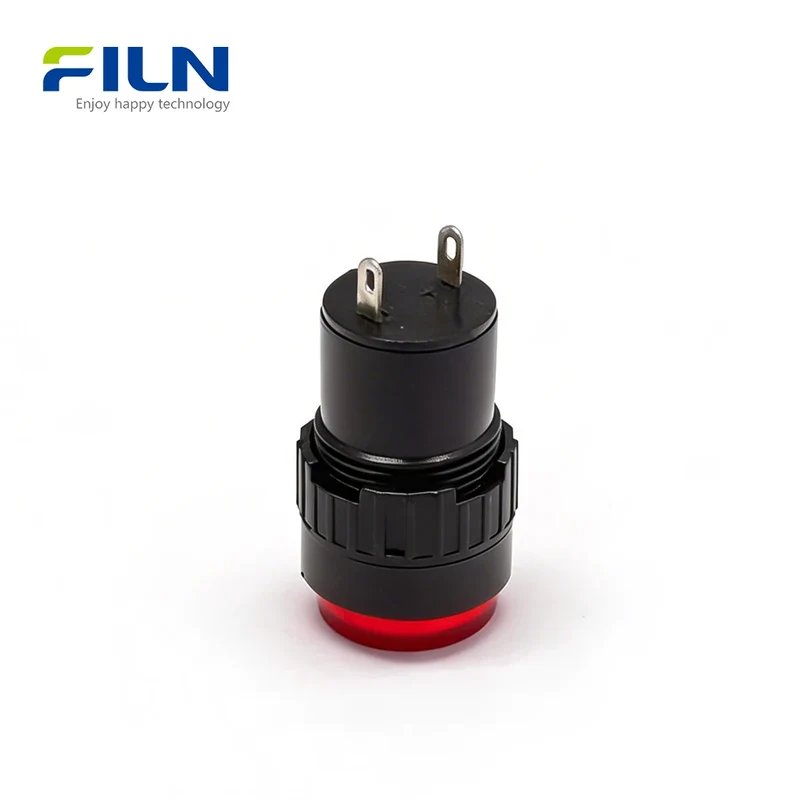

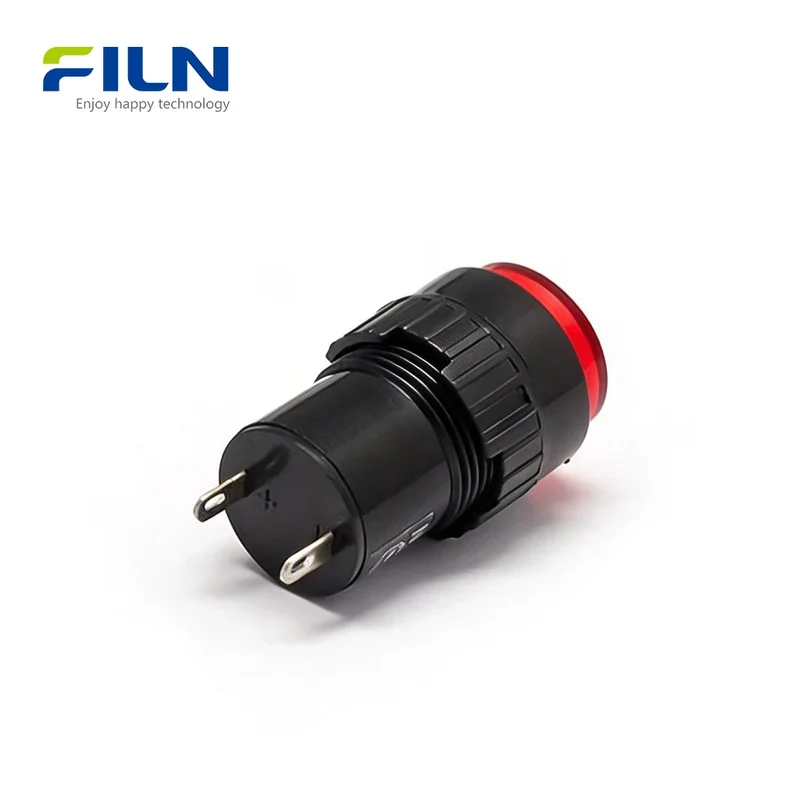

4. Connect the circuit to the 2-pin terminals. (Pin terminals provide a more modular, serviceable connection compared to fixed wire leads).

What Is a 12 Volt LED Indicator Light?

A 12 volt led indicator light is a critical visual feedback component used to monitor the status of electrical circuits. Choosing 16mm-plastic-indicator-light-factory-direct models like the FL1P-16NJ-1 offers significant benefits, including lightweight construction (3.2g) and high electrical insulation provided by the PA66 nylon housing. The 2-pin terminal design is particularly advantageous over wire-lead versions as it allows for cleaner cable management and faster component replacement in high-density control panels.

Factory Direct Supply from FILN

FILN provides industry-leading signaling solutions with full customization options:

• Direct Factory Pricing
• Voltage Customization (2V-380V)
• Connector & Wire Tailored Solutions
• Fast Global Shipping
• Full Certification Compliance

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions (FAQ)

1. What is the weight of a single FL1P-16NJ-1 unit?
Each indicator light weighs approximately 3.2g.

2. Can I get these for 220V industrial systems?
Yes, we support rated voltages from 2V up to 380V.

3. Does this model require specific polarity for wiring?
No, it features a non-polarity LED for easy AC or DC installation.

4. What is the maximum thickness for the mounting panel?
The maximum panel thickness is 4mm.

5. How durable is the LED source?
Our LEDs are rated for a long lifespan of up to 70,000 hours.

6. Are these lights for sale globally?
Yes, we offer factory-direct sales and international shipping for all orders.

7. What materials are used for the lens?
The lampshade is constructed from PA66 and nickel-plated brass components.

8. What is the brightness of the Green LED?
The Green LED has a high luminous intensity of 10000 mcd.

9. Is the mounting hardware included?
Yes, each unit comes with 1 nut and 1 gasket for secure mounting.

10. What is the dielectric intensity of the FL1P-16NJ-1?
It has a dielectric intensity rating of 1500VAC.
