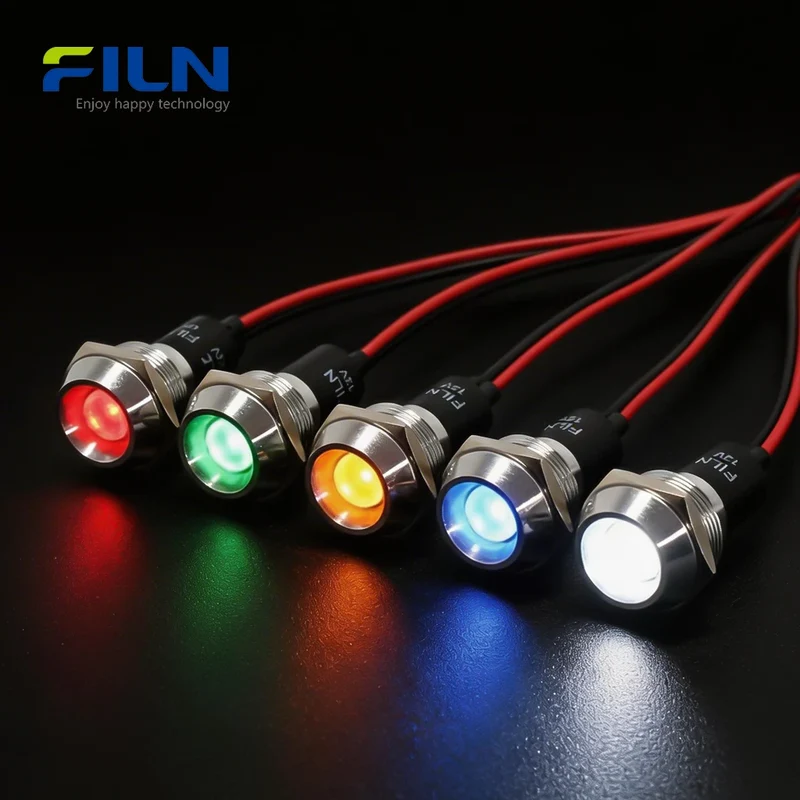

19mm LED Indicators 12V 220V Pre-wired IP67 for Industrial Panel Metal Light FILN

Beschreibung

Product Overview

The FL1M-19CW-1 LED Indicators from FILN are professional-grade signaling solutions designed for demanding industrial environments. These 19mm metal LED indicators feature a robust recessed head design, offering superior protection and a sleek aesthetic in both silver and black chrome shells. With world-class certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/IP67, they ensure safety and reliability. These indicators are widely used in industrial control panels, CNC machines, and automation equipment. The pre-wired design with 15cm leads simplifies installation, while the high-brightness LED offers a lifespan of over 50,000 hours. As a direct factory, FILN provides full customization for voltage (12V to 220V) and wire length to meet specific B2B project requirements.

Quick Specifications

Mounting Hole	19mm / 0.75"
Voltage	12V, 24V, 110V, 220V (Customizable)

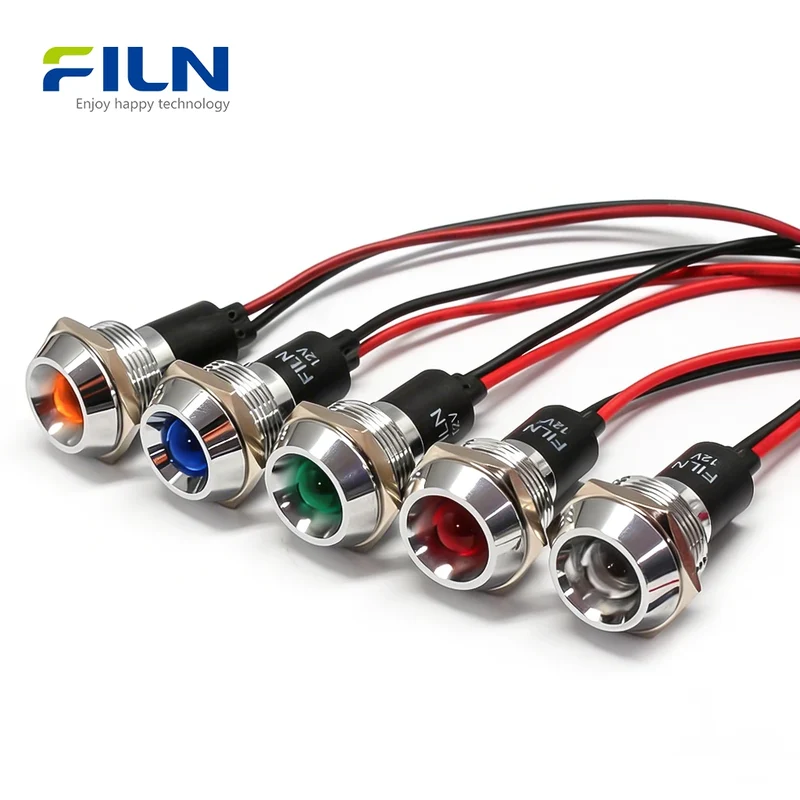

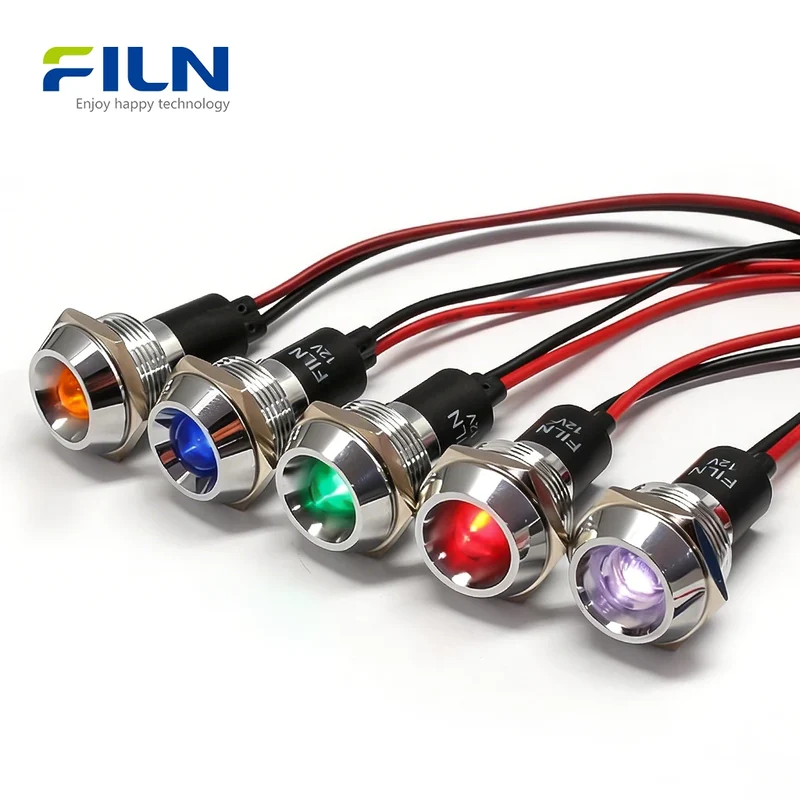

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Operating Temperature	-40℃ to +80℃
Lifespan	≥50,000 Hours

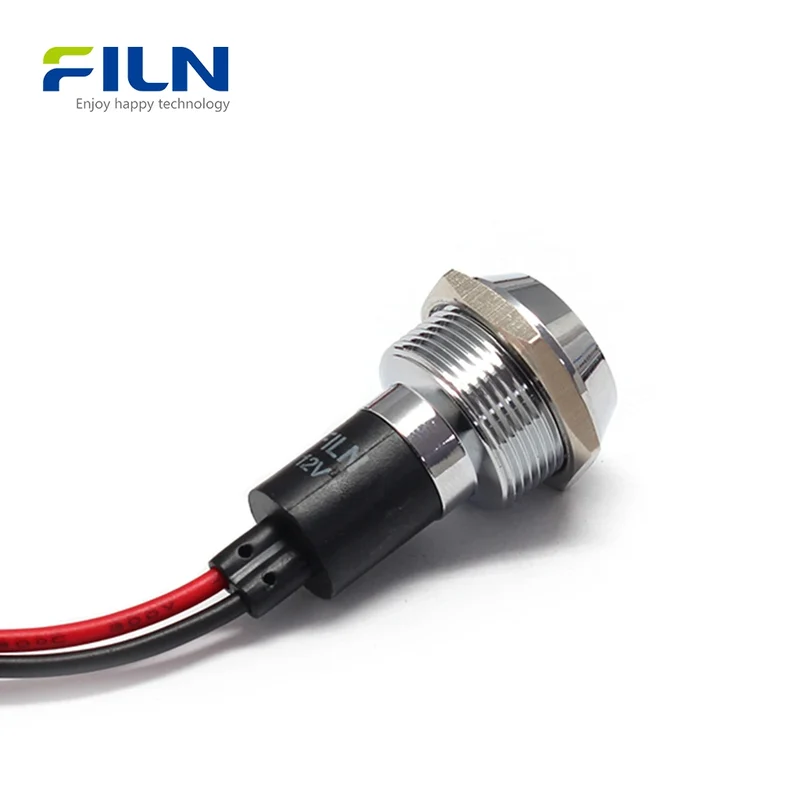

Wiring Type	Pre-wired Lead (15cm Standard)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Material List

Component Name	Material	Note
Shell	Copper Alloy	Nickel or Chrome Plated
Lamp Holder	PA66 Nylon	High temp resistance
Lampshade	PC Polycarbonate	High light transmission
Light Source	LED	Long life, low energy
Resistor	Carbon Film	Stable current protection
O-ring	Silica Gel	IP67 waterproof seal

Rated Working Parameters

Rated Voltage	Customized (3V-380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Brass with Nickel/Black Plating
Lens	High-strength PC
Seal Ring	High-grade Silicone
Terminal	High-quality Brass
Wire Material	UL Standard PVC Copper Wire

General Characteristics

Application	Industrial Signal Transmission
Part Name	FL1M-19CW-1 Indicator Light
Operating Temperature	-40℃～80℃
Storage Temperature	-40℃～80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Property	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability Characteristics

Test Item	Test Condition	Requirement
Working Life	30mA 1000h continuous	50,000 hours

Resistant Performance

High Temp Resistance	80℃ for 96h
Low Temp Resistance	-40℃ for 96h
Moisture Resistance	40℃, 90-95%RH for 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 cycles)

Key Features

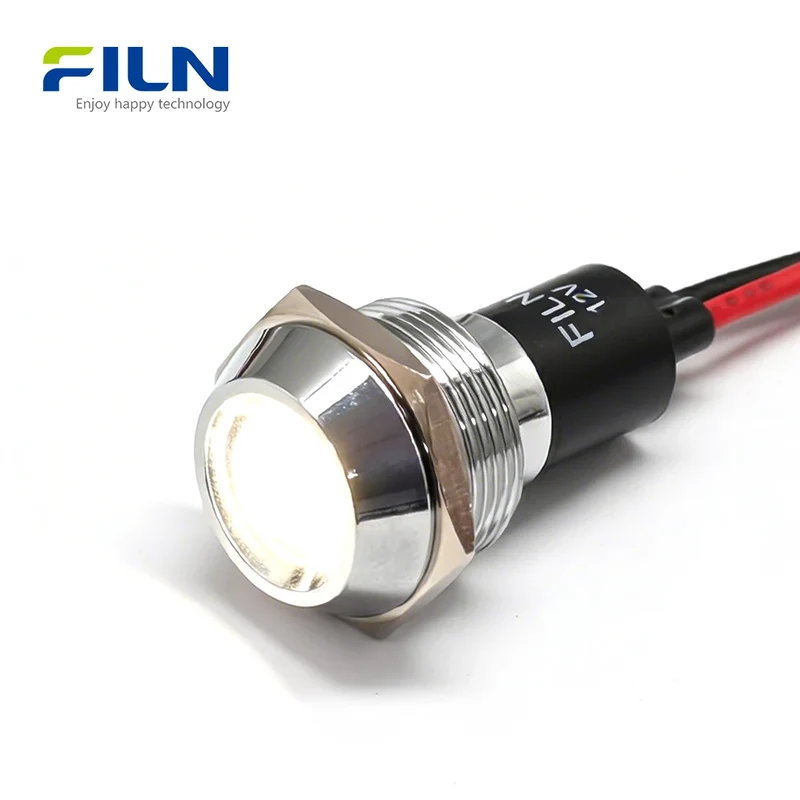

LED High Brightness: Utilizes premium chips for clear visibility even in bright environments.
Long Lifespan: Engineered for over 50,000 hours of continuous industrial use.
IP67 Waterproof: Full protection against dust and temporary immersion in water.
Easy Installation: Pre-wired 15cm leads save assembly time compared to pin terminals.

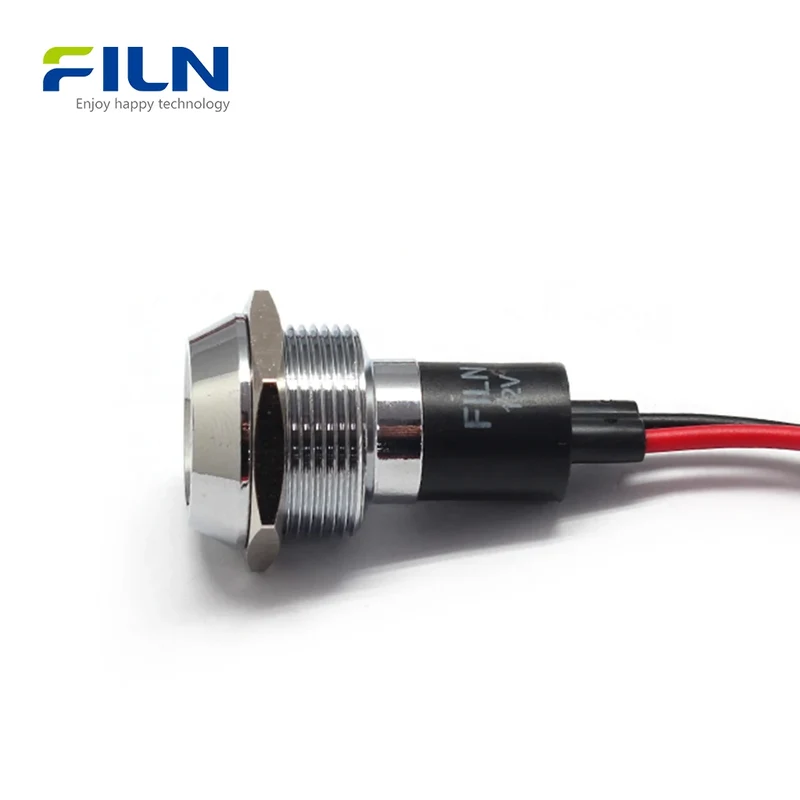

Industrial Grade Reliability: Recessed head design protects the lens from accidental impacts.

Applications

Industrial control panels and distribution boards
CNC machining centers and precision lathes
Automated production line status signaling
Electrical cabinets and power supply units
Marine and outdoor equipment systems
Medical and laboratory diagnostic devices

Installation Guide

Drill a 19mm diameter hole in the mounting panel.
Insert the LED indicator from the top of the panel.

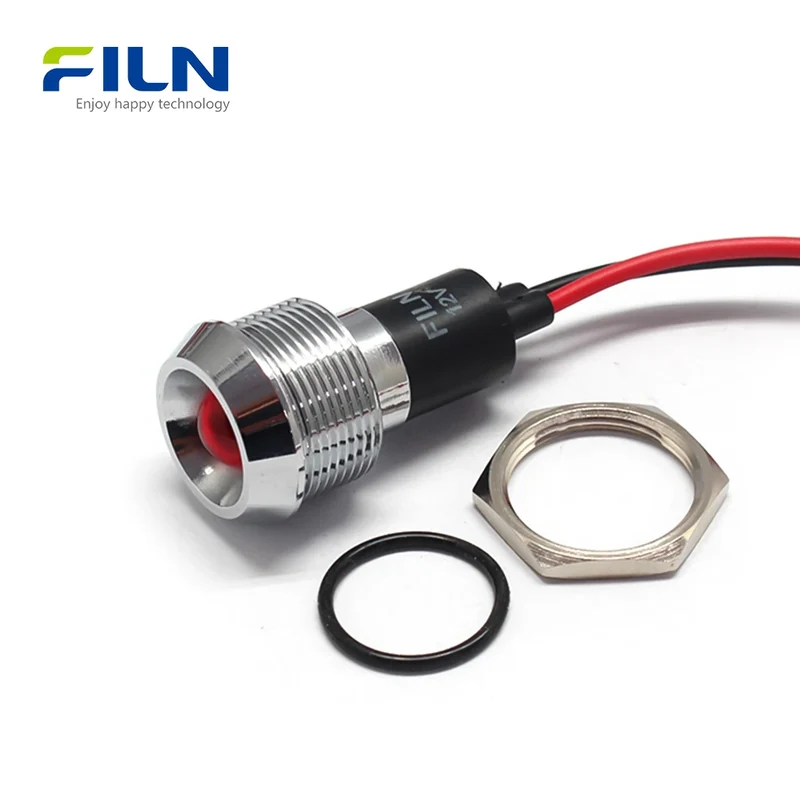

Slide the silicone O-ring and the M19 nut onto the threads from behind.
Tighten the nut to secure the unit firmly against the panel.
Connect the pre-wired leads to your power source (red for positive, black for negative).

What Is an LED Indicator Light?

An LED indicator light (also known as a pilot light) is a critical component in industrial automation that provides real-time visual feedback regarding the status of a machine or electrical circuit. Unlike standard lamps, industrial LED indicators like the 19mm metal series are built to withstand vibration, moisture, and high temperatures. The recessed head design of the FL1M-19CW-1 is particularly advantageous as it prevents the lens from being damaged by passing objects and reduces glare from side-angles. Additionally, pre-wired LED indicators offer a significant advantage over pin-type terminals in high-vibration environments, as soldered wire connections are less likely to loosen or corrode over time.

FILN Factory Direct Supply

FILN is a world-leading manufacturer of indicator lights and button switches. We provide:

Factory Direct: No middleman, competitive B2B pricing.
Voltage Customization: 3V, 6V, 12V, 24V, 110V, 220V, 380V.
Wire Length: Custom leads tailored to your machine design.
Global Shipping: Fast delivery to over 150 countries.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. What is the lifespan of these 19mm LED indicators?
The FILN 19mm LED indicators have a lifespan of over 50,000 hours of continuous use.

2. Can I get a custom wire length for the pre-wired LED?
Yes, as a factory, FILN can customize wire lengths and add connectors according to your specific needs.

3. Is the 19mm metal indicator light waterproof?
Yes, our indicators carry an IP67 rating, making them completely dustproof and waterproof for outdoor use.

4. What voltages are available for the 12v led signal lamp?
We offer standard 12V, 24V, 110V, and 220V, but any specific voltage can be customized.

5. What is the advantage of a recessed head indicator?
The recessed head protects the lens from physical impact and provides a cleaner, flush-look on control panels.

6. What materials are used for the shell?

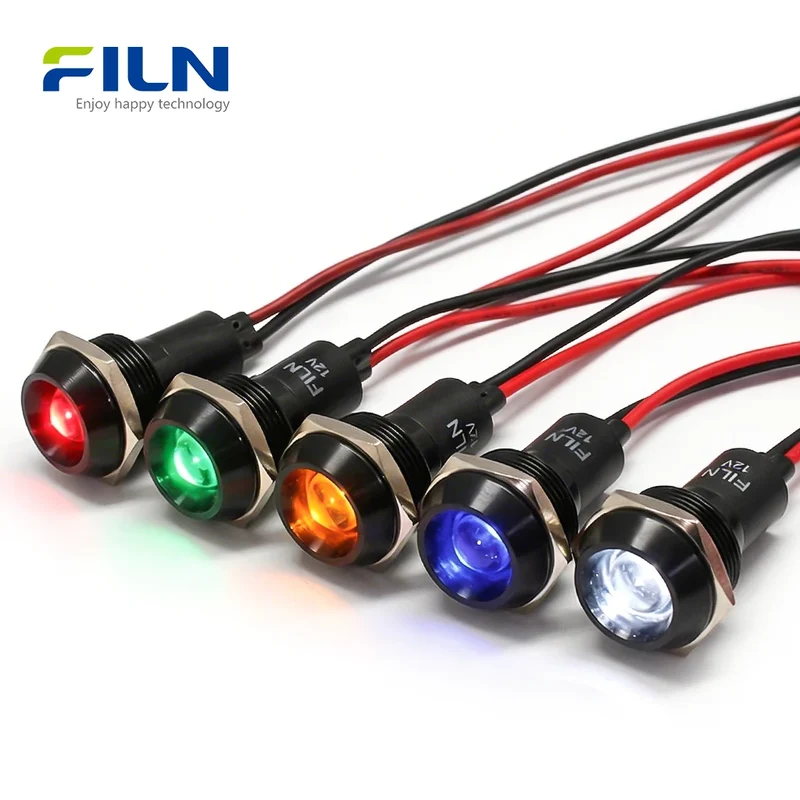

We offer high-quality copper alloy with nickel plating (silver) or black chrome plating.

7. How does the waterproof seal work?
The indicator comes with a high-grade silicone O-ring that seals the mounting hole when tightened with the M19 nut.

8. Are FILN LED indicators UL certified?
Yes, our products carry UL, CE, VDE, and RoHS certifications for global industrial compliance.

9. Difference between pre-wired and pin terminals?
Pre-wired indicators are easier to install and more reliable in vibration-heavy environments than pin types.

10. Do you support small batch customization?
Yes, FILN supports B2B customization even for small sample batches to ensure product compatibility.
