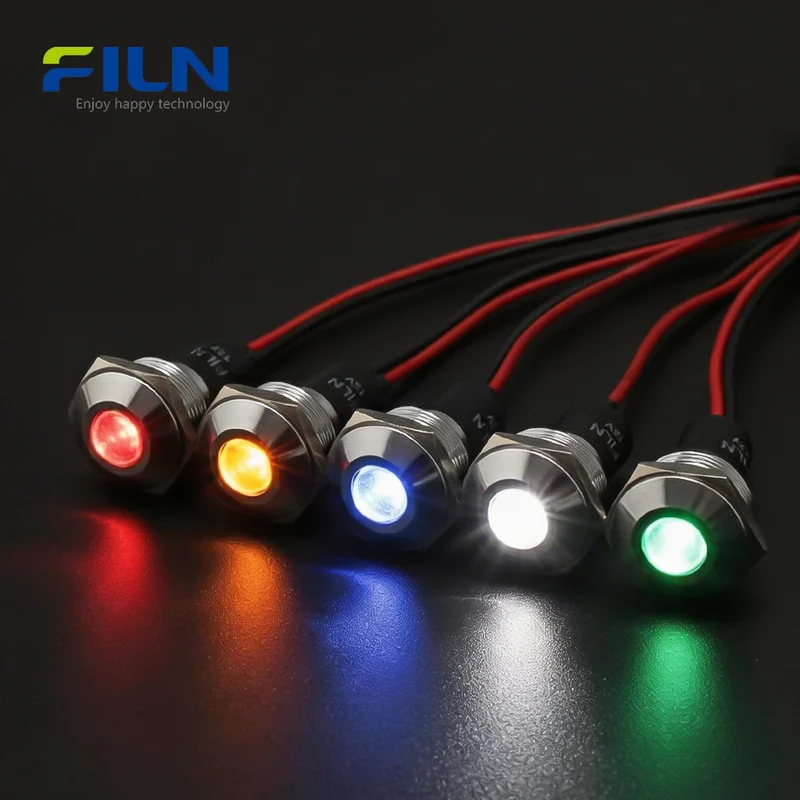

19mm Panel Indicator Lights 6V-220V Pre-wired IP67 Metal Signal Lamp FILN

Beschreibung

Product Overview

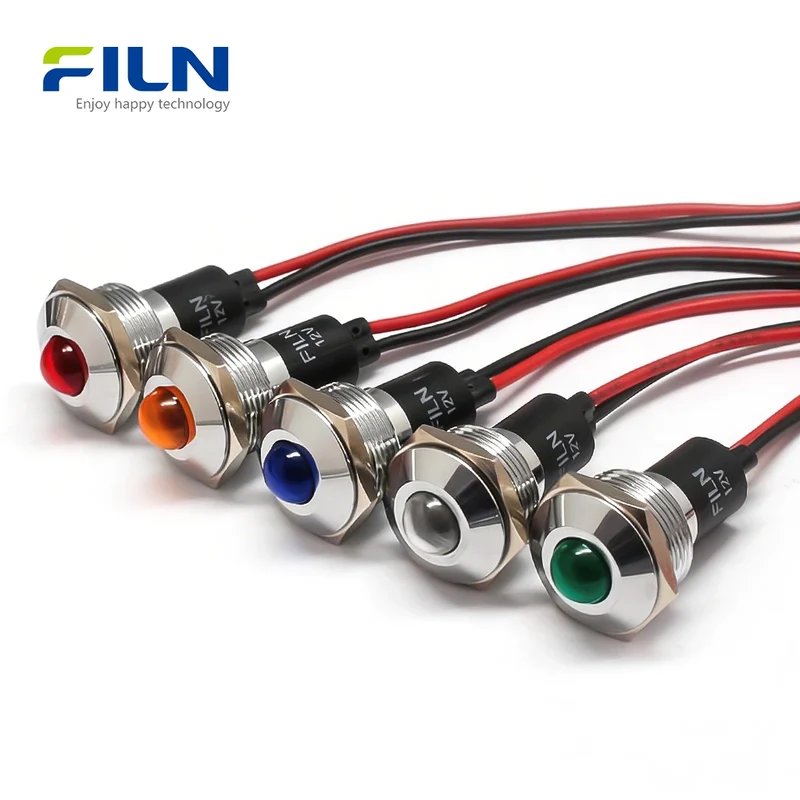

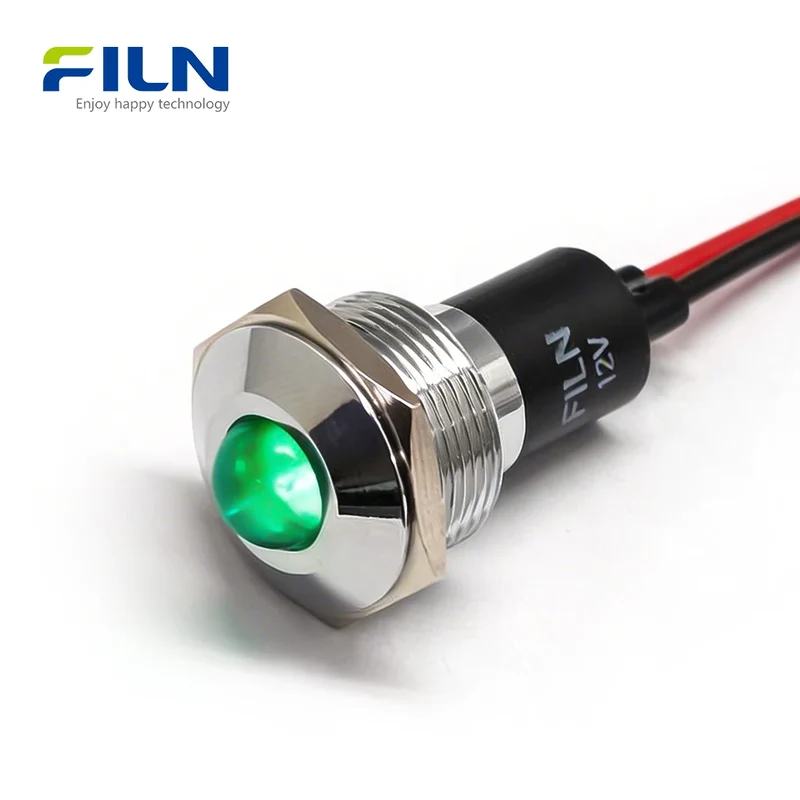

The FL1M-19SW-1 panel indicator lights by FILN are premium 19mm industrial signaling components designed for maximum visibility and durability. Featuring a unique high-head (prominent) design, these indicators provide superior side-angle visibility in complex control environments. Built by a certified factory with ISO9001, CE, VDE, RoHS, SGS, UL, and IP67 ratings, they ensure reliable performance in harsh conditions. These metal LED indicators are available in silver or black finishes and come pre-wired with 15cm leads for rapid deployment. Ideal for automation, CNC machinery, and electrical cabinets, FILN offers full B2B customization for voltages ranging from 12V to 220V.

Quick Specifications

Mounting Hole	19mm / 0.75"
Voltage	12-24V, 110-220V (Custom Available)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Wiring Type	Direct Wire Lead (15cm Standard)
Head Type	High Head (Prominent)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Material List

Component Name	Material	Note
Shell	Copper Alloy	Silver or Black Plated options
Lamp Holder	PA66 Nylon	High-strength industrial plastic
Lampshade	PC Polycarbonate	UV resistant & high transparency
Light Source	LED	Ultra-long lifespan chips
Resistor	Carbon Film	Stable current flow
O-ring	Silica Gel	Waterproof sealing protection
Nut	Copper Alloy	Smooth threads for panel mounting

Rated Working Parameters

Rated Voltage	Customized (3V-380V)
Frequency(AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Nickel-plated Brass / Black Chrome
Lens	Polycarbonate (PC)
Seal Ring	Silicone Rubber
Terminal	Soldered Wire Leads
Wire Material	UL1007 / UL1569 PVC Wire

General Characteristics

Application	Status Signaling
Operating Temperature	-40℃～80℃
Storage Temperature	-40℃～85℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa
Waterproof Rating	IP67

Electric Property

Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability Characteristics

Continuous Working Life	30mA 1000h Test	50,000 hours

Resistant Performance

High Temperature	80℃ for 96h
Low Temperature	-40℃ for 96h
Moisture Resistance	40℃ 90-95%RH for 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 rounds)

Key Features

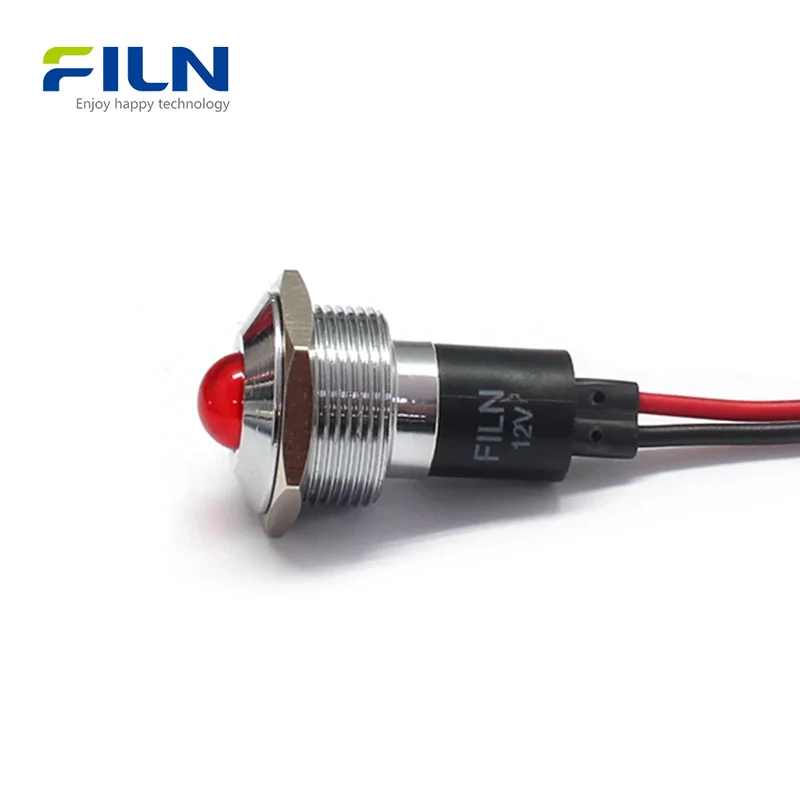

High-Head Design: The prominent head ensures visibility from the side, making it easier for operators to see status updates in large workshops.

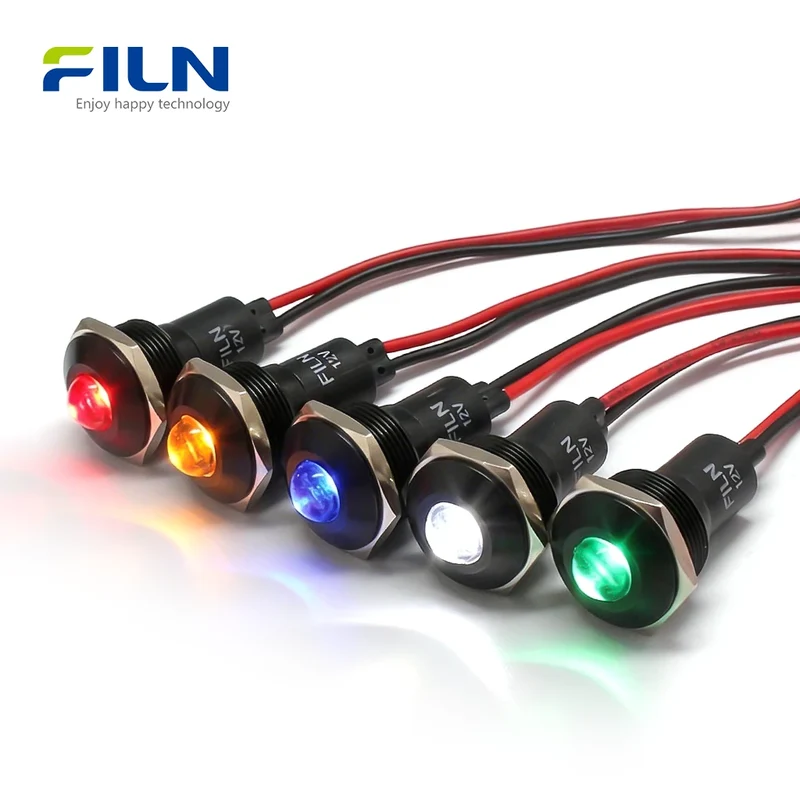

Industrial Metal Shell: Available in silver nickel or elegant black plating to match your equipment aesthetic.

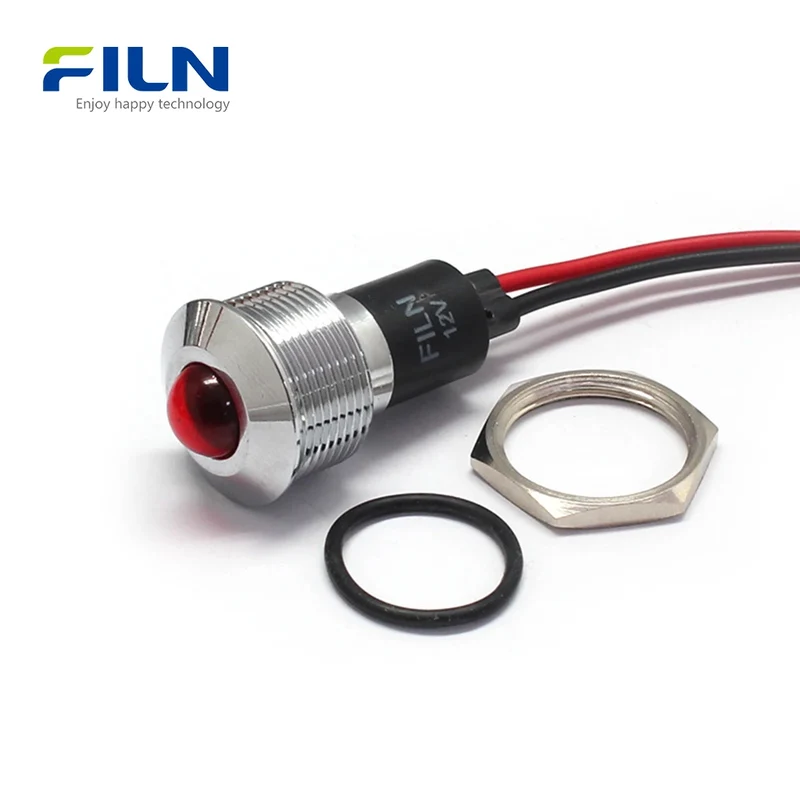

IP67 Protection: Comes with a 19mm silicone O-ring to prevent water and oil ingress.

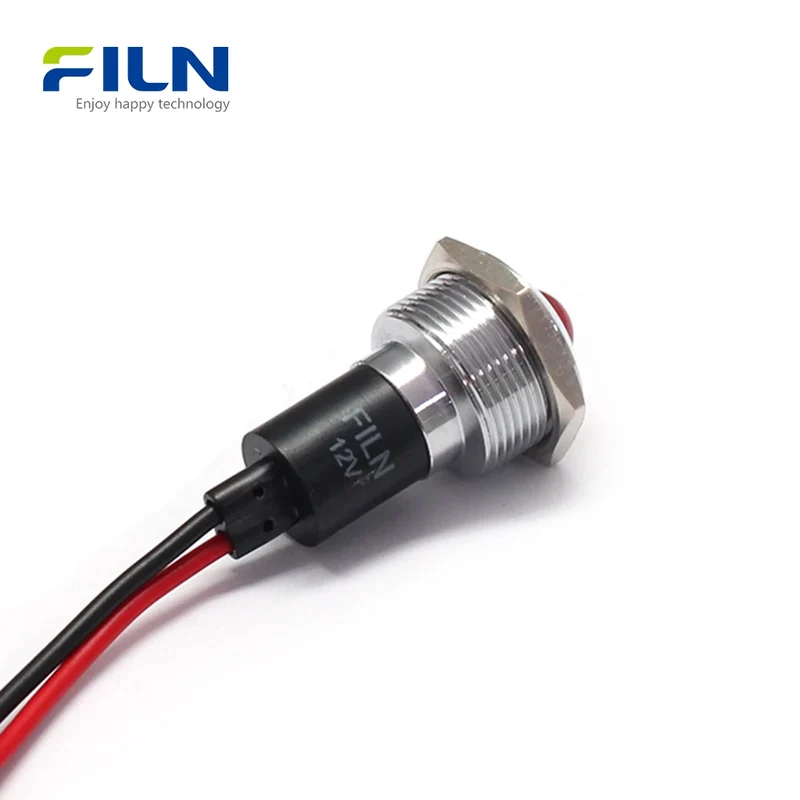

Pre-wired Convenience: 15cm direct leads allow for faster installation compared to soldering onto pins.
Excellent Threads: The M19 nut features smooth precision threading for a secure, vibration-resistant mount.

Applications

Suitable for any large or small electrical equipment requiring status signal transmission:

Industrial control panels and CNC machines
Medical equipment and laboratory devices
Commercial kitchen appliances and automation equipment
Marine systems and outdoor electrical cabinets
Automotive dashboard signaling

Installation Guide

Drill a 19mm diameter hole in your target panel.
Ensure the silicone O-ring is placed against the indicator head.
Insert the indicator through the hole from the front side of the panel.
From the back, slide the M19 nut onto the threads and tighten it to compress the O-ring for a waterproof seal.
Connect the 15cm wires to your power circuit.

What Is an 19mm Panel Indicator Light?

An 19mm panel indicator light is a critical visual feedback component used in industrial machinery. Unlike flush or recessed indicators, the high-head design is specifically engineered for visibility; the LED lens protrudes from the panel, allowing light to be seen from nearly 180 degrees. The pre-wired lead design (with 15cm wires) is often preferred over pin-type terminals because it eliminates the need for on-site soldering, reducing labor costs and minimizing the risk of heat damage to the internal LED during installation. The inclusion of a silicone O-ring and a precision-threaded M19 nut ensures that the installation remains IP67 waterproof, protecting the sensitive internal electronics from industrial fluids and dust.

FILN Factory Direct Advantage

FILN is a professional manufacturer specializing in indicator lights. We offer:

Factory Direct: Custom solutions and competitive B2B pricing.
Voltage Customization: We support any voltage from 3V to 380V.
Wire Customization: Specify your own wire length or connectors.
Fast Global Shipping: Reliable logistics for your production line needs.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. What is the advantage of a high-head panel indicator light?
The high-head design allows the light to be visible from the side, providing a wider viewing angle.

2. Can I use these indicators for both AC and DC voltages?
Yes, we offer models for 12V-24V and 110V-220V, with customization for any specific voltage.

3. Are these 19mm indicator lights truly waterproof?
Yes, with the included silicone O-ring, they achieve an IP67 rating.

4. What is the difference between pre-wired and pin-type indicators?
Pre-wired models save installation time and reduce the risk of internal heat damage from soldering.

5. What colors are available for the LED?
Standard colors include Red, Green, Yellow, Blue, and White.

6. Is the metal shell corrosion-resistant?
Yes, the plated copper alloy is designed to withstand industrial environments.

7. Does FILN provide UL certification?
Absolutely, we hold UL, CE, VDE, and RoHS certificates.

8. What is the lifespan of the LED signal lamp?
Our industrial-grade LEDs last for over 50,000 hours.

9. Can I request a longer wire than 15cm?
Yes, wire length and connector types are fully customizable by the FILN factory.

10. What size hole is required for mounting?
A standard 19mm mounting hole is required for these units.
