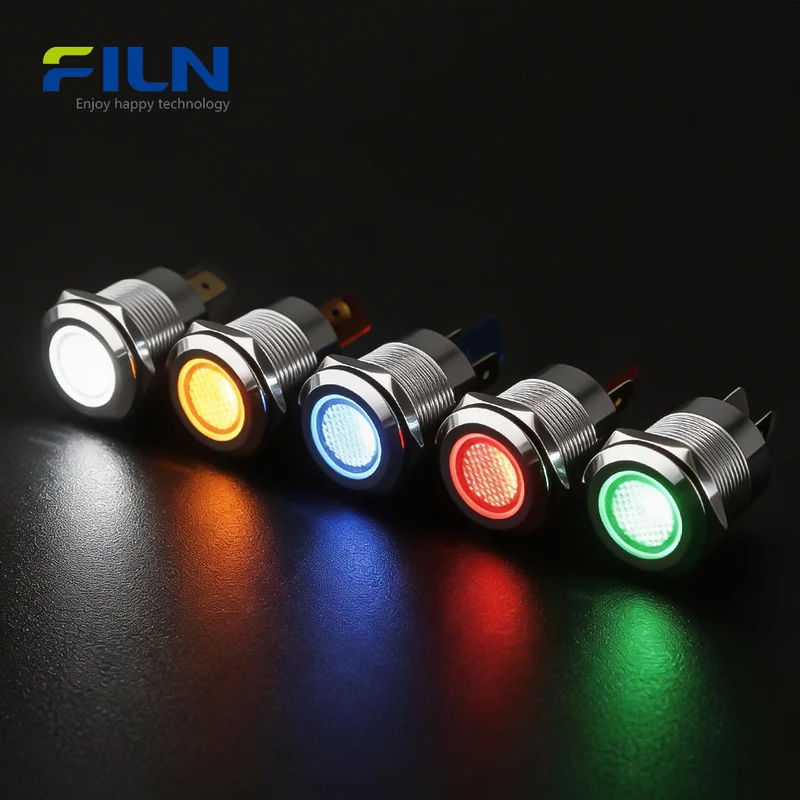

22mm Control Panel Light | 12V-220V Metal Flat Head 2-Pin LED | Industrial Signal Indicator FILN

Beschreibung

Product Overview

This premium control panel light (Model: FL1M-22FJ-3) is now available for sale directly from the FILN factory. As a robust 22mm metal indicator light, it features a sleek flat head design and durable silver or black housing options, making it the ideal choice for high-end industrial signaling. Whether you need 12V, 24V, 110V, or 220V configurations, we provide full customization to meet your specific electrical requirements. Our products carry international certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67. Designed for industrial control panels, automation equipment, and electrical cabinets, these lights offer superior visibility and long-term reliability. Purchase directly online to ensure genuine quality and factory-direct pricing.

Quick Specifications

Mounting Hole	22mm / 0.87 inch
Voltage	12V, 24V, 110V, 220V (Customized)

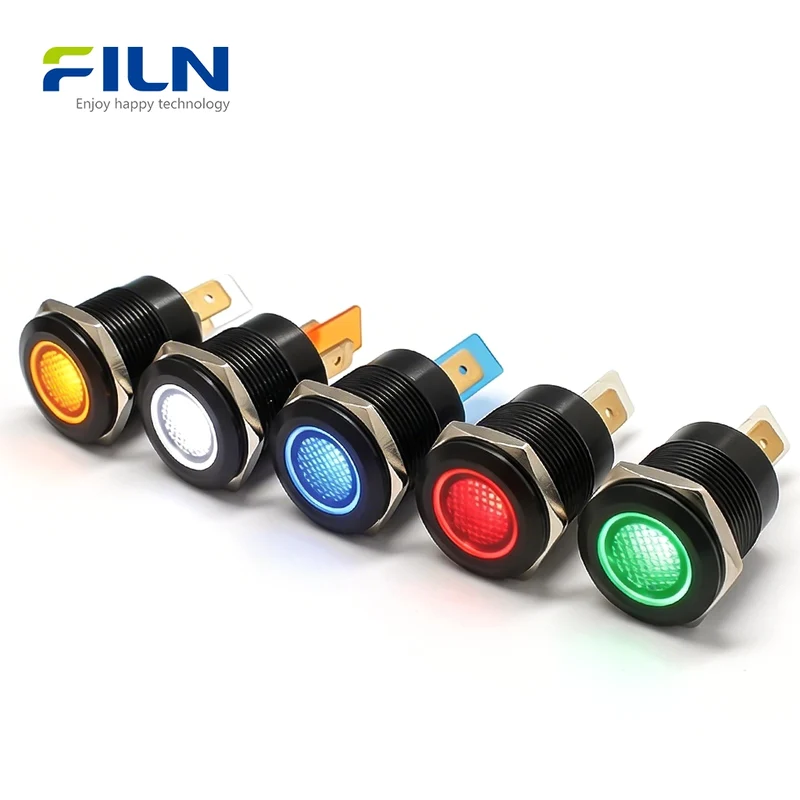

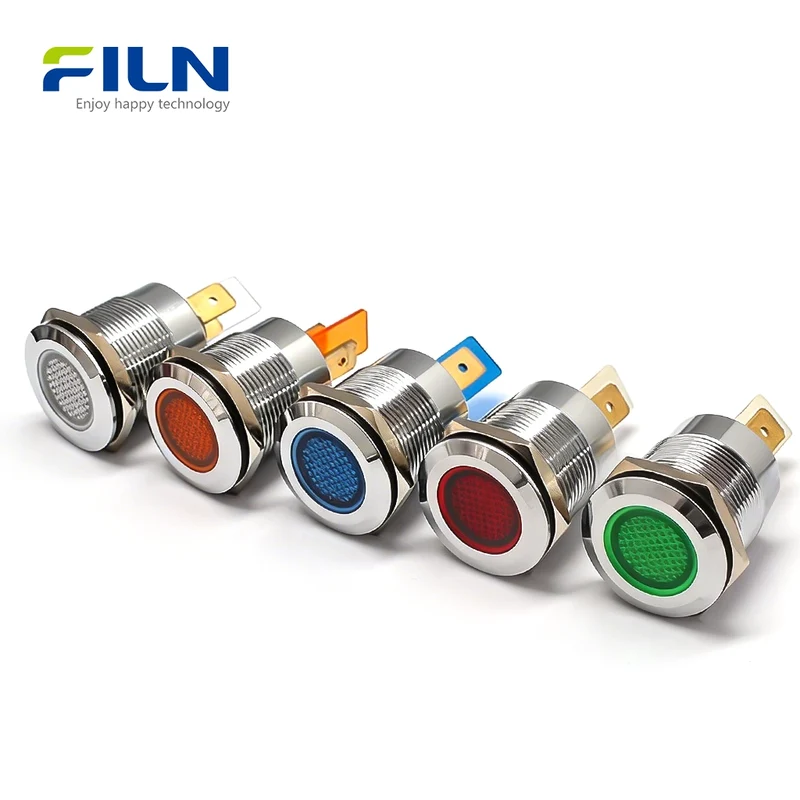

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67

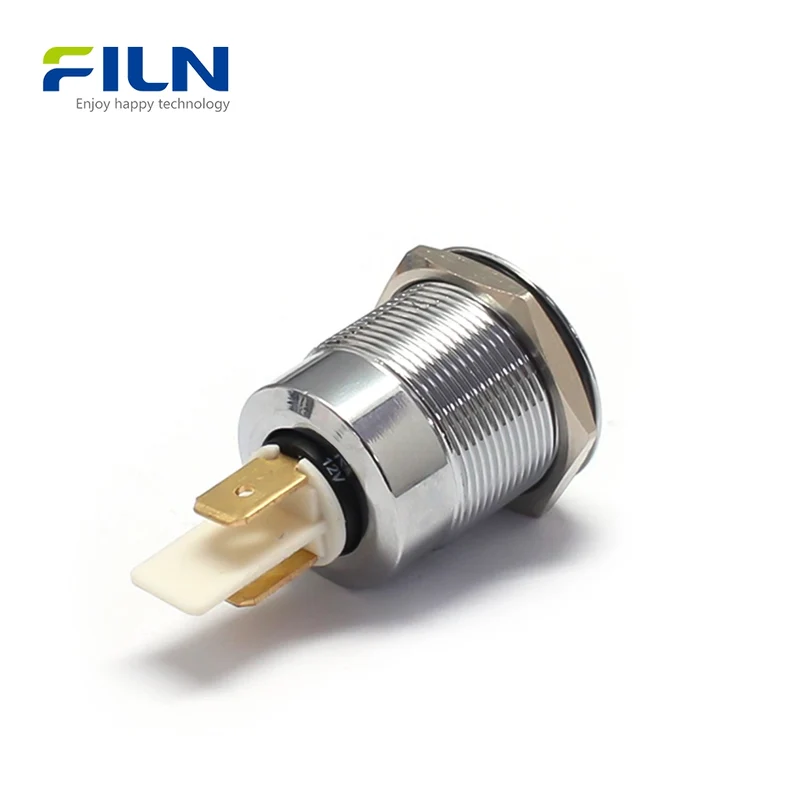

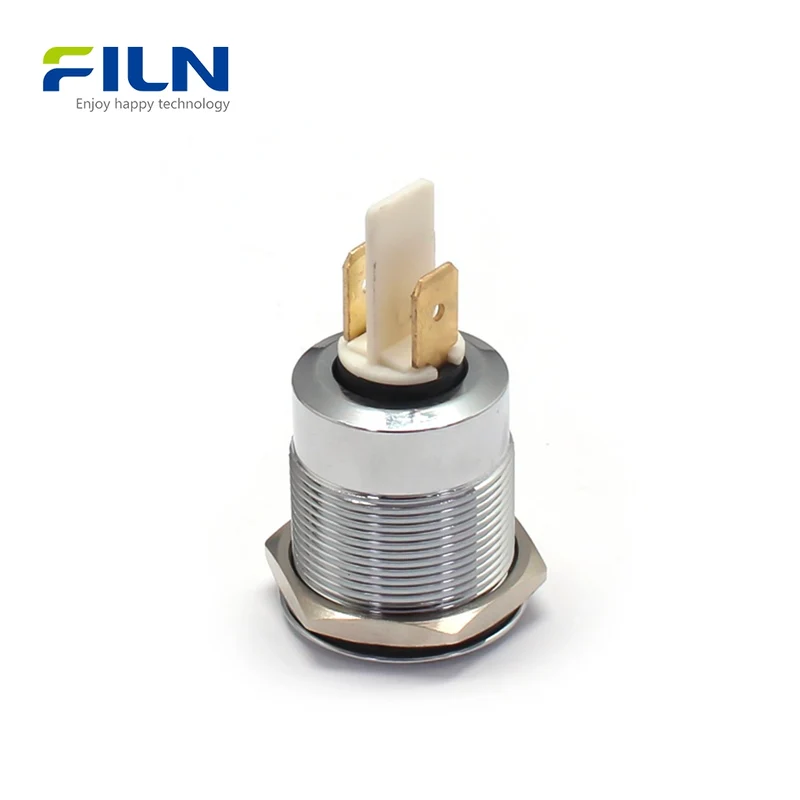

Wiring Type	2-PIN (Pin Type)
Lifespan	≥ 50,000 Hours
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Material List

Component Name	Material	Note
Shell	Copper Alloy	Nickel or Chrome plated for corrosion resistance
Lamp Holder	PA66 Nylon	High temperature resistance
Lampshade	PC Polycarbonate	High light transmittance & impact resistance
Light Source	LED	Long life, low energy consumption
Resistor	Carbon Film	Stable current limiting protection
Pin	Brass	Excellent electrical conductivity
Nut	Copper Alloy	For secure panel mounting
O-ring	Silica Gel	Provides IP67 waterproof sealing
Plum Gasket	Stainless Steel	Anti-loosening vibration protection

Rated Working Parameters

Rated Voltage	Customized (3V to 380V)
Frequency (AC)	50～60Hz
Rated Current	≤ 20mA

Component Materials

Housing	Metal (Brass/Stainless Steel)
Lens	PC Polycarbonate
Seal Ring	Silicone
Terminal	2-PIN Plug-in
Wire Material	N/A (Solderable Pins)

General Characteristics

Application	Industrial Signal Transmission
Operating Temperature	-40℃ ～ +80℃
Relative Humidity	≤85% at +40℃ (Working: 45~85%)
Air Pressure	86 ~ 106Kpa
Waterproof Rating	IP67

Electric Property

Test Item	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥ 100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown/flashover

Durability Characteristics

Item	Test Condition	Result
Continuous Life	30mA / 1000h	50,000 Hours

Resistant Performance

High Temperature	80℃ for 96 hours
Low Temperature	-40℃ for 96 hours
Moisture Resistance	40℃, 90-95%RH for 96 hours
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

LED High Brightness: Ultra-bright light source ensuring clear visibility in all lighting conditions.
Long Lifespan: Industrial-grade LEDs rated for over 50,000 hours of continuous operation.
IP67 Waterproof: Full protection against dust and temporary immersion in water.
Easy Installation: Features a smooth M22 thread and 2-PIN plug-in design for rapid assembly.
Industrial Grade Reliability: Robust metal housing resistant to impact, vibration, and corrosion.

Applications

Our 22mm indicator lights are versatile and suitable for diverse equipment:

Industrial control panels
CNC machines
Automation equipment
Electrical cabinets
Marine systems
Medical devices
Power distribution units
Commercial appliances

Installation Guide

Prepare a 22mm diameter hole on your mounting panel.
Place the O-ring waterproof washer onto the indicator light head. This ring ensures a tight seal against liquids.
Insert the control panel light through the hole from the front side.
From the back, slide the M22 nut onto the thread and tighten until secure.
Connect your power source to the 2-PIN plug-in terminals.

What Is a Control Panel Light?

A control panel light is a critical industrial component used to communicate the operational status of machinery. Unlike traditional incandescent lamps, modern LED-based indicators like the FL1M-22FJ-3 consume significantly less power and provide a vibration-resistant signal source. The 22mm large-size flat head design allows for a wider viewing angle and a flush finish on control panels, preventing accidental damage. By using high-transmittance PC materials and metal housings, these lights serve as the "eyes" of industrial automation, indicating power (Green), faults (Red), or warnings (Yellow) reliably over decades.

Factory Direct Supply & Customization

As a leading manufacturer, FILN provides specialized OEM/ODM services for global B2B clients. Why choose our factory direct service?

Voltage Customization: We support 3V to 380V AC/DC.
Wiring Flexibility: Choose between Pin types or custom wire lead lengths.
Rapid Shipping: Fast global logistics for bulk industrial orders.
Proven Quality: Every batch is tested for IP67 compliance.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. What is the mounting size of the FL1M-22FJ-3 control panel light?
The mounting hole required is 22mm (approximately 0.87 inches).

2. Can I buy this 22mm LED indicator light in 220V?
Yes, we offer 110V and 220V versions for sale directly from our factory.

3. What is the benefit of the flat head design?
It provides a flush, professional finish and is less prone to physical impact damage.

4. Is this indicator light waterproof?
Yes, it features an IP67 rating, perfect for harsh industrial or outdoor environments.

5. What are the terminal types?
This model uses a 2-PIN plug-in design for quick industrial assembly.

6. What materials are used for the shell?
We use premium copper alloy with nickel plating for superior durability.

7. Does it have international certifications?
Yes, it is certified by UL, CE, VDE, and RoHS.

8. Can I order custom colors?
Standard colors include Red, Green, Yellow, Blue, and White. Special requests can be accommodated.

9. Is the nut included?

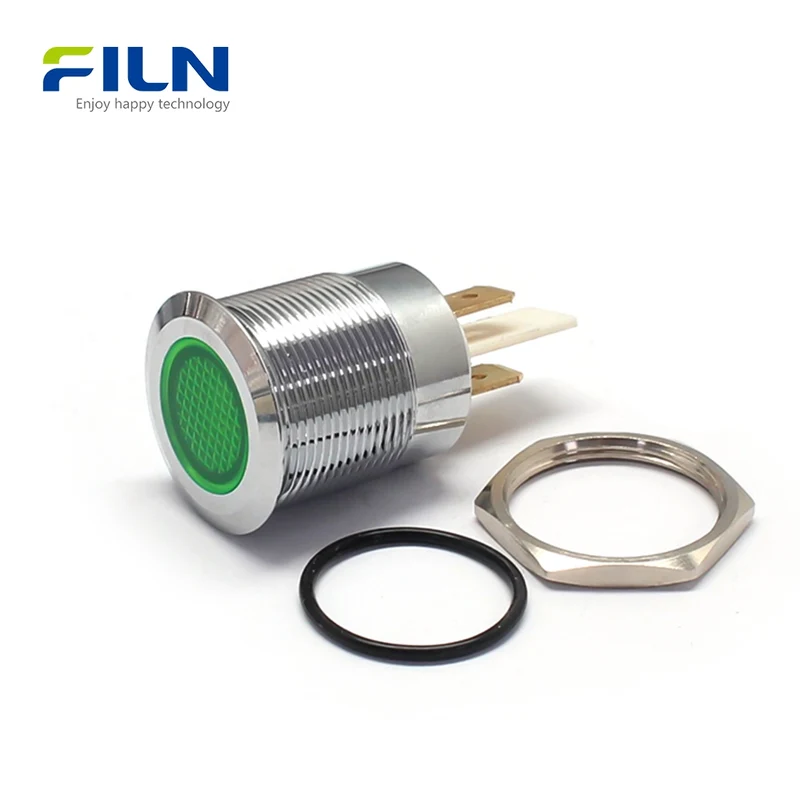

Yes, each light includes a high-quality M22 nut and a silicone waterproof O-ring.

10. How long is the lifespan?
The LED is rated for a working life of over 50,000 hours.
