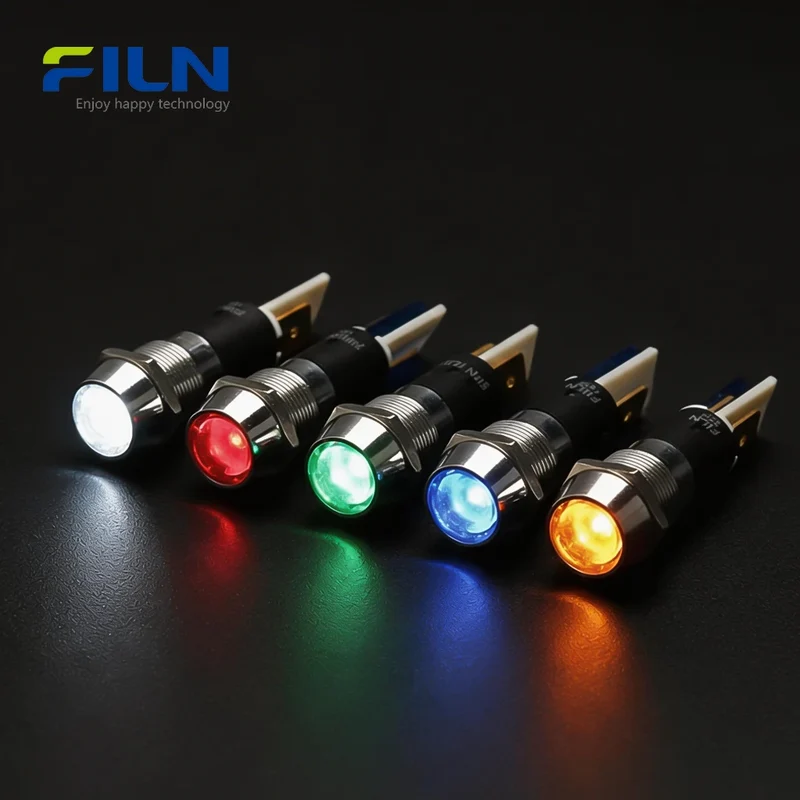

24 Volt DC LED Indicator Light 12mm IP67 Concave Metal Pilot Lamp FILN

Product Overview

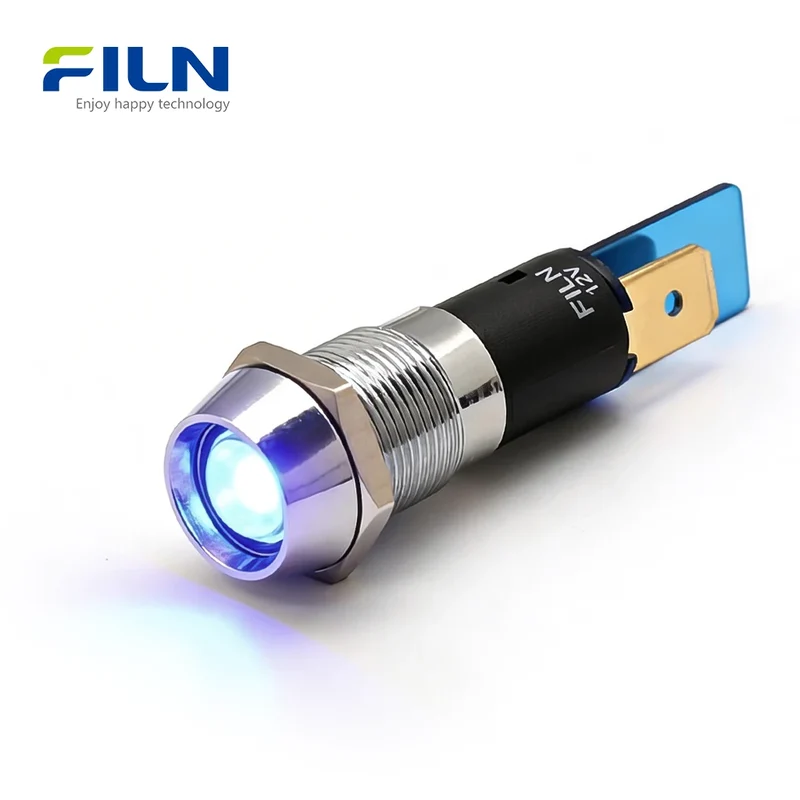

The 24 volt DC LED indicator light (Model: FL1M-12CJ-1) is a professional 12mm concave-head pilot lamp designed for precision signaling. This metal LED indicator is certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, ensuring global compliance for critical applications. Its unique concave head design protects the lens from impact and reduces glare, making it ideal for industrial control panels, medical devices, yachts, and new energy equipment. Featuring a durable metal housing in silver or black and 2-pin terminals for rapid installation, this light offers industrial-grade reliability and a long operational lifespan.

Quick Specifications

Mounting Hole	12mm / 0.47"
Voltage	12-24V (Standard 24V DC), 110-220V Support

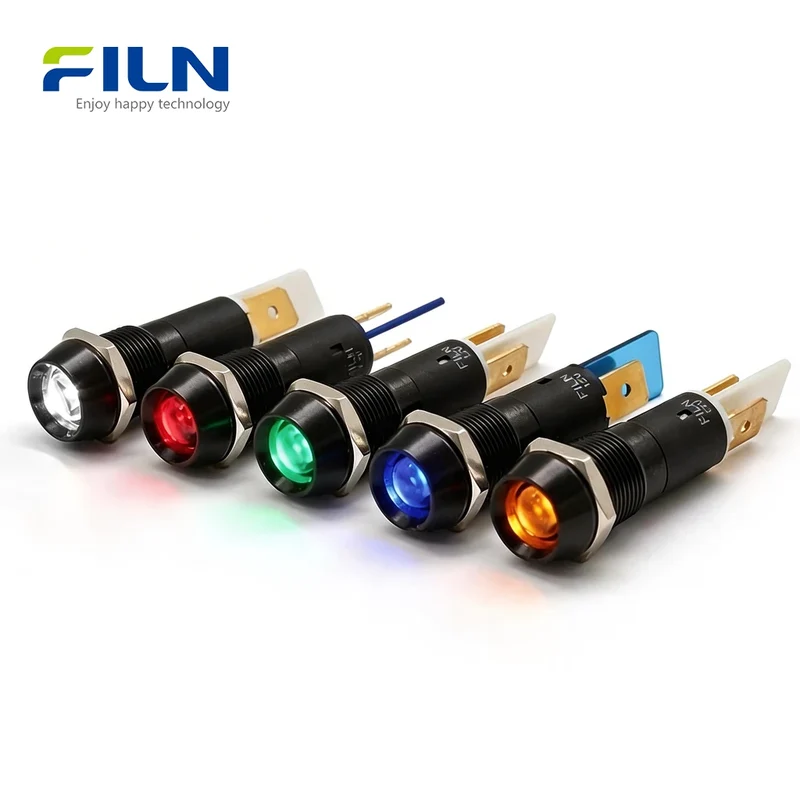

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Operating Temperature	-40℃～80℃
Lifespan	50,000 Hours

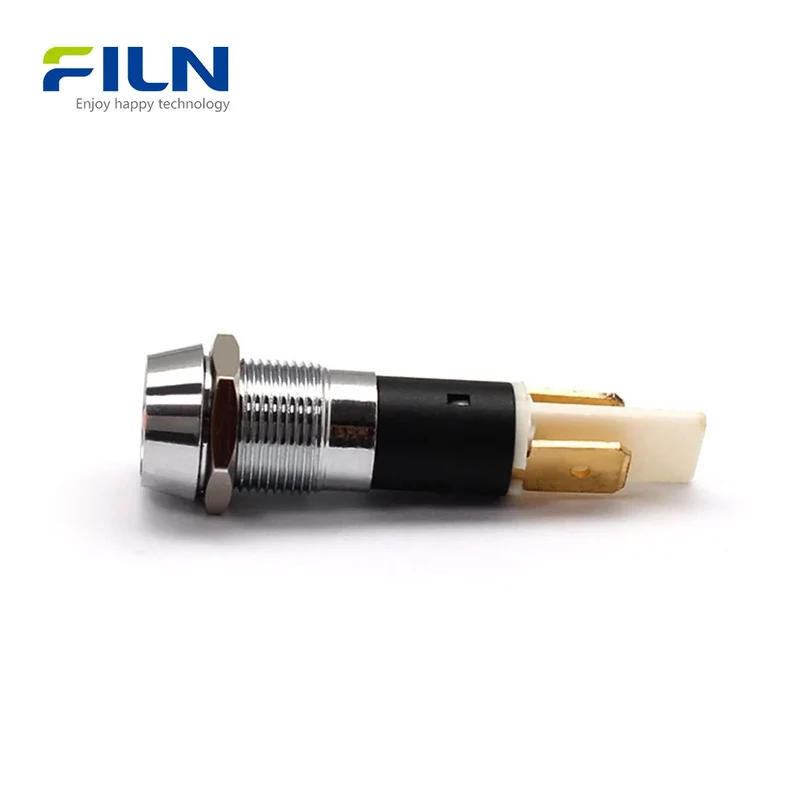

Wiring Type	2-PIN Plug-in Terminal (Solder Lug)

Rated Working Parameters

Rated Voltage	Customized (12V/24V/110V/220V)
Frequency(AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Nickel-plated Brass / Stainless Steel (Silver or Black)
Lens	Polycarbonate (PC)
Seal Ring	Silicone (Large O-ring included)
Terminal	Phosphor Bronze with Silver Plating
Wire Material	High-grade customization available

General Characteristics

Application	Industrial, Medical, Marine, Testing
Part Name	Concave Head LED Indicator
Operating Temperature	-40℃～80℃
Storage Temperature	-40℃～85℃
Relative Humidity	≤85% at +40℃
Waterproof Rating	IP67

Operating Temp: -40℃～80℃ | Relative Humidity: ≤85% at +40℃ | Ambient Temp: 5~35℃ | Air Pressure: 86~106Kpa

Electric Property

Insulation Resistance	DC500V 1min | Req: ≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s | Req: No breakdown

Durability Characteristics

Continuous Working Life

50,000 Hours (Test: 30mA 1000h)

Resistant Performance

High Temperature	80℃ 96h
Low Temperature	-40℃ 96h
Moisture Resistance	40℃ 90-95%RH 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

• High Brightness LED: Premium chips for maximum signal clarity.
• Concave Head Advantage: Protects the lens from physical damage and provides non-glare illumination.
• IP67 Waterproof: Includes an oversized silicone O-ring for superior environmental sealing.

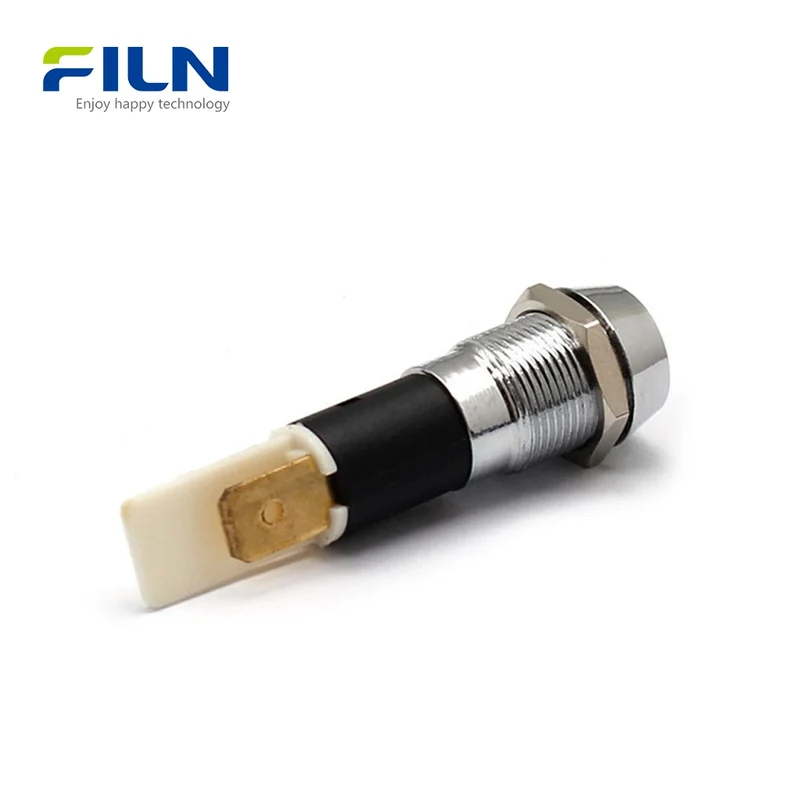

• Efficient 2-PIN Terminal: Faster wiring and more robust electrical stability than standard lead wires.

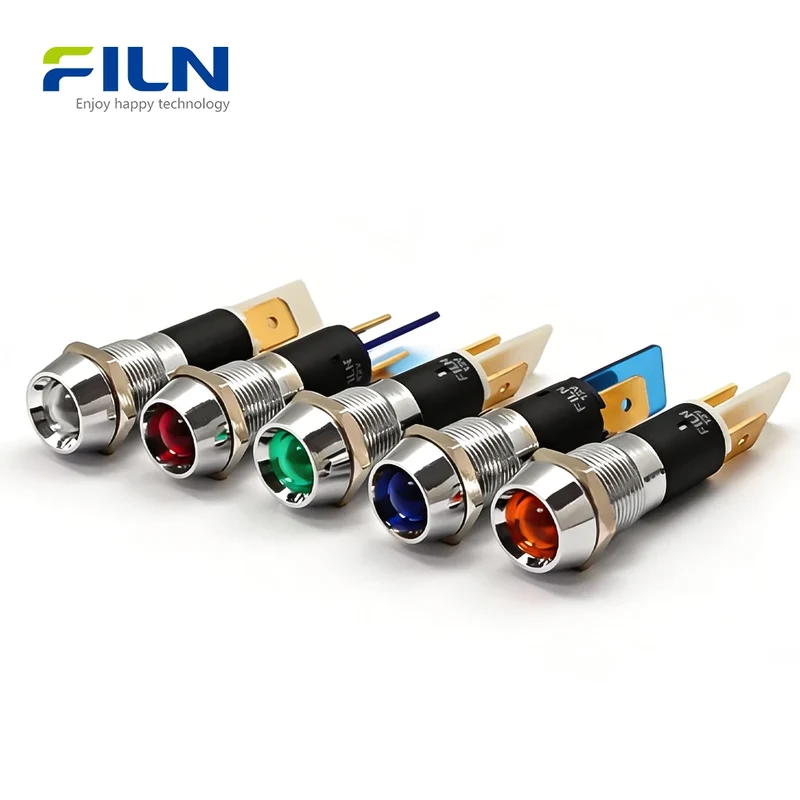

• Industrial Durability: Metal housing (silver or black) ensures corrosion and impact resistance.

Applications

• Industrial Control Panels
• Medical Diagnostic Gear
• Yacht & Marine Dashboards
• New Energy Inverters
• CNC Lathe Status Signals
• Laboratory Testing Kits
• Electrical Cabinets
• Automated Vending Units

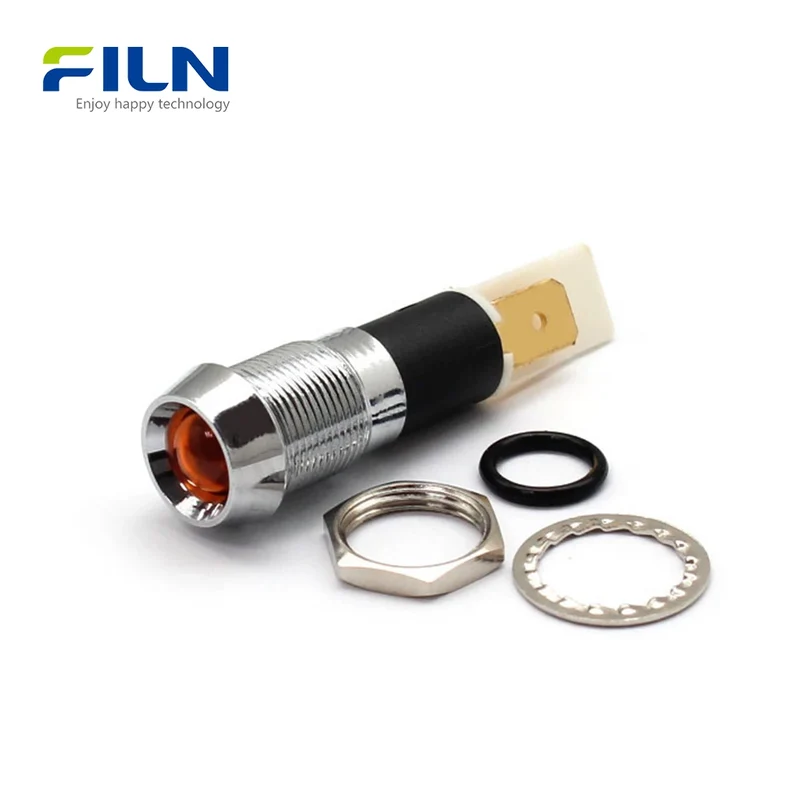

Installation Guide

1. Drill a 12mm diameter hole in your application panel.
2. Insert the indicator light from the front/top of the panel.
3. Ensure the oversized O-ring is seated between the light head and the panel.
4. From the rear, slide the M12 nut onto the smooth-running metal threads.
5. Tighten the nut firmly to secure the indicator light.
6. Connect the 24V power supply to the 2-pin plug-in terminals.

What Is a 24 Volt DC LED Indicator Light?

A 24 volt DC LED indicator light is a standard signaling component in modern automation and marine electronics. The concave head design offers a distinct functional advantage: the recessed lens is shielded by the metal housing, preventing accidental breakage in rugged industrial environments and providing a localized, non-distracting light source. While wired indicator lights are common, 2-pin terminal (plug-in) models like the FL1M-12CJ-1 are preferred for high-density panels. They allow for modular assembly and significantly easier maintenance, as the wiring can be detached or replaced without removing the entire indicator unit.

Factory Direct Supply & Customization

FILN is a specialized manufacturer supporting high-precision industrial requirements:

• Factory Direct: Competitive B2B pricing with direct technical support.
• Voltage Customization: Available for 12V, 24V, 110V, 220V, and bespoke ranges.
• Wiring & Connector Customization: Tailored wire lengths and connector types.
• Fast Global Shipping: Rapid turnaround for international projects.

FILN Official Website: www.filn.com

Contact Us: [email protected]

Frequently Asked Questions

1. Can I use the 24V DC LED indicator on a marine boat?
Yes, with an IP67 rating and metal shell, it is perfect for marine environments.

2. What is the advantage of the concave head design?
The recessed lens is shielded from physical impacts and minimizes distracting glare.

3. Are black housings available?
Yes, we provide silver nickel-plated and black anodized housing options.

4. What is the benefit of 2-pin terminals over wire leads?
They provide a more stable electrical connection and allow for modular assembly/disassembly.

5. Is the mounting hardware included?
Yes, each unit comes with an M12 nut and an oversized waterproof silicone O-ring.

6. Can these be used in medical devices?
Yes, the UL/CE certifications make them suitable for high-standard medical applications.

7. How long will the LED last?
Our industrial LED chips are rated for over 50,000 hours of service.

8. Is the installation thread smooth?
Yes, the M12 threads are precision-machined for effortless mounting.

9. Do you support custom voltages like 48V?
Yes, FILN offers full factory customization for bespoke voltage and wire requirements.

10. Are these resistant to vibration?
The robust metal build and pin terminals make them ideal for heavy machinery like CNC lathes.
