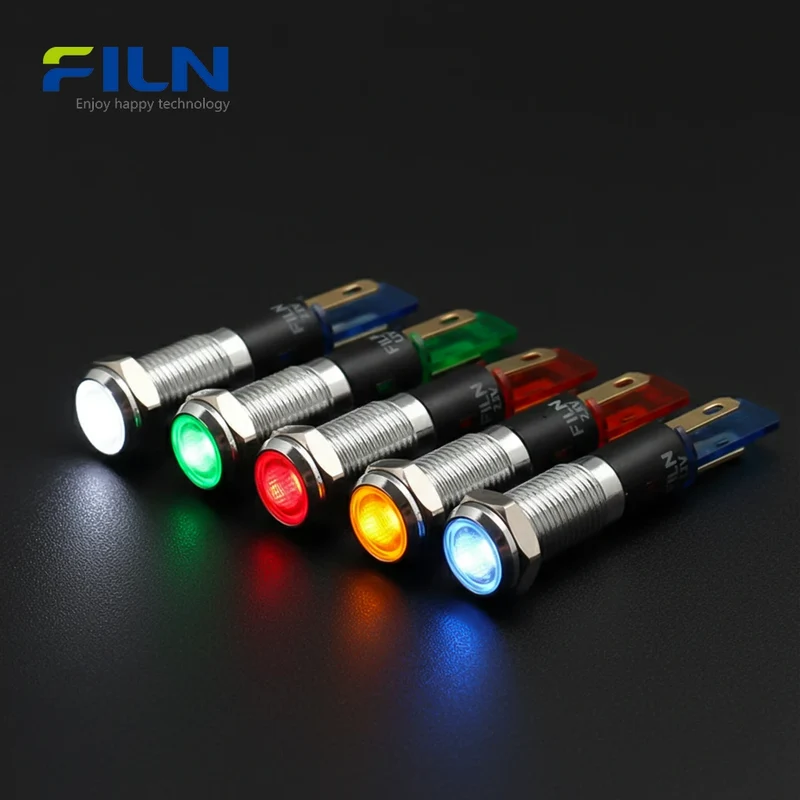

24V Indicator Light 8mm Metal Flat Head IP67 for Industrial Panels FILN

The 24v indicator light is a high-performance signaling solution designed for demanding industrial environments. Featuring a compact 8mm mounting hole and a robust metal flat head, this LED indicator ensures IP67 waterproof reliability and long-term durability. It supports a wide voltage range from 12V to 220V, making it compatible with various global electrical systems. Engineered for industrial control panels, CNC machines, and marine systems, it offers non-polar LED beads for easy pin-type wiring. Whether you need a black or silver housing, this industrial-grade LED lamp provides superior visibility and high-brightness performance for critical status monitoring.

Quick Specifications

Mounting Hole	8mm / 0.31 inch
Voltage	12-24V / 110-220V (Customizable)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP67

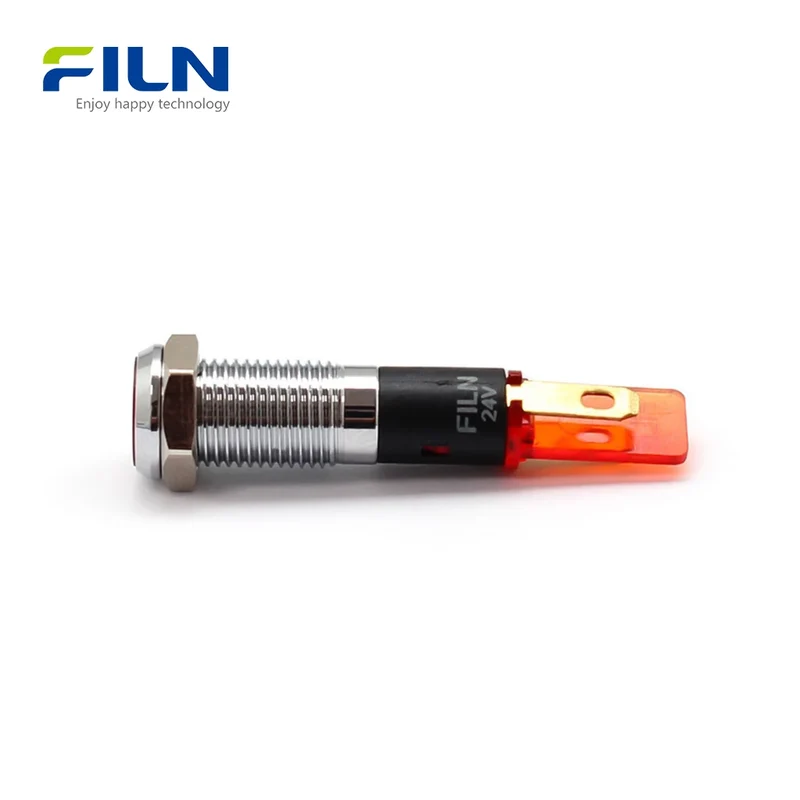

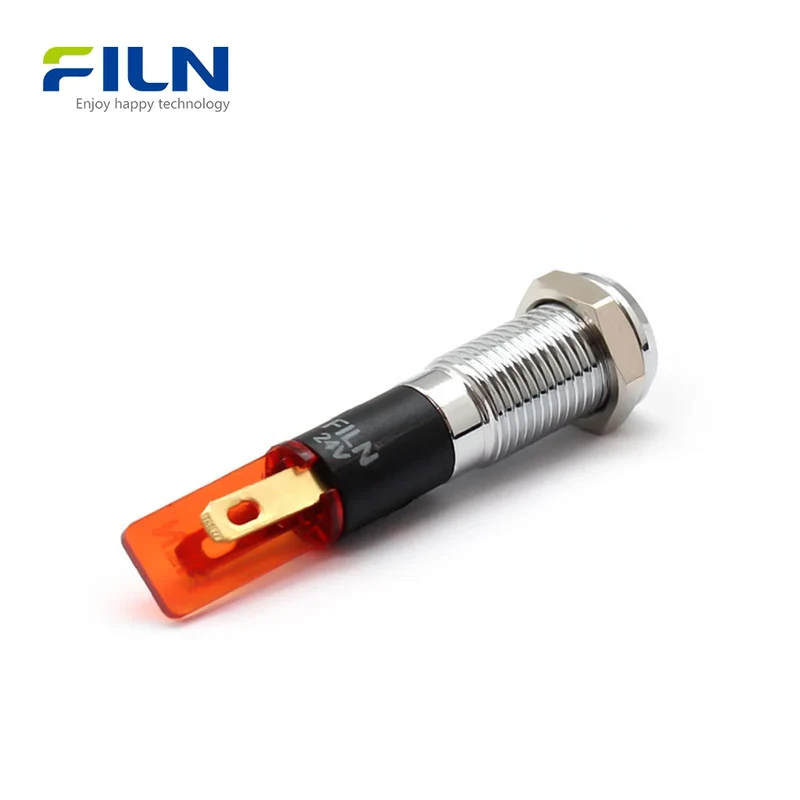

Wiring Type	Pin Terminals (Plug-in)

Rated Working Parameters

Rated Current	≤20mA
Frequency (AC)	50～60Hz

Component Materials

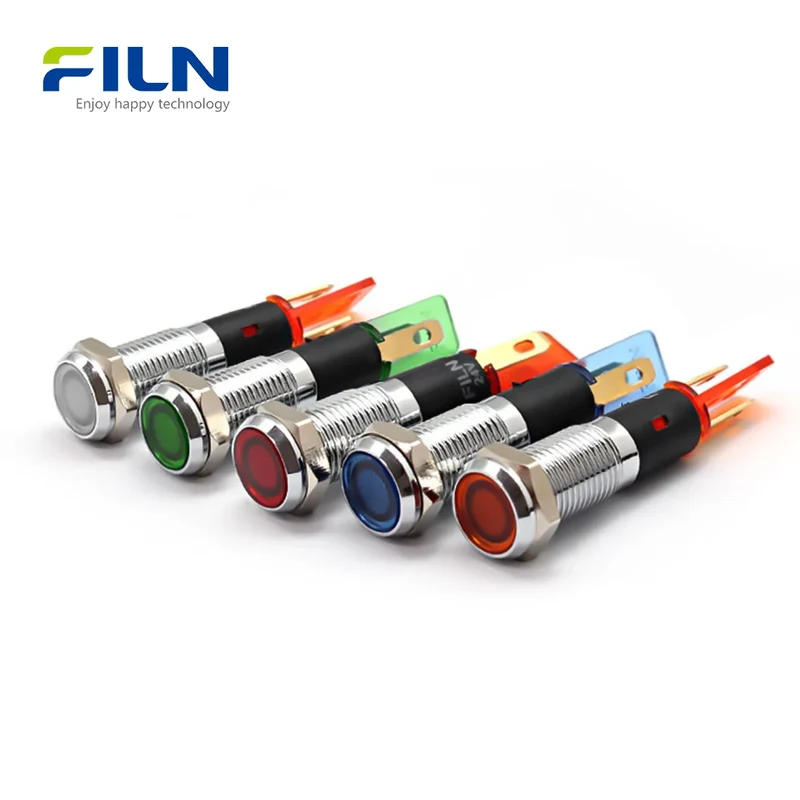

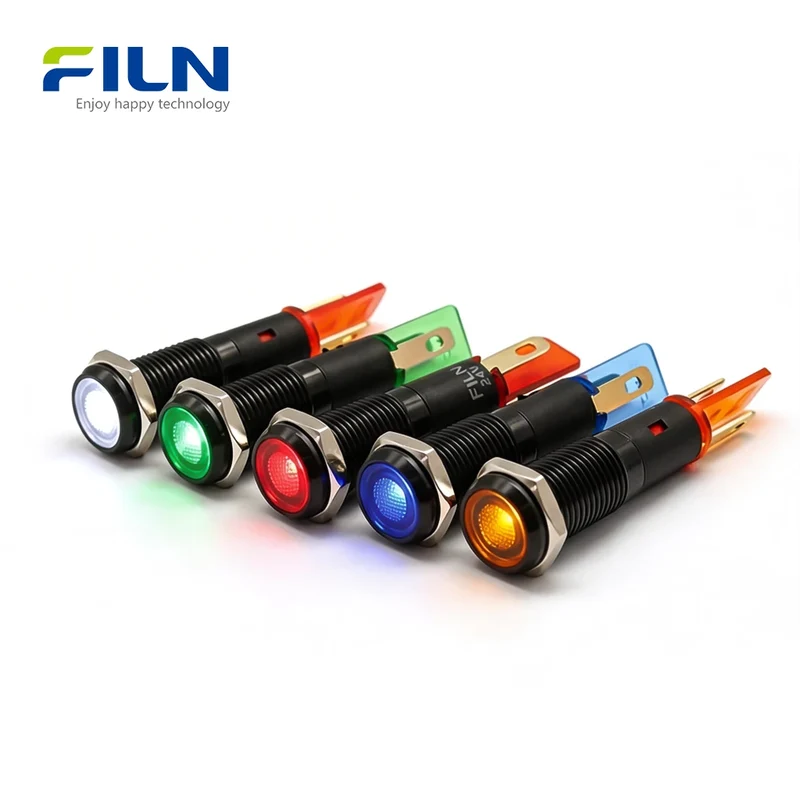

Housing Material	Chrome Plated Brass / Black Aluminum

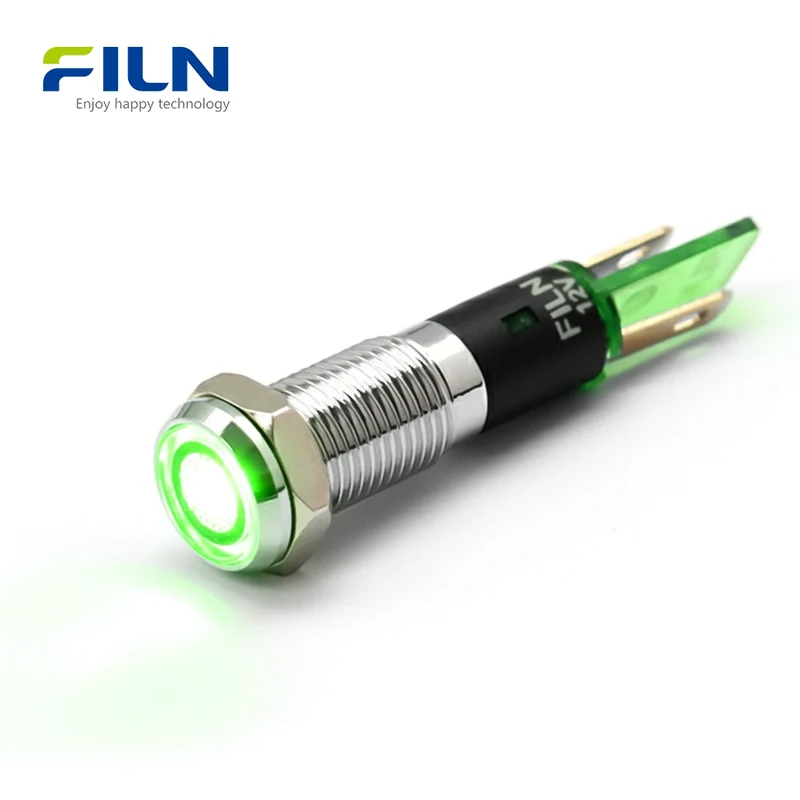

Head Type	Metal Flat Head
Base Material	Flame Retardant PA66

General Characteristics

Operating Temp	-40℃～+80℃
Relative Humidity	≤85% (at +40℃)
Air Pressure	86~106Kpa

Electric Property

Insulation Resistance	≥100MΩ (DC500V 1 min)
Dielectric Strength	1500VAC (No breakdown / 60s)

Durability Characteristics

Test Condition	30mA Continuous 1000h
Continuous Working Life	≥50,000 Hours

Resistant Performance

High/Low Temperature	80℃ 96h / -40℃ 96h
Moisture Resistance	40℃ 90-95%RH (96h)
Temperature Cycling	-40℃ to 85℃ (5 Cycles)

Key Features

• LED High Brightness: Ensures clear status visibility even in high-light environments.
• Long Service Life: Industrial-grade LEDs rated for over 50,000 hours.
• IP67 Protection: Fully waterproof and dust-tight for marine and CNC applications.
• Non-Polar Design: Advanced LED circuitry allows for easy wiring without polarity errors.
• Complete Accessories: Includes high-quality waterproof ring and metal nut for secure installation.

Frequently Asked Questions

1. Can this 24v indicator light be used on AC and DC power supplies?
Yes. Our 8mm indicator light features non-polar LED beads, making it compatible with both AC and DC 24V inputs. 2. What is the standard mounting hole diameter for this signal lamp?
The required mounting hole diameter is 8mm (0.31 inch), standard for industrial control panels. 3. Is the metal shell resistant to salt spray and corrosion?
Absolutely. We offer chrome-plated brass or black anodized aluminum housings, both of which provide excellent corrosion resistance. 4. Does the indicator light come with a seal for waterproof installation?
Yes, each unit includes a dedicated waterproof silicone ring and a mounting nut for an IP67-rated seal. 5. What LED colors are available for the 24V version?
We provide five standard colors: Red, Green, Yellow, Blue, and White. 6. Can I install this indicator in a 220V circuit?
This model supports 12V-24V, but we also offer specialized 110V-220V versions or custom-built solutions for higher voltages. 7. What is the benefit of the metal flat head design?
The flat head design is aesthetically pleasing, easy to clean, and prevents accidental damage compared to prominent lenses. 8. Is it possible to use these lights in high-vibration CNC machines?
Yes, the threaded fixation and metal housing are specifically designed to withstand industrial vibration and shock. 9. Do these lights require additional resistors for 24V?
No, the internal circuitry is already optimized for the specified voltage range, ensuring simple "plug and play" use. 10. How do I wire the pin-type terminals?
The pins are designed for professional soldering or compatible female quick-connect terminals for reliable electrical contact.
