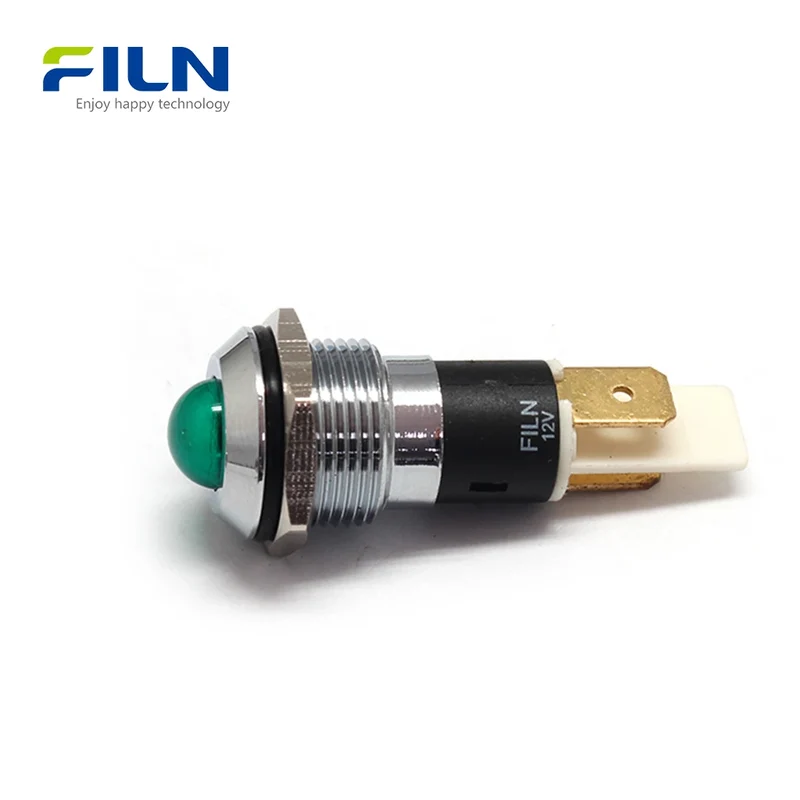

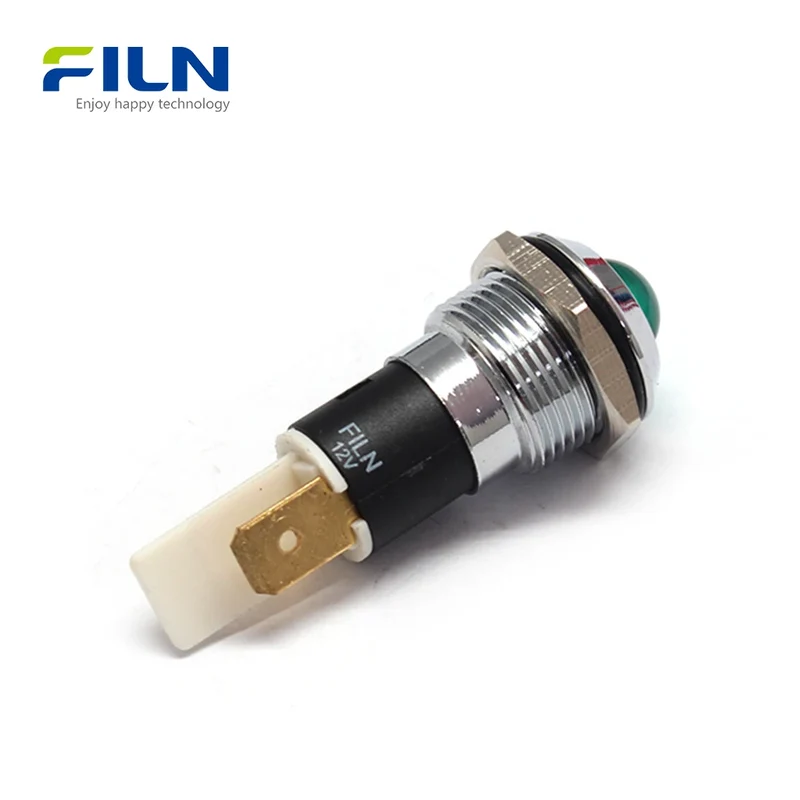

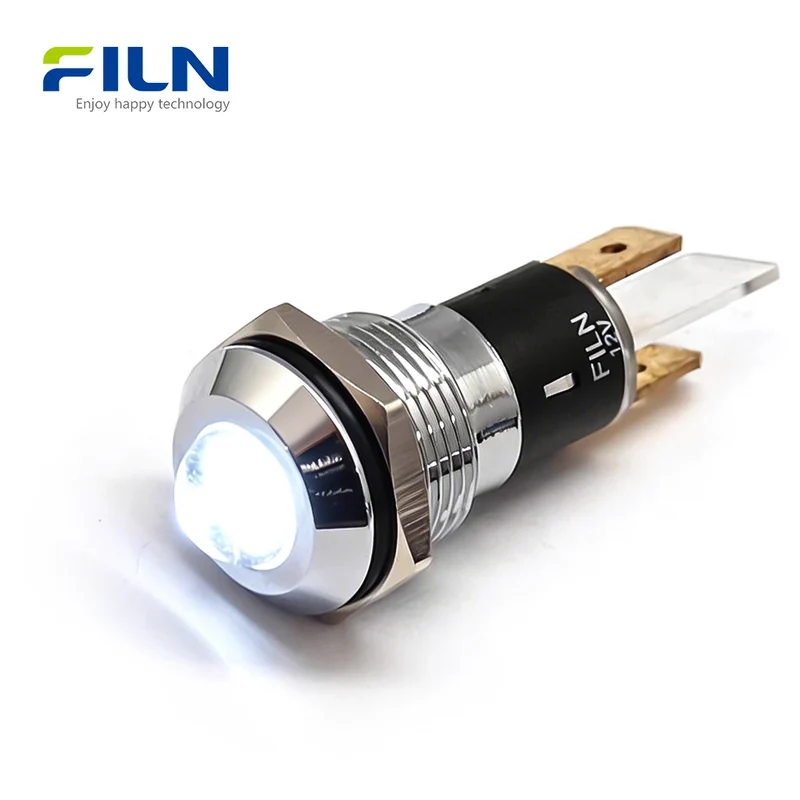

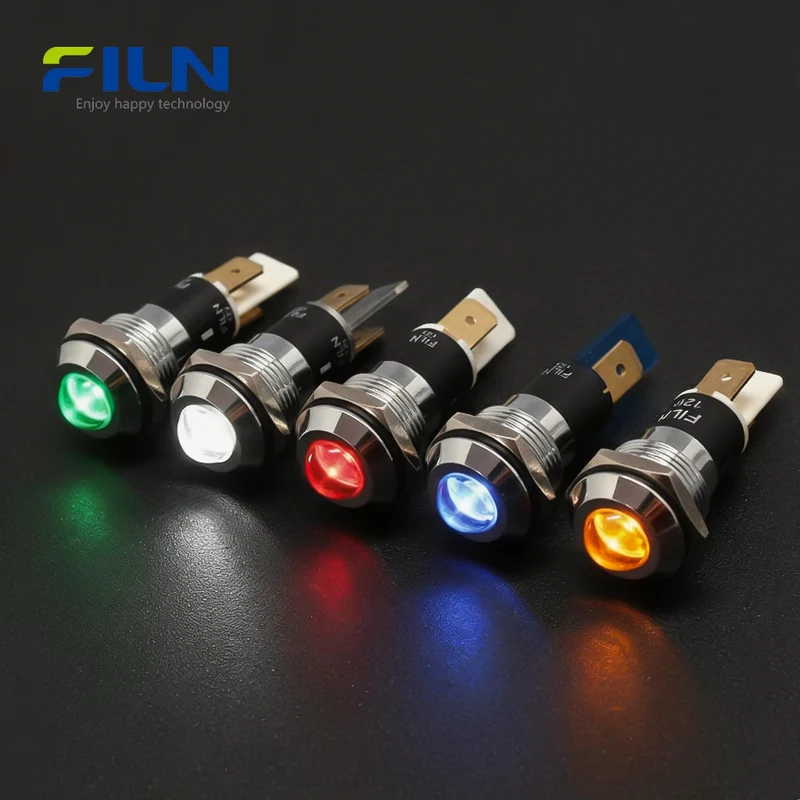

24V LED Panel Indicator Lights 16mm Metal High Head 2Pin Terminal FILN

2,52 €1,32 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

The 24V LED panel indicator lights series (Model: FL1M-16SJ-1) by FILN is a premier industrial signaling solution. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, these 16mm metal high head indicators are designed for rigorous B2B applications[cite: 1, 3]. Featuring a robust 2-pin terminal design and a high-profile head for enhanced visibility, they are ideal for industrial control panels, CNC machines, and marine systems. The long-life LED and corrosion-resistant shell (available in silver or black) offer a reliable, customizable voltage solution (12V-220V) for global procurement needs.

Quick Specifications

Mounting Hole 16mm / 0.63 inch
Voltage 12-24V / 110-220V (Customized)

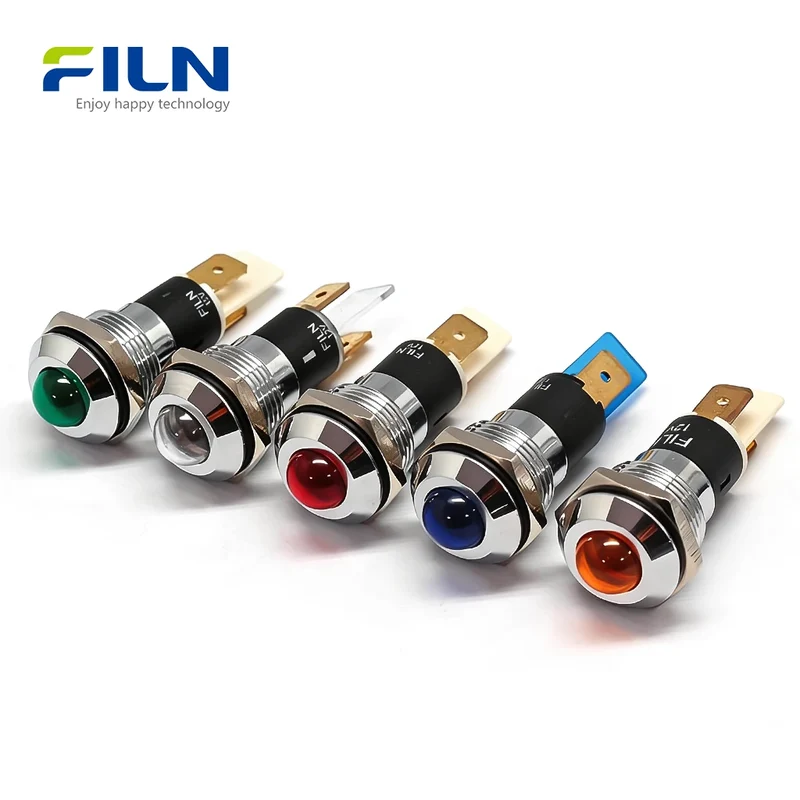

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ ～ 80℃
Lifespan 50,000 Hours
Wiring Type 2-Pin Terminal Type

Component Material List

Component Name Material Note
Shell Copper Alloy / Aluminum Silver or Black Finish
Lampshade PC Polycarbonate High light transmission
Light Source LED Long life, low energy
Pin Brass Excellent conductivity
O-ring Silica Gel IP67 Waterproof seal

Rated Working Parameters

Rated Voltage 12V / 24V / 110V / 220V (Customized)
Frequency (AC) 50 ～ 60Hz
Rated Current ≤ 20mA

General Characteristics

Operating Temperature -40℃ ～ 80℃
Relative Humidity ≤ 85% at +40℃
Air Pressure 86 ～ 106Kpa

Performance & Durability

Test Item Condition Requirement
Insulation Resistance DC500V for 1 min ≥ 100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown
Working Life 30mA 1000h 50,000 hours
Temp Resistance 80℃ / -40℃ 96h [cite: 1, 4] Normal function

Key Features

  • LED High Brightness: Exceptional side-visibility with the high-head design.
  • High Head Advantages: The protruding head offers a 180-degree viewing angle, making it easier to see from a distance compared to flat-head models.
  • 2-Pin Terminal vs. Wire: Pin terminals provide a stable, vibration-resistant connection that is much faster to install or replace than traditional wiring.
  • IP67 Waterproof: Reliable silicone O-ring protection against dust and moisture.
  • Industrial Grade: Smooth M16 threads and high-strength shell for rugged environments.

Installation Guide

  1. Drill a 16mm hole on the mounting panel.
  2. Insert the indicator light from the top of the panel.
  3. Ensure the waterproof O-ring is positioned correctly.
  4. Tighten the M16 nut from the back of the panel to fix it in place.
  5. Connect the power lines to the 2-pin terminals.

What Is a 24V LED Panel Indicator Light?

A 24V LED panel indicator light is a critical visual feedback component for industrial machinery. These devices communicate status—such as power, faults, or warnings—to operators instantly. The high-head design is specifically valued for applications where monitoring from side-angles is necessary. In 2026, industry standards favor pin terminals for their ability to streamline the assembly line process and reduce human error during wiring.

Factory Direct Supply

FILN offers specialized B2B customization and direct wholesale:

  • Factory Direct Pricing
  • Voltage Customization (3V-380V)
  • Wire/Connector Customization
  • Fast Global Shipping

Official Website: www.filn.com
Contact: [email protected]

Frequently Asked Questions

1. Why choose the high-head design for my 24V LED panel indicator?
The high-head provides a wider viewing angle, making it visible from the side, which is essential for safety monitoring.

2. Can I use this 16mm indicator in outdoor environments?
Yes, with its IP67 rating and silicone seal, it is designed to withstand rain and dust.

3. What is the benefit of the 2-pin terminal over wire leads?
Terminals allow for quicker maintenance and modular panel assembly without re-stripping wires.

4. Does FILN support custom colors like white or blue?
Yes, we offer Red, Green, Yellow, Blue, and White as standard options.

5. Is the silver shell the only option?

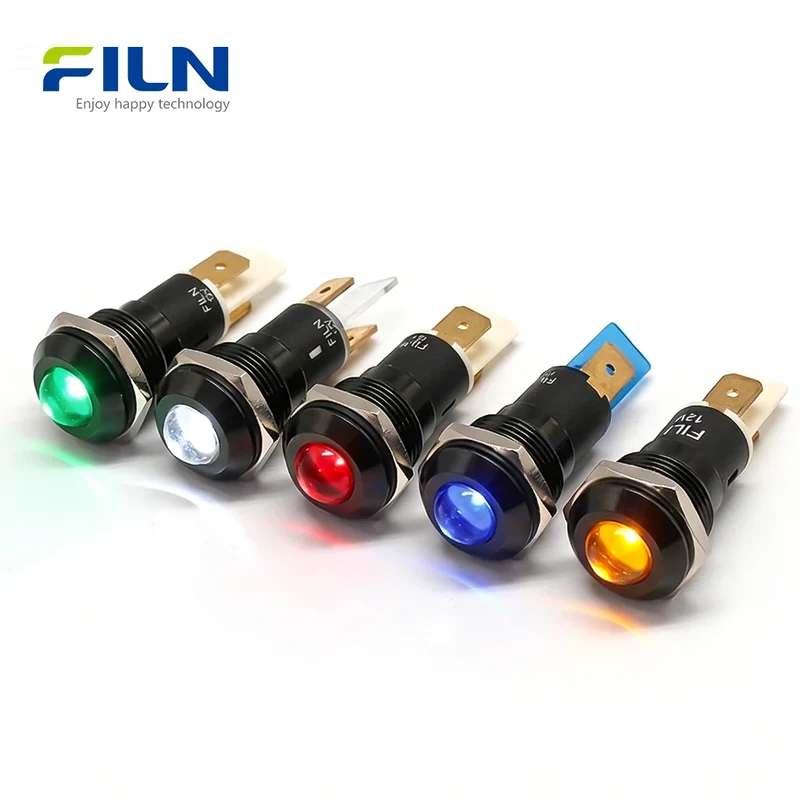

No, we provide both silver (nickel-plated) and black aluminum shells to match your panel aesthetics.

6. What is the standard lifespan of the LED?
Our LEDs are rated for 50,000 hours of continuous high-brightness operation.

7. Are the mounting nuts included?

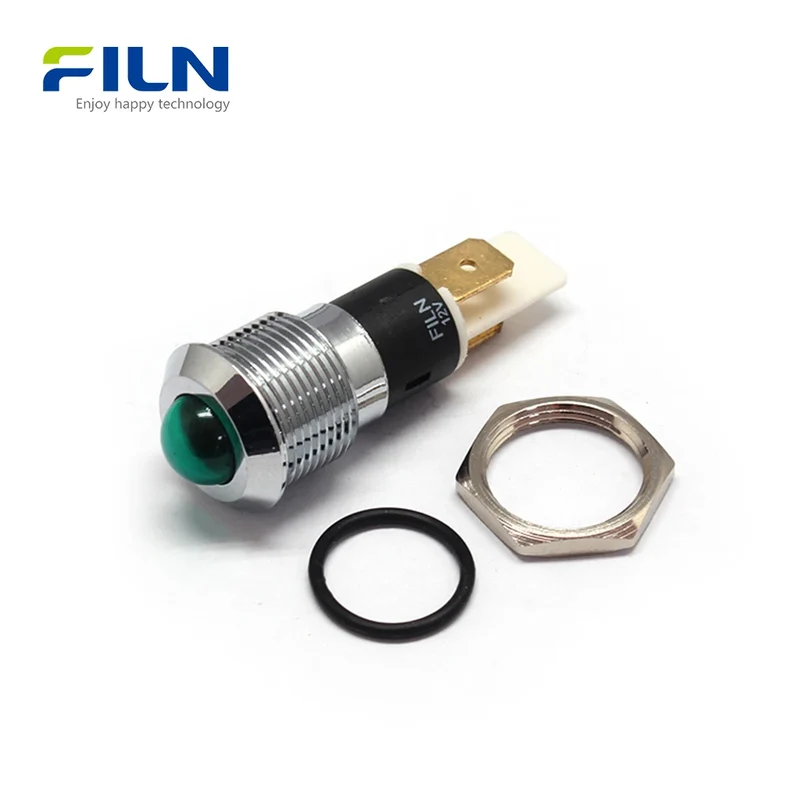

Yes, each light comes with an M16 nut and a waterproof O-ring.

8. Does this product meet UL standards for the US market?
Yes, FILN products hold UL, CE, and VDE certifications for international compliance.

9. Can I request a specific voltage like 110V AC?
Yes, we support customization for voltages ranging from 12V to 220V.

10. How do I install the waterproof ring?
Place the ring between the indicator head and the panel surface before tightening the nut from behind.
