Anbieter: 8MM Metal Indicator Light

24V Panel Indicator Light | 8mm Waterproof LED IP67 for Industrial Control FILN

1,36 €0,74 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview: 24V Panel Indicator Light

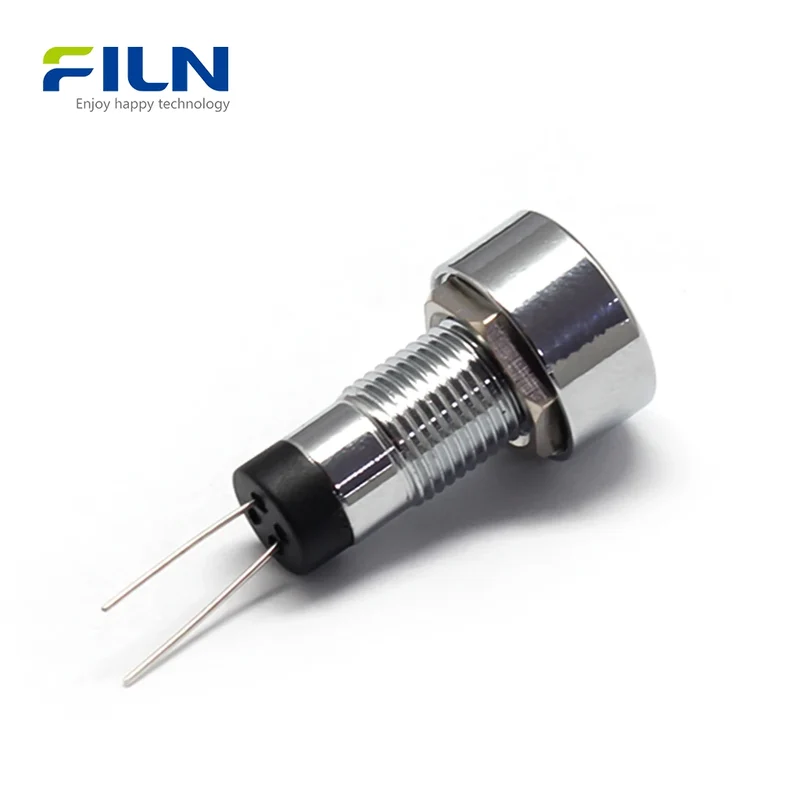

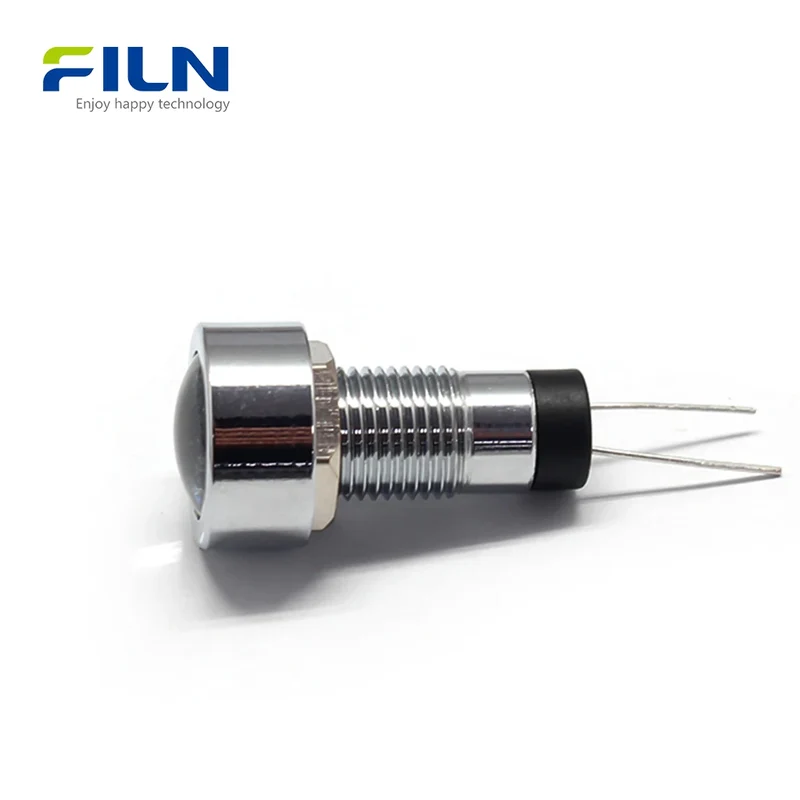

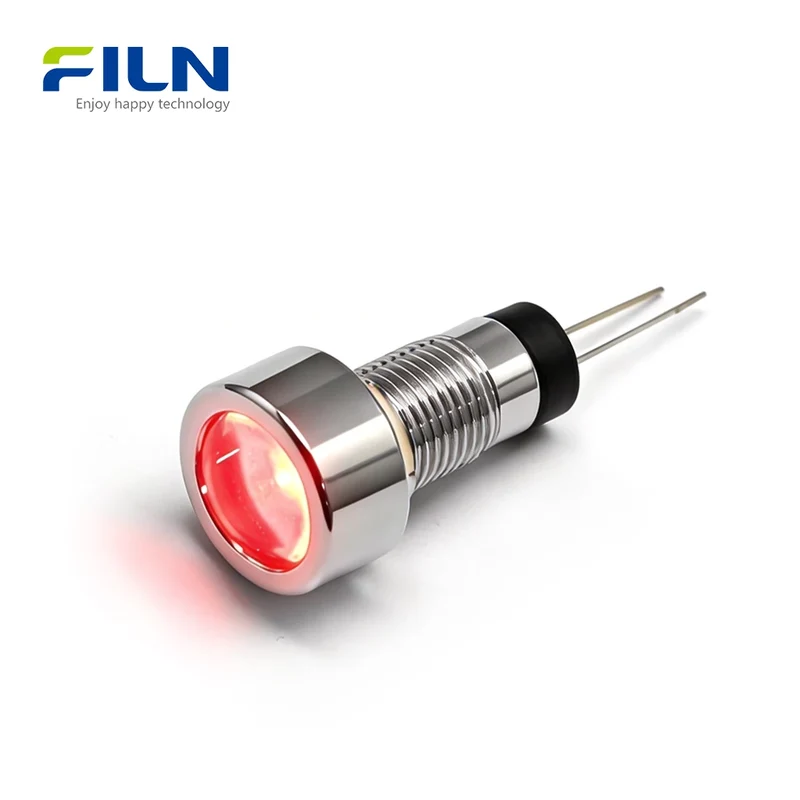

The 24V panel indicator light (Model: FL1M-08SJ-4) is a premium industrial signaling solution designed for high-visibility and rugged performance. Featuring a 8mm mounting hole and a distinctive high-head metal design, this indicator provides superior visual status updates for industrial control panels, CNC machinery, and automation equipment. With an IP67 waterproof rating and a non-polar LED design, it offers unmatched reliability in harsh environments. The silver or black housing options and customizable voltage ranges (12V to 220V) ensure seamless integration into global B2B electrical systems.

Quick Specifications

Mounting Hole 8mm / 0.315 inch
Voltage 12V, 24V, 110V, 220V (Customizable)
LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temp -40℃ to +80℃
Lifespan 50,000 Hours
Wiring Type Pin Type (Soldering Terminals)

Rated Working Parameters

Rated Voltage Customized (12V-220V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Brass with Nickel Plated / Black Zinc Alloy
Lens Polycarbonate (PC)
Seal Ring SIL Silica Gel
Terminal Copper with Gold Plated

General Characteristics

Part Name FL1M-08SJ-4
Operating Temp -40℃～80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Key Features

  • LED High Brightness: Exceptional visibility even in bright industrial environments.
  • Long Lifespan: Rated for over 50,000 hours of continuous operation.
  • IP67 Waterproof: Full protection against dust and water immersion.
  • Easy Installation: Pin-type design for secure soldering and quick assembly.
  • Industrial Grade Reliability: Robust metal housing resistant to vibration and impact.

Industrial Applications

  • Industrial control panels and distribution boards.
  • CNC machinery and metalworking equipment.
  • Automated production lines and robotics.
  • Marine navigation systems and dashboard indicators.
  • Medical diagnostic devices and power status displays.

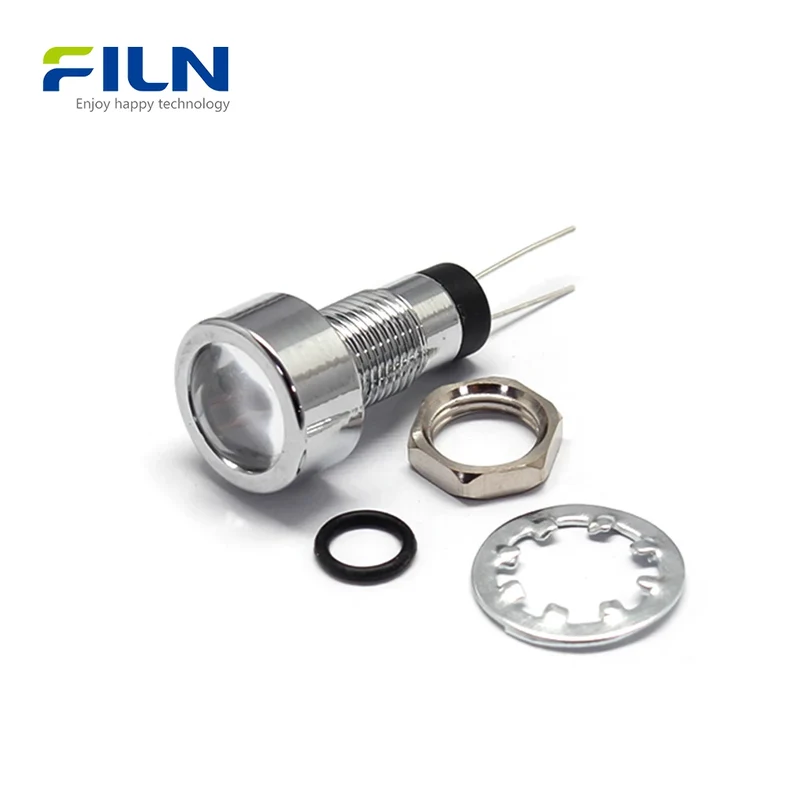

Installation Guide

  1. Drill an 8mm diameter hole in your application panel.
  2. Insert the indicator light from the top/front of the panel.
  3. Place the O-ring waterproof seal behind the panel.
  4. Tighten the M8 hex nut from the back to secure the housing.
  5. Solder the wires to the pin terminals (non-polar LED design simplifies wiring).

What Is a 24V Panel Indicator Light?

A 24V panel indicator light is a specialized signaling device used to provide visual feedback on the operational status of electrical circuits. In industrial settings, 24V DC is a standard control voltage. These lights are essential for safety and efficiency, alerting operators to power status, machine errors, or specific process stages. Unlike standard plastic lamps, metal-housed 8mm indicators offer durability against physical wear and chemical exposure. The "pin-type" terminal is preferred for permanent, vibration-resistant connections in heavy-duty machinery compared to temporary spade connectors.

FILN Factory Direct Advantages

  • ✅ Voltage Customization: 3V to 380V support.
  • ✅ Wire & Connector Customization: Custom lengths and terminal types.
  • ✅ Global Rapid Shipping: Direct export from our Wenzhou facility.
  • ✅ Technical Support: Professional engineering consultation.

🌐 Official Website: www.filn.com
📧 Contact Us: [email protected]

Frequently Asked Questions

Q: What is the mounting hole size for this 24v panel indicator light?

A: This specific model is designed for an 8mm (approx. 0.315 inch) mounting hole. It features a high-head design where the visible head diameter is 13mm.

Q: Does the 8mm LED indicator light support other voltages?

A: Yes, while optimized for 24V, FILN provides customization for 12V, 110V, and 220V. We can customize the internal resistance to meet your specific industrial requirements.

Q: Is this industrial panel mount signal lamp polarity-sensitive?

A: No, our 8mm LED indicator beads are non-polar. This means you can connect the positive and negative poles in either direction, greatly simplifying the installation process.

Q: What is the waterproof rating of this metal indicator light?

A: It carries an IP67 waterproof rating. Each unit includes a high-quality O-ring waterproof seal to ensure reliable performance in wet or dusty environments.

Q: What is the difference between the "pin type" terminal and standard 2.8mm terminals?

A: The pin-type terminal (Model: FL1M-08SJ-4) is designed for soldering or specialized connectors. Unlike 2.8mm plug-in terminals, pins provide a more compact and secure permanent connection in high-vibration environments.

Q: Can I choose different housing colors for the 24V LED pilot light?

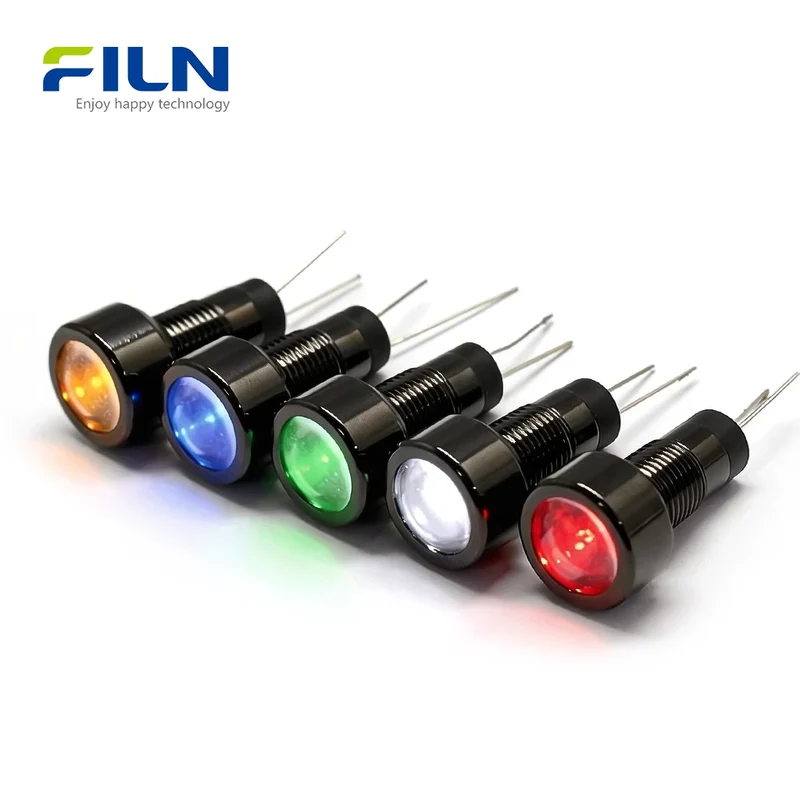

A: Yes, we offer the metal housing in both a classic silver (nickel-plated) and a sleek black (zinc alloy) finish to match your equipment's aesthetics.

Q: What colors are available for the 8mm waterproof indicator light?

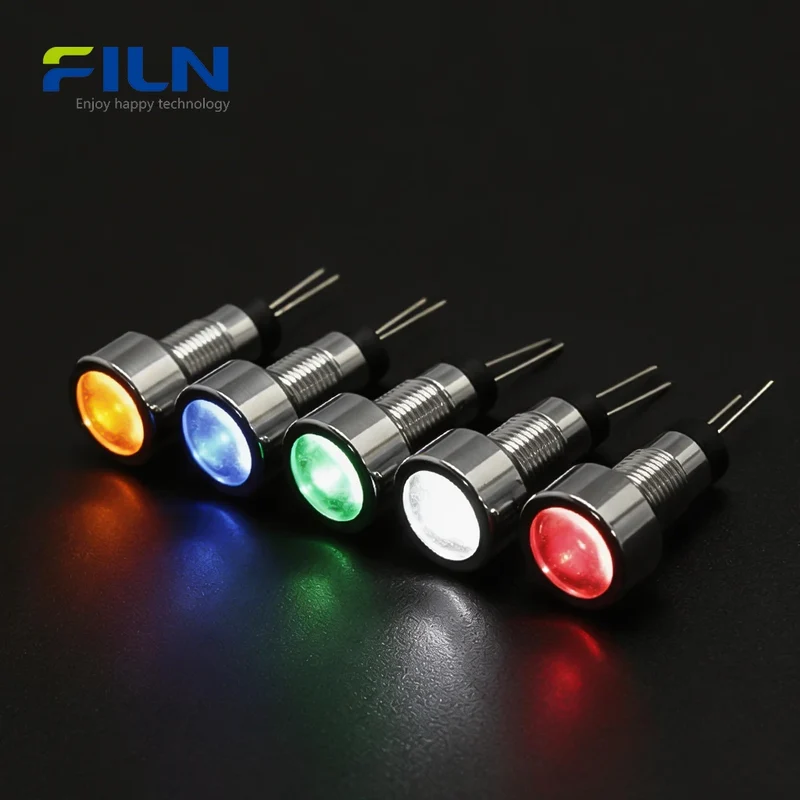

A: We offer five standard high-brightness LED colors: Red, Green, Yellow, Blue, and White.

Q: How do I install the metal high head indicator light on a cabinet?

A: First, drill an 8mm hole. Insert the indicator from the front. From the back, slide on the waterproof ring and tighten the M8 nut. The smooth threading ensures a firm grip on the panel.

Q: What is the expected lifespan of these 24v dc led indicator lights?

A: These industrial-grade LEDs are designed for longevity, with a continuous working life of up to 50,000 hours.

Q: Does FILN offer customization for wire leads on this model?

A: Yes, as a professional manufacturer, we can customize wire lengths and add specific connectors to the pin terminals to save you assembly time.
