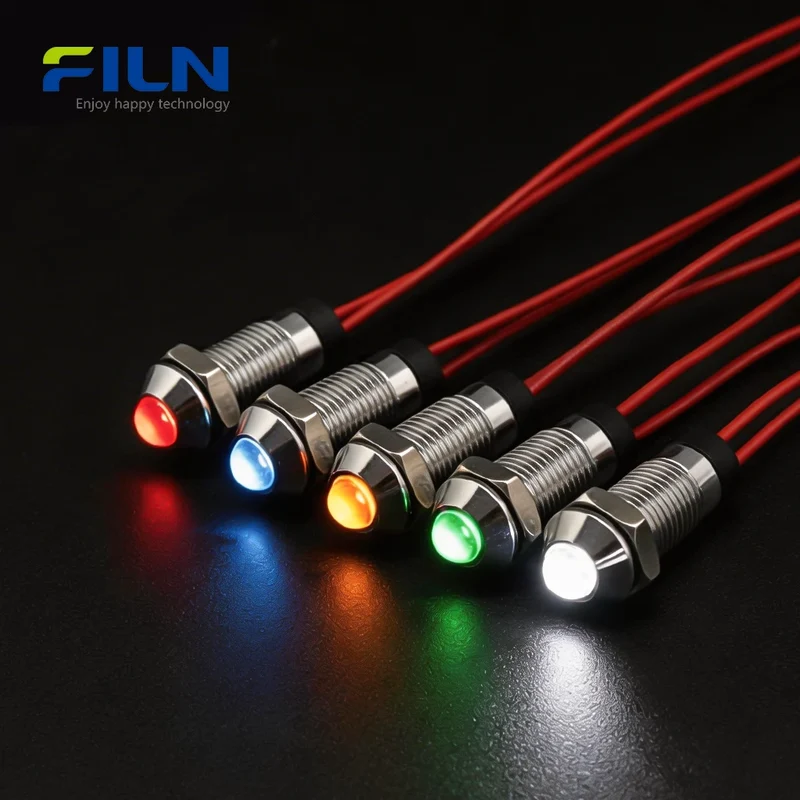

5V Indicator Light | 8mm LED Metal High Head | IP67 Waterproof Panel Mount

1,25 €0,74 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Professional 5V Indicator Light Solutions

The FILN 5V indicator light (Model: FL1M-08SW-2) is a high-performance 8mm LED signal lamp engineered for precision industrial signaling. Featuring a robust metal high-head design and IP67 waterproof protection, this compact component ensures high visibility and durability in harsh environments. Unlike standard models, its shortened body is specifically designed for small space installation within industrial control panels, CNC machinery, and automation equipment. With support for 12-24V, 110-220V, and custom voltages, these pre-wired indicator lights offer non-polar LED beads and seamless integration for global B2B manufacturing needs.

Quick Specifications

Mounting Hole 8mm / 0.315 inch
Voltage 5V, 12-24V, 110-220V (Customizable)
LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours
Wiring Type Pre-wired Lead Type

Rated Working Parameters

Rated Voltage 5V DC / Customized
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

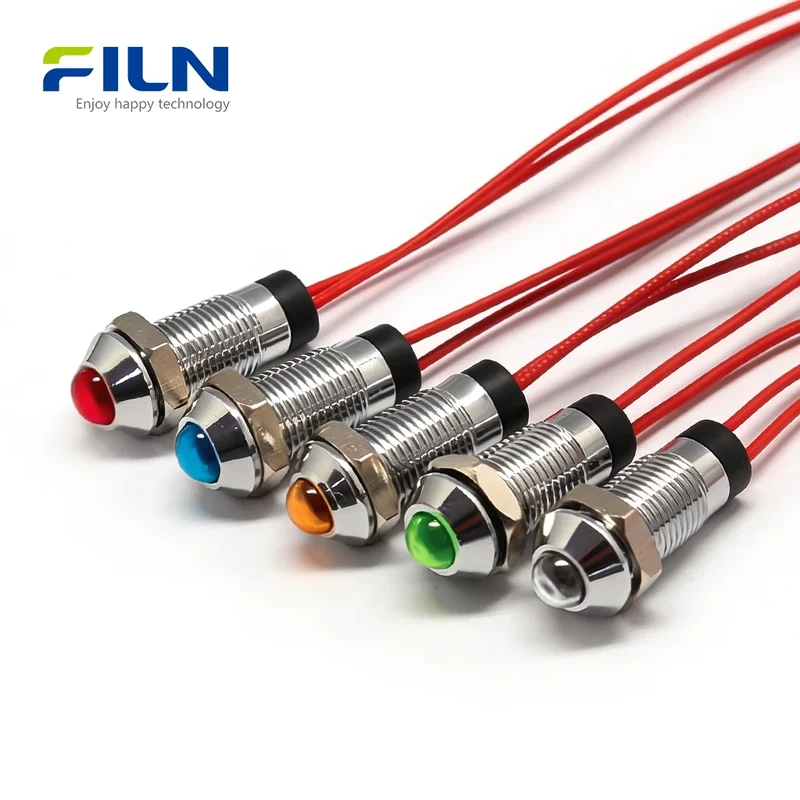

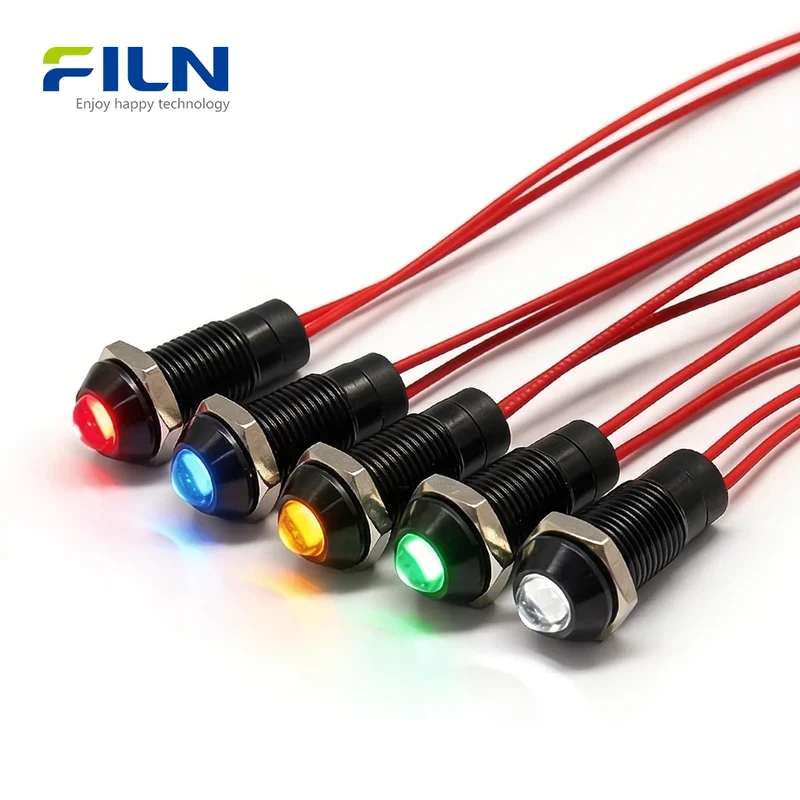

Housing Nickel-plated Brass / Black Aluminum
Lens Polycarbonate (PC)
Seal Ring SIL Silicone
Terminal Lead Wire
Wire Material PVC / Teflon UL Wire

General Characteristics

Application Signal Indication
Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Ambient Temperature 5~35℃
Air Pressure 86~106Kpa

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Durability Characteristics

Item Test Condition Requirement
Continuous Working Life 30mA 1000h 50,000 hours

Resistant Performance

Test Item Condition
High Temperature 80℃ for 96h
Low Temperature -40℃ for 96h
Moisture Resistance 40℃ 90-95%RH 96h
Temperature Cycling -40℃ → 25℃ → 85℃ (5 Rounds)

Key Features

  • LED High Brightness: Crystal clear signal visibility in industrial lighting conditions.
  • Long Lifespan: Rated for over 50,000 hours of continuous operation.
  • IP67 Waterproof: Full protection against dust and temporary immersion in water.
  • Compact Installation: Shortened body design (FL1M-08SW-2) optimized for small spaces.
  • Industrial Grade Reliability: Durable metal housing with smooth threading and secure M8 nut fixation.

Applications

  • Industrial control panels and dashboards
  • CNC machines and precision manufacturing tools
  • Automation equipment status monitoring
  • Electrical cabinets and power distribution units
  • Marine systems and outdoor equipment
  • Medical devices and laboratory instruments

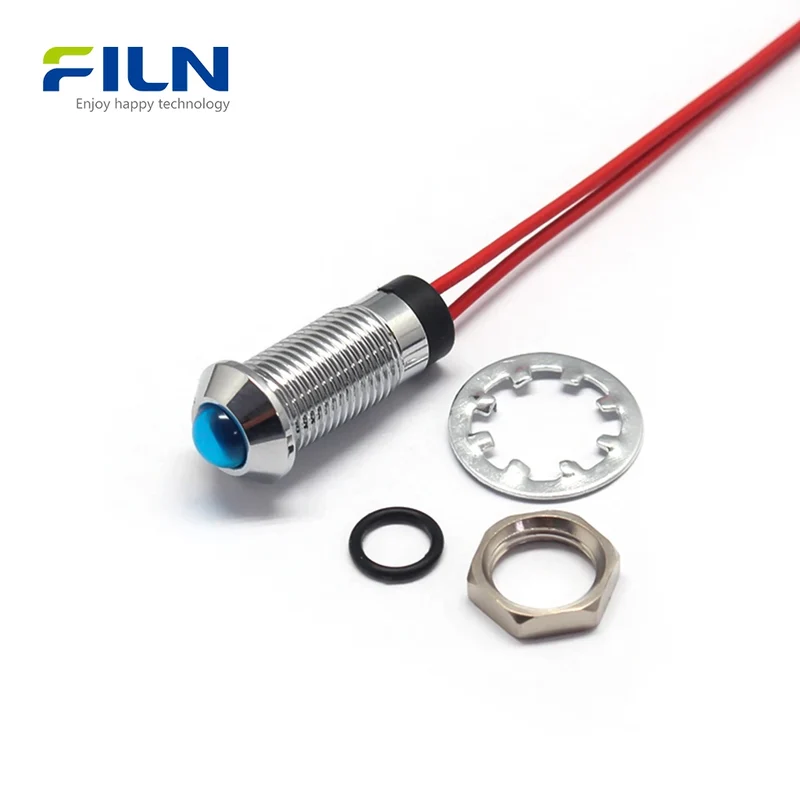

Installation Guide

  1. Drill an 8mm (M8) mounting hole in your control panel.
  2. Insert the indicator light from the front of the panel.
  3. Place the O-type waterproof ring behind the head for a seal.
  4. Thread the M8 nut from the back and tighten securely.
  5. Connect the pre-wired leads to your power source (non-polar LED).

What Is a 5V Indicator Light?

A 5V indicator light is a critical low-voltage signaling component used to provide visual feedback on the operational status of electronic circuits and industrial systems. In the context of industrial automation, these lights act as "status messengers," informing operators if a machine is powered on, in standby, or experiencing a fault. By utilizing high-efficiency LEDs within a metal high-head housing, these 8mm lights provide a tactile and visual interface that can withstand vibration, moisture, and temperature fluctuations common in factory environments.

FILN Factory Direct Supply

  • ✅ Factory Direct: Original manufacturer pricing and quality control.
  • ✅ Voltage Customization: Support for 5V, 12V, 24V, 110V, 220V, and 380V.
  • ✅ Wire Length Customization: Tailored lead lengths for your specific assembly.
  • ✅ Connector Customization: Pre-installed connectors for plug-and-play use.
  • ✅ Fast Global Shipping: Rapid fulfillment for international B2B orders.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can this 5V indicator light be used with 12V or 24V systems?

Yes, while this model is optimized for 5V, we offer versions compatible with 12V-24V and 110V-220V as well.

2. Is the 8mm mounting hole standard?

Yes, 8mm (M8) is a standard industrial size for compact signal lights.

3. What is the difference between FL1M-08SW-1 and FL1M-08SW-2?

The FL1M-08SW-2 has a shorter body, making it ideal for shallow panels and small space installations.

4. Does the LED have a positive and negative polarity?

No, our LED beads are non-polar, which makes wiring faster and easier for technicians.

5. Is the housing available in different colors?

Yes, we provide both silver (nickel-plated) and black aluminum housing options.
