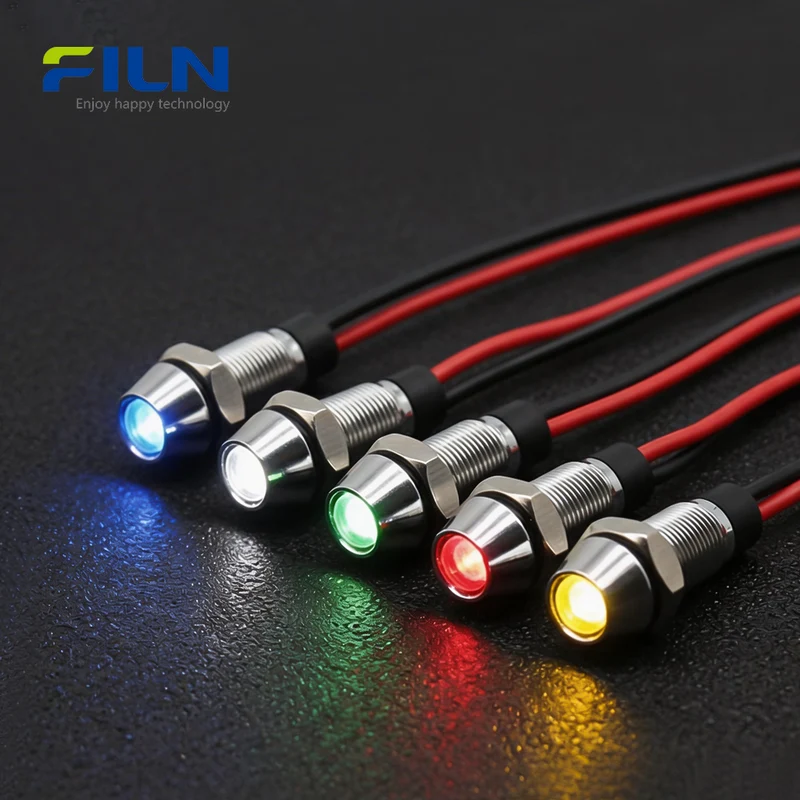

6MM LED Pilot Light Mini Metal High Head Pre-wired IP65 Signal Lamp

0,86 €0,53 €Im Angebot
Housing Color
Light Colo
Voltage
Menge

Beschreibung

Product Overview

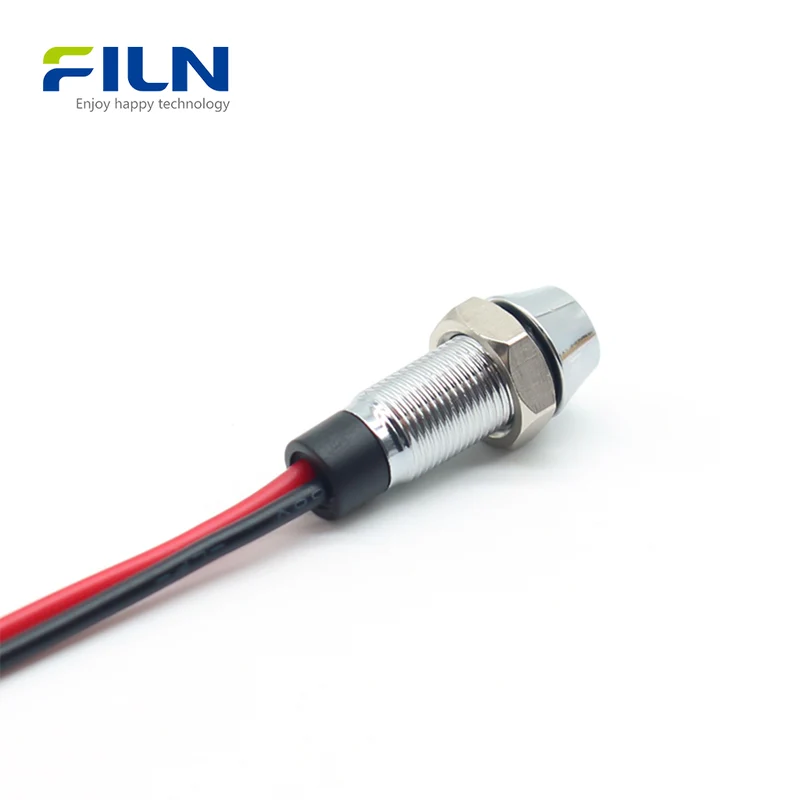

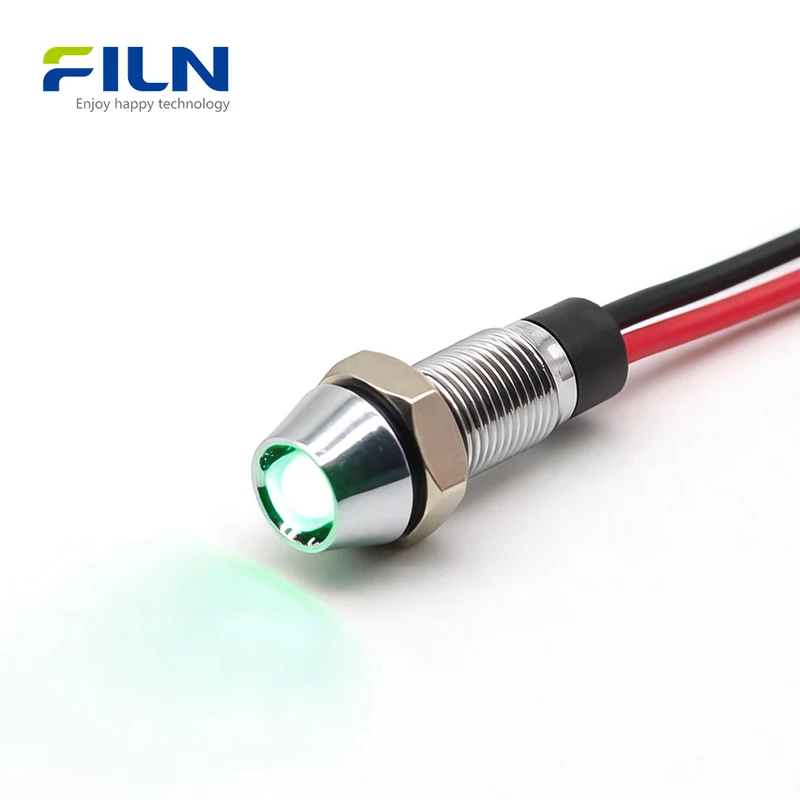

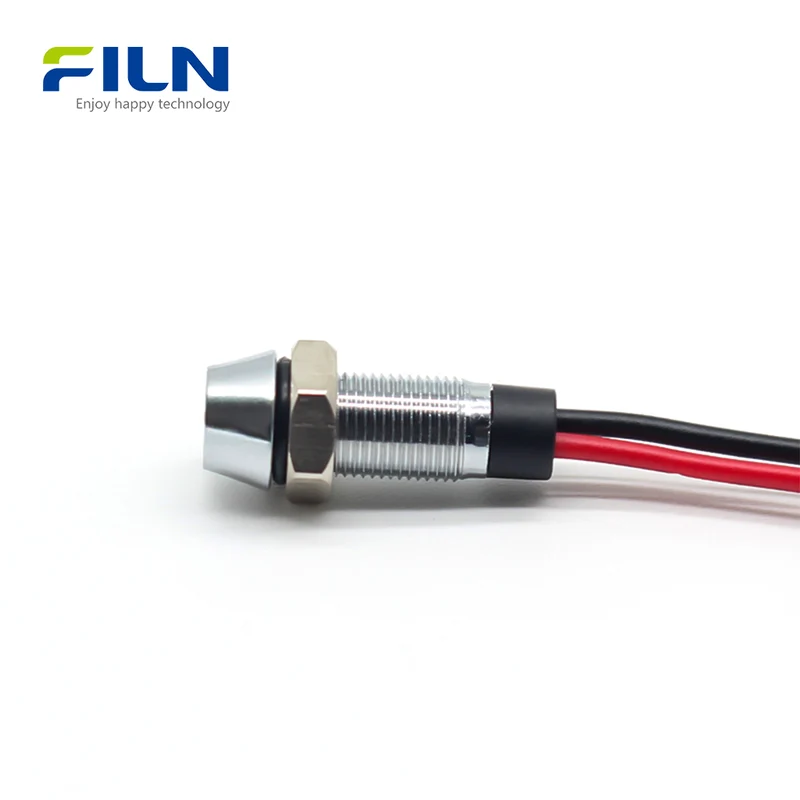

Looking for a signaling solution for extremely tight spaces? This 6mm metal indicator lamp (Model: FL1M-06CW-4) is our most compact version yet. It is significantly shorter than the standard FL1M-06CW-1, making it the ultimate choice for shallow mounting depths in miniature devices. Featuring a professional concave head design, the lens is recessed within the metal shell, providing superior physical protection and a sleek, modern aesthetic. Available for sale with factory-direct pricing, these 6mm LED indicators support 12V, 24V, 110V, and 220V with 20cm pre-wired leads. All units are ISO9001, UL, CE, and RoHS certified, ensuring high-end performance for any electrical equipment signal transmission.

Quick Specifications

Mounting Hole Size 6mm (0.24 inch) Standard Circular
Model Number FL1M-06CW-4 (Ultra-Short Series)
Voltage Options 12-24V, 110-220V (Custom Voltage Support)

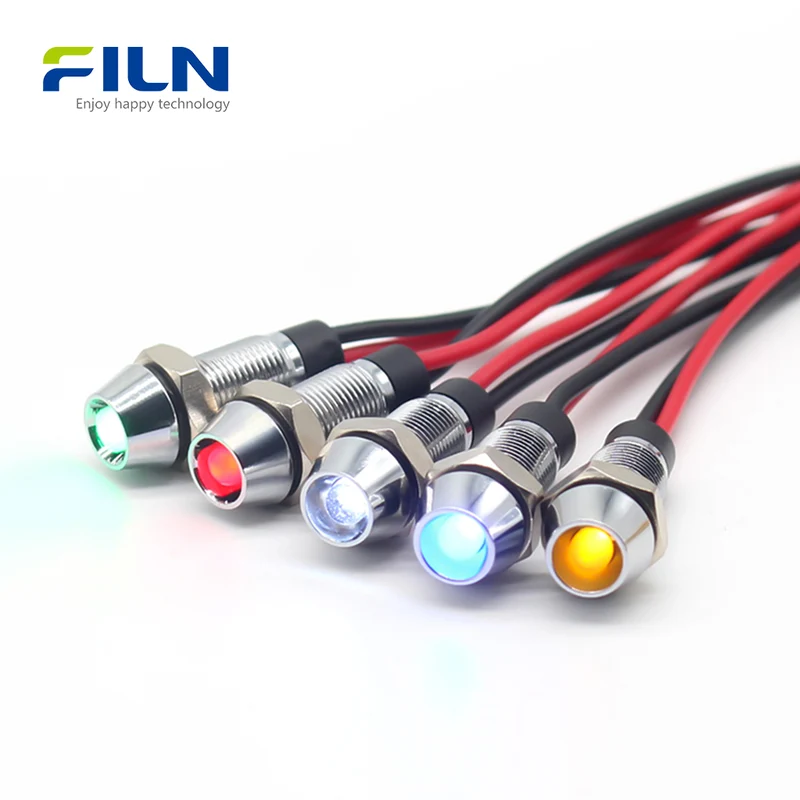

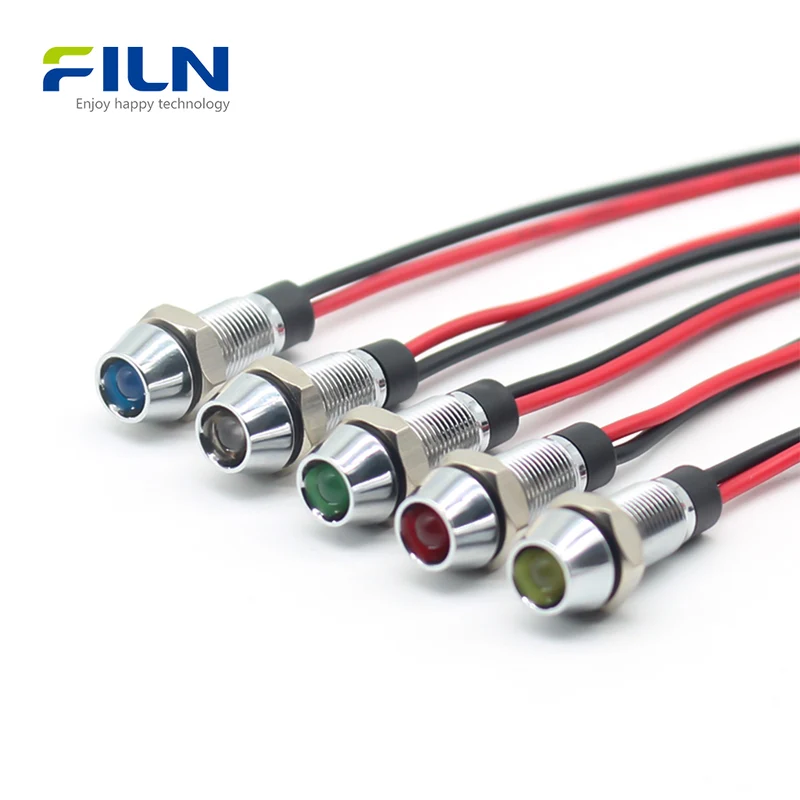

LED Color Range Red, Green, Yellow, Blue, White
Standard Wire Length 20cm (Customizable)
Head Type Concave Head (Recessed)
Waterproof Level IP65 / IP67 Fully Weatherproof

Construction & Materials

Part Material Benefit

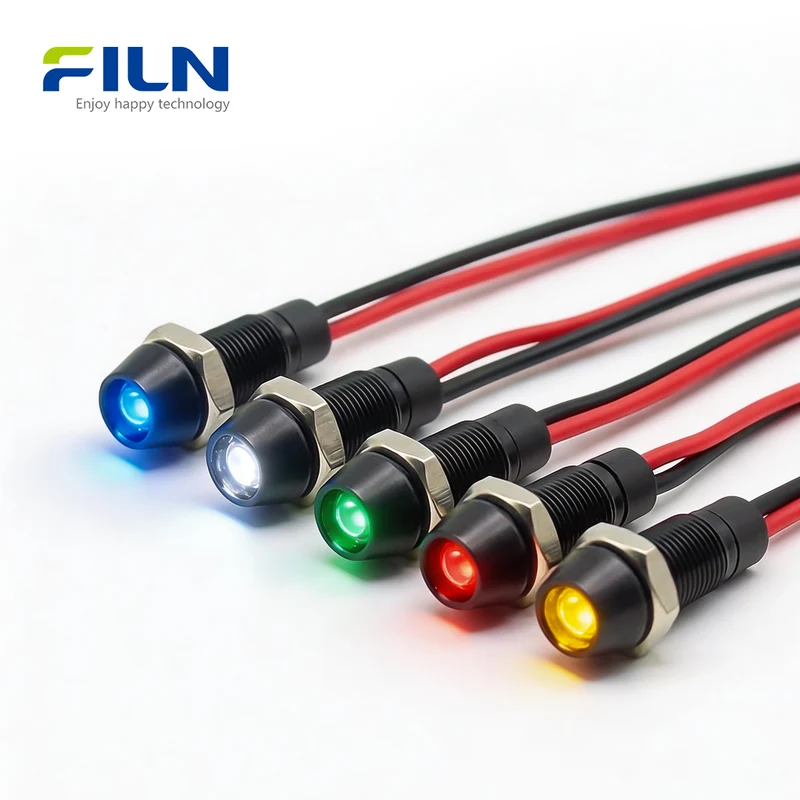

Outer Shell Copper Alloy Available in Silver Chrome or Black Anodized
Lens (Shade) PC Polycarbonate Concave design protects lens from damage
O-ring Seal Silicone Rubber IP67 Sealing for outdoor/harsh use
Mounting Nut Zinc/Copper Alloy M6 smooth threads for secure locking

Product Highlights

  • Ultra-Short Mini Body: Engineered to be shorter than the standard FL1M-06CW-1, solving installation headaches in compact electronic housings.
  • Concave Head Advantage: The recessed lens is less prone to scratches and accidental impact, keeping the signal clear and the look professional.
  • Pre-Wired Design: Features a direct-output wire lead system. Compared to pin-terminal types (which require manual soldering or separate connectors), our pre-wired indicator lamp is faster to install and more reliable in high-vibration environments.

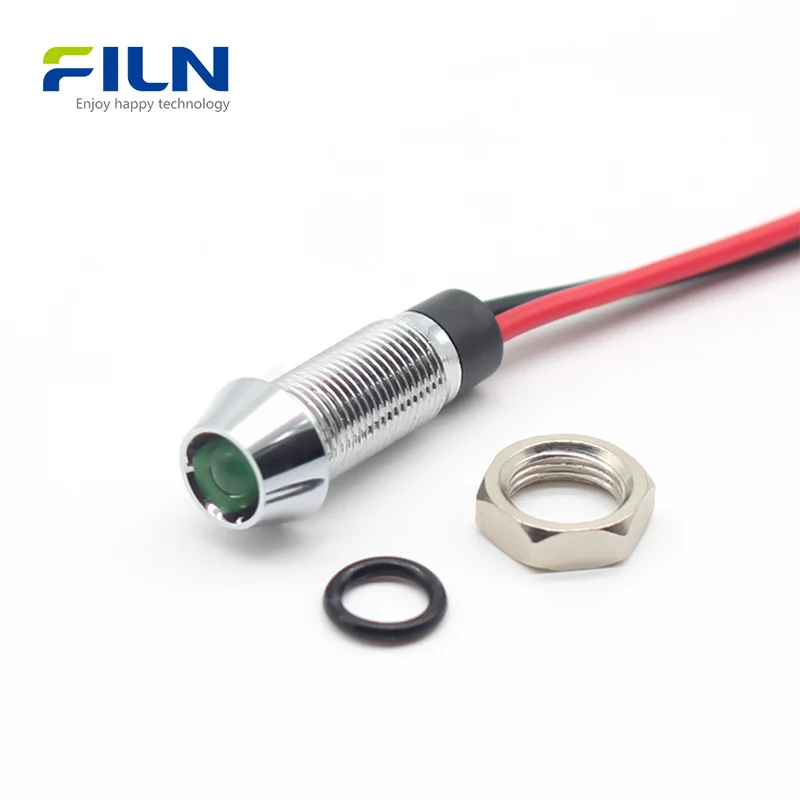

  • Full Accessory Kit: Every lamp includes a large silicone O-ring, an M6 mounting nut, and a 6mm metal gasket.
  • Long Service Life: Rated for >50,000 hours with high-efficiency LED chips.

Installation Guide

  1. Drill a 6mm hole in your device panel.
  2. Place the O-ring waterproof seal on the lamp body.
  3. Insert the metal indicator lamp from the front (top) of the panel.
  4. Slide the metal gasket and M6 nut onto the threads from the back.
  5. Tighten the nut securely.
The Role of Accessories: The Silicone O-ring is essential for blocking dust and water from entering the panel, while the M6 Nut and gasket ensure a smooth, vibration-proof installation that won't loosen over time.

Application Scenarios

The miniature 6mm LED lamp is a universal component for signal transmission. It is widely used in:

  • Industrial Automation: Status feedback for PLC and control units.
  • Electrical Appliances: Power indicators for coffee machines, ovens, and smart home hubs.
  • Automotive & Marine: Dashboard signals and accessory status lights.
  • Communication Gear: Network switch and server rack monitoring.

Factory Direct - Shop with Confidence

FILN is a globally recognized manufacturer of industrial indicators. We offer:

  • Direct for Sale: No middleman, best pricing guaranteed.
  • Customization: We can adjust wire length, colors, and voltage (3V-380V).
  • Certified Quality: UL, CE, VDE, RoHS, SGS approvals.

Official Website: www.filn.com
Contact: [email protected]

Frequently Asked Questions

1. How much shorter is the FL1M-06CW-4 compared to the standard model?
The FL1M-06CW-4 is specifically designed for ultra-shallow panels, offering a significant reduction in rear-body length over the standard 06CW-1.

2. Can I buy these metal indicator lamps in bulk?
Yes, they are available for sale in both individual units and bulk wholesale quantities.

3. What is the benefit of a concave head?
The recessed lens is shielded by the metal shell, protecting it from physical impacts and preventing accidental activation or damage.

4. Is the shell available in black?
Yes, we offer both chrome-plated silver (copper alloy) and black anodized metal shells.

5. What is the difference between pre-wired and pin terminals?
Pre-wired indicators come with factory-sealed 20cm leads, offering better waterproofing and faster installation. Pin terminals require you to solder your own wires or use connectors.

6. Are these indicators waterproof for outdoor use?
Yes, with a rating of IP65/IP67, they are fully dust-tight and can withstand heavy rain or temporary immersion.

7. Do you support custom voltages like 5V or 380V?
Absolutely. We can customize the internal resistors to match any voltage from 3V to 380V.

8. Does the package include everything for installation?
Yes, each lamp comes with a large O-ring, a metal gasket, and an M6 nut.

9. Are the threads smooth for installation?
Yes, we use precision CNC machining to ensure the M6 threads are smooth and easy to tighten.

10. What certifications do these lamps have?
Our 6mm metal indicators carry ISO9001, UL, CE, VDE, RoHS, and SGS certifications.
