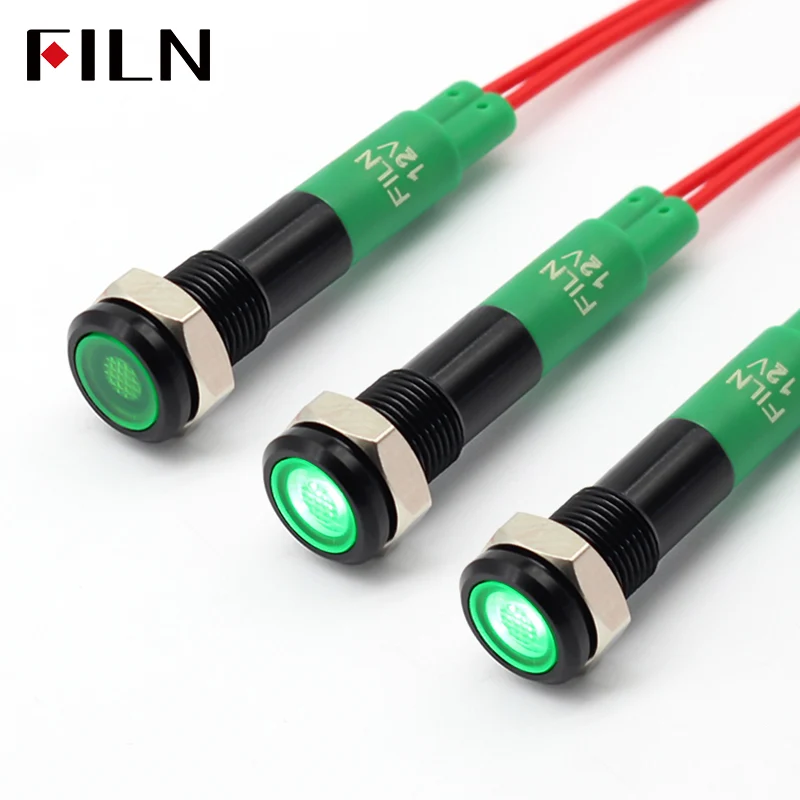

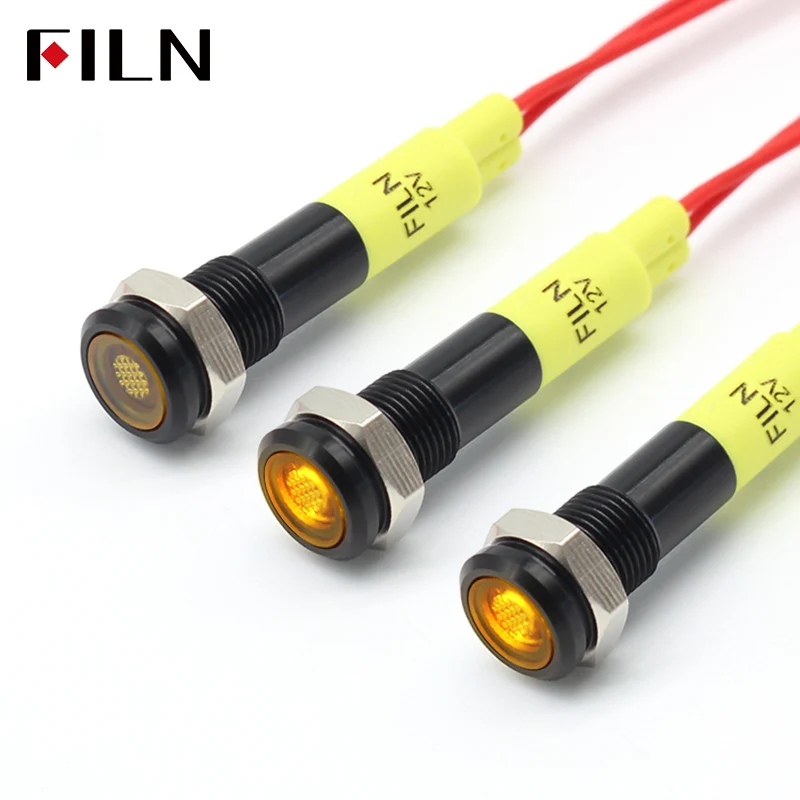

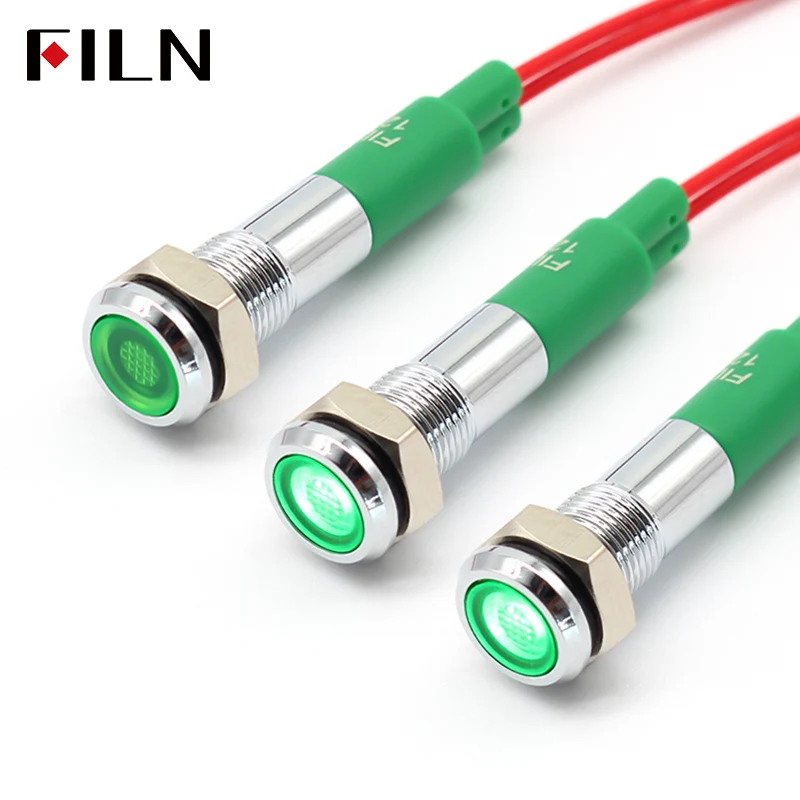

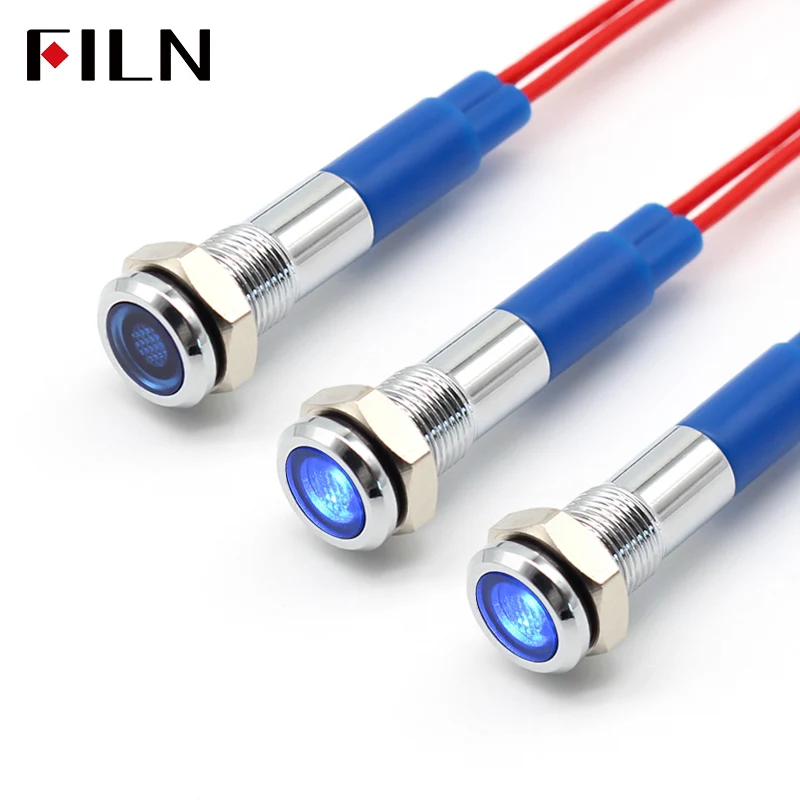

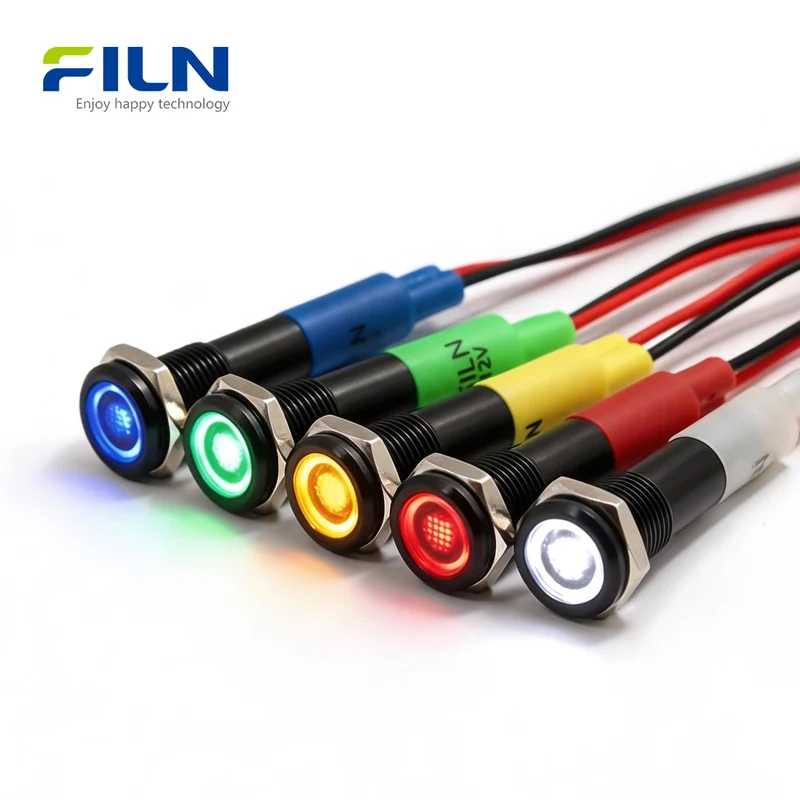

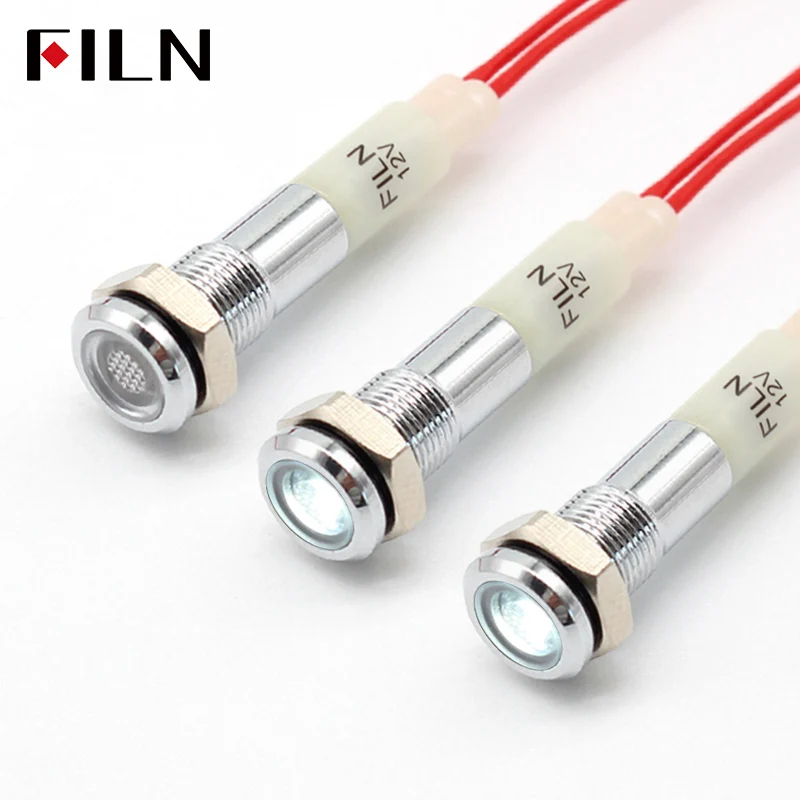

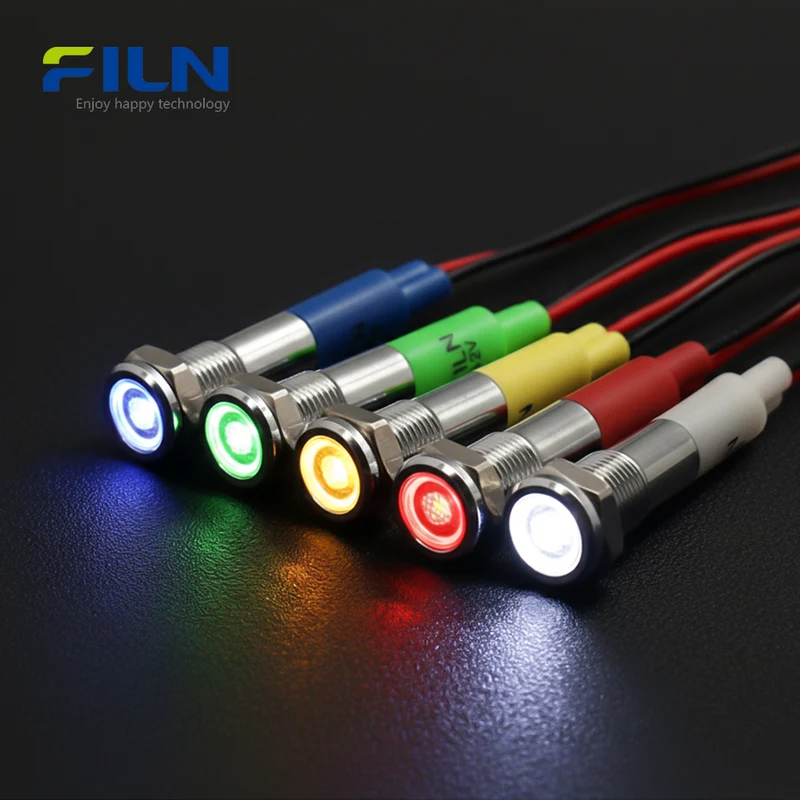

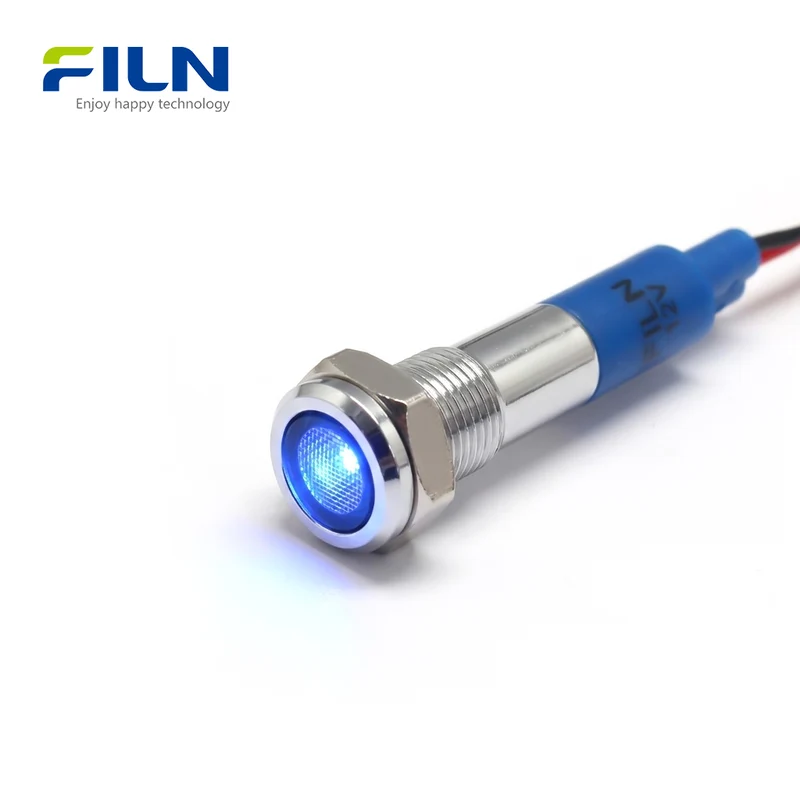

6MM Mini LED Light Indicator Pilot 12V 220V Pre-wired IP67 Metal Signal Lamp

0,83 €0,51 €Im Angebot
Housing color
Light Color
Voltage
Menge

Beschreibung

Product Overview

This premium 6mm light indicator pilot (Model: FL1M-06FW-1) is now available for sale directly from our factory. As a leading manufacturer, FILN provides high-quality 6mm LED indicators designed for compact panel signaling. This model features a sleek flat-head metal design, offering a flush, professional finish on any control interface. Whether you need 12V, 24V, 110V, or 220V, our pre-wired indicator lights with 20cm leads are ready for immediate purchase. Our products carry ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications, making them the preferred choice for global industrial automation and electrical equipment.

Quick Specifications

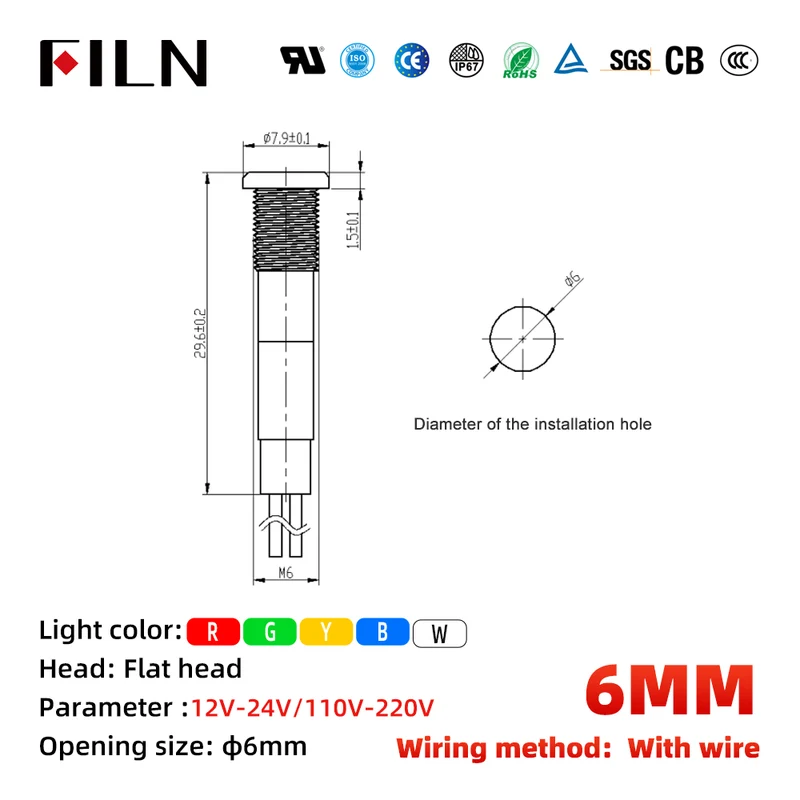

Mounting Hole 6mm (0.24 inch)
Voltage 12-24V, 110-220V (Custom Available)

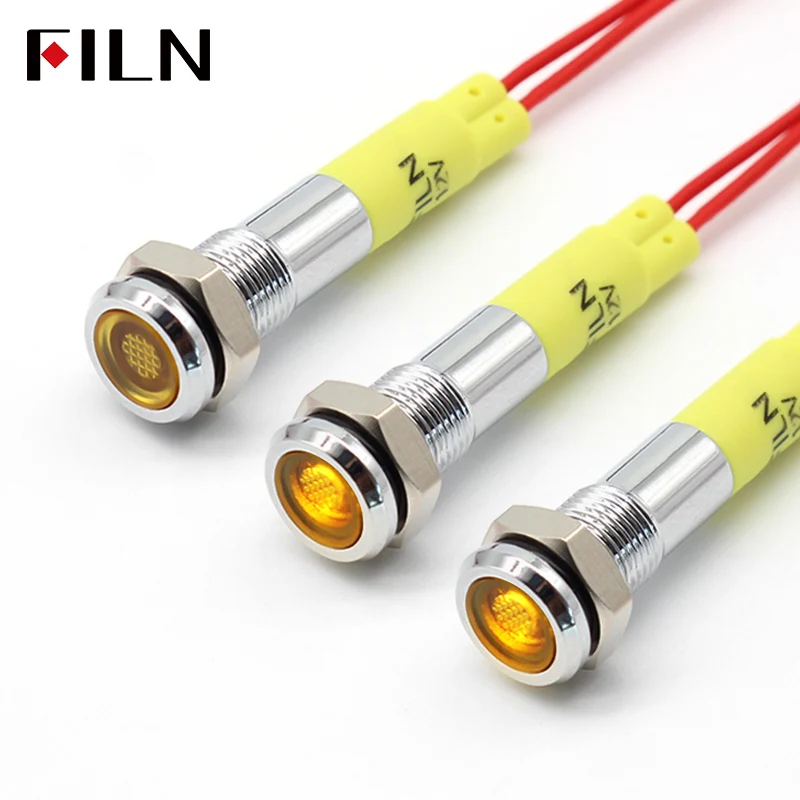

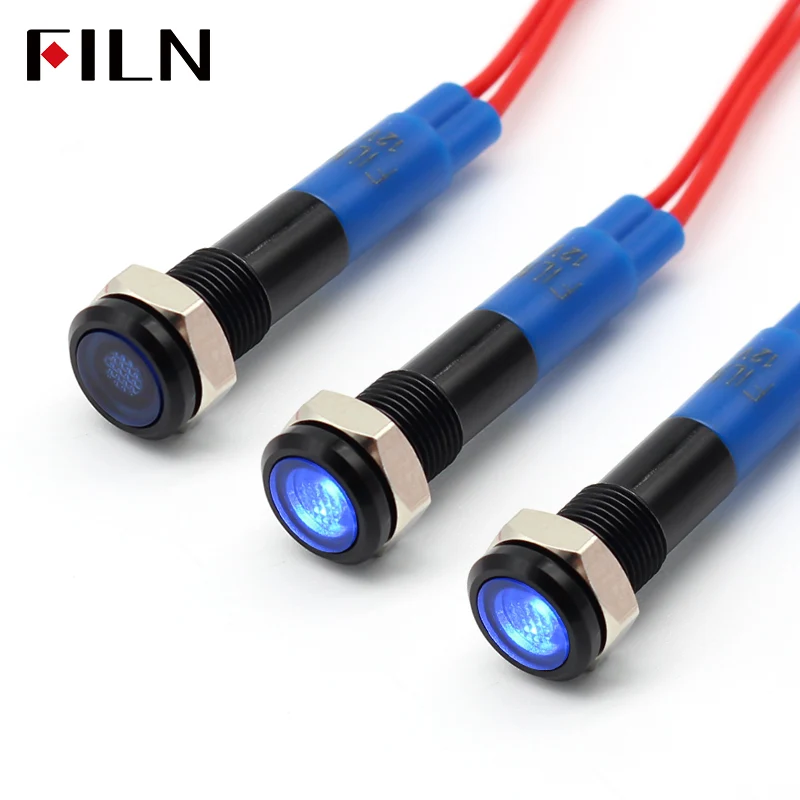

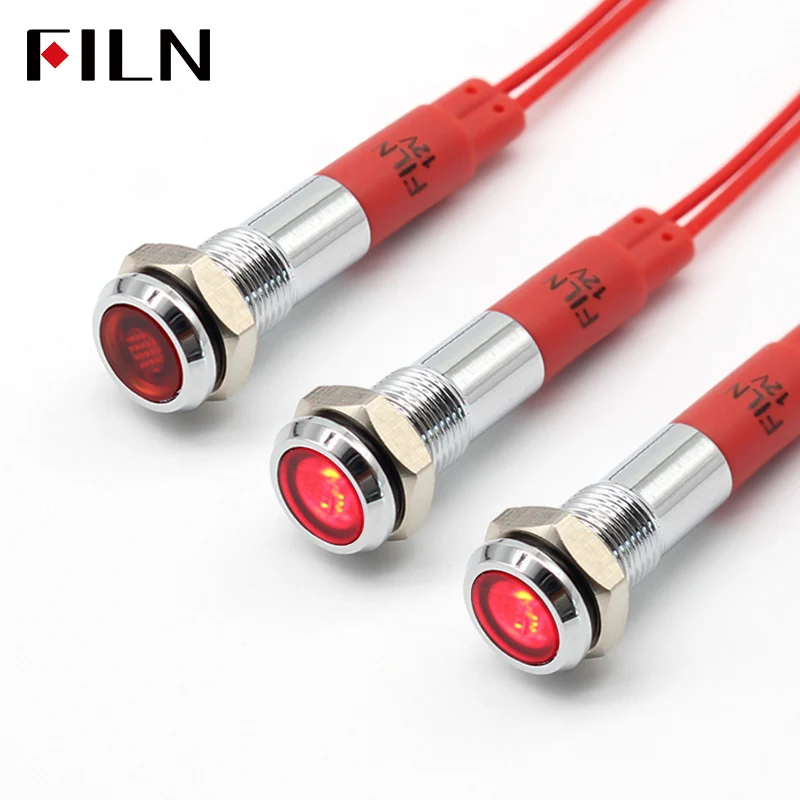

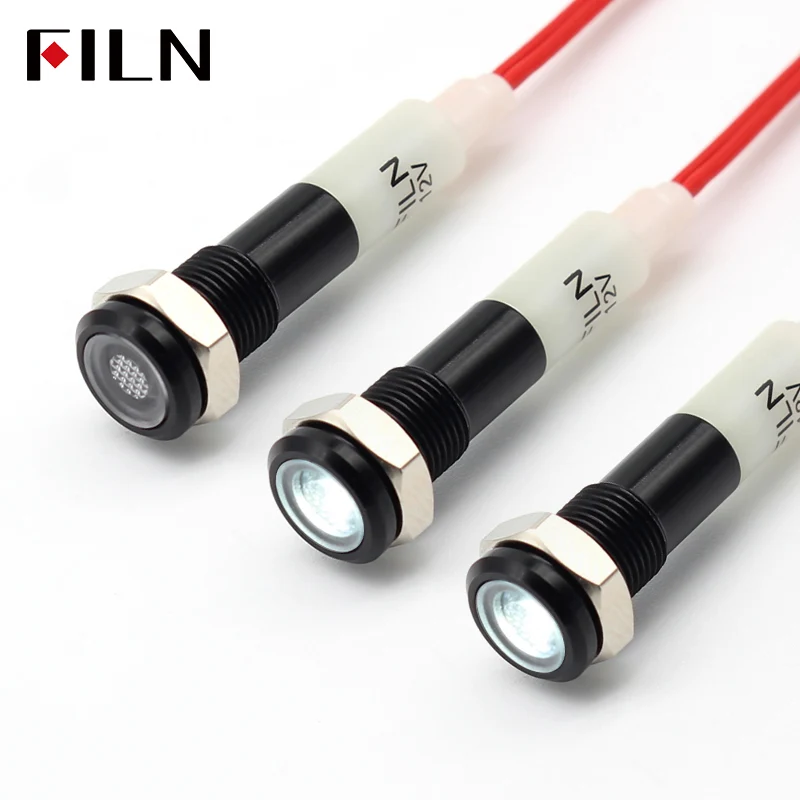

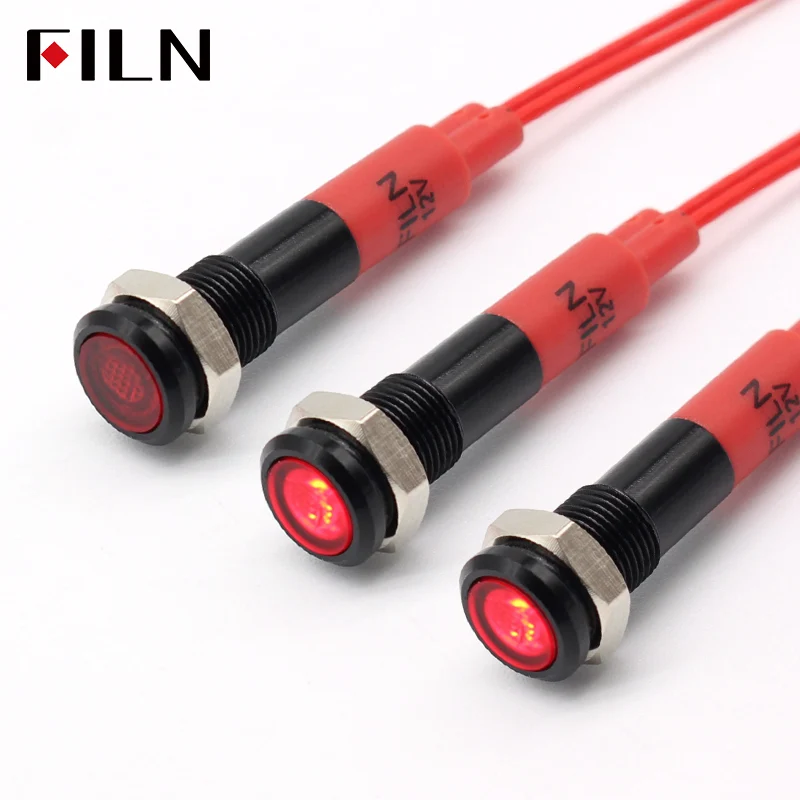

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67

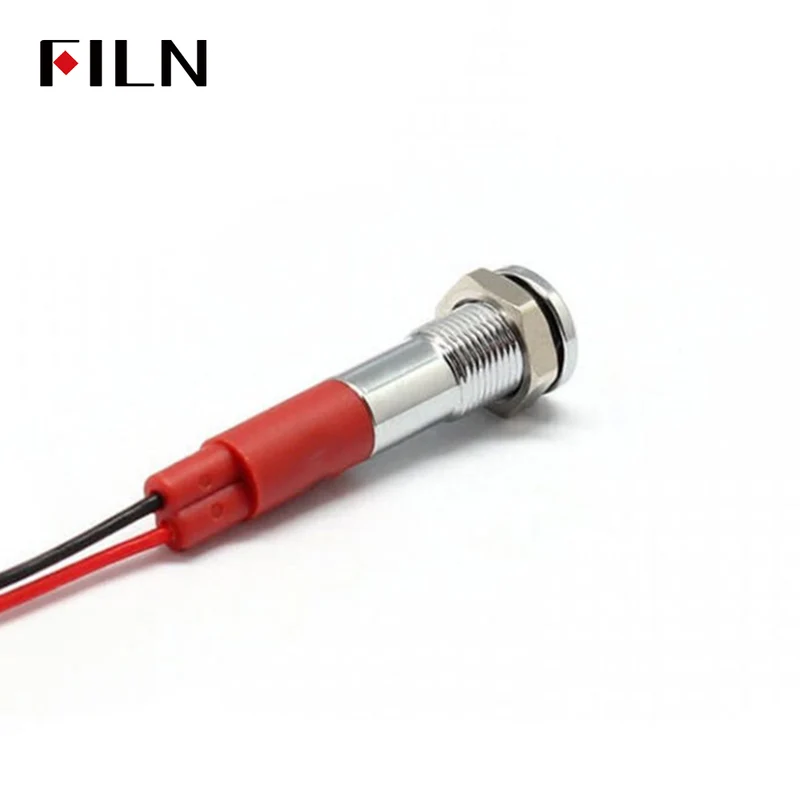

Wiring Type Pre-wired Lead (20cm Standard)
Head Type Flat Head

Component Material List

Component Name Material Note
Shell Copper Alloy Chrome or Black Anodized
Lamp Holder PA66 Nylon High heat resistance
Lampshade PC Polycarbonate Impact resistant
O-ring Silica Gel IP67 Sealing
Nut Copper Alloy M6 Threaded

Rated Working Parameters

Rated Voltage Customized (3V-380V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Copper Alloy (Silver/Black)
Lens PC (Polycarbonate)
Seal Ring Silicone Rubber
Terminal Pre-wired Lead Wire

General Characteristics

Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa
Waterproof Rating IP67

Electric Property

Item Test Condition Requirement
Insulation Resistance DC500V for 1 min ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Durability Characteristics

Test Condition Requirement
30mA 1000h continuous working 50,000 hours lifespan

Resistant Performance

Test Item Condition
High Temperature 80℃ 96h
Low Temperature -40℃ 96h
Temperature Cycling -40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

  • Ultra-Bright LED: High-visibility light output in multiple colors.
  • Flat Head Design: Provides a professional aesthetic and prevents accidental triggering.
  • Pre-wired Convenience: 20cm leads allow for immediate connection without soldering.
  • IP67 Protection: Fully sealed against water and dust for harsh environments.
  • Compact 6mm Profile: Ideal for high-density panel layouts.

Applications

Our 6mm light indicator pilots are widely used in:

  • Industrial control panels and automation lines.
  • Small and large electrical household appliances.
  • CNC machinery and power distribution cabinets.
  • Marine and automotive dashboard signal transmission.
  • Medical equipment and laboratory instruments.

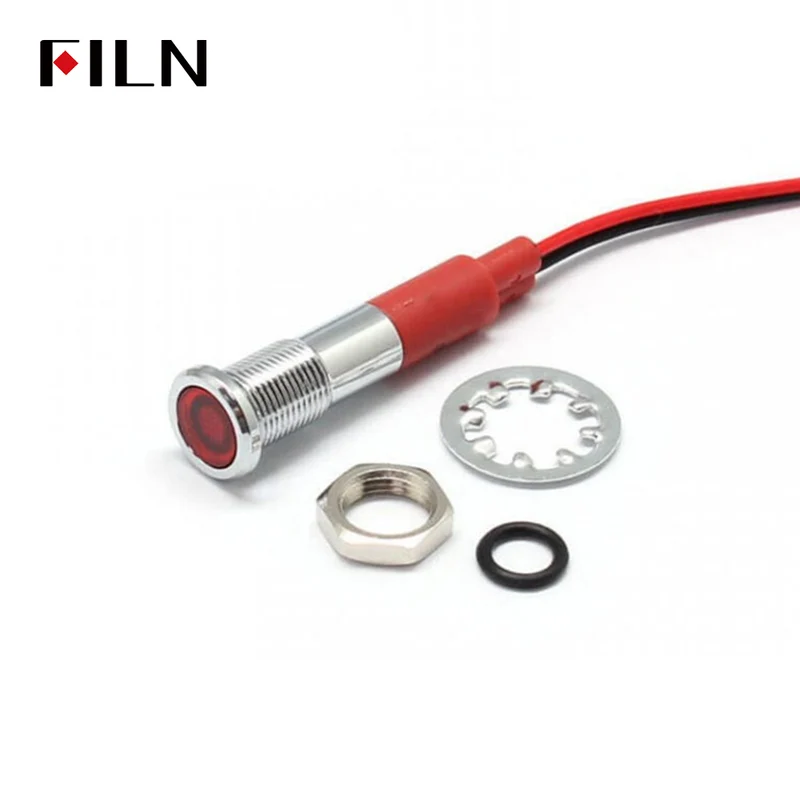

Installation Guide

  1. Drill a 6mm diameter hole in your mounting panel.
  2. Ensure the Silicone O-ring is placed on the indicator head.
  3. Insert the indicator through the hole from the front of the panel.
  4. From the rear, slide on the metal gasket and secure with the M6 nut.
  5. The O-ring and nut work together to create an IP67 waterproof seal and vibration-proof fastening.

What Is a 6mm Light Indicator Pilot?

A 6mm light indicator pilot is a miniature signal lamp used to indicate the power status, circuit faults, or operational modes of electrical systems. The flat-head design is specifically engineered to be flush with the panel, reducing the risk of impact damage and creating a modern, clean look.

Wiring vs. Pin Terminals: Unlike pin terminal indicators which require female connectors or careful soldering, pre-wired (wire lead) indicators come with direct output leads. This simplifies the assembly process, especially in tight spaces where soldering is difficult. The M6 nut and smooth threading ensure that the device remains locked under high-vibration conditions, while the silicone O-ring prevents moisture from penetrating the panel.

Factory Direct Supply

FILN is your trusted partner for industrial signaling solutions:

  • Factory Direct: No middleman, best prices for sale.
  • Full Customization: Voltage, wire length, and connectors.
  • Fast Shipping: Global logistics for urgent industrial needs.

Official Website: www.filn.com
Contact Email: [email protected]

Frequently Asked Questions

1. Can I purchase these 6mm light indicator pilots directly?
Yes, they are available for sale directly through our online store with global shipping.

2. What voltages are supported?
We support 12V, 24V, 110V, 220V, and can customize any voltage from 3V to 380V.

3. Is the wire length adjustable?
The standard length is 20cm, but we can customize the wire length to meet your specific equipment requirements.

4. How do I achieve the IP67 waterproof rating?
Ensure the O-ring is properly seated on the indicator head before inserting it into the 6mm panel hole.

5. What is the advantage of the flat-head design?
It provides a flush appearance and is less likely to be damaged by external forces compared to domed heads.

6. Are black shells available?
Yes, we offer both silver (chrome-plated) and black anodized metal housings.

7. Do you provide samples for B2B clients?
Yes, please contact us via email to request samples for testing in your electrical devices.

8. What is the typical lifespan of the LED?
Our industrial-grade LEDs have a continuous working life of over 50,000 hours.

9. Are these indicators compliant with US standards?
Yes, our products are UL and RoHS certified, ensuring high safety standards.

10. Can you add connectors to the ends of the wires?
Yes, we offer customization for various connectors like JST, Molex, or Dupont pins.
