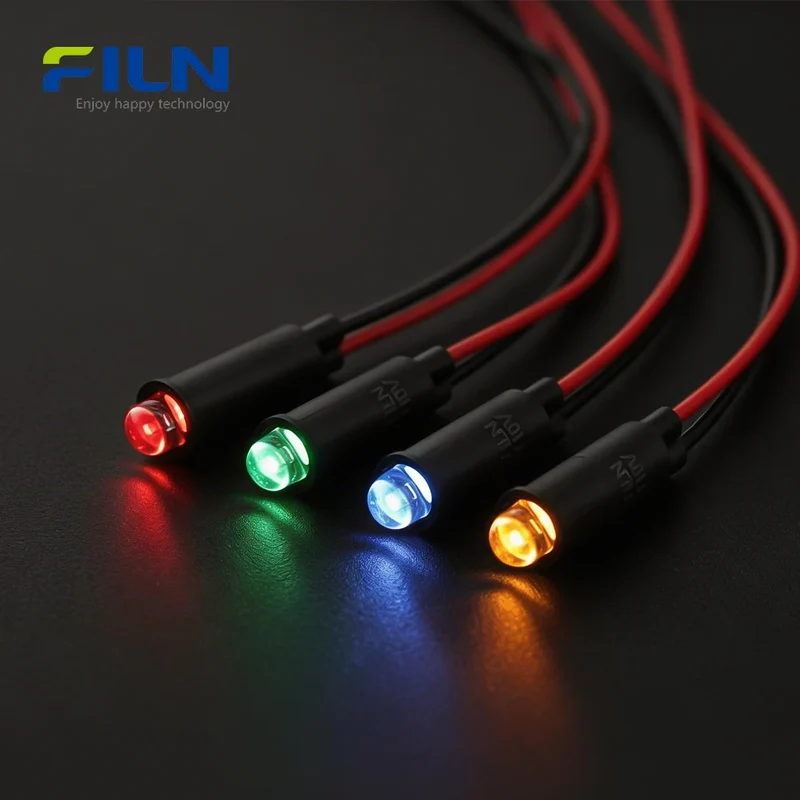

6mm Pilot Lamp Indicator 12V 220V Plastic Wire Lead Snap-in for Sale FILN

Product Overview

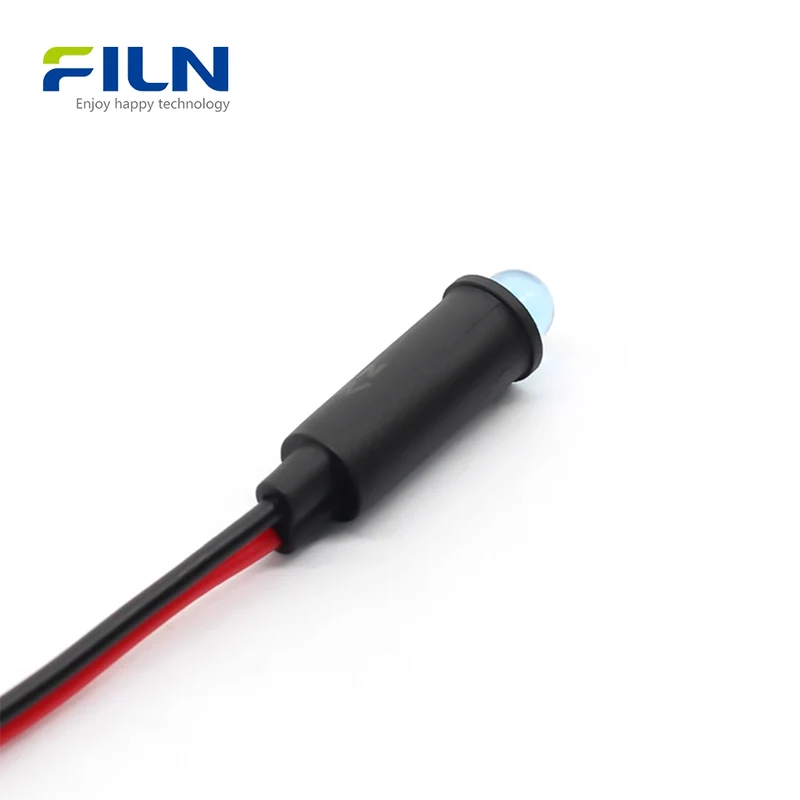

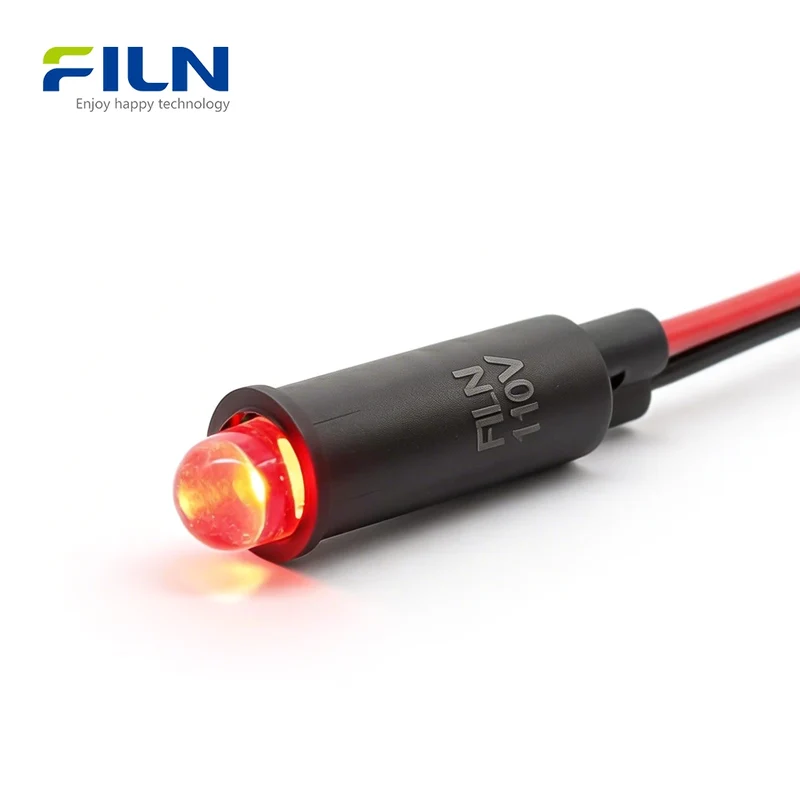

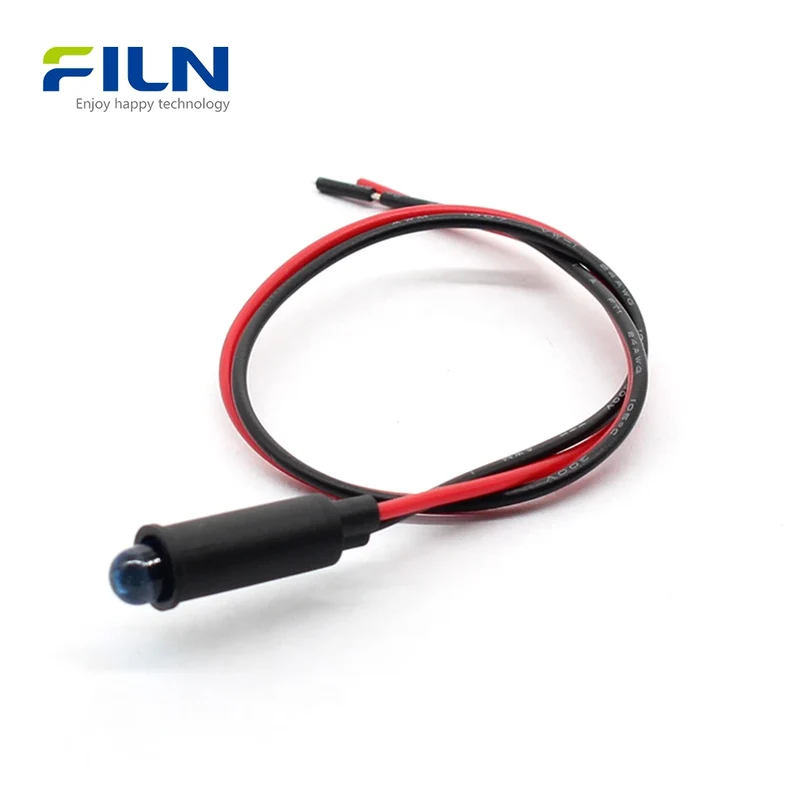

The pilot lamp indicator (Model: FL1P-06XW-1) is a high-quality plastic indicator light for sale, specifically engineered for space-constrained industrial applications. This 6mm pilot lamp indicator features a sleek, round-head design and a highly efficient snap-in led pilot light mechanism for rapid panel assembly. As a leading manufacturer, FILN ensures all products meet ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 standards. Our industrial plastic signal lamp utilizes a wire lead type pilot lamp design with a standard 15cm tail, offering superior flexibility compared to 2.8mm terminal versions. Whether you need a red-green pilot lamp 12v or a 220v plastic led indicator light, this series is available for direct factory purchase with professional customization support.

Quick Specifications

Mounting Hole	6mm / 0.236 inch
Voltage	12V-24V, 110V-220V (Customized Support)

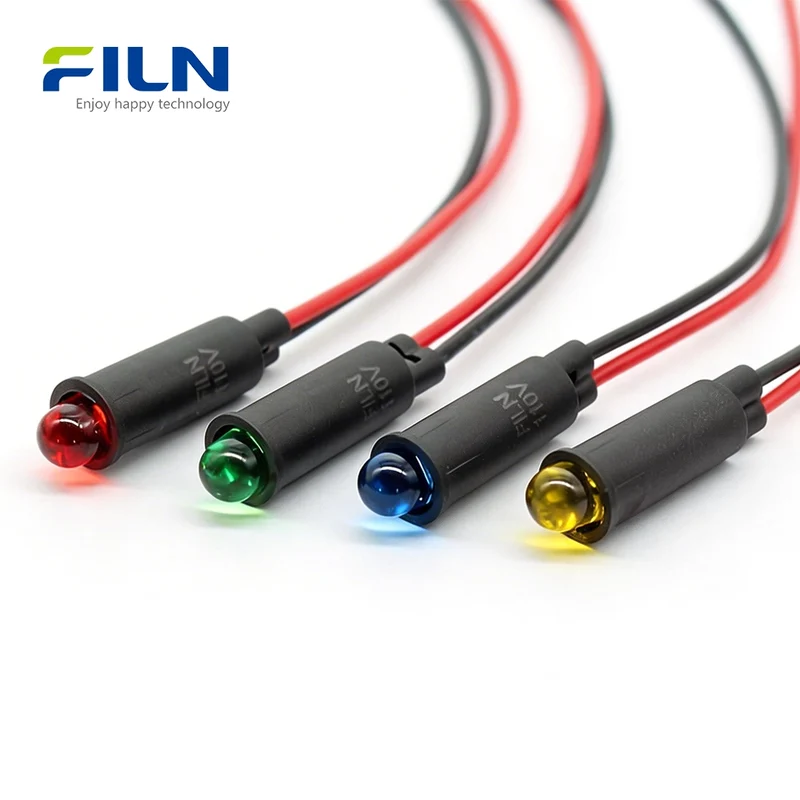

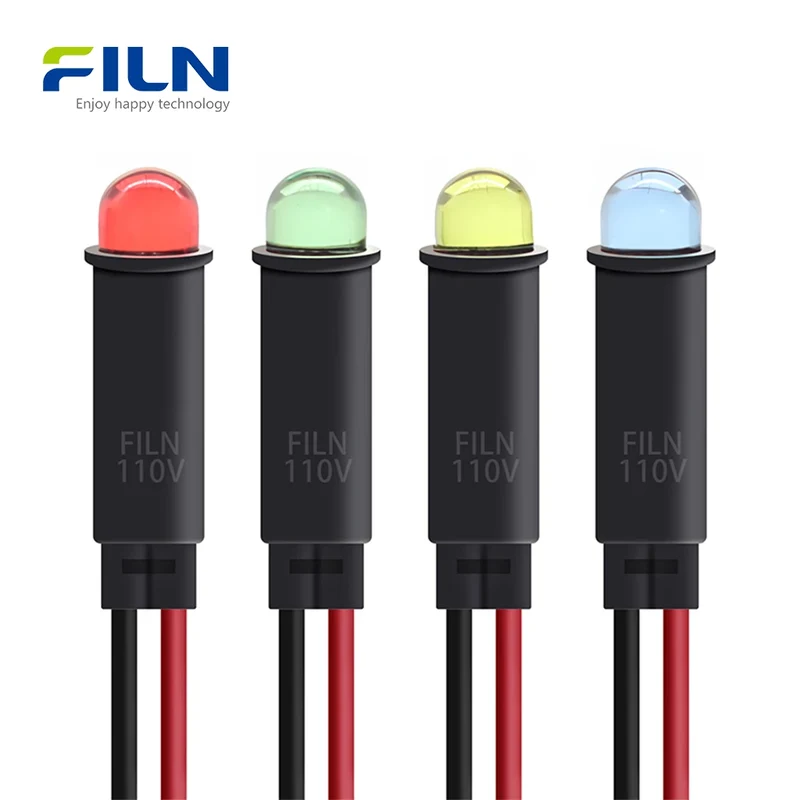

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	Non-waterproof (Snap-in type)
Operating Temperature	-40℃ ~ +80℃
Lifespan	60,000 Hours
Installation Type	Snap-in (Clip mounting)
Wiring Type	Wire Lead (15cm PVC Wire)
Certification	ISO9001, CE, VDE, RoHS, SGS, UL

Rated Working Parameters

Rated Voltage	Customized (3V to 380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Component Name	Material
Shell (Housing)	PA66 Nylon
Lamp Holder	PA66 Nylon
Lampshade (Lens)	High-Translucent PC
Luminescent Source	LED
Resistance	Carbon Film Resistance
2.8mm Terminal	H59 Copper (For Pin Type)
Wire Specification	PVC (For Wire Lead Type)

General Characteristics

Items	Parameter
Insulation Resistance	1800V/5s
Working Life	60,000h
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Insulation Resistance	Test: DC500V 1min | Req: ≥100MΩ
Dielectric Strength	Test: 1500VAC/5mA/60s | Req: No breakdown

Durability Characteristics

Continuous Working Life

Test: 30mA 1000h | Req: 50,000 hours

Resistant Performance

High/Low Temperature	80℃ 96h / -40℃ 96h
Moisture Resistance	40℃ 90-95%RH 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

• LED high brightness: High-efficiency chips ensure the red-green pilot lamp 12v is visible in well-lit factory environments.
• Long lifespan: Solid-state LED technology provides 60,000 hours of continuous service.
• Small-size Plastic Housing: Durable PA66 nylon shell offers high insulation and impact resistance.
• Easy Snap-in installation: Features a secure snap-in led pilot light clip for nut-free mounting.
• Pre-wired Convenience: The wire lead type pilot lamp saves labor costs compared to soldering 2.8mm terminals.

Applications

• Industrial control panels for miniature plastic status indicator monitoring.
• CNC machines and automation equipment status signaling.
• Electrical cabinets and power distribution units.
• Household and commercial appliances requiring a small size plastic warning indicator.
• Marine systems and medical devices.

Installation Guide

1. Drill a 6mm diameter hole on the control panel.
2. Pass the 15cm wire leads through the mounting hole from the front.
3. Press the 6mm pilot lamp indicator firmly into the hole until the plastic clips engage.
4. Connect the wire lead type pilot lamp to the power circuit (Check voltage compatibility).

What Is a Pilot Lamp Indicator?

A pilot lamp indicator is a fundamental signaling device in industrial electrical systems. This miniature plastic status indicator serves as a visual feedback loop for operators, signaling power on, faults, or process completion. Modern industrial plastic signal lamp designs favor plastic over metal for its lightweight, anti-corrosive, and non-conductive properties. The wire lead type pilot lamp (with direct output wires) is often preferred for rapid prototyping and high-vibration environments over 2.8mm terminal types because it eliminates the risk of loose terminal connections.

Factory Direct Supply

FILN is a professional factory providing direct-to-consumer plastic indicator light for sale. We offer:

• Factory Direct: Competitive wholesale pricing for bulk buyers.
• Customization: Voltage (3V-380V), custom wire length pilot lamp, and connector options.
• Fast Global Shipping: Rapid delivery for standard red-green pilot lamp 12v stock.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Is this 6mm pilot lamp indicator available for direct purchase?
Yes, this pilot lamp indicator for sale is available for immediate order. We support small batch and bulk factory-direct orders. 2. What is the difference between wire lead and 2.8mm terminal indicators?
A wire lead type pilot lamp comes with 15cm pre-attached wires for direct connection. A 2.8mm terminal type requires female spade connectors or soldering, which takes more assembly time. 3. Can I request a custom wire length?
Absolutely. As a factory, we can provide custom wire length pilot lamp services to match your specific cabinet dimensions. 4. How do I install the snap-in led pilot light?
Simply drill a 6mm hole and press the light in from the front. The integrated clips will automatically lock it into place. 5. What voltages does this industrial plastic signal lamp support?
We stock 12V-24V DC and 110V-220V AC. Custom voltages like 3V, 6V, or 380V are available upon request. 6. What are the advantages of plastic indicators over metal ones?
Our miniature plastic status indicator is lighter, non-conductive (safer), and offers better resistance to certain chemicals and corrosion. 7. Does FILN provide certifications for the 220v plastic led indicator light?
Yes, all FILN indicator lights are certified by UL, CE, RoHS, and VDE for international industrial use. 8. Can I get a white or blue LED in 6mm?
Yes, we offer Red, Green, Yellow, Blue, and White LED options for the 6mm pilot lamp indicator series. 9. Is the red-green pilot lamp 12v suitable for outdoor use?
The snap-in model is not waterproof. If you need outdoor protection, please ask for our IP67 screw-mounted metal indicators. 10. What is the expected life of the small size plastic warning indicator?
Our LEDs are designed for 60,000 hours of working life, ensuring long-term industrial reliability without maintenance.
