8mm LED Indicator Light 3V-220V Pre-wired for Panel Signal DIY Indicator Lamp FILN

1,39 €0,95 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Indicator Light Drawing

Product Overview

The 8mm LED indicator light (Model: FL1M-08FW-1) is a classic industrial-grade signal lamp now for sale directly from the FILN factory. This premium 8mm metal indicator light features a sleek flat-head design and comes pre-wired with 15cm leads for instant connectivity. As a leading manufacturer, FILN ensures all products meet rigorous global standards including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 ratings. These lights are widely used in CNC machines, automation panels, and marine equipment. Whether you need a 12V, 24V, or 220V version, we provide full customization. Order online today for reliable factory-direct supply and high-performance signaling solutions.

Quick Specifications

Mounting Hole 8mm (5/16 inch)
Voltage 12V, 24V, 110V, 220V (Customizable)

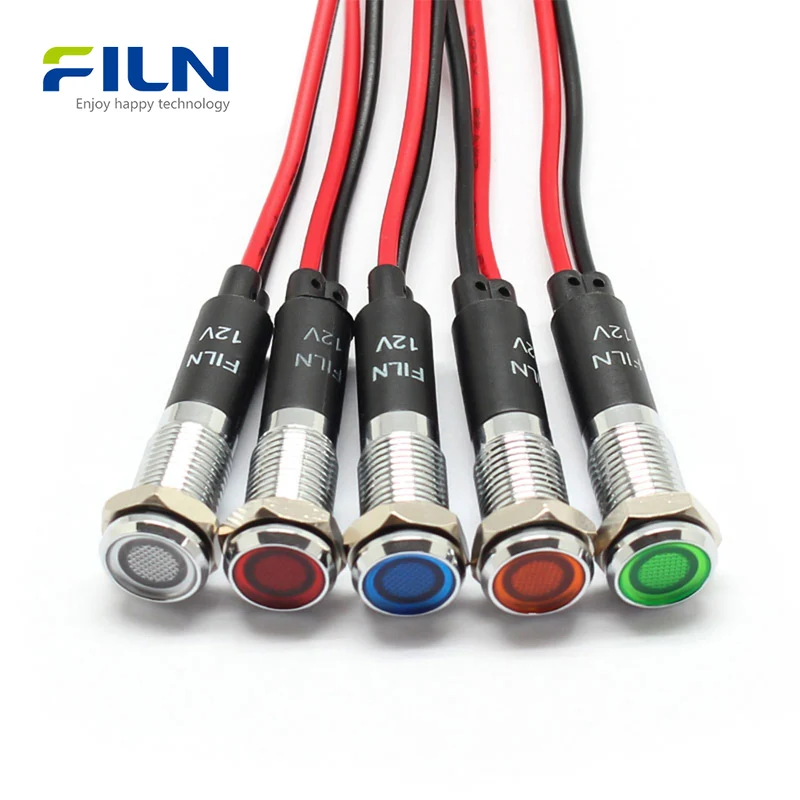

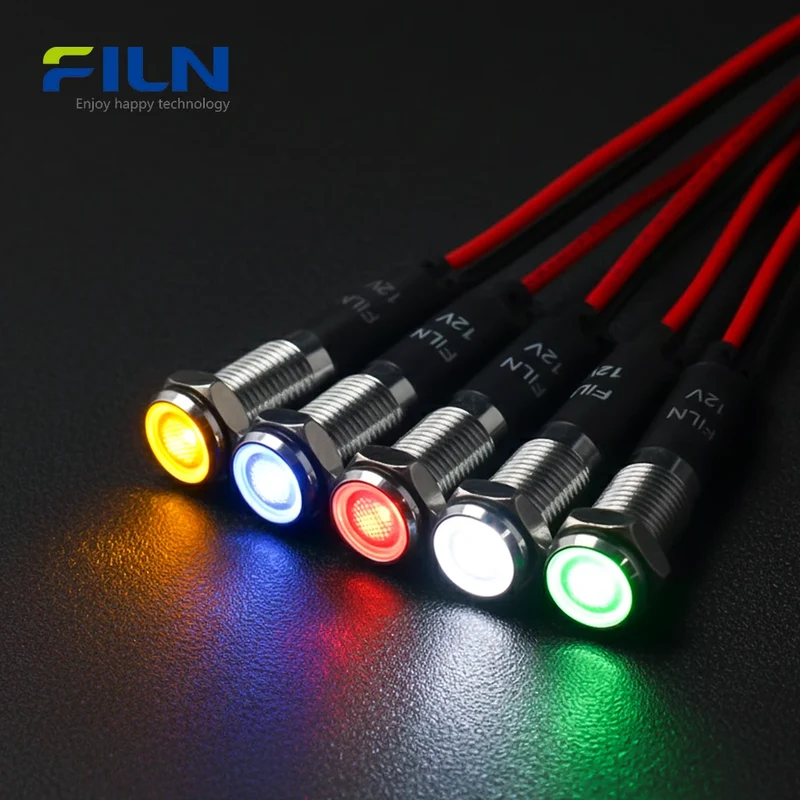

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Wiring Type Wire Lead Type (15cm Standard)
Certifications UL, CE, VDE, RoHS, ISO9001

Component Material List

Component Name Material Note
Shell Copper Alloy Nickel or Chrome plated
Lampshade PC Polycarbonate High impact resistance
Light Source LED Long life, low energy
O-ring Silica Gel IP67 waterproof sealing
Nut Copper Alloy M8 standard thread

Rated Working Parameters

Rated Voltage 3V - 380V Customized
Frequency (AC) 50Hz ～ 60Hz
Rated Current ≤ 20mA

Component Materials

Housing Chrome-plated brass / Stainless Steel
Lens Polycarbonate (PC)
Seal Ring Silicone
Terminal/Wire UL1007 PVC Cable

General Characteristics

Operating Temperature -40℃ ～ +80℃
Storage Temperature -40℃ ～ +85℃
Relative Humidity ≤ 85% at +40℃
Air Pressure 86 ～ 106Kpa
Waterproof Rating IP67

Electric Property

Test Item Condition Requirement
Insulation Resistance DC 500V for 1 min ≥ 100MΩ
Dielectric Strength 1500V AC / 60s No flashover

Durability Characteristics

Continuous Working Life ≥ 50,000 Hours (at 30mA test)

Resistant Performance

High Temp Resistance 80℃ for 96h
Low Temp Resistance -40℃ for 96h
Moisture Resistance 40℃, 90-95% RH for 96h

Key Features

  • LED High Brightness: Utilizes high-lumen LED chips for clear visibility even in daylight.
  • Long Lifespan: Rated for over 50,000 hours of continuous operation.
  • IP67 Waterproof: Includes a high-grade silicone O-ring for superior liquid protection.
  • Easy Installation: Features smooth M8 threading and pre-wired 15cm cables.
  • Industrial Reliability: Robust metal shell (Chrome or Black) for harsh environments.

Applications

  • Industrial Control Panels & Signal Displays
  • CNC Machinery and Heavy Equipment Monitoring
  • Automotive Dashboard and Marine Lighting
  • Electrical Cabinets and Home Automation Units
  • Medical Diagnostics and Lab Equipment

Installation Guide

  1. Drill an 8mm diameter hole in the desired mounting panel.
  2. Insert the 8mm LED indicator light through the front of the panel.
  3. Place the silicone O-ring and metal gasket onto the threaded body from the back.
  4. Secure and tighten with the M8 hex nut to ensure a waterproof seal.
  5. Connect the pre-wired leads to your power source (match rated voltage).

What Is an 8mm LED Indicator Light?

An 8mm LED indicator light is a compact electrical component used to provide visual status feedback on industrial and consumer equipment. The "8mm" refers to the diameter of the mounting hole. Unlike traditional pin-type lamps, the pre-wired (lead wire) design offers significantly easier installation, especially in tight spaces. The flat-head design is preferred for its aesthetic appeal and ease of cleaning on flat control panels. These lights act as critical "eyes" for operators, indicating power status, errors, or operational cycles in everything from coffee machines to large-scale CNC factories.

Factory Direct Supply from FILN

As a specialized manufacturer, FILN provides unmatched flexibility for B2B procurement:

  • Factory Direct Pricing
  • Voltage Customization (3V-380V)
  • Wire Length Customization
  • Connector Integration
  • Fast Global Shipping
  • Free Technical Support

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can I buy these 8mm LED indicator lights online directly?
Yes, they are available for sale directly through our online shop with worldwide delivery.

2. What is the difference between lead wire and pin type?
Lead wire (pre-wired) is easier for DIY and quick installs; pin type is better for PCB or socket mounting.

3. Are these lights truly waterproof?
Yes, with the O-ring and nut installed, they achieve an IP67 rating, suitable for marine and outdoor use.

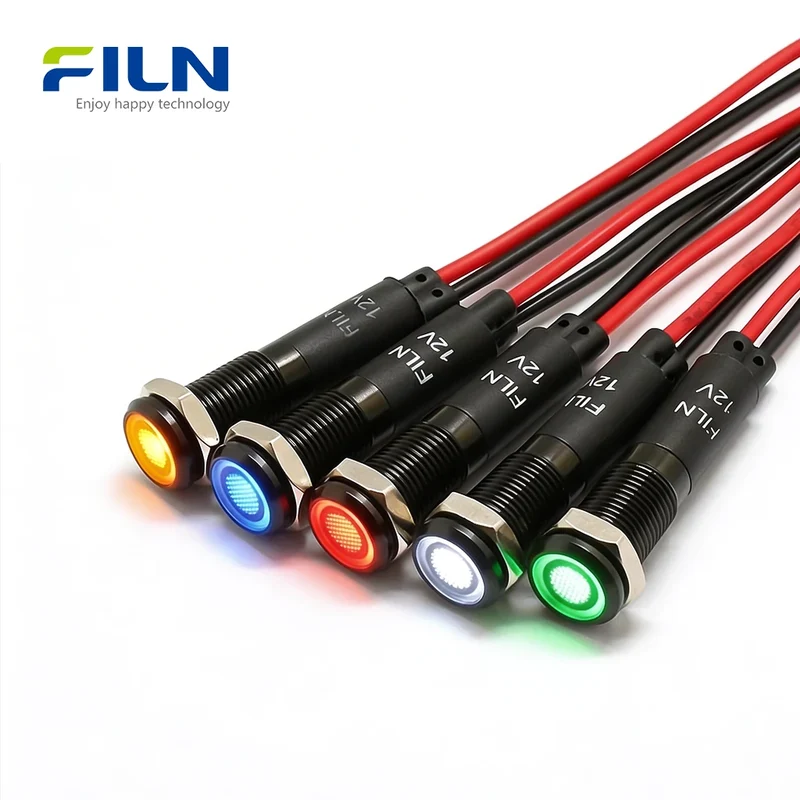

4. Do you offer black shell options?
Yes, we provide both classic chrome (silver) and black anodized shells.

5. What voltages are available?
Standard 12V, 24V, 110V, and 220V are in stock; other voltages can be customized.

6. Does the 8mm indicator include accessories?

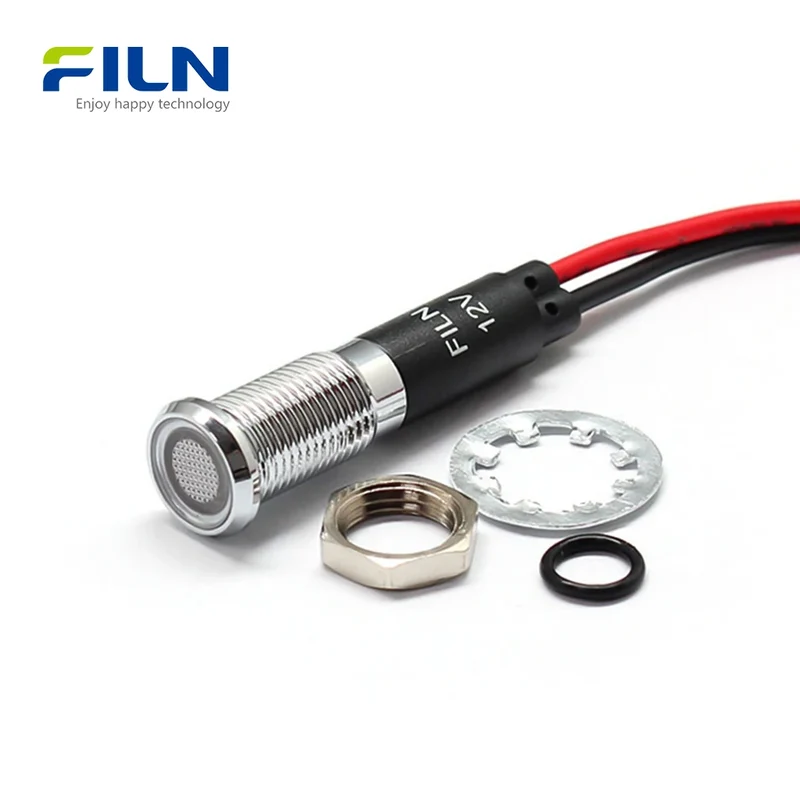

Every light comes with a silicone waterproof ring, an M8 nut, and a metal gasket.

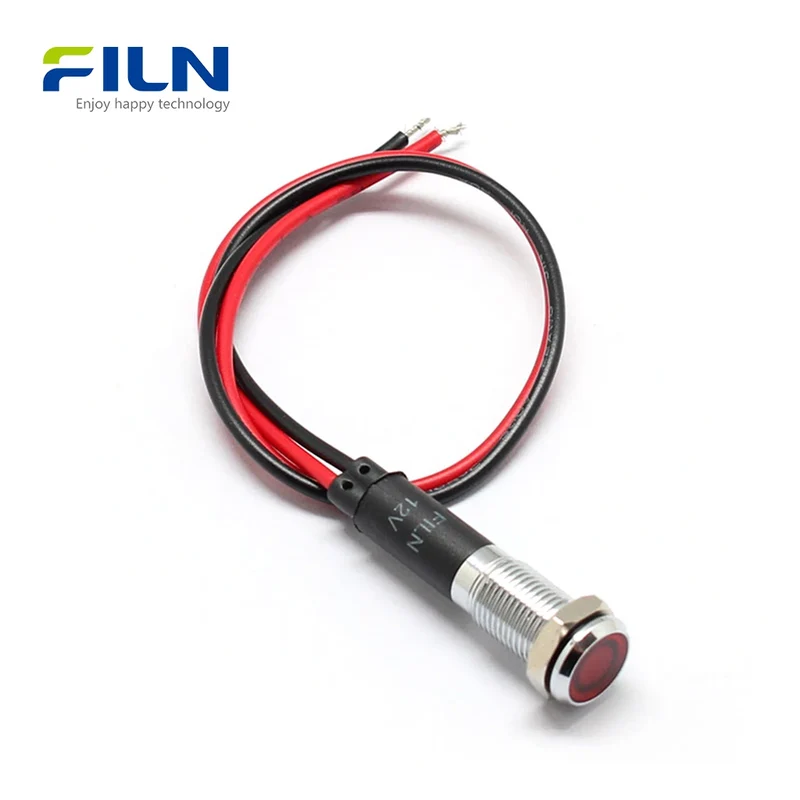

7. How long is the standard wire length?
The standard length is 15cm (approx. 6 inches), but we can customize this to any length.

8. Is the LED light dimmable?
Brightness can be controlled by varying the input voltage or using PWM, within rated limits.

9. Are there UL certifications?
Yes, FILN products carry UL, CE, and RoHS certifications for global compliance.

10. What is the MOQ for customized wire lengths?
Please contact our sales team at [email protected] for specific OEM/ODM MOQ details.
