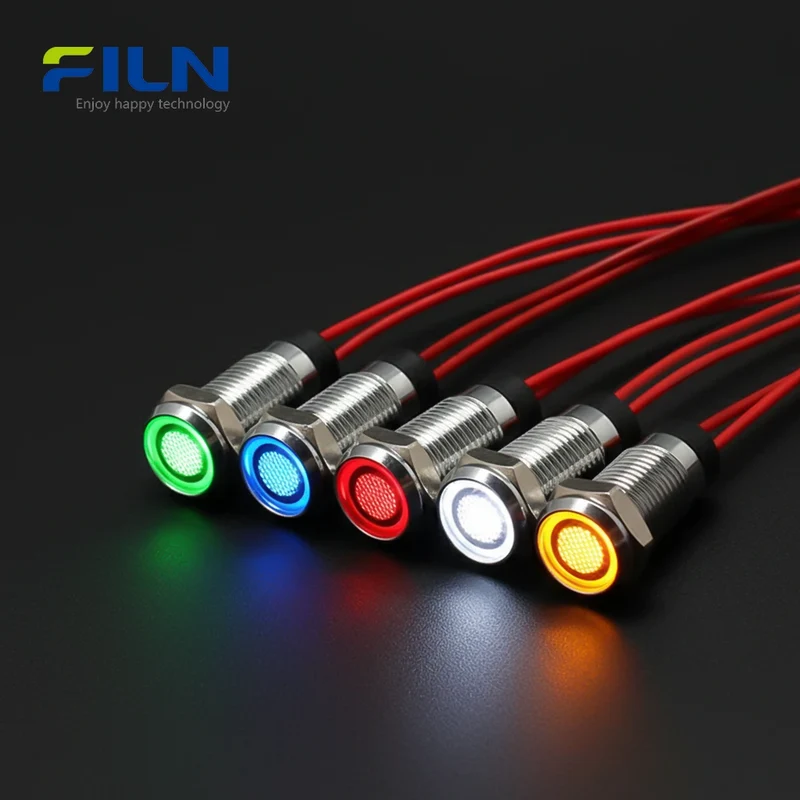

8mm LED Indicator Light Metal Flat Head Wire length 15 cm Industrial 3-220V FILN

1,48 €0,86 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Indicator Light DrawingProduct Overview: 8mm LED Indicator Light

The 8mm LED indicator light (Model: FL1M-08FW-2) is a high-performance industrial signal solution designed by FILN. This metal flat head indicator features a space-saving design, being shorter than standard models like the FL1M-08FW-1, making it ideal for compact industrial control panels. With an IP67 waterproof rating and a durable metal housing available in silver or black, it ensures reliability in harsh environments. Supporting a wide voltage range from 12V, 24V to 220V, these non-polar LED indicators are easy to install with pre-wired leads and smooth M8 threading. They are widely used in CNC machines, automation equipment, and marine systems due to their 50,000-hour lifespan and high-brightness output.

Quick Specifications

Mounting Hole 8mm / 0.31 inch
Voltage 12V, 24V, 110V, 220V (Customizable)

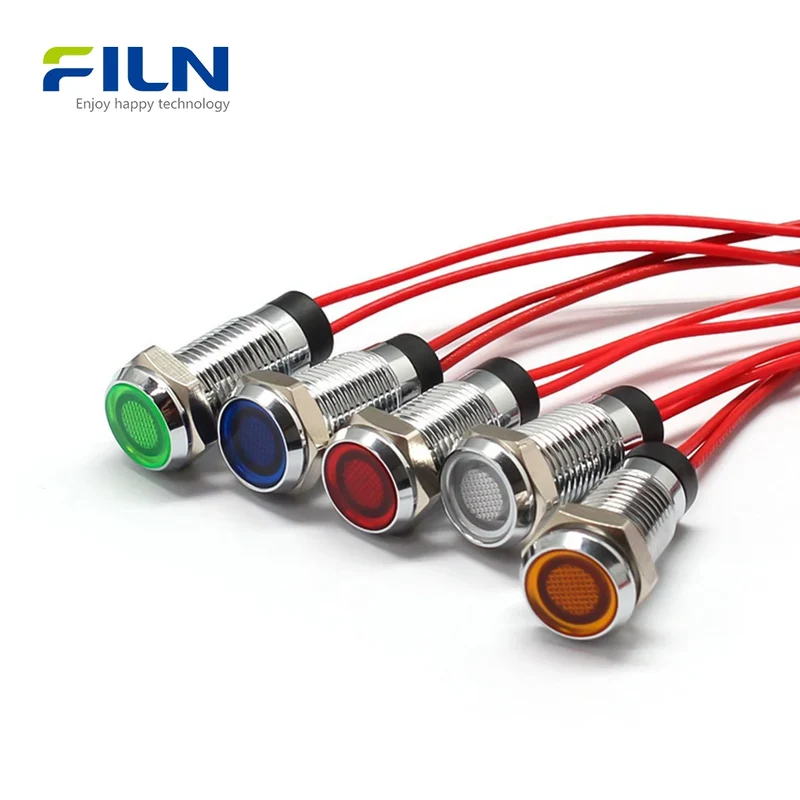

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours
Wiring Type Pre-wired Lead Type

Rated Working Parameters

Rated Voltage Customized (3V - 380V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

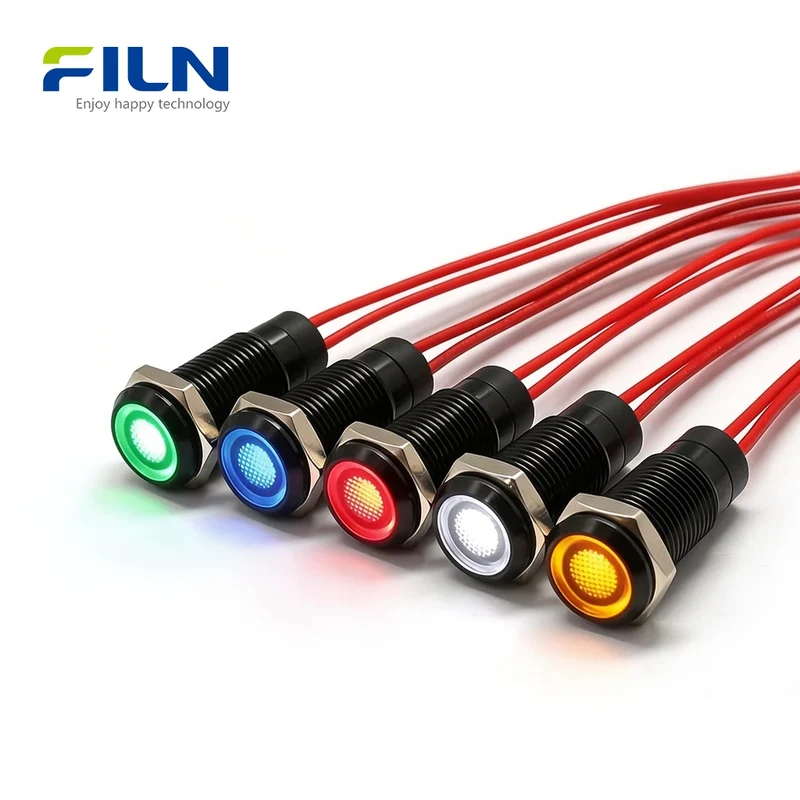

Housing Nickel-plated Brass / Stainless Steel (Silver/Black)
Lens Polycarbonate (PC)
Seal Ring Silicone (O-ring included)
Terminal Copper Lead Wire
Wire Material UL Standard Copper Wire

General Characteristics

Application Industrial Indication
Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Ambient Temperature 5~35℃
Air Pressure 86~106Kpa

Electric Property

Item Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Durability Characteristics

Item Test Condition Lifespan
Continuous Working Life 30mA 1000h 50,000 hours

Resistant Performance

High Temperature 80℃ for 96h
Low Temperature -40℃ for 96h
Moisture Resistance 40℃ 90-95%RH for 96h
Temperature Cycling -40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

  • LED High Brightness: Clear visibility in industrial environments.
  • Long Lifespan: Reliable performance for up to 50,000 hours.
  • IP67 Waterproof: Fully protected against dust and water immersion.
  • Easy Installation: Pre-wired and compact flat head design.
  • Industrial Grade Reliability: Metal housing with non-polar LED beads.

Applications

  • Industrial control panels
  • CNC machines
  • Automation equipment
  • Electrical cabinets
  • Marine systems
  • Medical devices

Installation Guide

  1. Drill an 8mm diameter mounting hole in your panel.
  2. Insert the indicator light into the hole from the top side of the panel.
  3. Ensure the silicone O-ring is positioned against the panel for waterproofing.
  4. From the back of the panel, screw the M8 nut onto the threaded housing.
  5. Tighten the nut securely and connect the lead wires to your power source.

What Is an 8mm LED Indicator?

An 8mm LED indicator is a crucial signaling component used in industrial machinery to provide visual feedback regarding system status. These lights serve as the interface between the machine's internal electronics and the operator, signaling "Power On," "Error," or "Processing" states. The FL1M-08FW-2 model is specifically engineered to be more compact than traditional indicators, allowing for high-density mounting on control boards without sacrificing visibility or durability.

FILN Factory Direct Advantage

  • Factory Direct: Direct sourcing for competitive pricing.
  • Voltage Customization: Wide support from 3V to 380V.
  • Wire Length Customization: Tailored to your specific design needs.
  • Connector Customization: Professional terminal crimping services.
  • Fast Global Shipping: Reliable logistics for B2B partners.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q: Is the 8mm LED indicator light waterproof?
A: Yes, it features an IP67 rating and includes a silicone O-ring for full moisture protection.

Q: Can I use this for both 12V and 24V systems?
A: Yes, we offer specific versions for 12V-24V as well as high voltage 110V-220V.

Q: Does the LED have a polarity?
A: No, this model uses non-polar LED beads, making wiring much easier.

Q: What is the difference between FL1M-08FW-1 and FL1M-08FW-2?
A: The FL1M-08FW-2 is designed with a shorter body for more compact installations.

Q: Can I customize the wire length?
A: Yes, as a professional manufacturer, FILN offers full customization for wire leads.
