8mm Plastic 120V Pilot Light | Snap-in Round LED Indicator | Wire Lead FILN

Product Overview

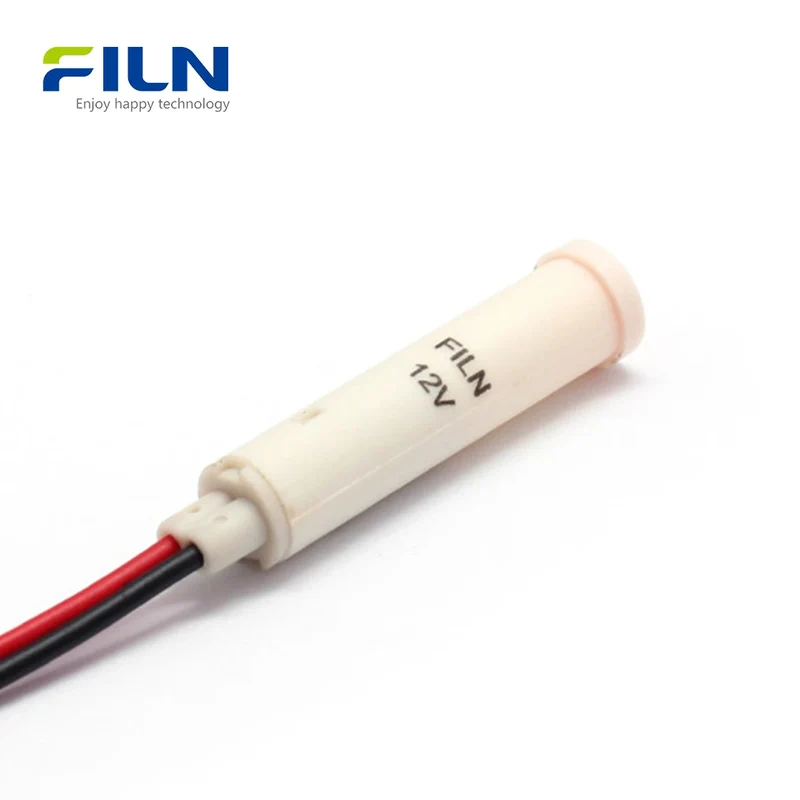

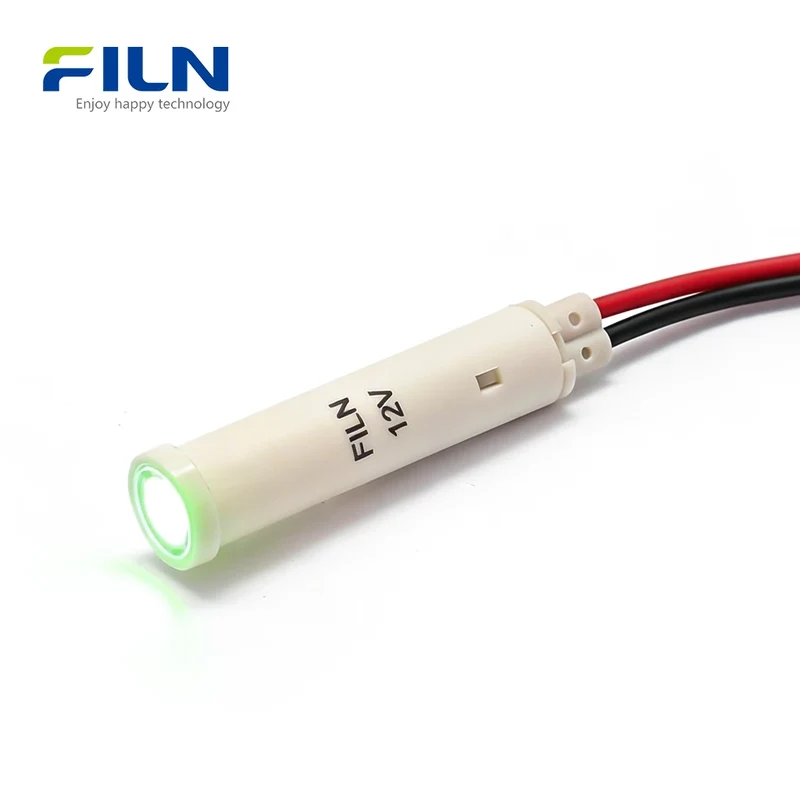

The **FL1P-08QW-1 8mm plastic 120v pilot light for sale** is a premium signaling solution designed for high-efficiency industrial applications. This **round plastic indicator light** features a high-durability **PA66 body** and a vibrant **PC lens**, providing excellent insulation and heat resistance. Equipped with a **15cm pre-wired lead**, it simplifies the installation process for engineers. Whether you require **12V, 24V, 110V, or 120V-220V**, our **FILN factory** provides full customization support. These lights are widely used in **electrical cabinets, automation equipment, and control panels**. With certifications like **ISO9001, CE, VDE, RoHS, SGS, UL, and IP65**, you are purchasing a product built for long-term reliability. **Order directly from the factory online today** for immediate global dispatch.

Quick Specifications

Mounting Hole	8mm (0.315 inch)
Voltage	12V-24V, 110V-220V (Supports Customization)

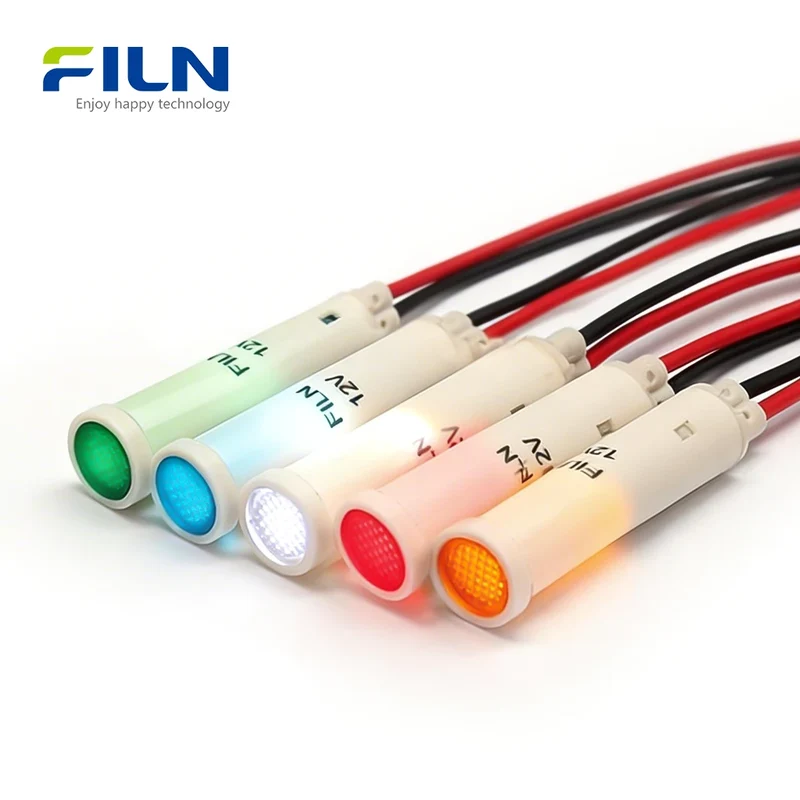

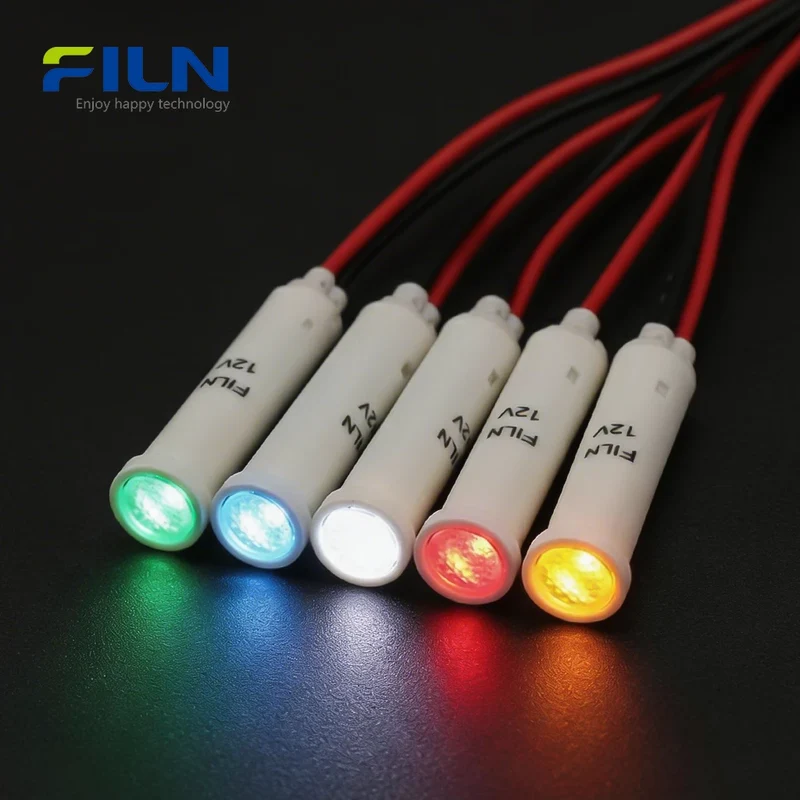

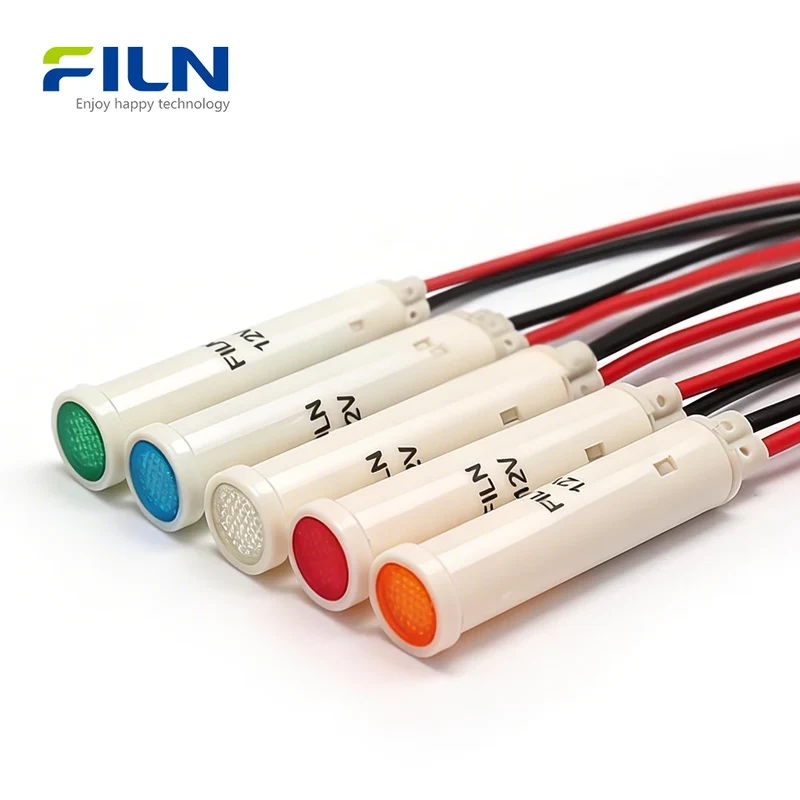

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	Head IP65 (Snap-in type body is non-waterproof)
Wire Length	Standard 15cm (Custom lengths available)
Wiring Type	Wire Lead Type
Installation Way	Snap-in Fixed Mounting

Component Materials

Component Name	Material
Shell	PA66 Nylon
Lamp holder	PA66 Nylon
Lampshade	PC (Polycarbonate)
Luminescent Source	High-Intensity LED
Resistance	Carbon film resistance
Wire specification	PVC Insulated Wire

Rated Working Parameters

Rated Voltage	Customized (AC/DC Support)
Frequency(AC)	50～60Hz
Rated Current	≤20mA

General Characteristics

Items	Parameter
Insulation Resistance	1800V/5s
Working Life	60,000h
Operating Temp	-40℃～80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric & Durable Property

Insulation Resistance	≥100MΩ (DC500V)
Dielectric Strength	1500VAC / No flashover
Continuous Life	50,000 Hours (Tested at 30mA)
Moisture Resistance	40℃ 95%RH 96h

Key Features

• LED high brightness: Ensures clear status visibility in 120V systems.
• Long lifespan: Durable LED source lasts over 60,000 hours of operation.
• IP65 waterproof: The lens and front panel interface resist moisture and dust.
• Easy installation: Snap-in design allows for rapid deployment without nuts.
• Industrial reliability: High-grade plastic offers superior insulation.

Applications

• Industrial control panels and monitoring stations.
• CNC machines and factory automation equipment.
• Electrical cabinets and power distribution units.
• Marine electronics and outdoor control boxes.
• Medical diagnostic devices and commercial appliances.

Installation Guide

1. Prepare a round mounting hole of exactly 8mm on your panel.
2. Thread the 15cm PVC wires through the hole from the front.
3. Push the **120v pilot light** into the hole.
4. The plastic "ears" on the side will snap and lock the light securely in place.
5. Connect the leads to your power source using wire nuts or connectors.

What Is an 8mm Plastic 120V Pilot Light?

An **8mm plastic 120v pilot light** is a compact visual indicator used to signal the operational status of electrical circuits. Unlike metal indicators which may require grounding, **plastic indicator lights** offer superior electrical insulation and are cost-effective for large-scale production.

Wiring vs. Pin Terminals: This **wire lead plastic pilot light** features 15cm pre-attached wires, making it perfect for environments where fast wiring is needed without soldering. In contrast, pin type terminals are better suited for PCB mounting or plug-in connectors.

Plastic vs. Metal: While metal indicators are rugged, plastic indicators are lighter, non-corrosive, and provide an excellent aesthetic finish for modern control panels. The snap-in design ensures the light stays firm under vibration.

Factory Direct Supply

FILN is a professional **120V LED indicator light manufacturer** offering:

• Factory Direct: Buy directly from the source for the best price.
• Customization: We support custom wire lengths, voltages, and colors.
• Fast Shipping: Global logistics for industrial B2B orders.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Where can I buy this 120v pilot light for sale?
You can purchase directly from FILN's official store or contact our sales team for bulk orders.

2. Can I get a longer wire than 15cm?
Yes, as a custom factory, we can produce any wire length according to your specifications.

3. What are the advantages of plastic over metal?
Plastic indicators provide high insulation, are lightweight, and typically lower in cost for volume projects.

4. How does the snap-in mounting work?
The 8mm hole is drilled, and the light is pushed in; side "ears" expand to lock it against the panel surface.

5. Is the FL1P-08QW-1 available in 220V?
Yes, we support a wide range of voltages from 12V to 380V.

6. What color LEDs are most commonly used?
Red for faults, Green for normal operation, and Yellow for warnings are the industry standard.

7. Is the head of the indicator waterproof?
Yes, it features an IP65 rating for the front-facing part of the lens.

8. Does FILN provide certifications for the US market?
Yes, our products carry UL and CE certifications for international compliance.

9. Can I use these in marine environments?
Yes, the plastic body is resistant to salt corrosion, though the rear wiring should be protected.

10. What is the typical lifespan of the LED?
Our high-quality LEDs are rated for up to 60,000 hours of continuous use.
