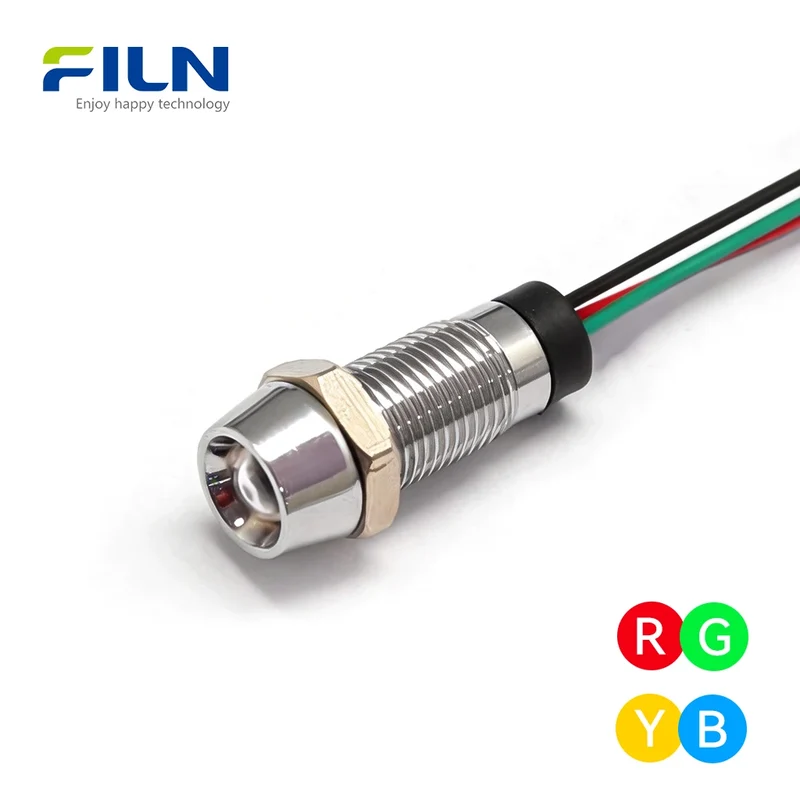

8MM Pre-wired Dual Color LED Pilot Light IP67 for CNC Panels FILN

1,31 €0,80 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Note: The default wiring for the dual-color indicator lights is Common Cathode. If you require Common Anode, please leave a note or contact us.

Product Overview

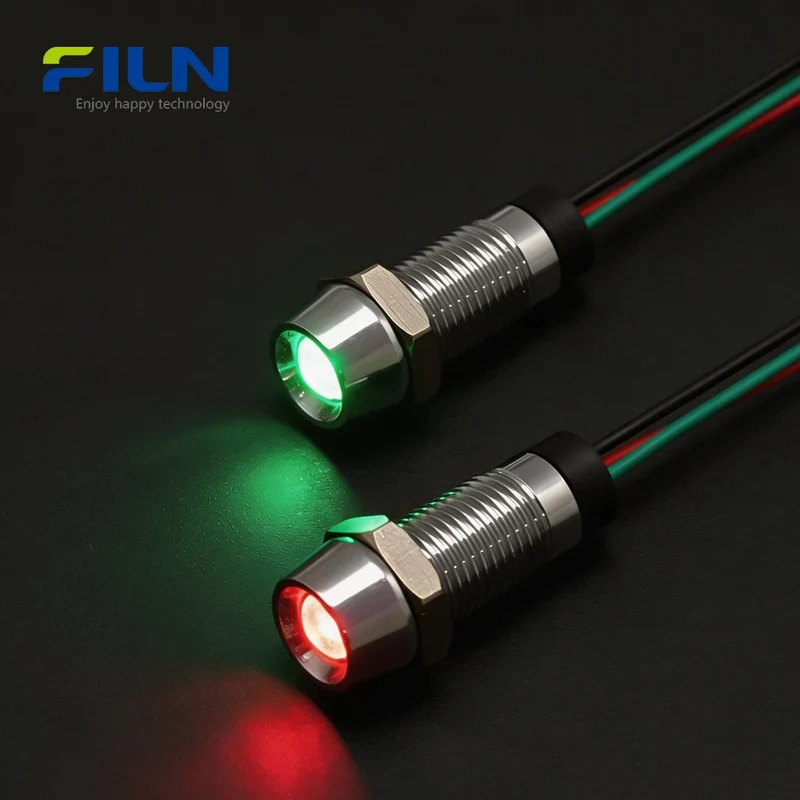

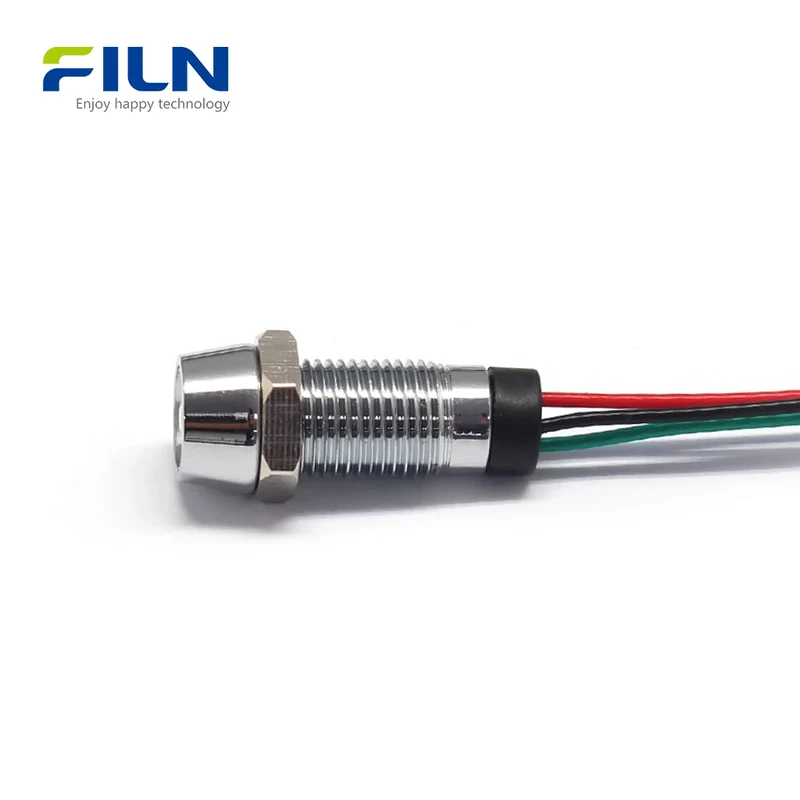

The 8mm Pre-wired Dual Color LED Pilot Light is a high-precision signaling solution designed for demanding industrial environments. Featuring a recessed metal head and IP67 waterproof rating, this indicator provides reliable multi-status feedback for CNC machinery, automation panels, and marine systems. This dual-color metal indicator supports both common cathode and common anode configurations, allowing for versatile wiring integration. With its pre-wired 20cm leads and M8 threaded body, it ensures a secure, vibration-resistant installation for global industrial applications.

Quick Specifications

Mounting Hole 8mm (0.31 inch)
Voltage 12-24V / 110-220V (Customizable)
LED Color Red/Green,Yellow/Blue, Red/White (Dual Color)
Wiring Method Common cathode by default. Please leave a note or contact us if common anode is required.
Waterproof Rating IP65 / IP67
Wiring Type Pre-wired Lead (20cm length)
Lifespan 50,000 Hours

Rated Working Parameters

Rated Voltage Customized (12V/24V/110V/220V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Silver Chrome or Black Plated Metal
Lens Polycarbonate (Recessed Head)
Seal Ring Silicone O-ring (8mm)
Wire Material High-quality PVC/Teflon UL Wire

General Characteristics

Operating Temperature -40℃ ～ +80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86 ~ 106Kpa
Part Name FL1M-08CW-D-2

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 min ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Key Features

  • Dual-Color Versatility: Available in common cathode or common anode configurations for complex signaling.

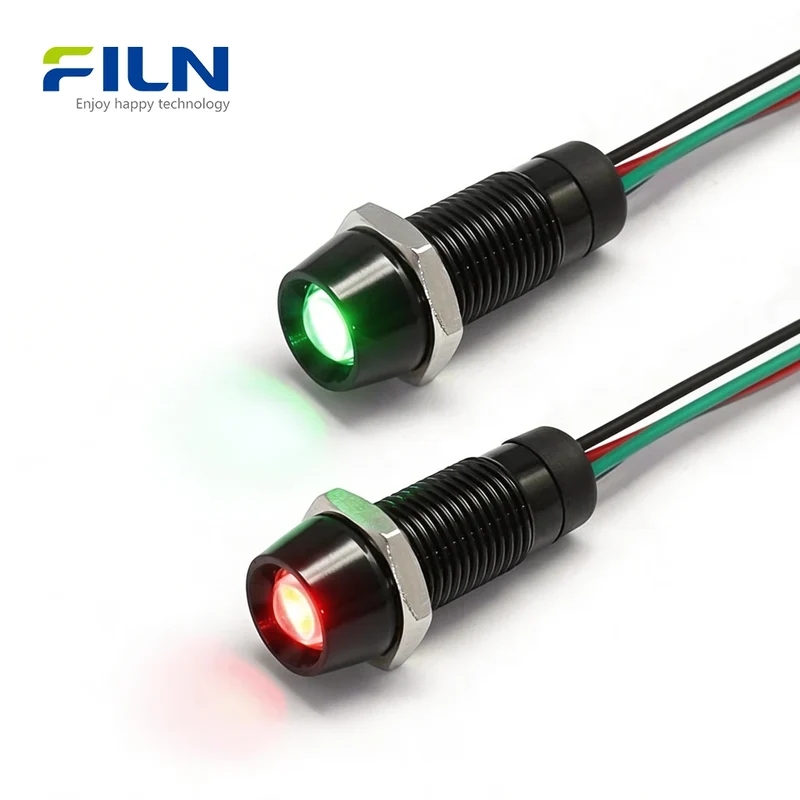

  • Rugged Metal Build: Recessed head design with silver or black housing options for high-end industrial aesthetics.

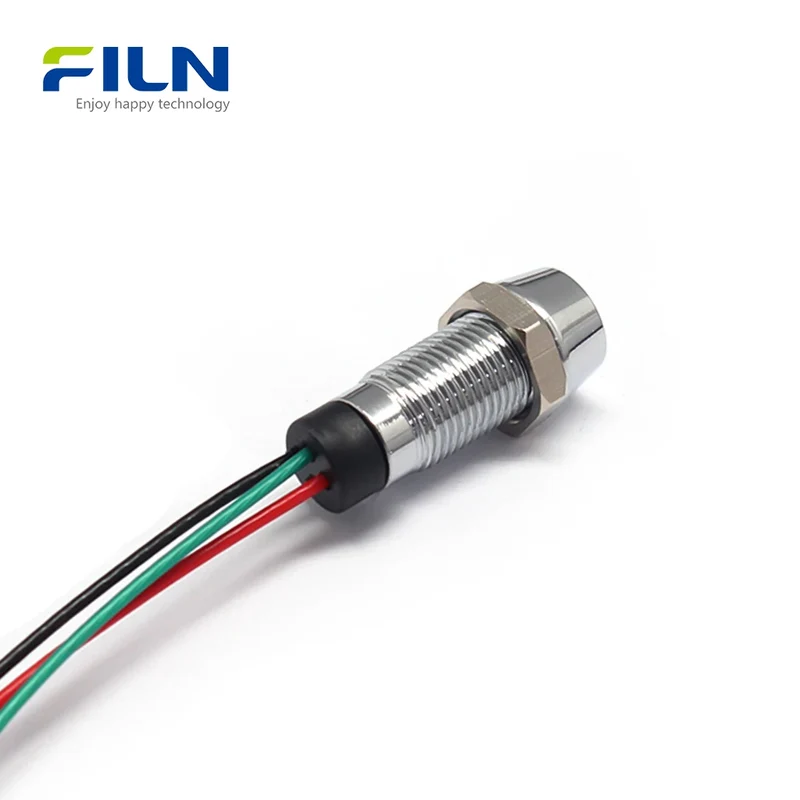

  • Pre-wired Convenience: Includes 20cm wire leads, making it easier to install than traditional pin terminals in tight spaces.
  • IP67 Protection: Fully waterproof and dustproof with a dedicated silicone O-ring for harsh environments.

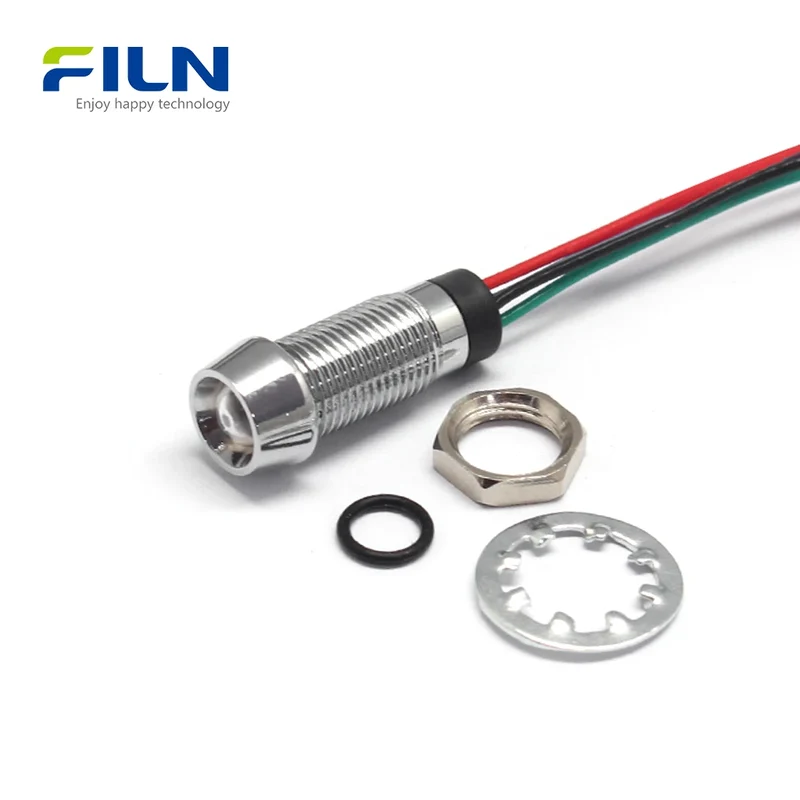

  • Smooth Installation: High-quality M8 threading and included nuts ensure a reliable fit on any control panel.

Applications

  • Industrial control panels and CNC machines
  • Automation equipment and robotics
  • Electrical distribution cabinets
  • Marine and outdoor signaling systems
  • Medical and laboratory diagnostic devices

Installation Guide

  1. Drill an 8mm (M8) hole into the mounting panel. [cite: 3]
  2. Insert the indicator light through the front of the panel. [cite: 3]
  3. Slide the silicone O-ring onto the threaded body from behind the panel. [cite: 3]
  4. Tighten the M8 nut onto the threads to secure the indicator firmly. [cite: 3]
  5. Connect the 20cm pre-wired leads to your power source (12V/24V/220V) according to the color diagram. [cite: 3]

What Is an 8mm Dual Color LED Pilot Light?

An 8mm dual-color LED pilot light is a compact visual signaling component that uses a single mounting point to display two different states (e.g., Green for "Ready" and Red for "Error"). Unlike traditional pin-type indicators, the pre-wired lead version offers superior flexibility and time savings during assembly. In industrial equipment, these lights are critical for providing real-time feedback to operators, ensuring safety and operational efficiency within a minimal footprint.

FILN Factory Direct Supply

Benefit from FILN's professional manufacturing expertise in Wenzhou:

  • Voltage & Wire Customization: We tailor voltage (3V-380V) and lead lengths to your specs.
  • Connector Integration: Custom wire harness and connector assembly available.
  • Fast Global Shipping: Reliable logistics via UPS/DHL/FedEx.

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: What is the difference between pre-wired and pin terminals?

Pre-wired indicators come with soldered leads, saving installation time and providing better moisture resistance compared to pin terminals which require manual soldering or crimping.

Q2: Can I get this in a common anode configuration?

Yes, FILN offers both common cathode and common anode dual-color configurations for all 8mm models.

Q3: Is the metal housing resistant to corrosion?

Absolutely. Our silver chrome and black plated housings are designed to withstand industrial wear and humidity.
