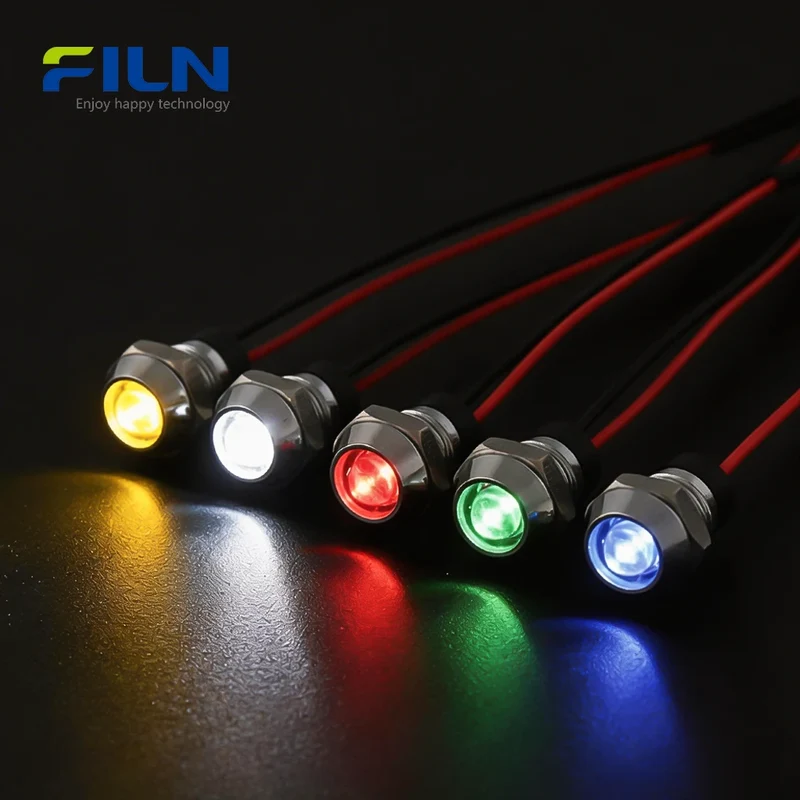

9 Volt LED Light 8mm Metal Indicator FL1M-08SW-4 IP65 Waterproof FILN

Beschreibung

Product Overview

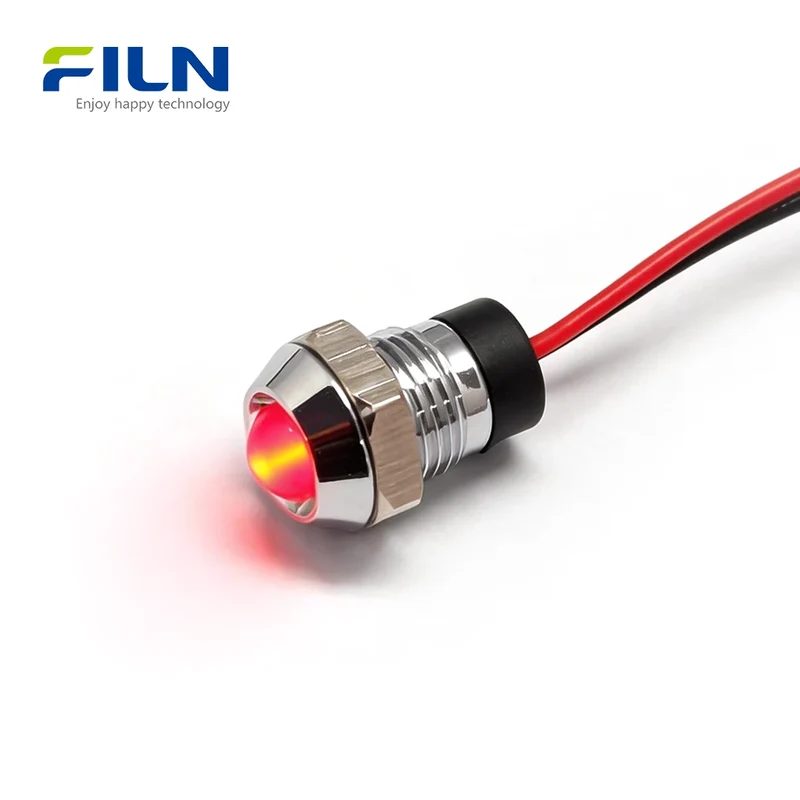

The 9 volt LED light FL1M-08SW-4 is a high-performance 8mm metal indicator light designed for industrial precision. Featuring a high-head design and an ultra-short 13mm body, this indicator is specifically engineered for equipment with limited internal space. With an IP65 waterproof rating and a pre-wired 15cm lead, it offers seamless integration into industrial control panels, CNC machinery, and automation systems. Whether you require a 9 volt LED light or customized voltages up to 220V, this FILN indicator provides reliable, non-polar LED illumination with long-lasting durability in harsh environments.

Quick Specifications

Mounting Hole	8mm (0.315 inch)
Voltage	9V, 12-24V, 110-220V (Customized)

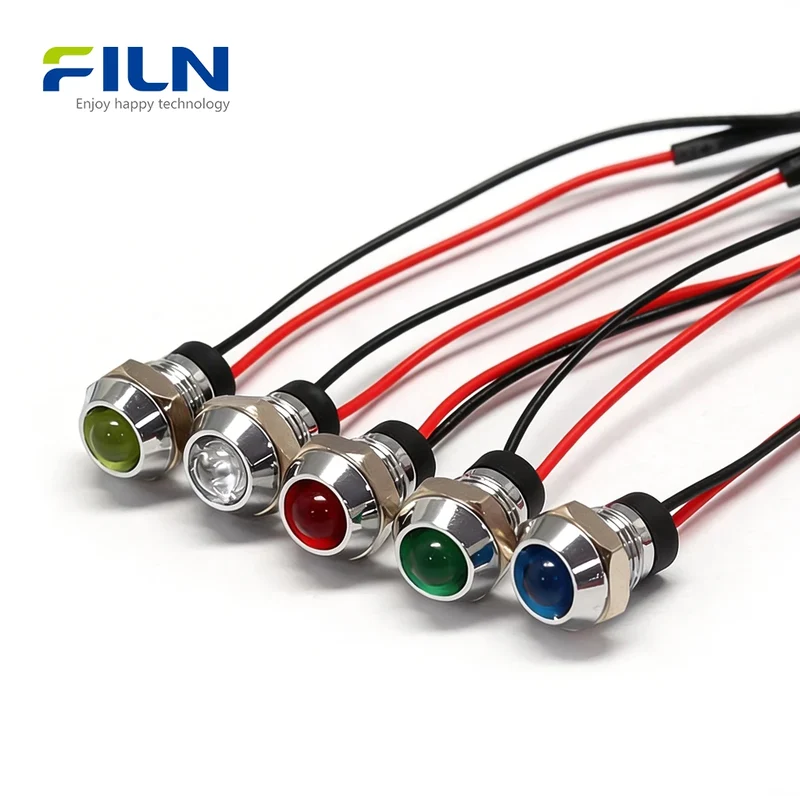

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65
Operating Temperature	-40℃ to +80℃
Lifespan	50,000 Hours
Wiring Type	Pre-wired Lead (15cm)

Rated Working Parameters

Rated Voltage	9V - 220V Customized
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Nickel-plated Brass / Black Anodized Aluminum
Lens	Polycarbonate (PC)
Seal Ring	O-shaped Silicone Ring
Terminal	Direct Lead Wire
Wire Material	UL Certified PVC Copper Wire (15cm)

General Characteristics

Part Name	FL1M-08SW-4 Indicator
Operating Temperature	-40℃～80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa
Waterproof Rating	IP65

Electric Property

Testing Item	Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Key Features

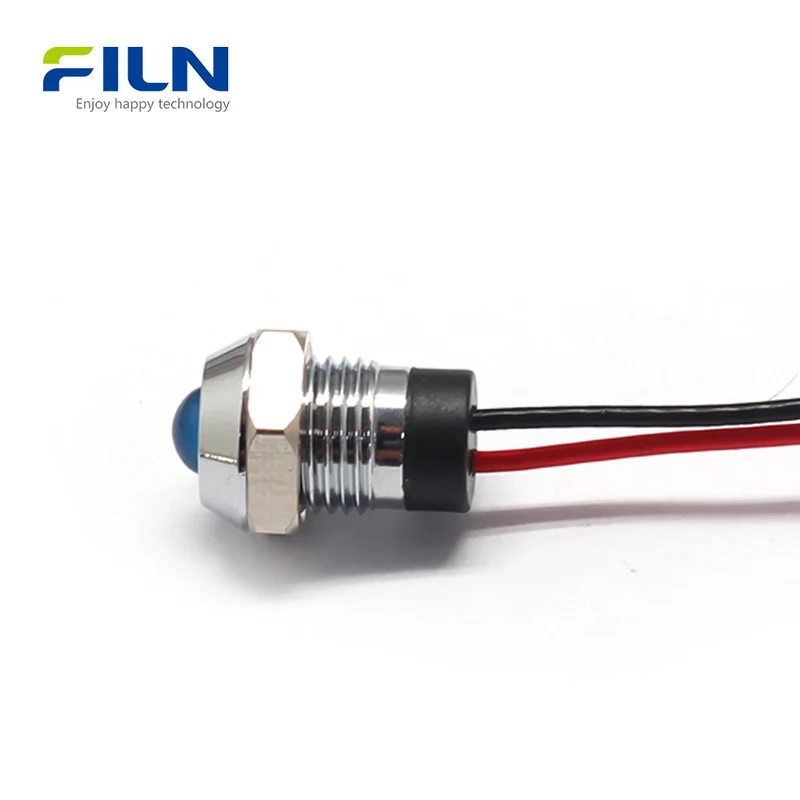

Ultra-Short Profile: Total length only 13mm, perfect for compact panels.

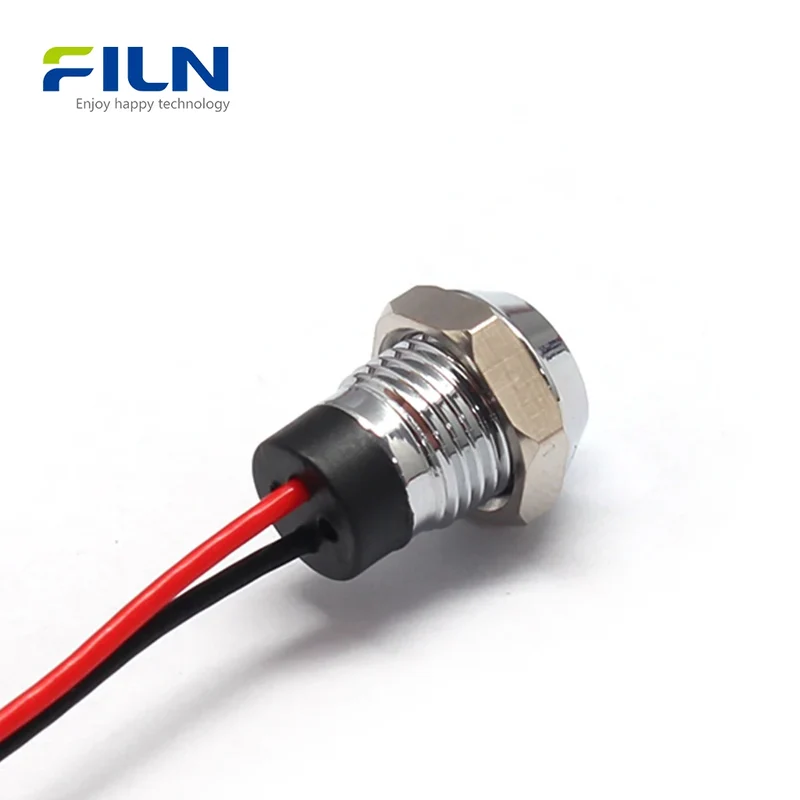

Pre-Wired Convenience: Includes 15cm wire leads for quick installation.
Non-Polar LED: LED beads function without positive/negative polarity restrictions.

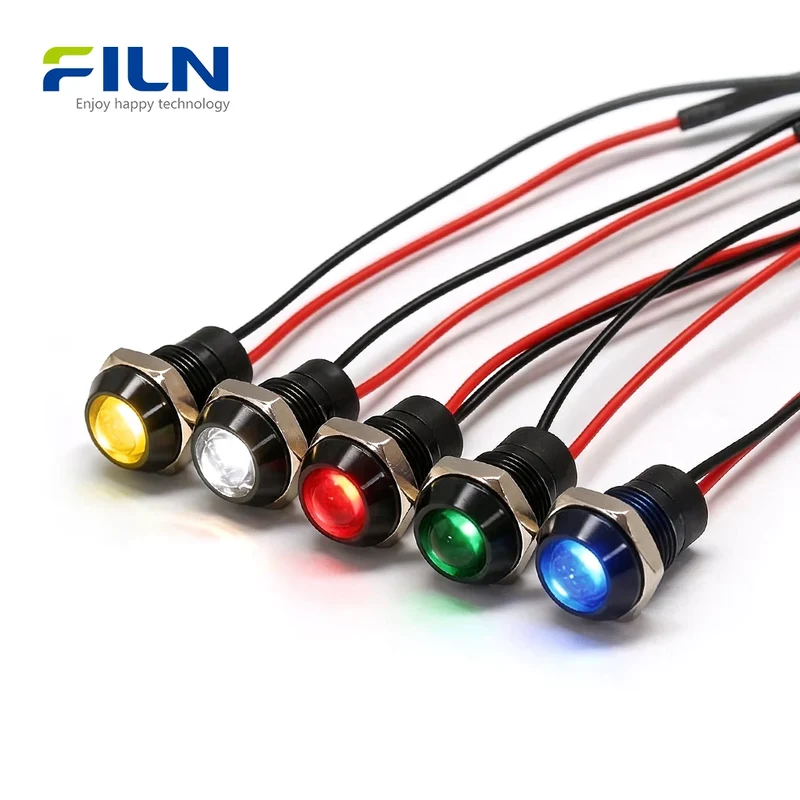

Premium Build: Available in Silver Nickel or Black Anodized finishes.
High Reliability: Smooth threading with M8 nut and waterproof O-ring.

Applications

Industrial Control Panels
CNC Machines and Tooling
Automated Production Lines
Marine and Automotive Dashboards
Medical Diagnostic Equipment

Installation Guide

Drill an 8mm diameter mounting hole in your target panel.
Insert the 9 volt LED light from the front/top side of the panel.
Slide the O-ring onto the back of the indicator for a waterproof seal.
Secure the unit by tightening the M8 nut from the back of the panel.
Connect the 15cm wire leads to your power source (non-polar).

What Is a 9 Volt LED Light Indicator?

A 9 volt LED light indicator is a visual signaling device used to display the operational status of electrical circuits. Unlike pin-type indicators which require soldering or spade connectors, wired indicators like the FL1M-08SW-4 come with pre-attached leads, significantly reducing assembly time and preventing loose connections in high-vibration environments. These indicators are critical for operator safety, providing clear status feedback (On/Off/Error) in industrial machinery.

Factory Direct Supply - FILN

FILN is a professional manufacturer specializing in high-quality indicator lights. We offer:

Voltage Customization: 3V to 380V support.
Wire Customization: Adjustable lengths and connector types.
Fast Shipping: Rapid global logistics from our factory.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: What is the total length of the FL1M-08SW-4?
A: The indicator is an ultra-short model with a total body length of only 13mm. Q2: Can I use this 9 volt LED light on 12V or 24V circuits?
A: Yes, we provide customized resistors for 12V, 24V, 110V, and 220V applications. Q3: Is there a polarity requirement for the wiring?
A: No, the LED beads used are non-polar, making wiring easy and error-free. Q4: What housing colors are available?
A: We offer standard Silver (Nickel-plated) and Black (Anodized) metal housings. Q5: Does it include mounting accessories?

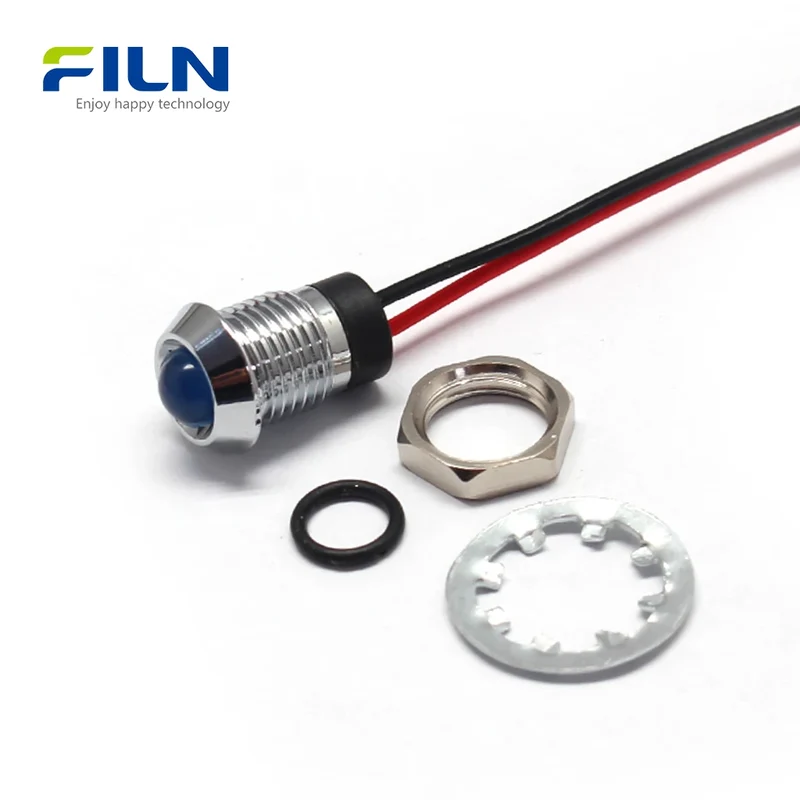

A: Yes, each indicator comes with one M8 nut and one O-shaped waterproof ring. Q6: How long is the standard wire lead?
A: The standard length is 15cm, but we can customize this for your specific project. Q7: What is the benefit of the wired version vs. the pin version?
A: Pre-wired indicators are faster to install and offer more reliable connections in vibration-heavy environments. Q8: Is this 8mm indicator fully waterproof?
A: Yes, it is IP65 rated, suitable for splashes and industrial dust protection. Q9: What colors of LED light are available?
A: You can choose from Red, Green, Yellow, Blue, and White. Q10: Can FILN provide custom connectors for the wire ends?
A: Absolutely. We provide factory customization for terminals and connectors upon request.
