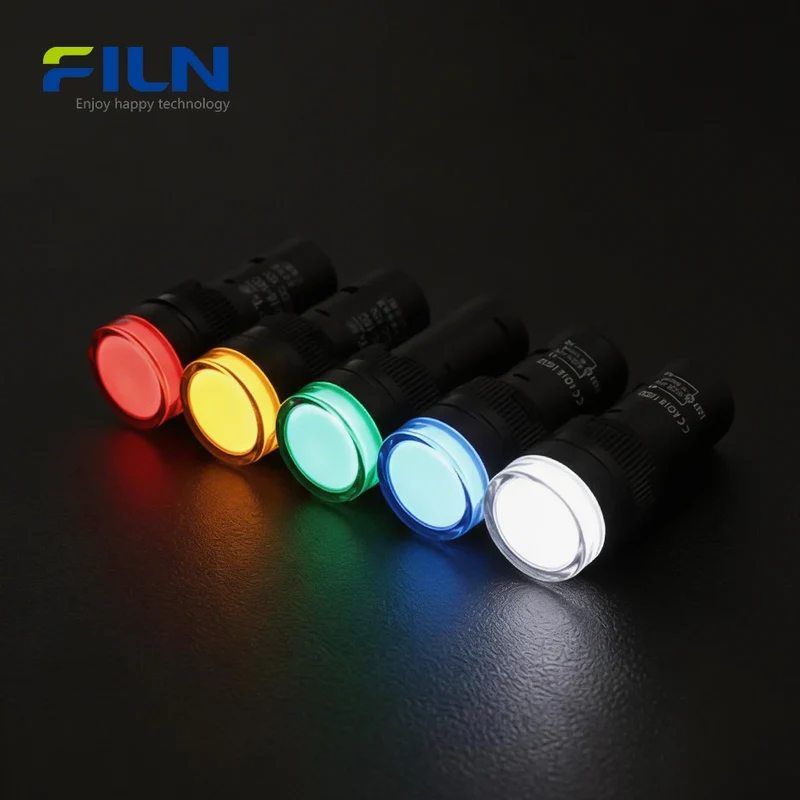

AD16 16mm Plastic Indicator Light 12V 24V 220V Screw Terminal Panel Mount for FILN

0,85 €0,45 €Im Angebot
Light Color
Voltage
Menge

Beschreibung

Product Overview

The AD16 16mm plastic indicator light is a high-performance signaling solution designed for modern industrial applications. Now available for sale, this model (FL1P-16NA-1) features a circular high-head design that ensures maximum visibility from various angles. Manufactured by FILN, these lights carry global certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. These 12V LED plastic pilot lights are widely used in power distribution boxes and CNC machinery. The use of PA66 high-strength plastic provides excellent insulation and durability compared to traditional lamps. Whether you need a 220V industrial indicator light panel mount or low-voltage signal lamps, this product delivers consistent reliability and a lifespan exceeding 60,000 hours.

Quick Specifications

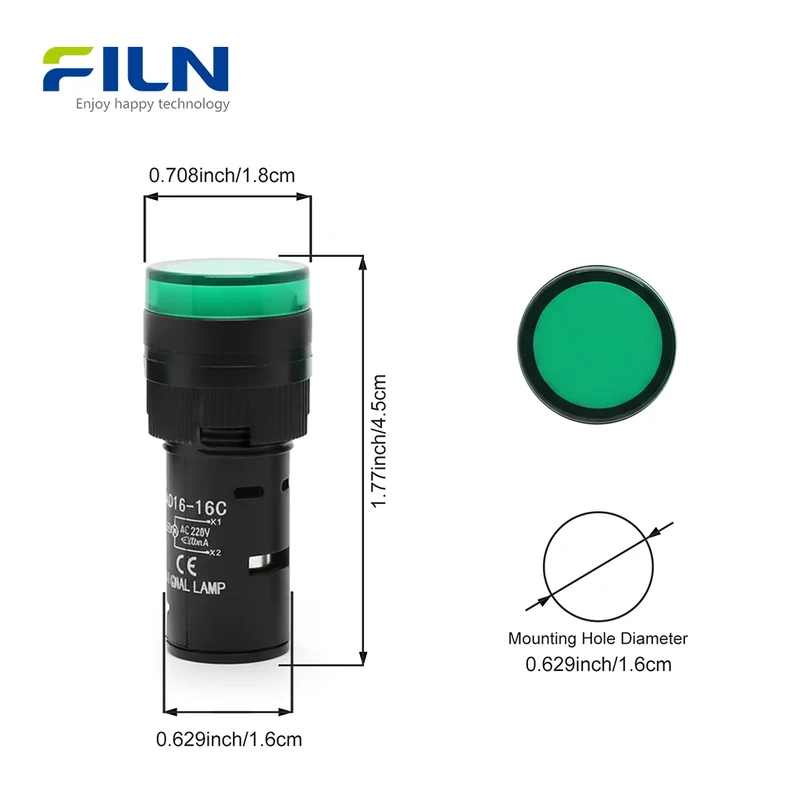

Mounting Hole 16mm / 0.63 inch
Voltage Options 12V, 24V, 110V, 220V
LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 (Screw Mount Head)
Wiring Type 2-Pin Screw Terminal
Certifications UL, CE, RoHS, VDE, ISO9001

Rated Working Parameters

Rated Voltage Customized (3V to 380V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Shell / Lamp Holder PA66 Nylon
Lampshade (Lens) Polycarbonate (PC)
Luminescent Source High-Bright LED
Resistance Carbon Film Resistance
2.8mm Terminal H59 Brass

General Characteristics

Insulation Resistance 1800V / 5s
Working Life 60,000 Hours
Operating Temp -40℃ to +80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Insulation Resistance DC500V, ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s (No breakdown)

Durability & Weather Resistance

High Temp Test Low Temp Test Moisture Resistance
80℃ for 96 hours -40℃ for 96 hours 40℃, 95%RH, 96h

Key Features

  • LED high brightness: Clear visibility even in well-lit factory environments.
  • Long lifespan: Optimized circuit design ensures 60,000+ hours of operation.
  • IP65 Waterproof: The Waterproof-IP65-plastic-indicator-light head protects against dust and splashes.
  • Easy installation: Features a secure 2-pin screw terminal and plastic nut fastening.
  • Industrial grade reliability: High-strength PA66 shell and PC lens for impact resistance.

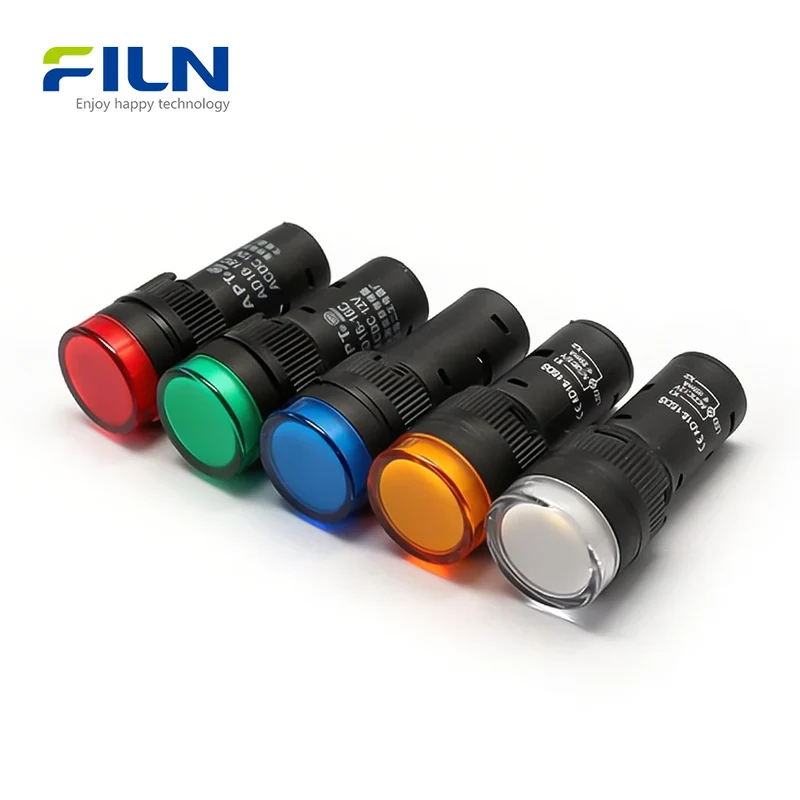

Signal Color Meanings & Applications

The Red-green-yellow-blue-white-indicator-lights are essential for industrial safety:

  • Red: Danger, Fault, or Emergency Stop.
  • Green: Normal operation or Safe start.
  • Yellow: Warning or abnormal condition.
  • Blue: Mandatory action or specific instruction.
  • White: System power on or neutral status.

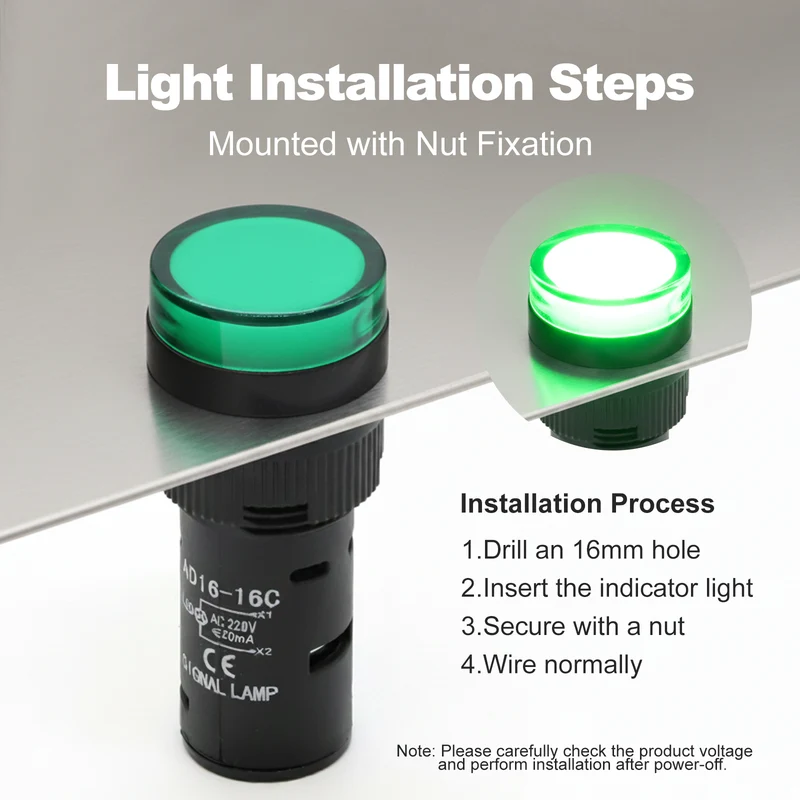

Installation Guide

  1. Drill a 16mm hole on the control panel.
  2. Insert the AD16 indicator light from the front of the panel.
  3. Thread the plastic nut from the back and tighten it to secure the housing.
  4. Connect the power wires to the 2-pin screw terminals (Screw-foot design).
  5. Verify the voltage matches the AD16-16mm-LED-signal-light-factory-direct specifications before powering on.

What Is an AD16 16mm Plastic Indicator Light?

An AD16-signal-lamp-screw-terminal is a crucial component in industrial automation. Unlike pin-type indicators, the plastic-LED-indicator-light-with-screw-foot allows for faster field wiring without specialized tools or soldering. It serves as a visual feedback mechanism, alerting operators to machine status, power availability, or potential hazards. Its PA66 nylon construction provides superior chemical resistance and electrical insulation, making it the preferred choice for distribution boxes and CNC cabinets where space and reliability are paramount.

Factory Direct Supply from FILN

  • Global Shipping: Fast delivery for all Custom-voltage-plastic-pilot-lamp orders.
  • Customization: Tailored wire lengths, voltages, and connectors.
  • Quality Assurance: 100% factory inspection before dispatch.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can I buy these for my factory project?
Yes, our 16mm-plastic-indicator-light-for-sale is available for direct B2B purchase.

2. What is the benefit of the AD16 screw foot?
The AD16-signal-lamp-screw-terminal design eliminates soldering, saving time during assembly.

3. Do you offer 110V versions?
Yes, we supply 12V, 24V, 110V, and 220V as standard voltage options.

4. Is the head resistant to oil?
The PC lens and PA66 body of our FILN-AD16-series-indicator-lamp have good resistance to many common industrial oils.

5. What is the waterproof level?
It is a Waterproof-IP65-plastic-indicator-light when correctly mounted with its O-ring.

6. Can you customize the logo on the lamp?
Yes, as an OEM factory, we can customize markings on the AD16-16mm-LED-signal-light-factory-direct.

7. How do I know which color to use?
Refer to our color meaning chart above; Red for danger, Green for normal, etc.

8. Are these compatible with 16mm standard panel cutouts?
Yes, they fit all standard 16mm (approx. 0.63") holes.

9. What is the material of the terminal?
The screw terminals are made of high-conductivity H59 brass.

10. Does FILN provide bulk discounts?
Please contact us at [email protected] for wholesale pricing on 16mm-plastic-indicator-light-for-sale.
