Anbieter: 10MM Metal Indicator Light

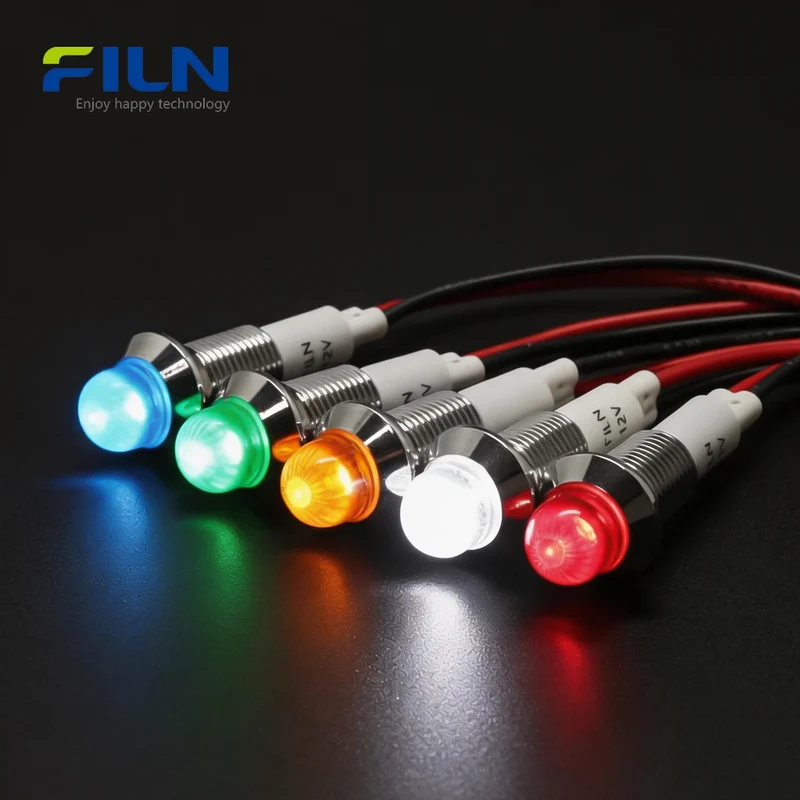

Charging Indicator Light 10mm IP67 Metal Ball Head LED 220V FILN

1,94 €1,36 €Im Angebot
Housing color
Light Color
Voltage
Menge

Beschreibung

Product Overview

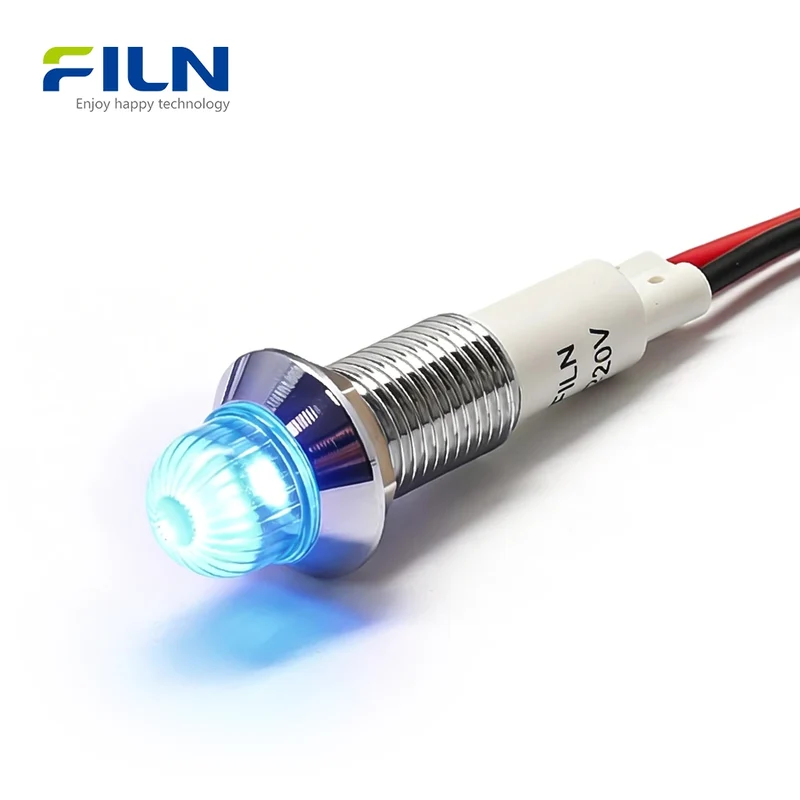

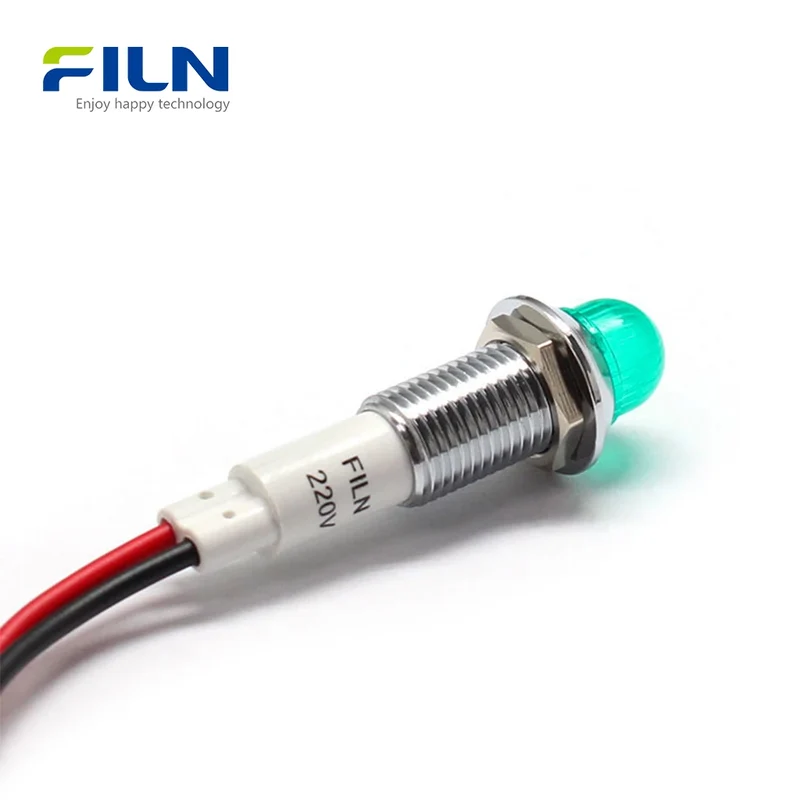

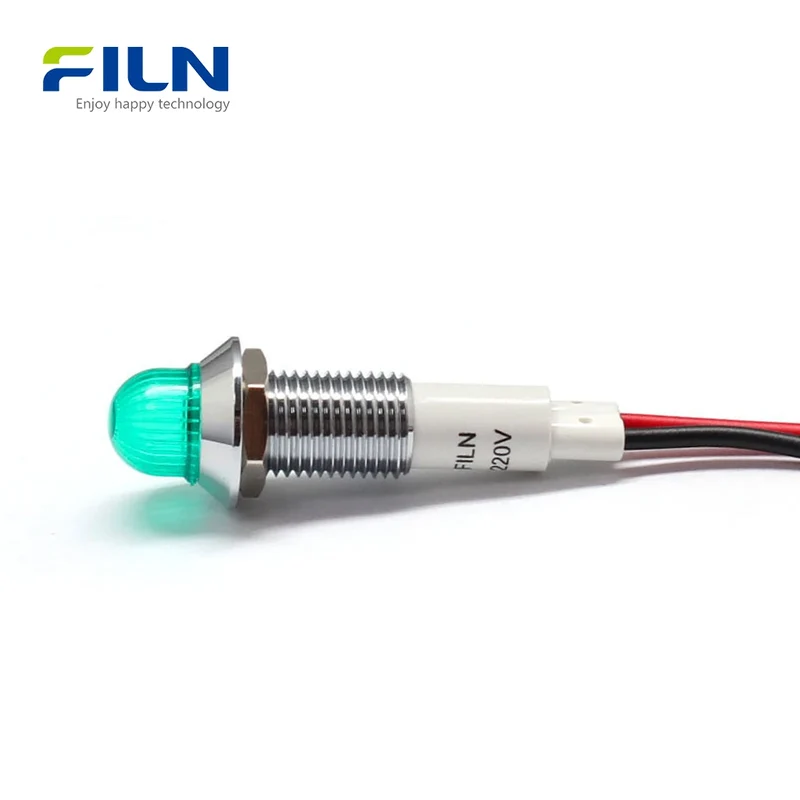

The charging indicator light (FL1M-10BW-1) is a high-performance 10mm metal signal lamp designed with a protruding ball-head for maximum visibility. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, this light ensures elite reliability for EV charging stations, industrial panels, and medical devices. Its core advantage lies in the pre-wired lead design, which simplifies installation compared to pin-type terminals, making it ideal for deep panels or tight spaces. With a robust silver chrome or black aluminum housing and a lifespan exceeding 50,000 hours, it provides a durable solution for automation, marine, and power management industries.

Quick Specifications

Mounting Hole 10mm (0.39 inch)
Voltage 12-24V, 110-220V (Customizable)

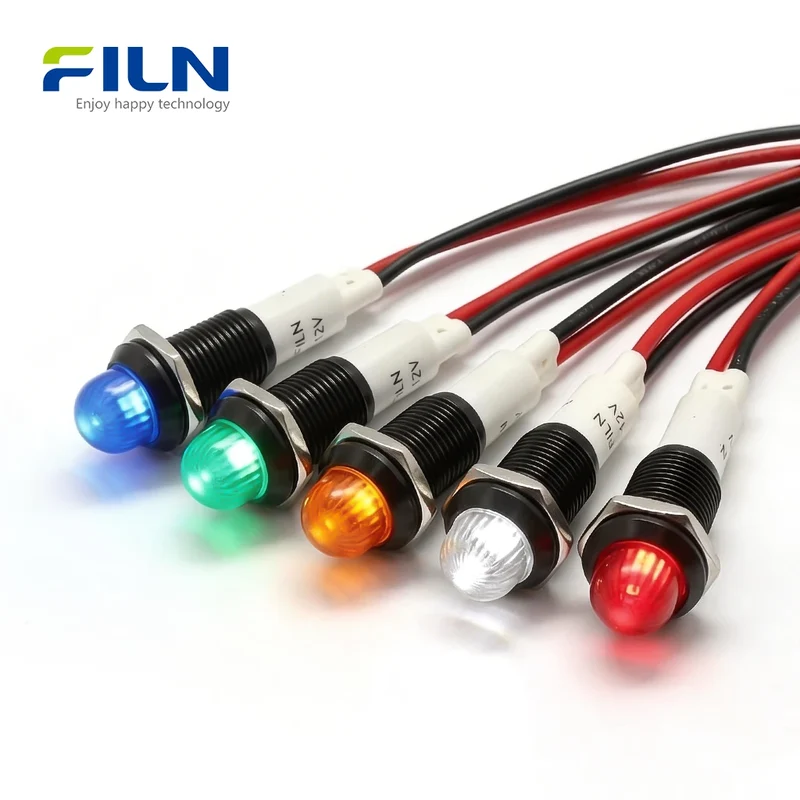

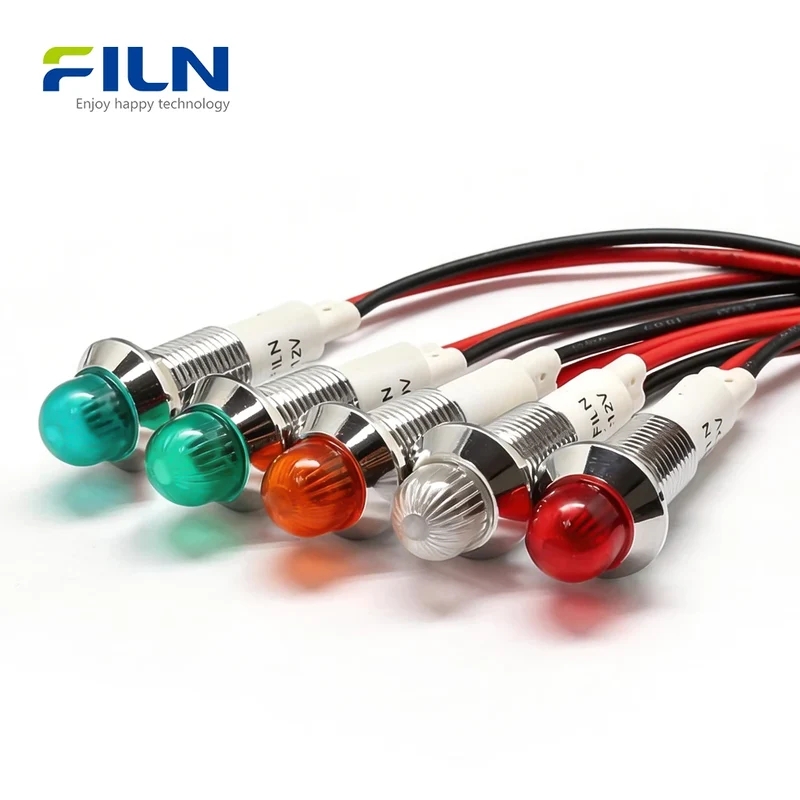

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan ≥50,000 Hours
Wiring Type Wire Lead Type (Direct Wires)

Rated Working Parameters

Rated Voltage Customized (AC/DC)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Chrome-plated Brass / Black Aluminum
Lens Polycarbonate (PC)
Seal Ring SIL Silica Gel
Wire Material UL Standard Copper Wire

General Characteristics

Operating Temp: -40℃～80℃ Relative Humidity: ≤85% at +40℃
Ambient Temp: 5~35℃ Air Pressure: 86~106Kpa
Waterproof Rating: IP67 Part Name: FL1M-10BW-1

Electric & Durability Property

Property Test Condition Requirement
Insulation Resistance DC500V 1 min ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown
Working Life 30mA 1000h 50,000 Hours

Resistant Performance

High Temp: 80℃ 96h Low Temp: -40℃ 96h
Moisture: 40℃ 95%RH 96h Cycling: -40℃ → 25℃ → 85℃

Key Features

  • LED High Brightness: Professional-grade LED chips for intense, clear signal delivery.
  • Ball-Head Visibility: The protruding head offers 180-degree visibility, a major advantage over flat lenses.
  • IP67 Waterproof: Fully sealed against heavy rain and dust, perfect for outdoor charging piles.
  • Pre-wired Ease: Comes with 200mm wires (customizable) for faster, hassle-free installation.
  • Industrial Grade Materials: Features smooth M10 threads and a robust metal shell for impact resistance.

Applications

  • EV Charging Piles and Battery Management Systems.
  • Industrial Control Panels and CNC Machines.
  • Marine Equipment and Boat Dashboards.
  • Outdoor Automation Systems and Power Cabinets.
  • Medical Diagnostic Equipment and Commercial Appliances.
  • Custom Automotive Dashboards and Security Panels.

Installation Guide

  1. Prepare a 10mm mounting hole on the target panel.
  2. Place the O-ring onto the indicator body to ensure a waterproof seal.
  3. Insert the indicator through the panel hole from the top.
  4. Slide the M10 nut over the wires from the back of the panel.
  5. Thread the nut onto the indicator and tighten securely.
  6. Connect the pre-wired leads to your power source (Red/Black wires for DC, specific colors for AC).

What Is a Charging Indicator Light?

A charging indicator light is a critical visual feedback component used to relay system status—such as power-on, charging, or fully charged—to a user. The FL1M-10BW-1 high-head ball design is specifically engineered to be seen from a distance and at wide angles, ensuring safety in busy industrial or public charging environments.

The primary difference between wire lead indicators and pin terminals is the installation workflow. Pre-wired models like the 10BW-1 are preferred for high-vibration environments (like marine or heavy machinery) because they eliminate the risk of terminal vibration loosening, while also providing a simpler "plug and play" experience for manufacturers.

FILN Factory Direct Supply

  • ✅ Global Certifications: UL, CE, RoHS, VDE, ISO9001.
  • ✅ Voltage & Color Customization: 3V to 380V; 5 vibrant colors.
  • ✅ Wire Lead Customization: Customizable wire lengths and connectors.
  • ✅ Fast Global Shipping: Reliable logistics for B2B procurement.

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: Why choose a ball-head design over a flat-head?
A: Ball-head indicators protrude, allowing for 180-degree side-view visibility, which is safer for public charging stations.

Q2: Can I use this in an outdoor marine environment?
A: Yes, the IP67 rating ensures it is fully waterproof and resistant to salt spray and rain.

Q3: How long are the standard wires?
A: Standard wires are 200mm, but we can customize the length to your specific needs.

Q4: Is the housing metal or plastic?
A: It is made of premium chrome-plated brass or black anodized aluminum for maximum durability.

Q5: Does it come with the mounting nut?

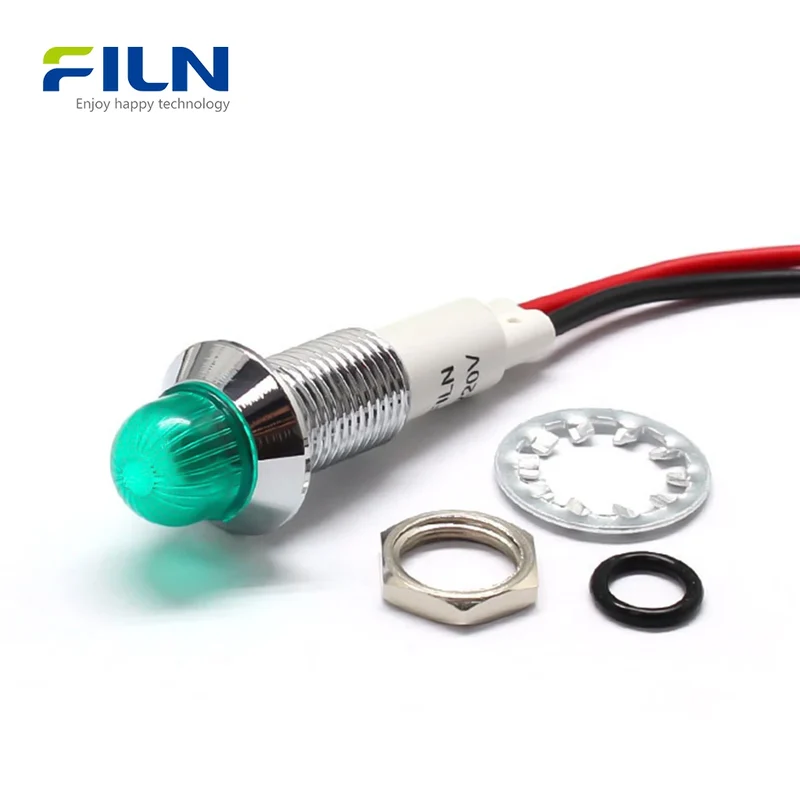

A: Yes, each indicator includes one M10 nut and one waterproof O-ring.

Q6: Can I get this in 110V for a home charger?
A: Yes, we offer 110V and 220V AC versions for residential and commercial power systems.

Q7: What is the expected lifespan?
A: Our industrial LEDs are rated for over 50,000 hours of continuous use.

Q8: Is it difficult to install?
A: No, the pre-wired leads and smooth M10 threading make it one of the easiest indicators to install in any panel.

Q9: Are these lights certified for the US market?
A: Yes, they are UL certified and comply with all major international standards.

Q10: Can I use different colors for different charging stages?
A: Absolutely. Most customers use Red for charging and Green for "Full" to provide clear user feedback.
