Dashboard Symbol Indicator Light 12-24V 8mm 12mm IP67 Marine FILN

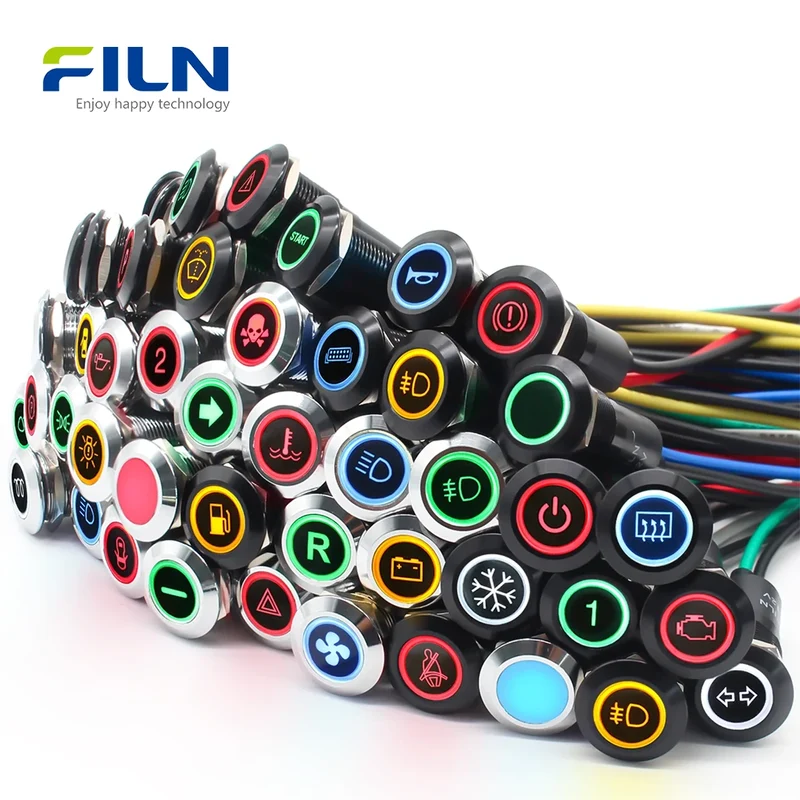

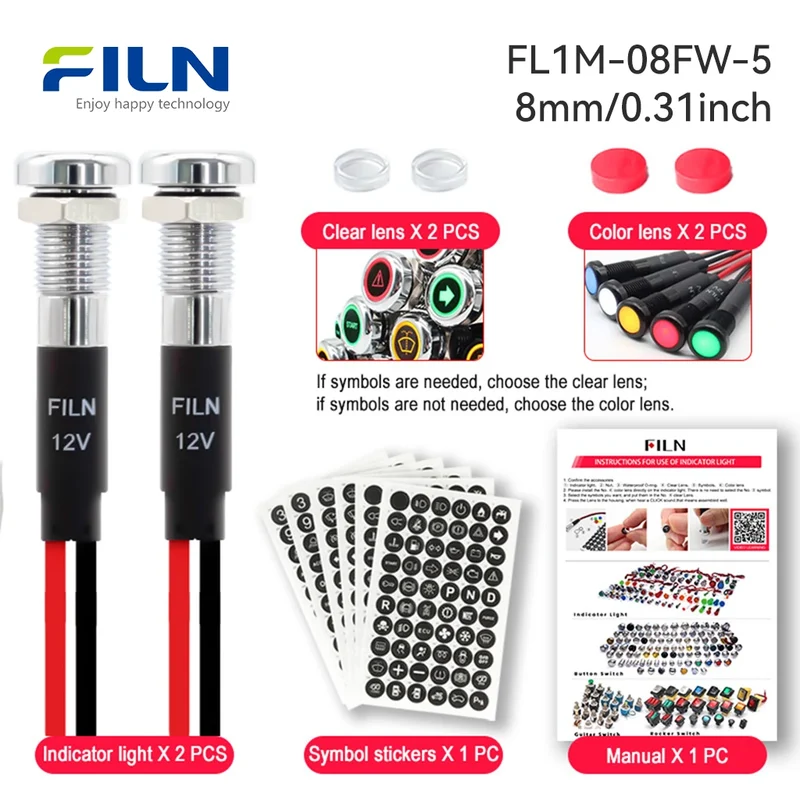

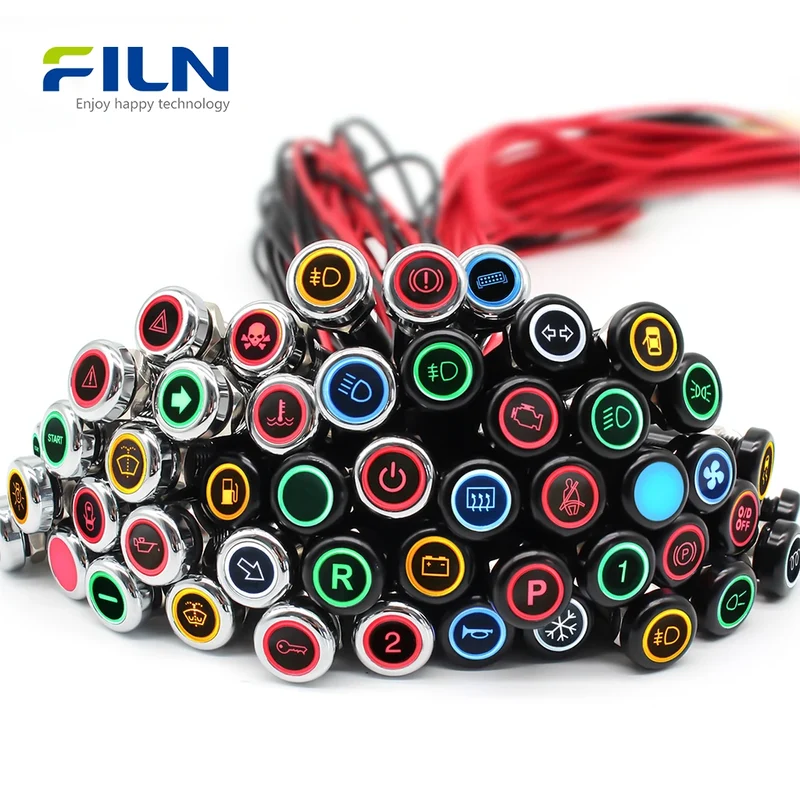

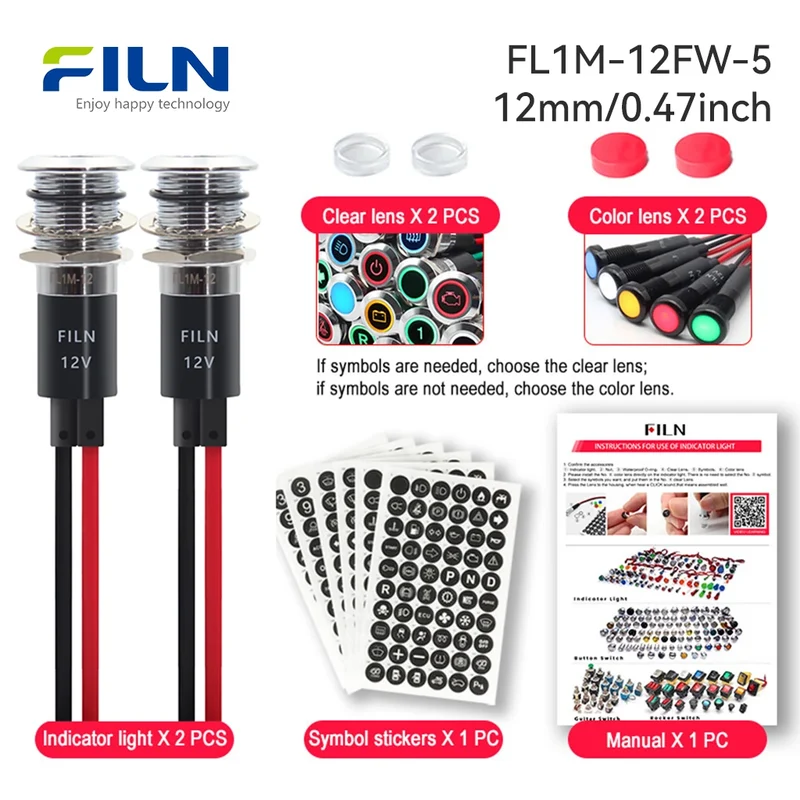

The FILN dashboard indicator lights (Models: FL1M-08FW-5 and FL1M-12FW-5) represent a breakthrough in versatile signaling for the automotive and marine industries. These 8mm and 12mm symbol indicator lights feature a robust metal flat-head design available in silver or black finishes. Engineered for 12-24V systems with customization options, they offer an IP67 waterproof rating and a unique non-polar LED bead for effortless wiring. The core innovation lies in the 185 replaceable symbol stickers included, allowing users to quickly swap icons for cars, yachts, or industrial panels using the provided transparent covers and specialized tools.

Quick Specifications

Mounting Hole	8mm (0.31") / 12mm (0.47")
Voltage	12V-24V (Support Customization)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Operating Temperature	-40℃ to +80℃
Lifespan	50,000 Hours
Wiring Type	Pre-wired Lead Type

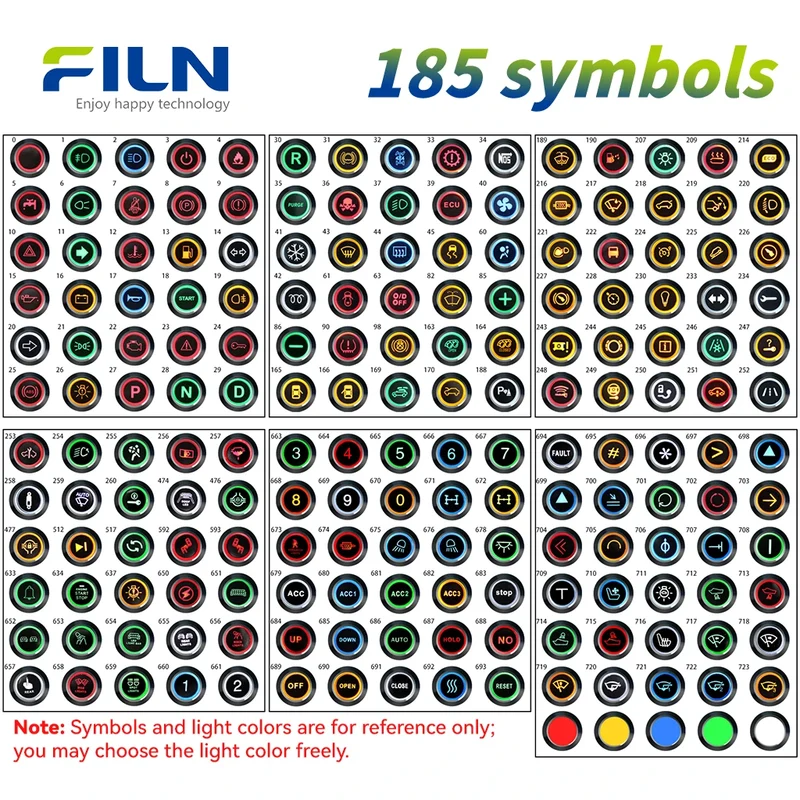

185 Indicator Symbols Reference Table

Code	Symbol Name	Detailed Explanation
0	Ring	Generic circular indicator, often used for halo lighting or a generic notification bell.
1	Fog light (front)	Indicates that the front fog lamps are active, improving visibility in mist or fog.
2	Main beam headlights	High beam indicator; signals that the long-range, high-intensity headlights are on.
3	Power	Universal power symbol indicating the system is energized, active, or in standby mode.
4	Flame	Indicates ignition, high temperature, or active burner status in heating systems.
5	Water-tap	Indicates water flow, fluid supply status, or manual valve control.
6	Car light	General master switch indicator for the vehicle's entire exterior lighting system.
7	Seat belt	Safety alert indicating a passenger or driver has not fastened their seatbelt while the vehicle is moving.
8	Parking brake light	Signals that the manual handbrake or electronic parking brake is currently engaged.
9	Brake lights warning	Warning that one or more of the exterior brake lamps are malfunctioning or have failed.
10	Hazard	The double-triangle symbol for hazard warning flashers, used to indicate a stationary or distressed vehicle.
11	Turn arrow signal	Visual feedback for the left or right directional blinkers during lane changes or turns.
12	Temperature warning	Critical alert that engine coolant temperature is too high, risking engine overheating.
13	Low fuel	Alerts the driver that the fuel level has reached the reserve threshold; refilling is required.
14	Direction indicators	System status for turn signals and hazard light functionality.
15	Oil pressure low	Serious warning indicating insufficient oil pressure, which can cause immediate engine failure.
16	Battery warning	Indicates the charging system is faulty; the vehicle is operating only on stored battery power.
17	Horn	Status or control indicator for the vehicle's audible warning device.
18	Start	Indicates the ignition start-up sequence or the engine start/stop button.
19	Fog light (rear)	Indicates the high-intensity rear fog lamp is on to increase visibility for trailing vehicles.
20	Turn arrow signal	Secondary directional indicator for vehicle turn signals.
21	Side information light	Indicates the status of side marker lamps or parking lights.
22	Engine warning	The Check Engine Light (MIL); signals a fault detected in the engine management or emissions system.
23	Attention danger	General master warning symbol indicating a significant system fault requiring immediate check.
24	Key	Security or immobilizer system indicator; flashes if the authorized key is not detected.
25	ABS	Anti-lock Braking System warning; indicates a fault that might cause wheels to lock during hard braking.
26	Exterior light fault	Generic alert that an exterior bulb (headlight, tail light, etc.) has burned out.
27	Parking	Status indicator for parking modes, electronic parking brakes, or park-assist.
28	Neutral	Indicates the transmission is in the Neutral (N) position.
29	Forward gear	Indicates the transmission is in Drive (D) or a forward-motion gear.
30	Reverse gear	Indicates the transmission is in Reverse (R); typically activates the backup camera.
32	4X4 four-wheel drive	Indicates that the 4WD or All-Wheel Drive system is engaged for extra traction.
33	Gearbox warning	Alerts to a malfunction or overheating within the automatic or manual gearbox.
34	Nitrous Oxide Acceleration System	Status of the Nitrous Oxide (NOS) system, indicating readiness for acceleration boost.
35	PURGE	Used to clear lines in performance systems or purge pollutants in HVAC contexts.
36	Skull	Extreme danger symbol, used for toxic substances or critical system failure warnings.
37	Dipped beam headlights	Low-beam headlight indicator; the standard setting for night driving in traffic.
39	ECU	Engine Control Unit status; signals errors in the vehicle's onboard computer processing.
40	Fan	Status of the engine cooling fan or the cabin ventilation blower.
41	Winter mode	Adjusts transmission and throttle behavior to prevent wheel slip on snow or ice.
42	Glow plug/diesel pre-heat	Specific to diesel engines; indicates the combustion chamber is being pre-heated for starting.
43	Windscreen defrost	Activates maximum airflow to the front windshield to remove ice or condensation.
44	Rear window defrost	Turns on the heating elements in the rear glass to clear frost or fog.
45	Stability control off	Indicates that the Electronic Stability Control (ESC/ESP) has been manually disabled.
60	Airbag warning	Signals a fault in the airbag system; airbags may not deploy correctly in an accident.
61	Door open	Alerts that a vehicle door is not securely shut.
63	Over-Drive OFF	Indicates the highest gear (Overdrive) is disabled for better engine braking or towing.
82	Insufficient cleaning fluid	Low windshield washer fluid level.
85	Plus	Control button for increasing values like cruise control speed or audio volume.
86	Minus	Control button for decreasing values like cruise control speed or audio volume.
90	Tyre pressure low	TPMS alert; indicates one or more tires are significantly under-inflated.
98	Brake lights warning	Alternative code for a detected fault in the brake light circuit.
163	Open the exhaust	Control to open active exhaust valves for a louder engine note.
164	Close the exhaust	Control to close active exhaust valves for quieter, more efficient operation.
165	Right door not closed	Specific warning for the front or rear right passenger doors.
166	Left door not closed	Specific warning for the front or rear left passenger doors.
169	Convertible roof warning	Indicates the motorized roof is in operation or has a locking fault.
170	Bonnet open	Visual alert that the engine hood is not fully closed.
188	Parking assist	Indicates that proximity sensors or the automated parking system is active.
189	Insufficient cleaning fluid	Redundant indicator for low washer fluid.
190	Water in filter	Alerts that water has contaminated the fuel filter and must be drained immediately.
207	Sidelight information	Confirms that side marker or parking lights are switched on.
209	Catalytic converter warning	Warning for catalyst overheating or damage, which affects vehicle emissions.
214	ECO	Indicates the vehicle is in fuel-saving / economy mode.
216	Diesel particulate filter	DPF warning; the filter is full of soot and requires a high-speed driving cycle to clean.
217	Rain sensor	Status for the automatic rain-sensing wiper system.
218	Boot open	Signals that the rear trunk or tailgate is open.
219	Rear spoiler warning	Indicates a fault in the active aerodynamic spoiler/wing system.
220	Headlight range control	Status for the automatic leveling of the headlight beams.
221	Rain and light sensor	Indicates the combined sensor for auto-lights and auto-wipers is functioning.
222	Distance warning	Alerts the driver that they are following the vehicle ahead too closely.
224	Speed limiter	Indicates that a driver-set maximum speed limit is active.
230	Light failure	Generic warning for any exterior bulb failure.
233	Direction indicators	General status for turn signals.
234	Fault problem	A master fault indicator for various minor or major system errors.
243	Power steering warning	Indicates a failure in the power steering assistance system, making steering difficult.
244	Brake pad warning	Indicates that brake pads are worn down to their wear sensors and require replacement.
245	Information indicator	Indicates a new message or notification is available on the vehicle's dashboard display.
246	Frost warning	Alerts to low outdoor temperatures where black ice may form on the road.
247	Key not in vehicle	Flashes if the smart key is taken out of the vehicle while the engine is running.
248	Key fob battery low	Reminder to replace the battery in the remote keyless entry fob.
249	Steering lock warning	Indicates an issue with the electronic steering column lock mechanism.
250	Trailer tow hitch warning	Indicates a fault in the trailer hitch lock or electrical connection.
251	Air suspension warning	Indicates a fault in the vehicle's air bellows, compressor, or leveling system.
252	Lane departure warning	Visual alert for the system that monitors the vehicle staying within lane markings.
253	Service required	Maintenance reminder indicating the car is due for an oil change or inspection.
254	Adaptive lighting	Indicates the cornering lights or auto-high beams are active.
255	Airbag deactivated	Confirms the passenger side airbag is turned off, usually for a child seat.
256	Dirty air filter	Signals that the engine's air intake filter is clogged and needs cleaning/replacement.
257	Fuel filter warning	Indicates a blockage or service need in the fuel filtration system.
258	Suspension dampers	Shows the current setting (Sport/Comfort) or a fault in adjustable shock absorbers.
259	Auto windscreen wiping	Indicates the wipers will automatically activate when rain is detected.
260	Ignition switch warning	Indicates a fault in the ignition barrel or electronic starting system.
474	ROOFD LED	Indicator for roof-mounted auxiliary LED lights.
476	Front differential lock	Off-road feature that forces front wheels to turn at the same speed for grip.
477	Rear differential lock	Off-road feature that locks rear wheels together for improved traction.
512	Play and pause	Control for media playback functions.
517	Cycle	Toggles between different modes or repeat functions.
592	Left blind spot monitoring	Alerts the driver to a vehicle detected in the left blind spot area.
593	Right blind spot monitoring	Alerts the driver to a vehicle detected in the right blind spot area.
633	Door bell	Status for a call chime or external notification.
634	Engine start/stop	Indicates the status of the automatic engine shut-off feature used at stops.
637	Light error	General fault in the vehicle lighting circuitry.
650	Lightning	Warning for high voltage or fast-charging status.
651	LED LIGHT BAR	Control for auxiliary high-intensity off-road lighting.
652	REAR	General indicator for rear-facing accessories or functions.
653	ROCK LIGHTS	Indicates under-chassis lighting is on, used for night-time off-roading.
654	ROOF LED	Redundant indicator for roof-mounted lights.
657	Finger	Indicates touch sensor activity or biometric recognition.
658	SIDELIGHTS	Parking lights or position lamps status.
659	SPOT LIGHTS	Auxiliary high-beam spotlight indicator.
660-670	Numbers 0-9	Numerical indicators for presets, gears, or input codes.
663	Sasquatch lights	Specialized off-road lighting (common in Bronco Sasquatch packages).
669	Off	General status indicating a system is deactivated.
670	Next	Media or menu control to advance to the next item.
672	Glass heating function	Indicates defogging/defrosting for mirrors or windows is active.
678	Headlamp	General indicator for main headlights.
679	ACC	Adaptive Cruise Control or Accessory power mode.
683	STOP	Emergency stop or brake hold active.
686	Auto	Indicates a fully automatic operation mode for lights or climate.
693	Reset	Command to clear data or trip information.
696	Energy saving mode	Limits performance to extend range or battery life.
710	Seat ventilation	Indicates that the seat cooling fans are active.
712-715	Wheel eyebrow lights	Specific status for illumination markers located over each wheel arch.
716	Seat heating	Indicates that the electric seat warming elements are active.
720-723	Fuel filter drain	Critical maintenance alert to remove water/contaminants from fuel.

Rated Working Parameters

Rated Voltage	Customized (3V-380V available)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

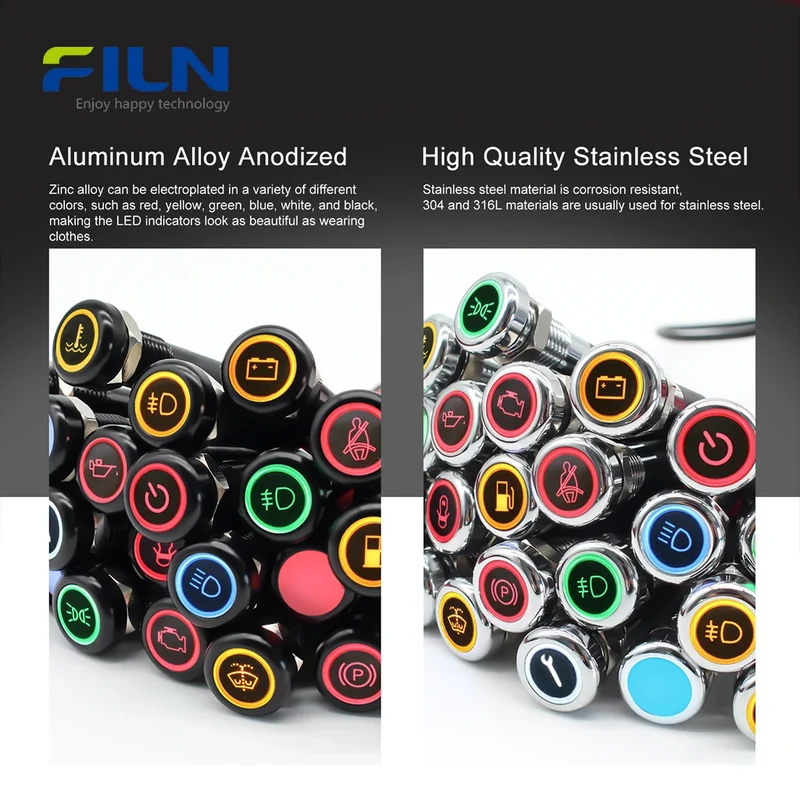

Housing	Nickel-plated Brass / Aluminum Alloy (Black)
Lens	Polycarbonate (PC)
Seal Ring	Silica Gel
Terminal	Copper Lead Wire
Wire Material	UL1007 22AWG (Standard)

General Characteristics

Operating Temperature	-40℃～80℃
Storage Temperature	-40℃～80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa
Waterproof Rating	IP67

Electric Property

Property	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability Characteristics

Continuous Working Life	30mA 1000h Test
Requirement	50,000 hours

Weather Performance

High Temperature	80℃ for 96h
Low Temperature	-40℃ for 96h
Moisture Resistance	40℃ 90-95%RH 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

• 185 Replaceable Symbols: Covering cars, yachts, and industrial icons.
• IP67 Waterproof: Perfect for marine and outdoor environments.
• Non-Polar LED: No need to distinguish positive and negative poles during wiring.
• Durable Housing: Choice of premium silver or black metal finishes.
• High Visibility: High-brightness LED beads in 5 vibrant colors.

Applications

• Custom Automotive Dashboards
• Marine and Yacht Control Systems
• CNC Machines and Automation Equipment
• Industrial Electrical Cabinets
• Medical Device Status Indicators

Installation Guide

1. Drill a mounting hole (8mm or 12mm) into your panel.
2. Insert the indicator light from the front and secure it with the provided nut.
3. Connect the lead wires to your power source (12V-24V) without worrying about polarity.
4. To add a symbol: Place a sticker on the light head, add the transparent cover, and press firmly.
5. Use the provided tool rod to pop the cover off if you need to replace the symbol later.

What Is a Dashboard Indicator Light?

A dashboard indicator light is a critical visual signaling device used to relay system status or warning messages to an operator. In industrial and automotive settings, these symbol indicator lights provide immediate feedback on engine health, safety protocols, or operational modes. By using standardized symbols (like oil pressure, battery status, or bilge pump activity), they ensure operators can respond quickly to changes, enhancing both safety and efficiency in complex environments like yacht helms or CNC control stations.

FILN Factory Direct Advantage

• ✓ Voltage Customization: Supports 3V to 380V.
• ✓ Wire Customization: Specific lengths and connectors available.
• ✓ Quick Shipping: Direct from our Wenzhou manufacturing facility.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q: Can these indicator lights be used in salt water?
A: Yes, with an IP67 rating and corrosion-resistant metal housing, they are ideal for marine applications.

Q: Are the symbols permanent?

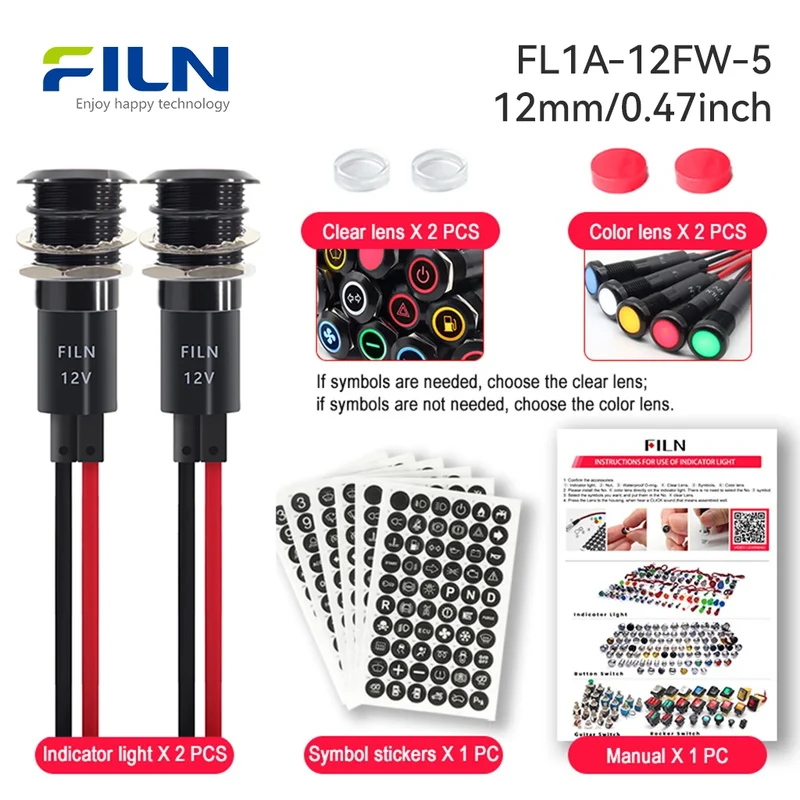

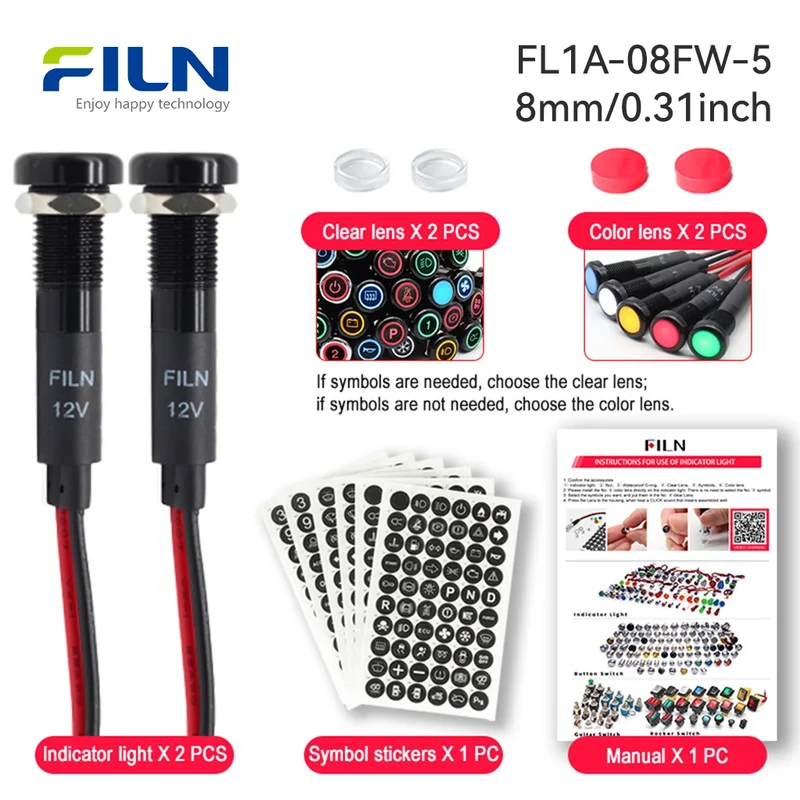

A: No, the 185 included symbols use a sticker system with a transparent cap, allowing for easy replacement over time.

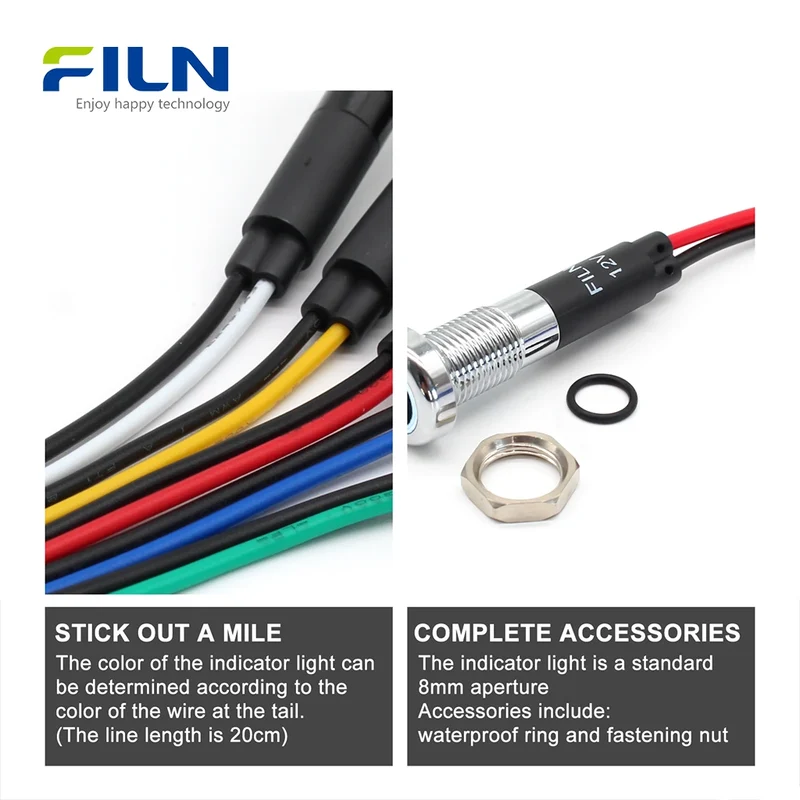

Q: Do I need to worry about polarity when wiring?
A: No, these LED lights are non-polar, making installation much simpler.
