Anbieter: 8MM Metal Indicator Light

DC Indicator Light 8MM Waterproof LED Signal Lamp for Control Panels FILN

1,31 €0,88 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

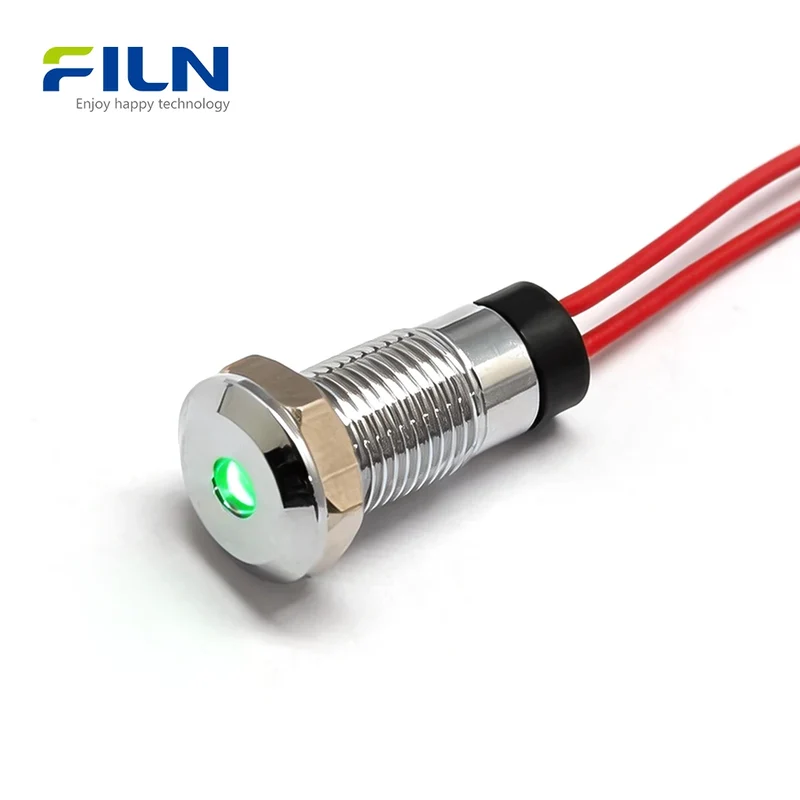

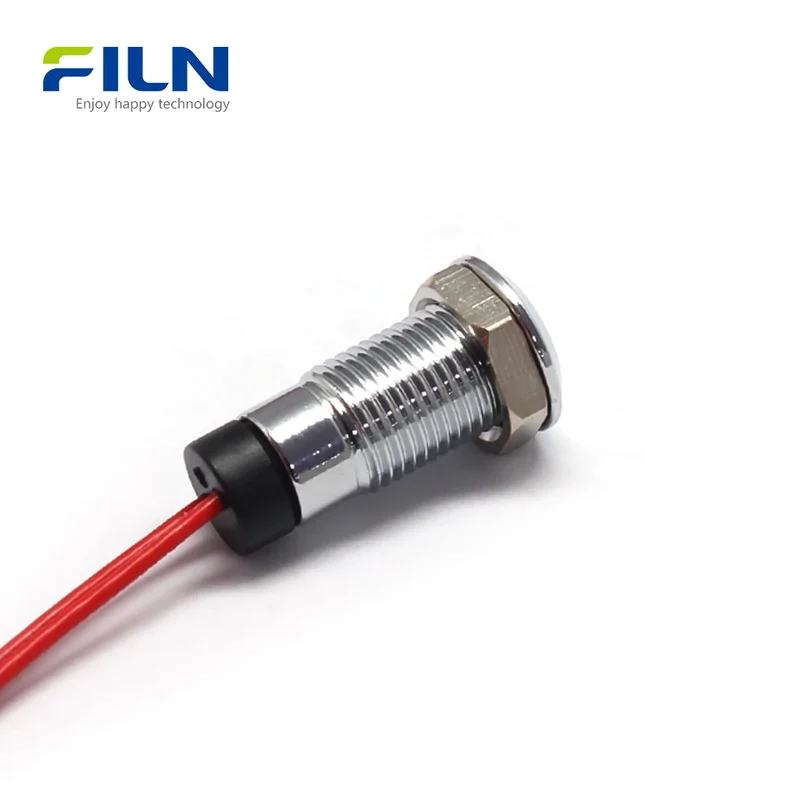

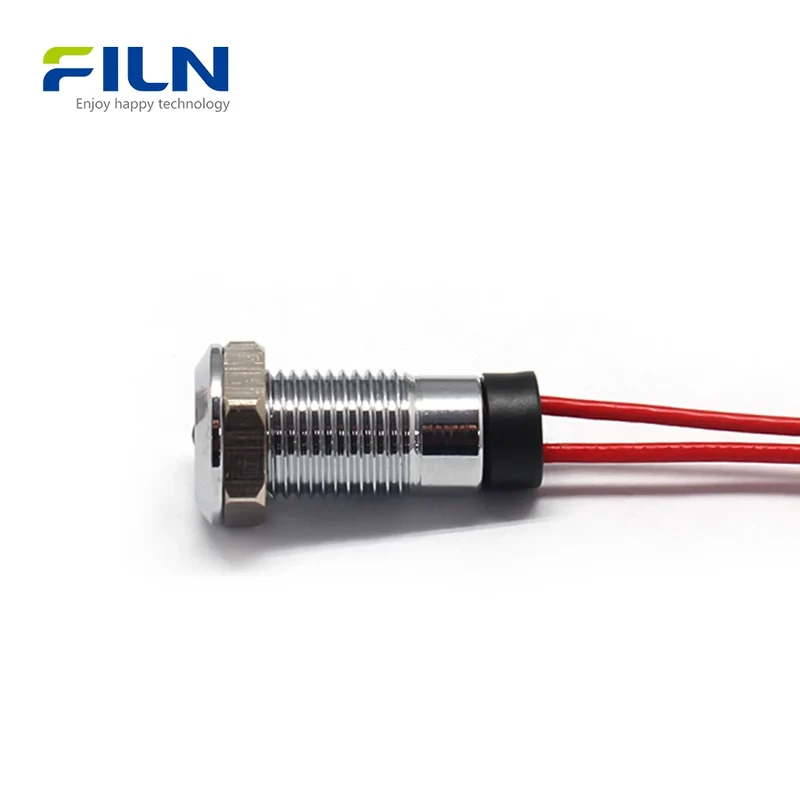

The FL1M-08DW-2 DC indicator light is a professional-grade 8mm metal flat head LED signal lamp designed for precision monitoring in industrial environments. This compact IP67 waterproof LED indicator features a space-saving design, making it significantly shorter than the DW-1 model and ideal for small-space installations. Engineered with a non-polar LED bead, it supports versatile voltages from 12V to 220V. Whether used in CNC machinery or electrical cabinets, this DC indicator light provides reliable, long-lasting status signaling with a sleek silver or black chrome finish.

Quick Specifications

Mounting Hole 8mm / 0.315 inch
Voltage 12-24V, 110-220V (Customizable)

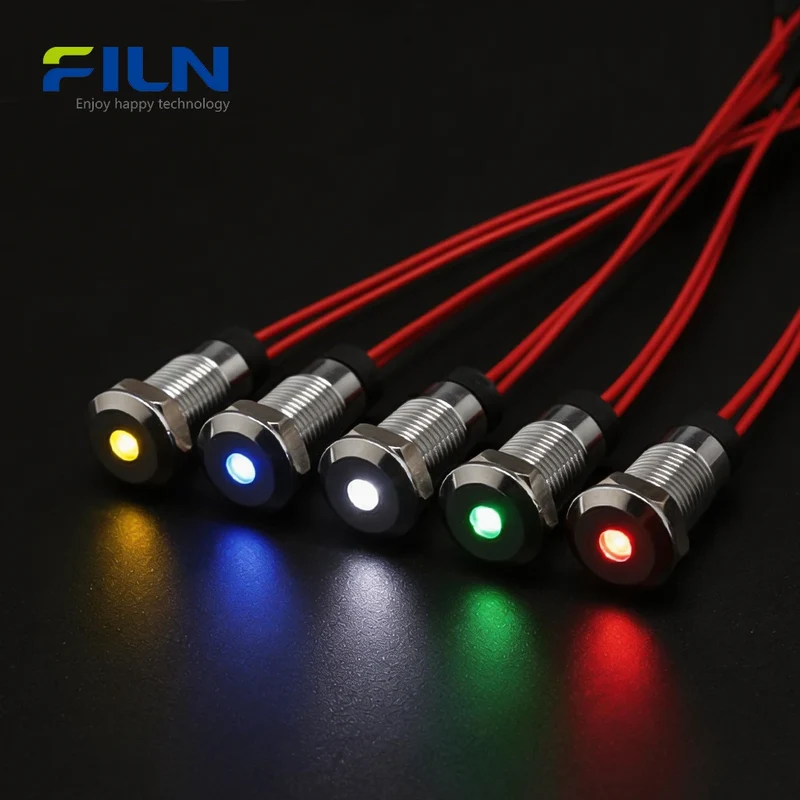

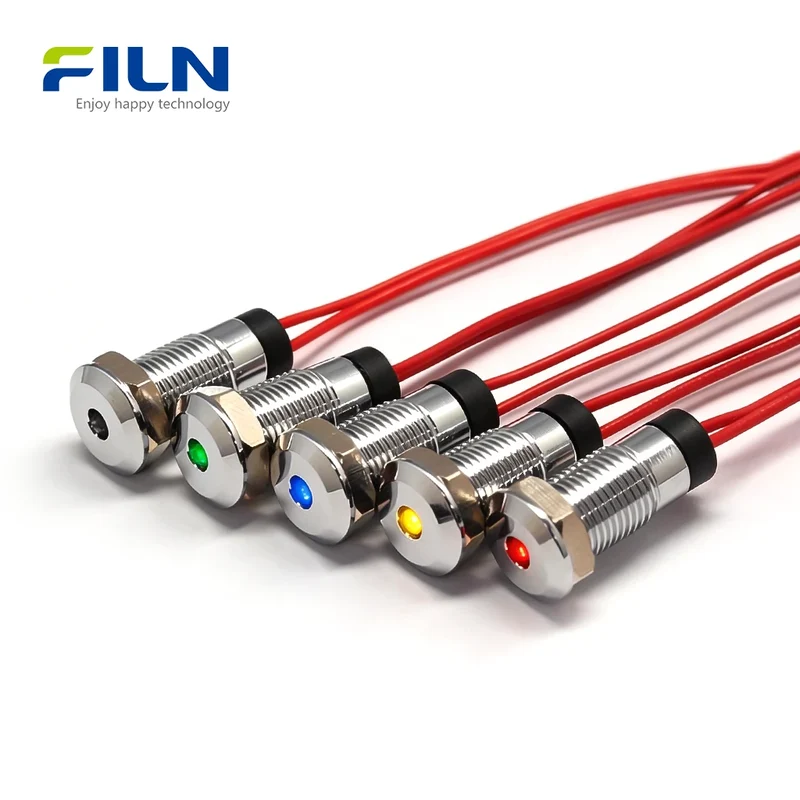

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours
Wiring Type Pre-wired Lead Type

Rated Working Parameters

Rated Voltage Customized DC/AC
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

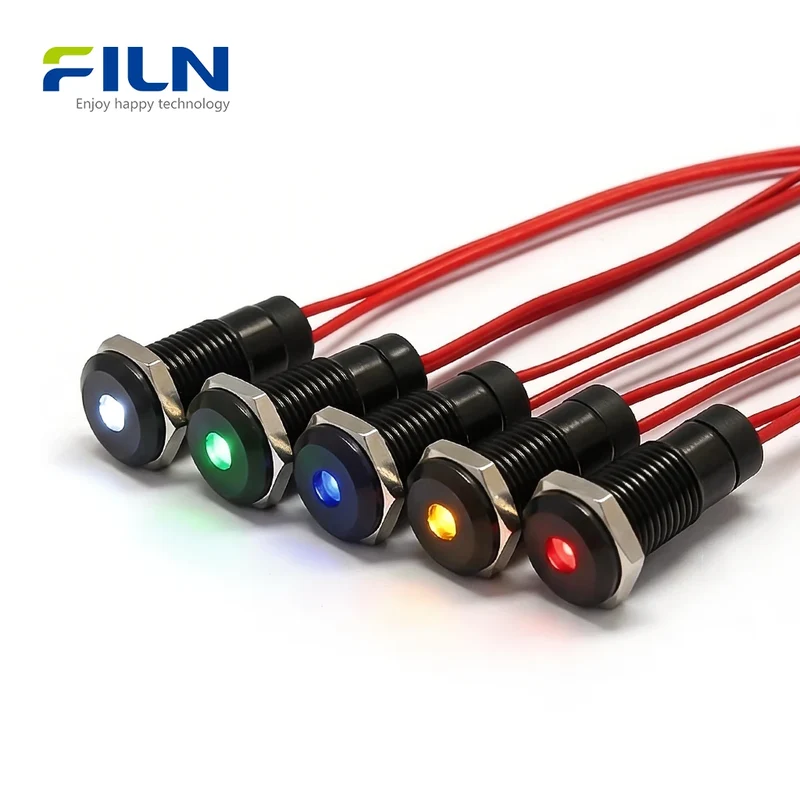

Housing Brass with Nickel or Black Chrome Plating
Lens Polycarbonate (PC)
Seal Ring Silicone (O-ring)
Terminal Copper
Wire Material PVC / UL Certified Wire

Key Features

  • Ultra-Compact Design: The DW-2 model is shorter than standard indicators, perfect for shallow enclosures.
  • Non-Polar Circuitry: LED beads operate without positive/negative polarity restrictions for faster wiring.
  • Industrial Durability: IP67 waterproof rating ensures protection against dust and water immersion.
  • High-Visibility Output: Features a small circular light-emitting hole on a flat metal head.

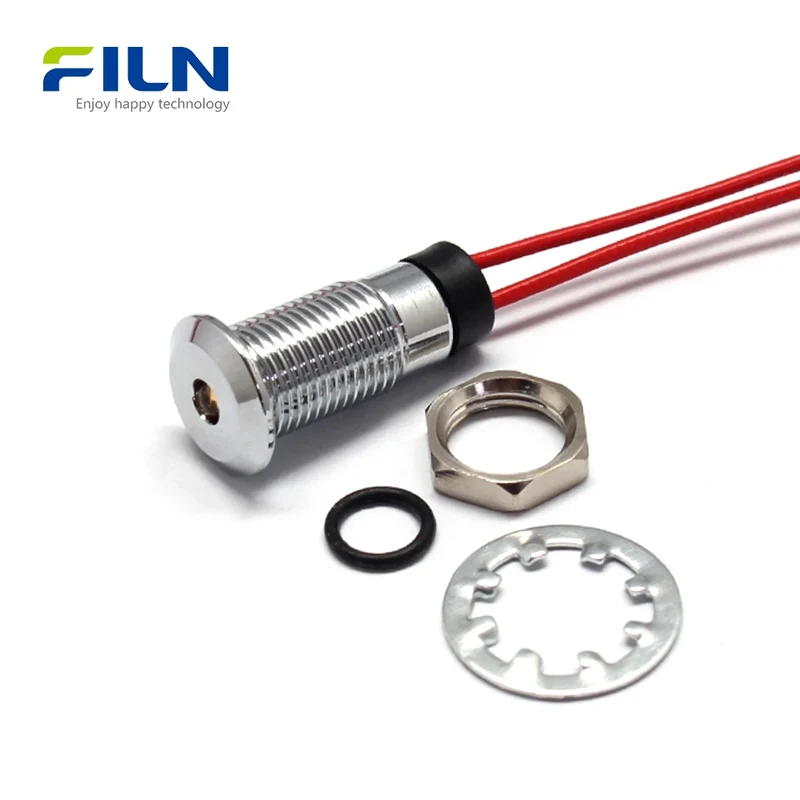

  • Premium Hardware: Includes smooth M8 threading, a dedicated nut, and a waterproof O-ring for secure mounting.

Installation Guide

  1. Drill an 8mm diameter hole in the control panel surface.
  2. Insert the indicator light through the top of the panel.
  3. Place the waterproof O-ring on the underside if required.
  4. Secure the light by tightening the M8 nut from the back of the panel.
  5. Connect the lead wires to your DC power source (non-polar).

What is a DC Indicator Light?

A DC indicator light is a critical visual signaling component used in industrial automation to represent the status of electrical circuits. Unlike traditional incandescent bulbs, these LED versions consume minimal power (≤20mA) and offer vastly superior lifespans. In modern B2B applications, the 8mm mounting size is a standard for space-efficient control panels. The FL1M-08DW-2 specifically addresses the need for small-space integration while maintaining high ingress protection (IP67), ensuring reliable operation in harsh environments like CNC machining or marine systems.

FILN Factory Direct Advantage

  • ✔ Factory Direct: Competitive B2B pricing and bulk supply.
  • ✔ Full Customization: Adjustable voltage, wire length, and connectors.
  • ✔ Global Logistics: Fast worldwide shipping from our Wenzhou facility.

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q: What is the difference between the DW-1 and DW-2 models?
A: The DW-2 model is designed with a shorter body length, making it ideal for shallow panels where space is limited.

Q: Does it matter which wire I connect to positive or negative?
A: No, our 8mm DC indicator light uses non-polar LED beads, allowing for easier and faster installation.

Q: Is this light suitable for outdoor use?
A: Yes, with an IP67 waterproof rating, it is protected against heavy rain and temporary immersion.
