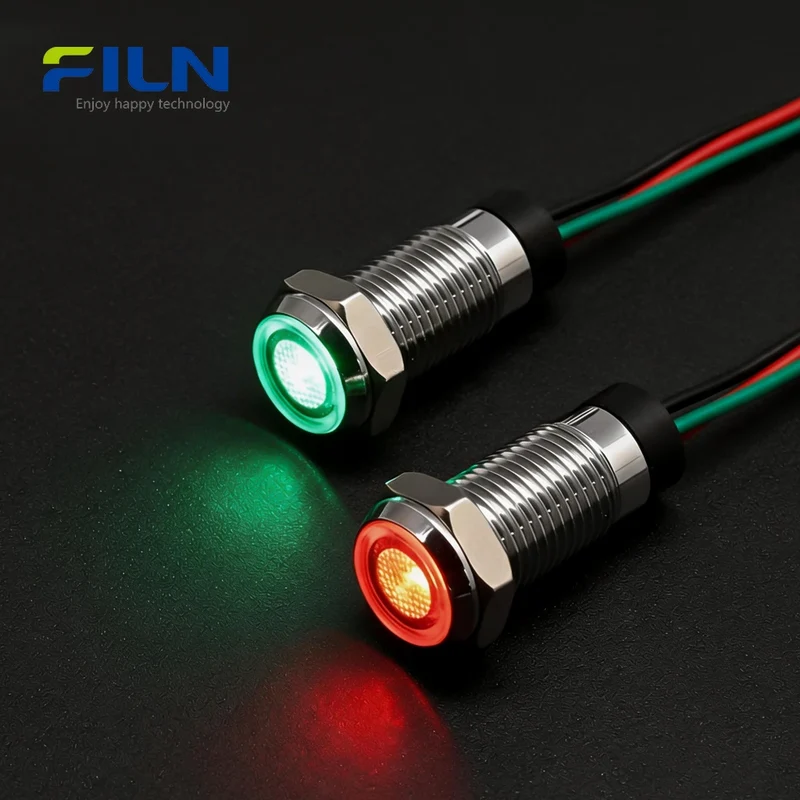

Dual-color Signal Lamp 8mm IP67 Flat Head LED for CNC Panel FILN

1,33 €0,71 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Note: The default wiring for the dual-color indicator lights is Common Cathode. If you require Common Anode, please leave a note or contact us.

Product Overview

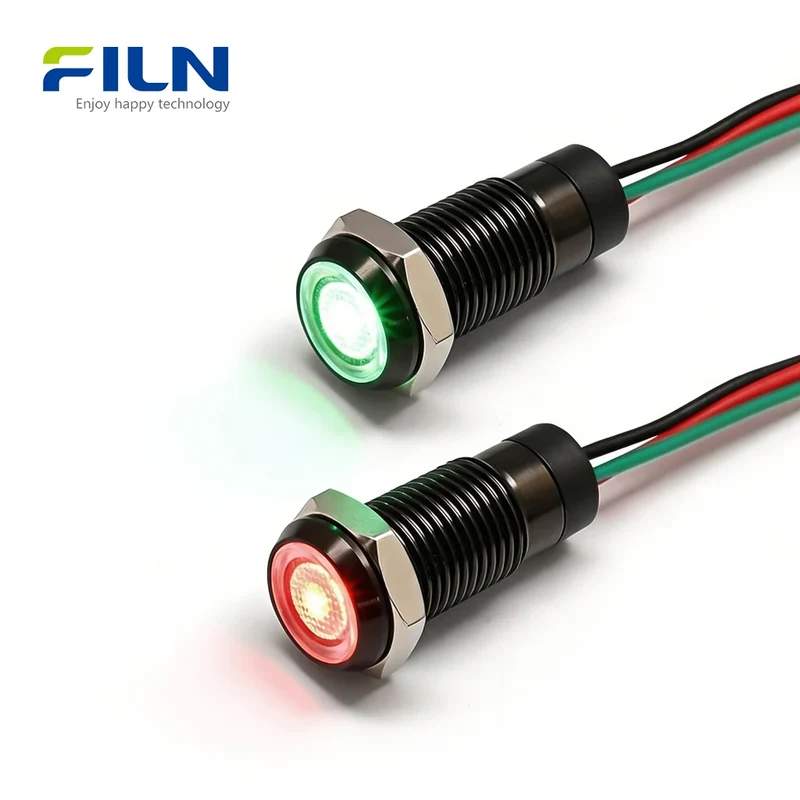

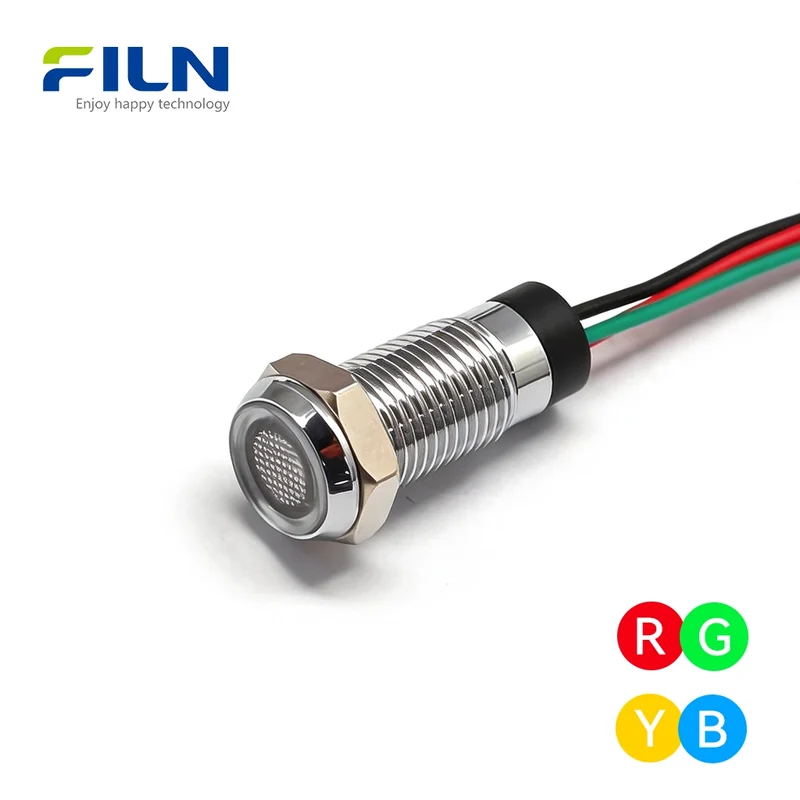

The Dual-color Signal Lamp (Model: FL1M-08FW-D-2) is a high-performance industrial indicator featuring a flat metal head and a compact 8mm mounting profile. Designed for versatile status signaling, it offers Red/Green, Yellow/Blue, and other dual-color combinations with both common cathode and common anode options. This IP67 waterproof lamp is pre-wired with 20cm leads for rapid integration into CNC machines, automation equipment, and electrical cabinets. Its durable metal housing, available in silver or black, ensures long-term reliability in harsh industrial environments.

Quick Specifications

Mounting Hole 8mm (0.31 inch)
Voltage 12-24V / 110-220V (Customizable)
LED Color Dual-color (Red, Green, Yellow, Blue, White)
Wiring Method Common cathode by default. Please leave a note or contact us if common anode is required.
Waterproof Rating IP65 / IP67

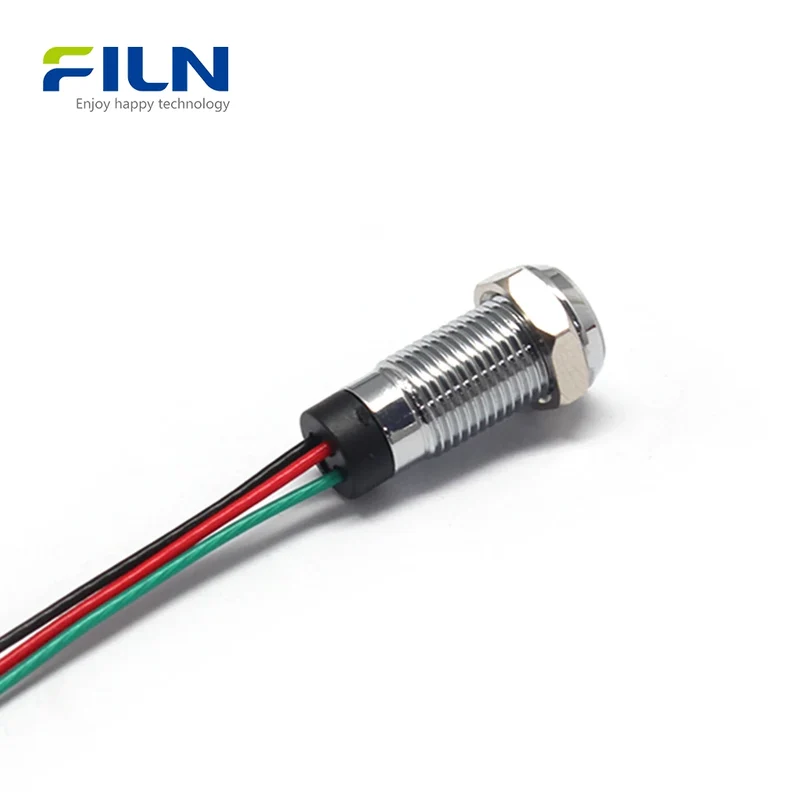

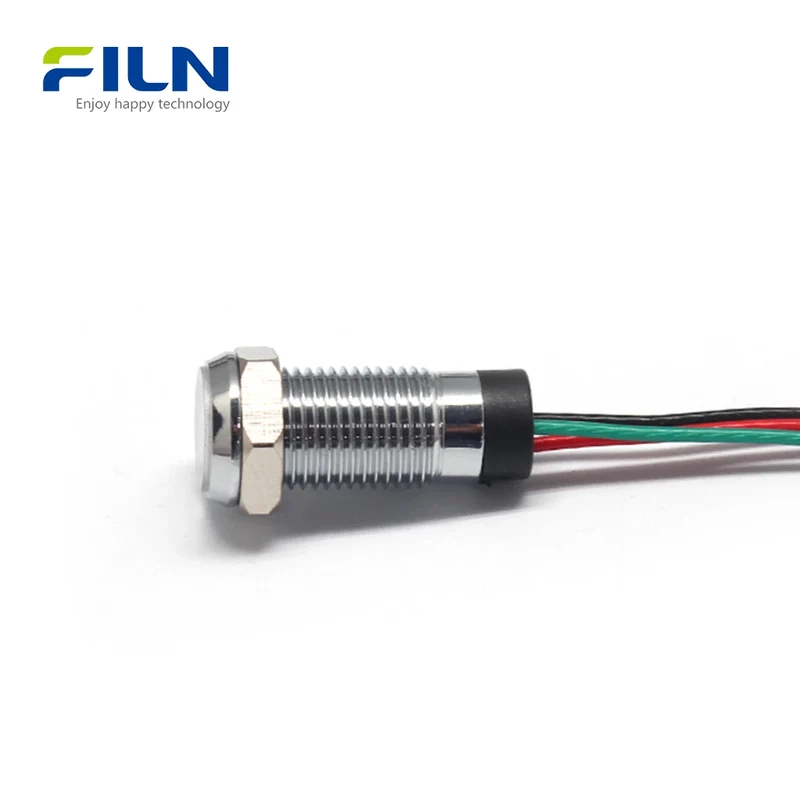

Wiring Type Pre-wired Lead (20cm length)
Lifespan 50,000 Hours

Rated Working Parameters

Rated Voltage Customized (12V-220V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Brass (Silver Chrome) or Black Aluminum
Lens Polycarbonate (Flat Head)
Seal Ring 8mm O-type Waterproof Ring
Wire Material 20cm PVC Insulated Copper Wire

General Characteristics

Application Industrial Signaling
Part Name FL1M-08FW-D-2
Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Key Features

  • Dual-color LED high brightness: Clear visual status in multiple colors within one compact unit.
  • Long lifespan: Industrial-grade components rated for up to 50,000 hours of continuous use.
  • IP67 waterproof: Fully sealed against dust and high-pressure water jets.
  • Pre-wired Convenience: 20cm wire leads offer faster, more flexible installation compared to pin terminals.
  • Industrial-grade reliability: Robust metal flat-head design available in silver or black finishes.

Applications

  • Industrial control panels and CNC machines
  • Automation equipment and robotics
  • Electrical cabinets and power distribution units
  • Marine signaling and boat dashboards
  • Medical diagnostic devices

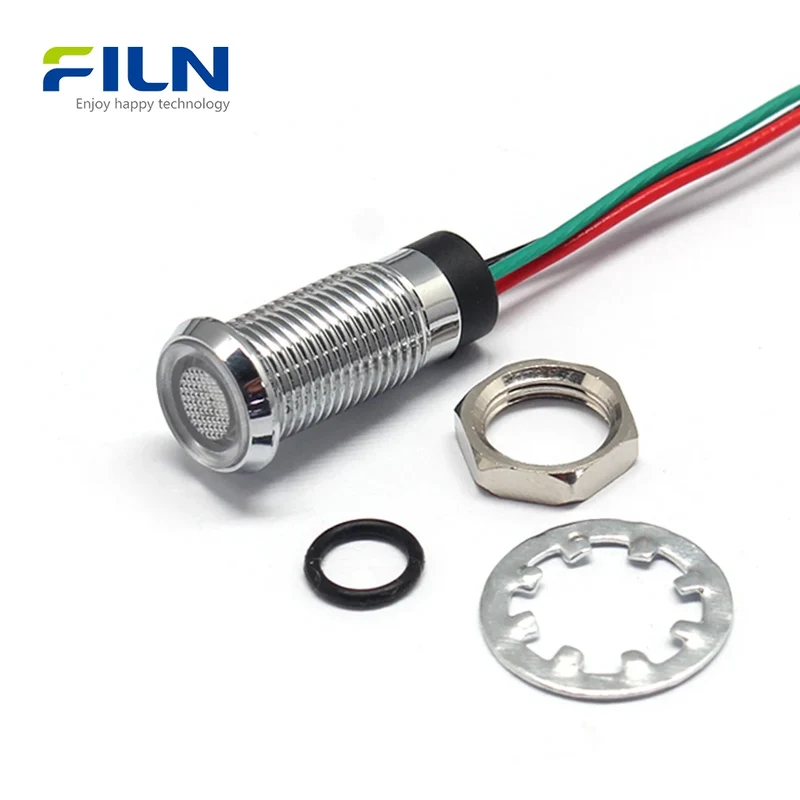

Installation Guide

  1. Drill an 8mm hole in the mounting panel at the desired location.
  2. Place the 8mm O-type waterproof ring onto the indicator body.
  3. Insert the indicator lamp from the front side (top) of the panel.
  4. Secure the lamp from the rear using the provided M8 nut.
  5. Connect the 20cm leads to your circuit (Common Cathode or Common Anode as specified).

What Is a Dual-color Signal Lamp?

A Dual-color Signal Lamp is an integrated signaling device that combines two different LED colors within a single mounting hole. This is essential for modern industrial design where space is limited, allowing one lamp to represent two distinct states—such as Red for an error and Green for normal operation. Pre-wired indicators offer a significant advantage over pin terminals: they eliminate the need for manual soldering on-site, providing a more vibration-resistant connection and significantly reducing assembly time for high-volume equipment manufacturers.

FILN Factory Direct Supply

As a leading manufacturer of electrical components, FILN offers direct factory advantages:

  • Voltage Customization: Tailored solutions from 3V to 380V.
  • Lead Length & Connector Options: Custom wire lengths and integrated connectors available.
  • Fast Global Shipping: Efficient logistics support for international industrial buyers.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q: What is the difference between pre-wired leads and pin terminals?

Pre-wired leads come with 20cm wires already attached, making connection fast and vibration-resistant. Pin terminals require soldering or crimping by the installer.

Q: Is this 8mm dual-color indicator available in common anode?

Yes, we offer both common cathode and common anode configurations to match your control circuit requirements.

Q: Can the wire length be customized?

Yes, while the standard length is 20cm, as a factory, we can customize wire lengths and connectors for bulk orders.
