Anbieter: 8MM Metal Indicator Light

Equipment Panel Indicator 8MM 12V 24V 220V IP67 LED for Industrial CNC FILN

1,48 €0,76 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

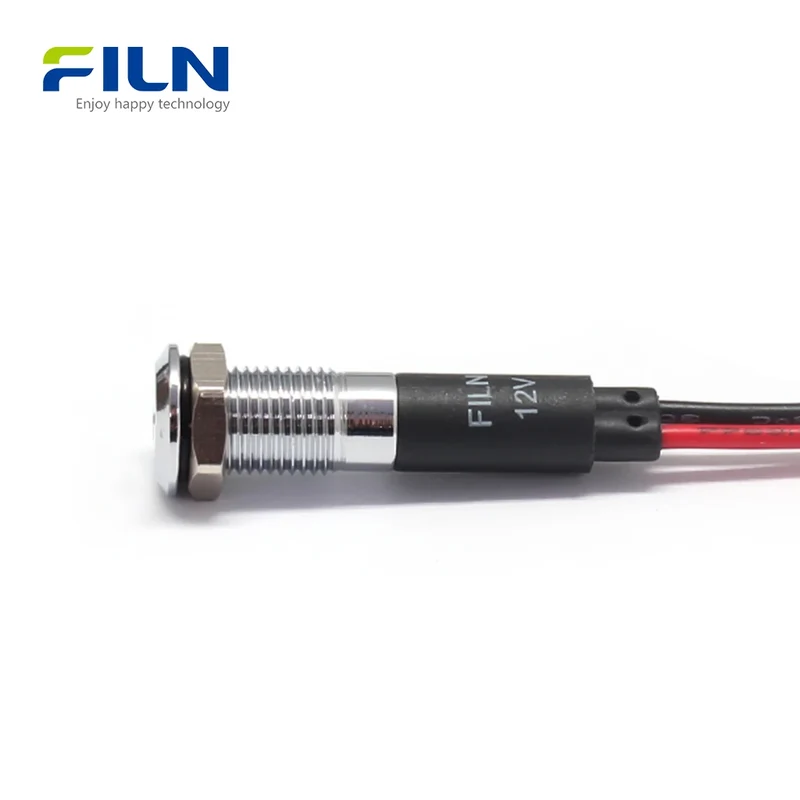

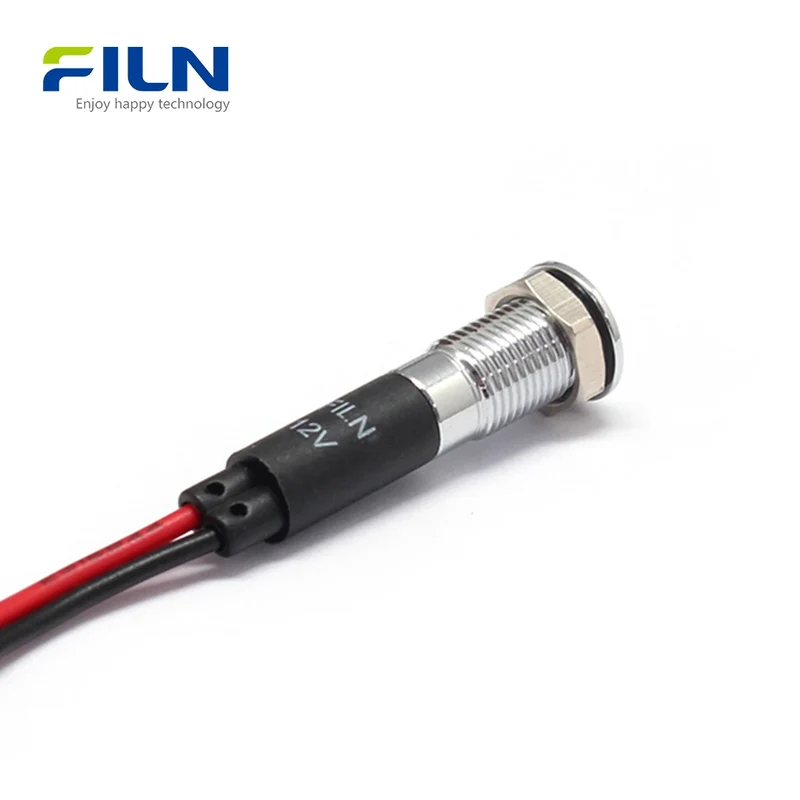

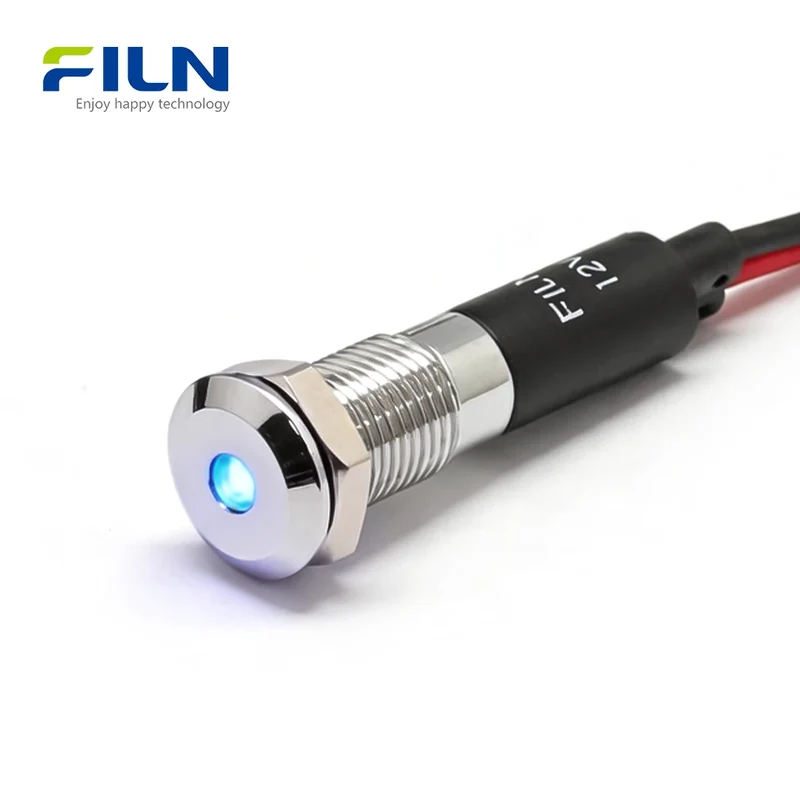

The Equipment Panel Indicator (Model: FL1M-08DW-1) is a high-performance 8mm metal flat-head LED signal lamp designed for demanding industrial environments. Featuring a pre-wired lead design and an IP67 waterproof rating, this indicator provides reliable visual feedback for CNC machines, automation equipment, and electrical cabinets. Its unique small circular light-emitting surface ensures precise status signaling without excessive glare. Available in Red, Green, Yellow, Blue, and White, it supports universal voltages from 12V to 220V, making it a versatile choice for global industrial applications.

Quick Specifications

Mounting Hole 8mm / 0.31 inch
Voltage 12V, 24V, 110V, 220V (Customizable)

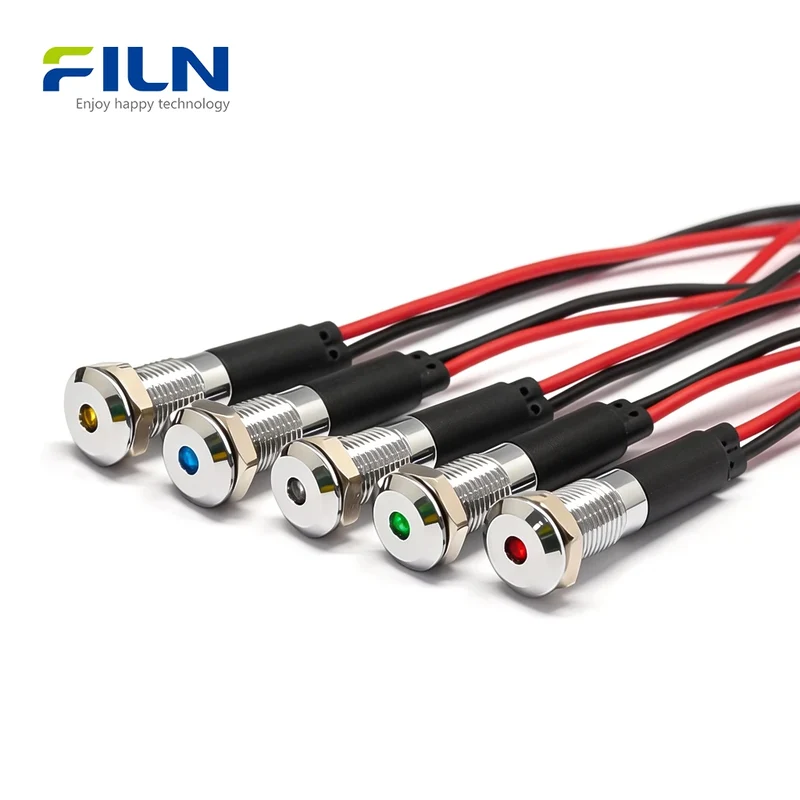

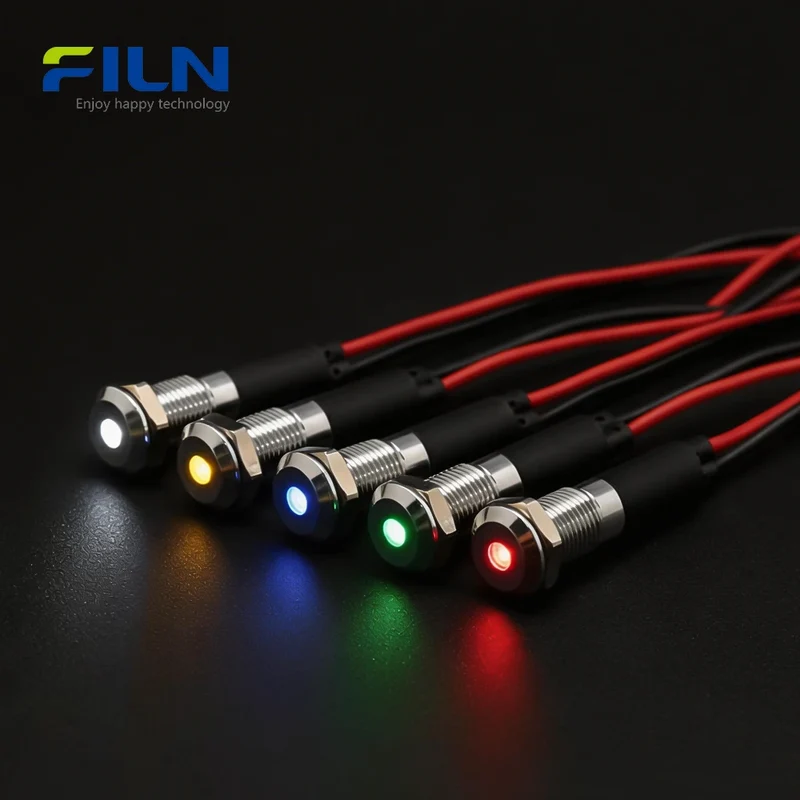

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours
Wiring Type Wire Lead Type

Rated Working Parameters

Rated Voltage 12-220V (Customized)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Nickel-plated Brass / Stainless Steel (Silver or Black)
Lens Polycarbonate (PC)
Seal Ring Silicone Rubber (O-ring)
Wire Material UL Standard Copper Wire

General Characteristics

Part Name Equipment Panel Indicator
Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Parameter Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Key Features

  • High Brightness LED: Concentrated light through a small circular aperture for clear signaling.

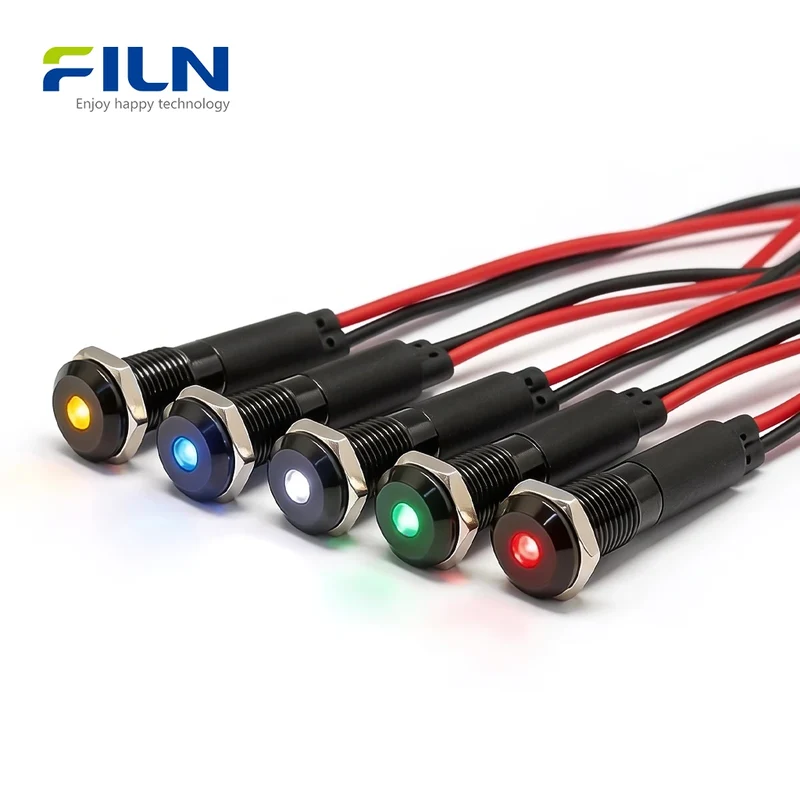

  • Dual Color Housing: Available in sleek silver or professional black finishes.
  • IP67 Waterproofing: Includes a premium O-ring to prevent dust and water ingress.
  • Non-Polarized LED: Easy wiring as the LED beads are not restricted by positive/negative polarity.
  • Robust Durability: Industrial-grade lifespan exceeding 50,000 hours.

Applications

  • Industrial control panels and distribution boards
  • High-precision CNC machines and lathes
  • Automated assembly line status monitoring
  • Marine and outdoor equipment signaling
  • Medical diagnostic devices and power indicators

Installation Guide

  1. Drill an 8mm diameter hole in the equipment panel.
  2. Insert the Equipment Panel Indicator from the front of the panel.
  3. Slide the M8 nut and waterproof O-ring onto the indicator body from the back.
  4. Tighten the nut securely to ensure a waterproof seal against the panel.
  5. Connect the wire leads to your power source (non-polarized design allows for flexible connection).

What Is an Equipment Panel Indicator?

An Equipment Panel Indicator is a specialized LED signal light used to provide real-time status updates on industrial control interfaces. Unlike standard indicators, these metal-housed lights are built for "set and forget" reliability. The FL1M-08DW-1 model features pre-wired leads, which offer significant advantages over pin-type terminals in vibration-heavy environments like CNC machines, as they eliminate the risk of loose connections or soldering failures during installation. Its small light-emitting surface is specifically designed for high-density control panels where precise, non-distracting status identification is critical.

FILN Factory Direct Supply

As a professional manufacturer with over 180 employees, FILN provides high-quality industrial components directly from our Wenzhou facility.

  • Custom Voltage: 3V to 380V support.
  • Customization: Specialized wire lengths and connectors available.
  • Fast Shipping: Global logistics with UPS/FedEx/DHL support.

Website: www.filn.com
Email: [email protected]

Frequently Asked Questions

1. Can I use this indicator with AC and DC power?
Yes, the LED is non-polarized and works with both AC and DC voltages.

2. Is the 8mm size standard for most panels?
Yes, 8mm is a standard industrial mounting size for compact control panels.

3. Can FILN customize the wire length?
Absolutely. We offer customization for lead lengths to fit your specific cabinet layout.

4. What is the difference between silver and black housing?
The silver is nickel-plated brass, while black is usually an anodized or oxidized finish; both offer high durability.

5. Is this indicator waterproof enough for outdoor use?
With an IP67 rating and the included O-ring, it is fully protected against rain and temporary immersion.

6. What is the lifespan of the FL1M-08DW-1?
It is rated for over 50,000 hours of continuous operation.

7. How do I wire this equipment panel indicator?
Since the LED is non-polarized, simply connect the two wires to your power circuit.

8. Do you provide 110V versions for the US market?
Yes, we support 110V and 220V for international power standards.

9. Is the LED brightness adjustable?
Brightness is fixed based on voltage, but we can customize the internal resistance for your required luminosity.

10. Does it come with mounting hardware?

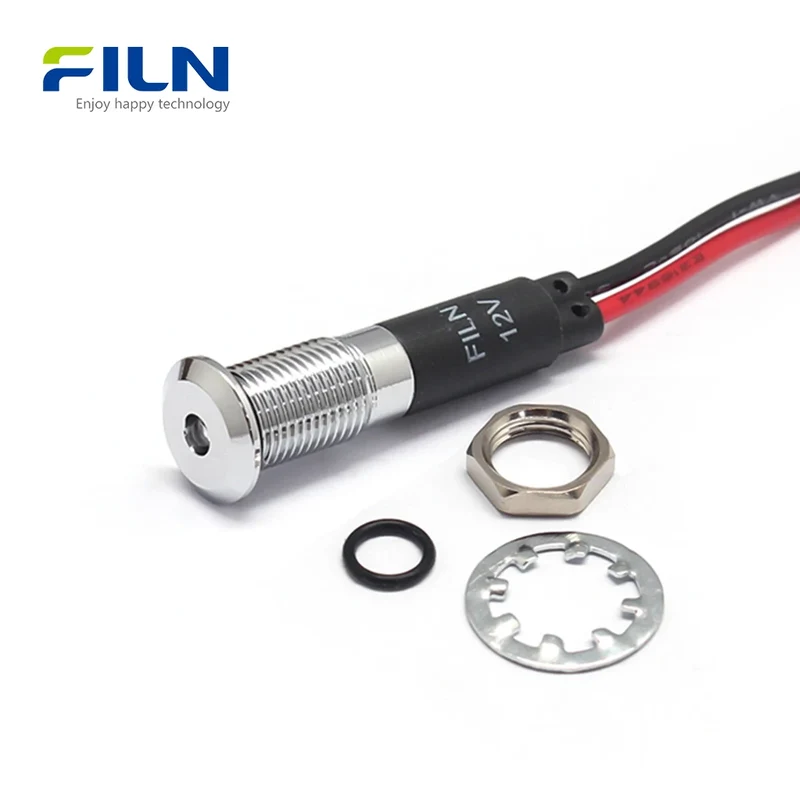

Each indicator includes one M8 nut and one waterproof O-ring for immediate installation.
