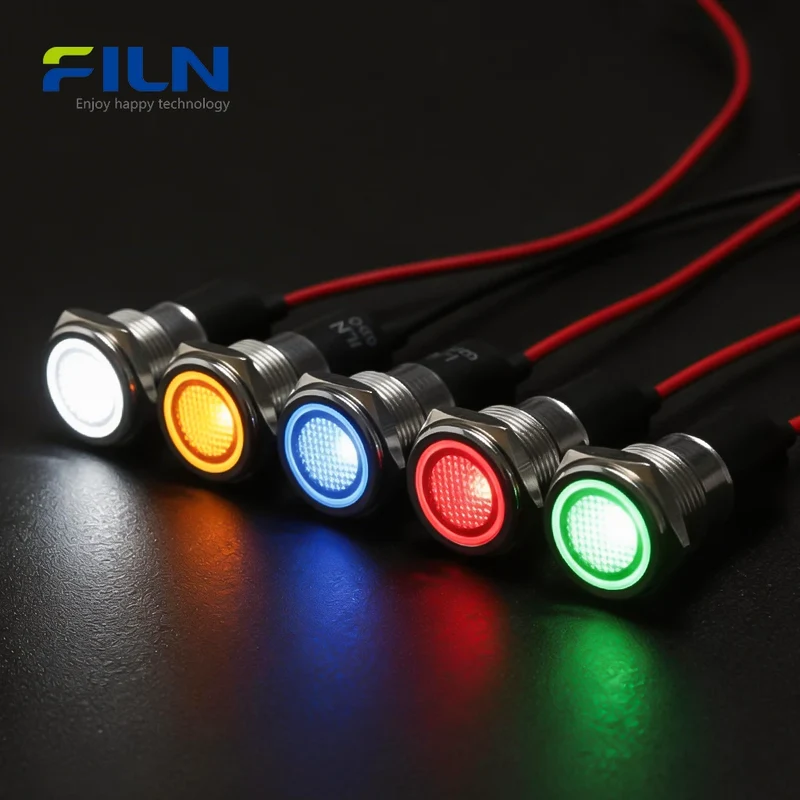

FL1N 16MM LED Metal indicator light Metal LED Pilot Panel Dash Signal Indicator Warning light 20cm cable Chrome Finish Car Boat Marine

Beschreibung

Product Overview

The Panel Indicator Light (Model: FL1M-16FW-1) by FILN is a premium 16mm metal flat head LED indicator designed for high-performance industrial signaling. This versatile light supports a wide voltage range from 12V-24V to 110V-220V, featuring ultra-bright LEDs in Red, Green, Yellow, Blue, and White. With global certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP67, it ensures "industrial-grade reliability". Ideally suited for industrial control panels, CNC machines, and marine systems, this IP67 waterproof light offers superior durability in harsh environments. As a professional manufacturer, FILN provides customization for wire length, voltage, and connectors to meet specific B2B procurement needs.

Quick Specifications

Mounting Hole	16mm / 0.63 inch
Voltage	12V, 24V, 110V, 220V (Customizable)

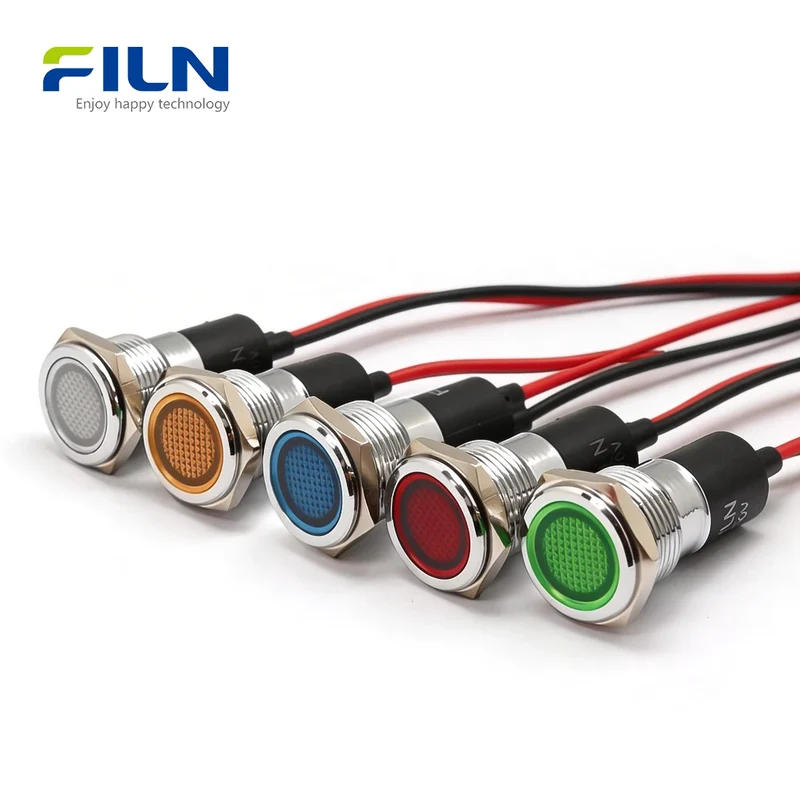

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Operating Temperature	-40℃ to +80℃

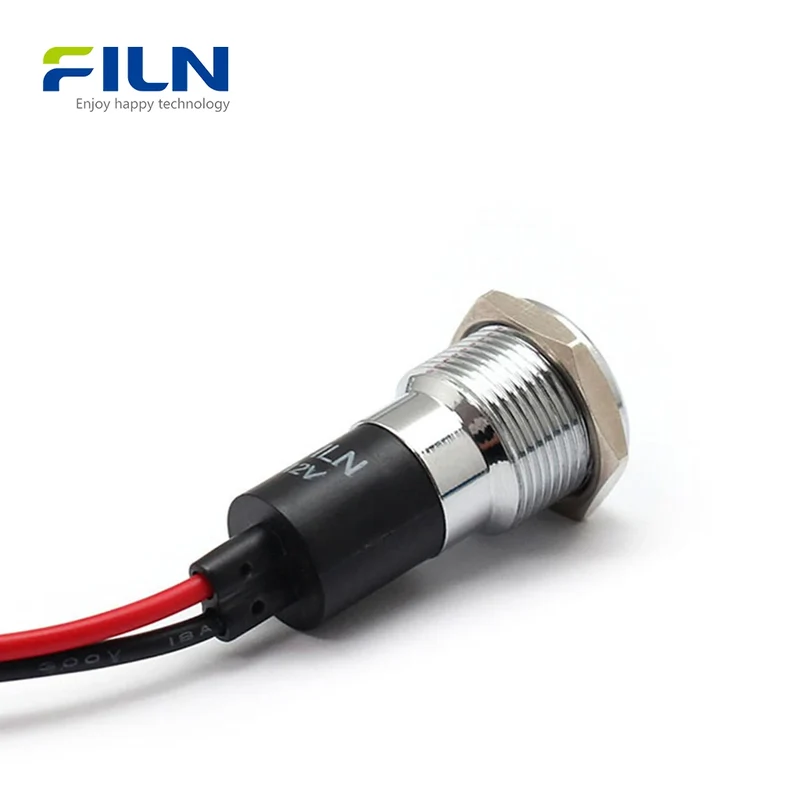

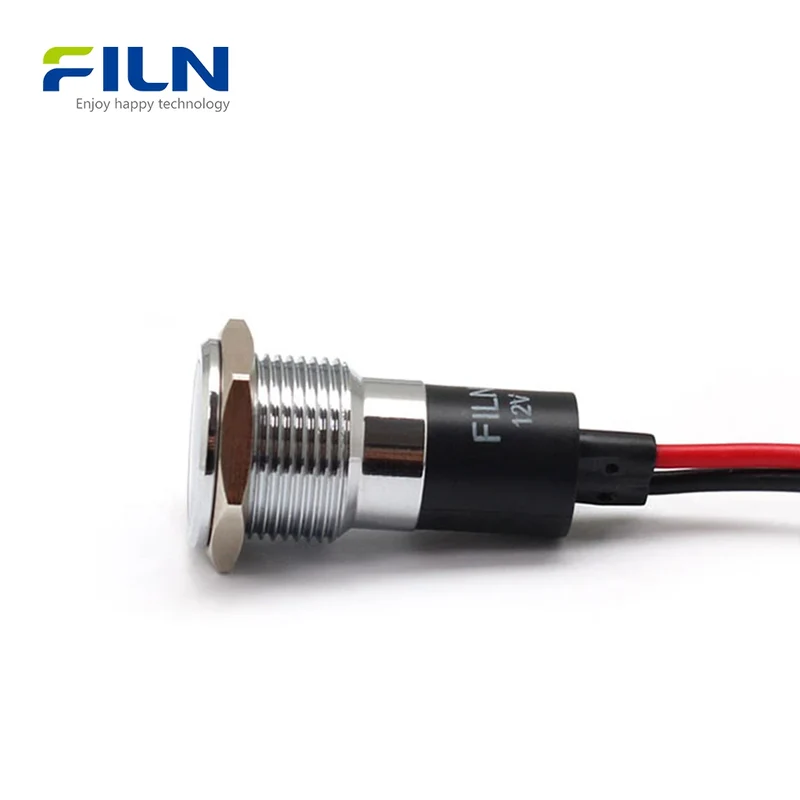

Wiring Type	Wire Lead Type (15cm Standard)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Material List

Component Name	Material	Note
Shell	Copper Alloy	Nickel/Chrome plated for corrosion resistance
Lamp Holder	PA66 Nylon	High strength, temperature resistance
Lampshade	PC Polycarbonate	High impact resistance & transparency
Light Source	LED	Long lifespan, low energy consumption
Seal Ring	Silica Gel	IP67 waterproof protection

Rated Working Parameters

Rated Voltage	Customized (3V-380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

General Characteristics

Operating Temperature	-40℃～80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa
Waterproof Rating	IP67

Technical Durability

Insulation Resistance	≥100MΩ (DC500V 1min)
Dielectric Strength	1500VAC / 5mA / 60s (No Flashover)
Continuous Working Life	50,000 hours (Test: 30mA 1000h)

Weather Resistance

High Temperature	80℃ for 96h
Low Temperature	-40℃ for 96h [cite: 4]
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 Rounds)

Key Features

Ultra-High Brightness: Premium LED beads ensure clear visibility even in daylight.

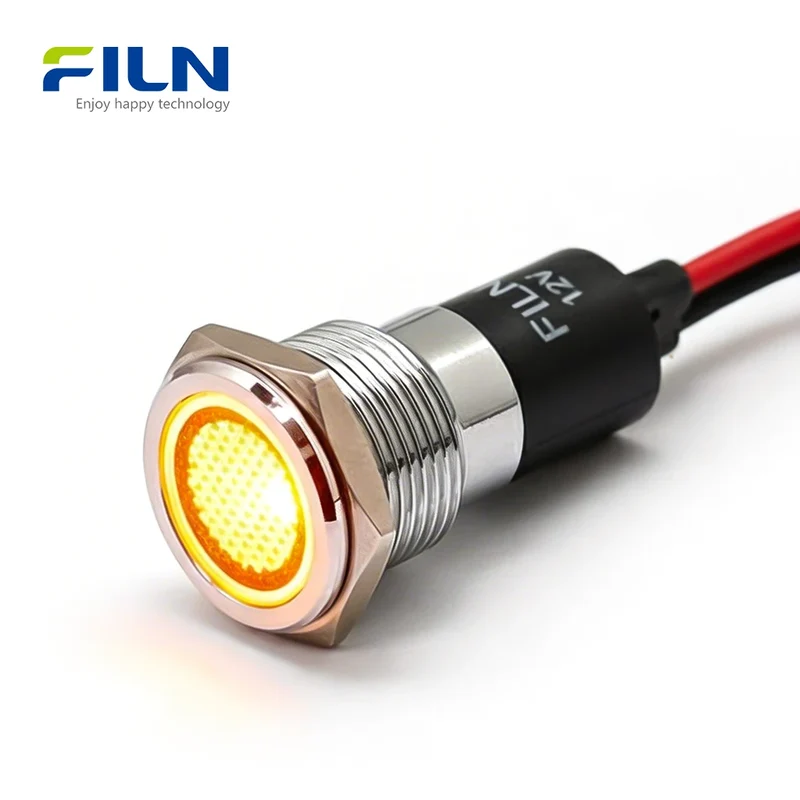

Flat Head Design: Aesthetic "Metal Flat Head" offers a sleek profile and easy cleaning for medical and food equipment.
Pre-Wired Advantage: Comes with 15cm wire leads for instant connection, far more efficient than the FL1M-16FJ-1 pin type.
Industrial Durability: IP67 waterproof with an O-ring and stainless steel gasket included.

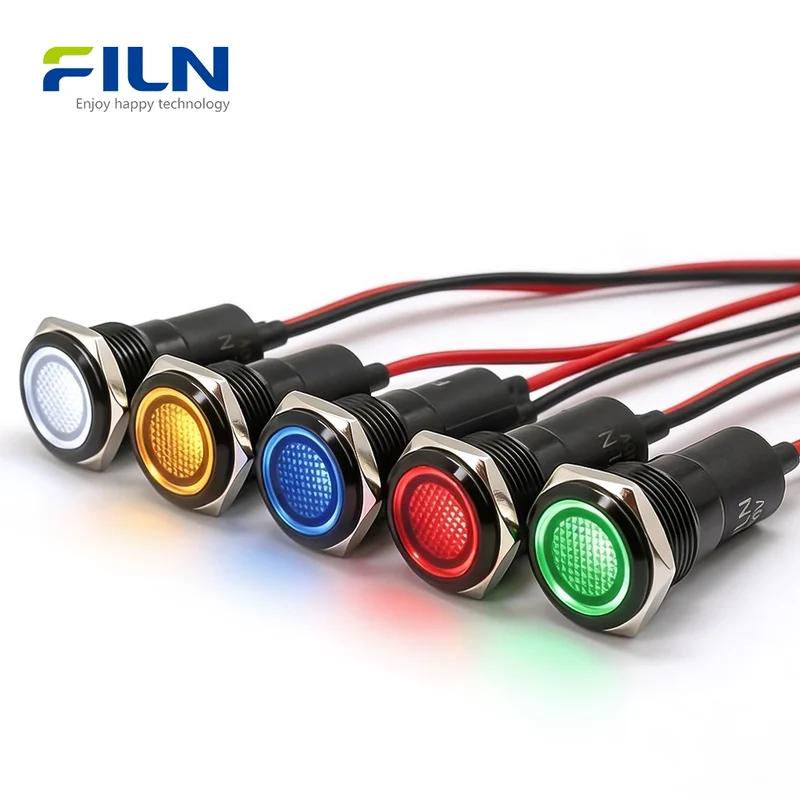

Diverse Finishes: Available in Silver (Chrome) and Black anodized shells to match your equipment.

Industrial Applications

Industrial control panels & Distribution cabinets
CNC machines & Automation equipment
Marine and Ship navigation systems
Medical diagnostic devices
Kitchen and Commercial appliances

Installation Guide

Drill a 16mm (M16) hole in the panel.
Insert the indicator light from the front of the panel.
Slide the O-ring onto the thread from the back for IP67 sealing.
Tighten the M16 nut to secure the housing.
Connect the 15cm wire leads to your power source.

What Is a Panel Indicator Light?

A Panel Indicator Light is a critical visual signaling component used to convey the operational status of machinery. Whether it is a "Run" signal (Green), "Fault" alarm (Red), or "Ready" state (White), these lights are essential for operator safety and efficiency. The FL1M-16FW-1 series is specifically valued for its metal shell, providing superior impact resistance and EMI shielding compared to plastic alternatives.

Factory Direct Supply & Customization

FILN is a direct manufacturer with over 20 years of expertise in signal lights. We offer:

Voltage Customization: 3V to 380V options.
Wire Tailoring: Custom wire lengths and various connector terminations.
Global Shipping: Fast logistics to USA, Europe, and Southeast Asia.

Official Website: www.filn.com

Contact Us: [email protected]

Frequently Asked Questions

1. What is the difference between FL1M-16FW-1 and FL1M-16FJ-1?
The FW-1 features 15cm pre-wired leads for easy installation, while the FJ-1 uses soldering pin terminals.

2. Can I use this indicator light for outdoor 220V systems?
Yes, it is IP67 waterproof and supports 220V AC.

3. Does the shell come in different colors?
We offer Silver (Nickel-plated) and Black Anodized finishes.

4. Are these lights UL certified?
Yes, FILN indicator lights carry UL, CE, and RoHS certifications.

5. What is the lifespan of the LED?
Our industrial-grade LEDs are rated for 50,000 hours of continuous use.

6. Can you customize a 30cm wire?
Absolutely. We specialize in custom wire lengths and connectors.

7. Is the flat head design better than a high head?
Flat heads are easier to clean and less prone to accidental impact damage.

8. What size hole is needed?
This model requires a standard 16mm (M16) mounting hole.

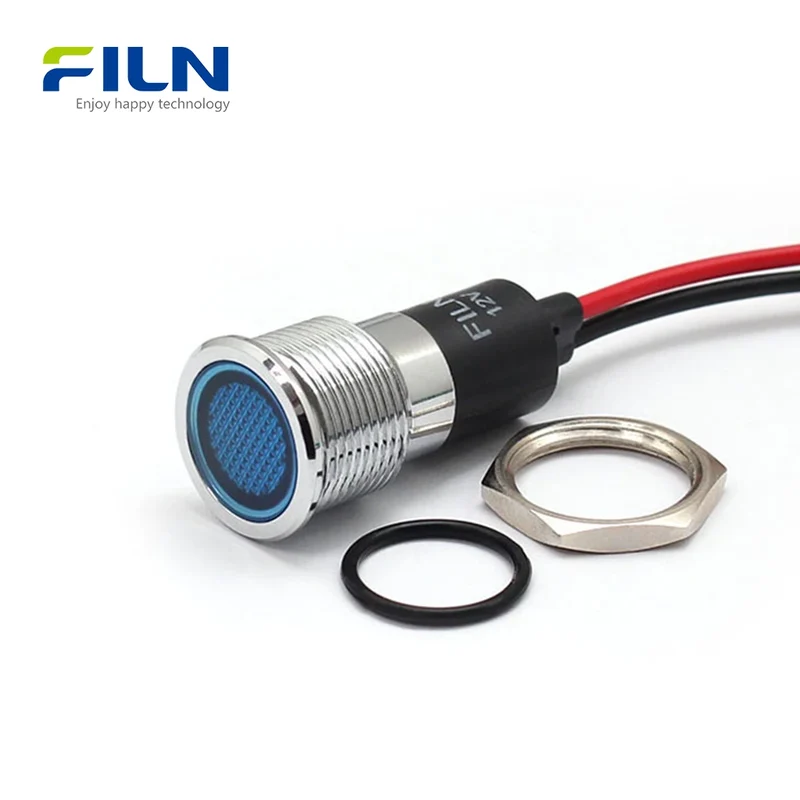

9. Is the nut and O-ring included?
Yes, every unit comes with a silicone O-ring and a copper/stainless steel nut.

10. Do you support small batch customization?
As a factory, we support both high-volume OEM orders and small-batch custom samples.
