Indicating Lights 22mm Metal Flat Head 2-Pin Terminal 12V 220V FILN

Beschreibung

Product Overview

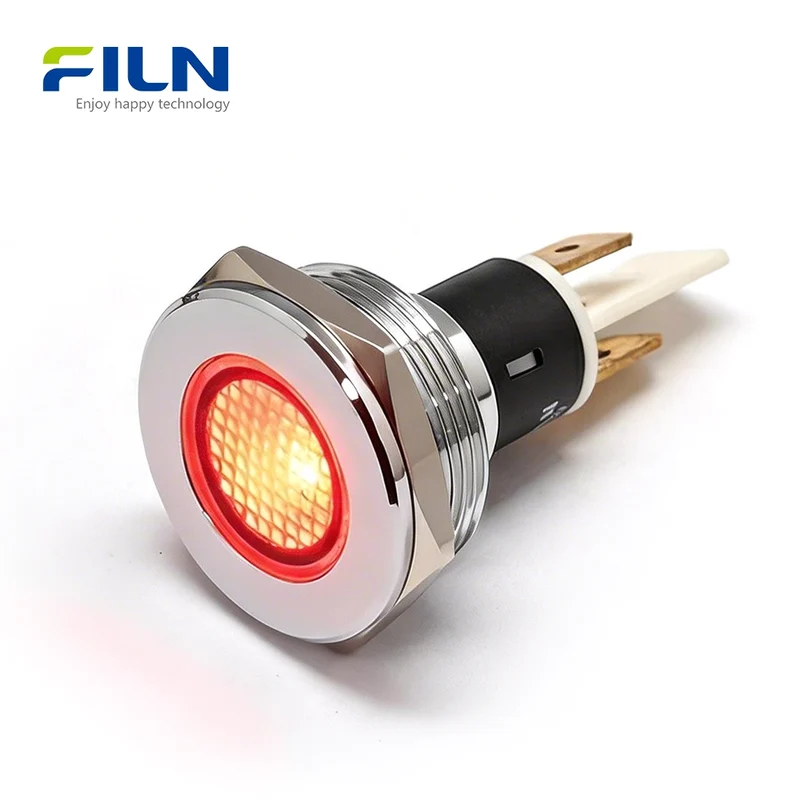

The indicating lights (Model: FL1M-22FJ-2) produced by FILN are high-performance visual signaling components for industrial applications. These 22mm large-diameter indicating lights feature a sleek flat head design, providing a flush aesthetic and preventing accidental damage from side impacts. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, they are built to withstand harsh environments. Supporting a wide voltage range from 12-24V to 110-220V (customizable), these lights utilize a 2-pin terminal system for rapid installation. Whether for CNC machinery, automation lines, or electrical cabinets, these metal-housed lights offer exceptional durability and over 50,000 hours of service life.

Quick Specifications

Mounting Hole	22mm (0.87 inch)
Voltage	12V, 24V, 110V, 220V (Customizable)

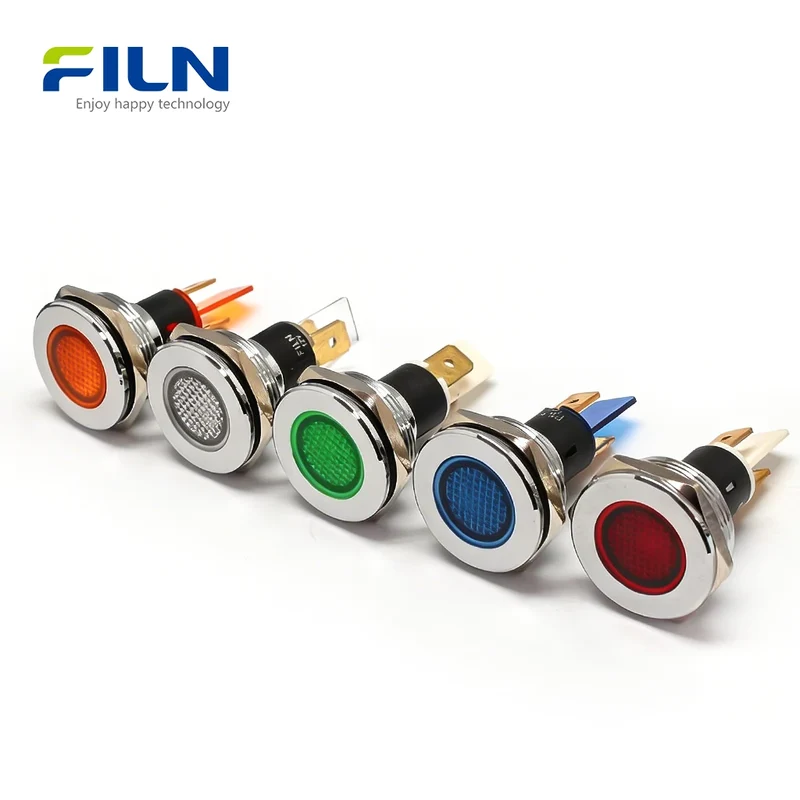

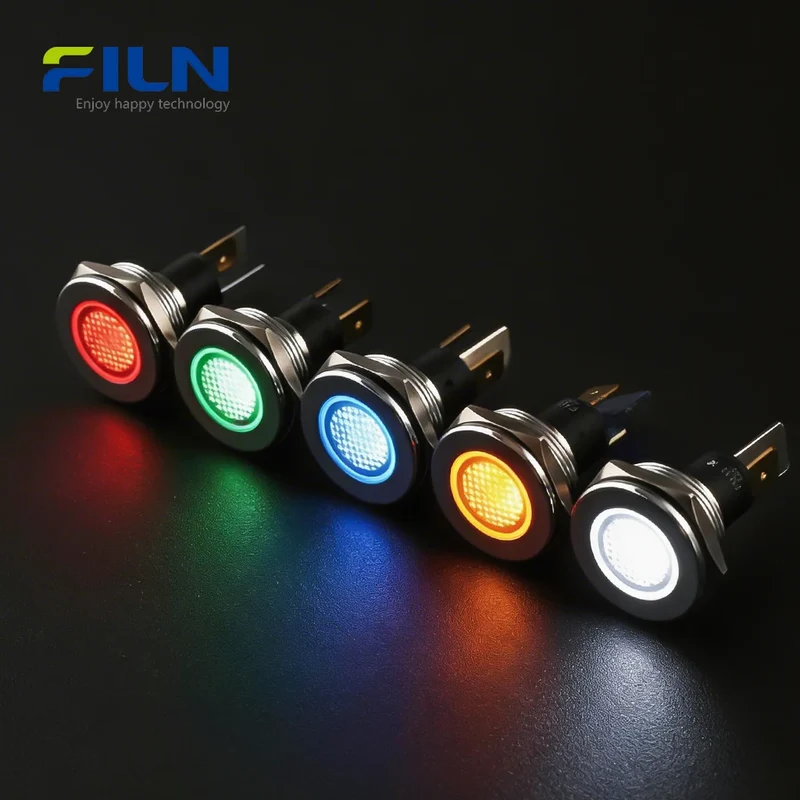

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Head Type	Flat Head (Flush Mount)
Wiring type	2-Pin Terminal
Operating Temperature	-40℃ to +80℃

Component Material List

Component Name	Material	Note
Shell	Copper Alloy	Nickel or Chrome plated for corrosion resistance
Lamp Holder	PA66 Nylon	High-strength industrial nylon
Lampshade	PC Polycarbonate	Impact resistant flat lens
Light Source	LED	Long lifespan, low energy consumption
Resistor	Carbon Film	Stable current protection
Pin	Brass	Excellent conductivity for soldering/quick-connect
Nut	Copper Alloy	M22 precision thread for mounting
O-ring	Silica gel	Provides IP67 waterproof sealing
Plum Gasket	Stainless Steel	Anti-loosening reinforcement

Rated Working Parameters

Rated Voltage	Customized (12V-380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Copper Alloy (Silver/Black)
Lens	PC (Polycarbonate)
Seal Ring	Silica Gel
Terminal	2-Pin Fast-on Terminal
Wire Material	N/A (Pin Type)

General Characteristics

Application	Signal Transmission
Operating Temperature	-40℃～80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Test Type	Condition	Requirement
Insulation Resistance	DC500V for 1 min	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No flashover

Key Features

Flat Head Advantage: The flush-mount indicating lights design offers a modern look and prevents the light from being hit or damaged in tight workspaces.

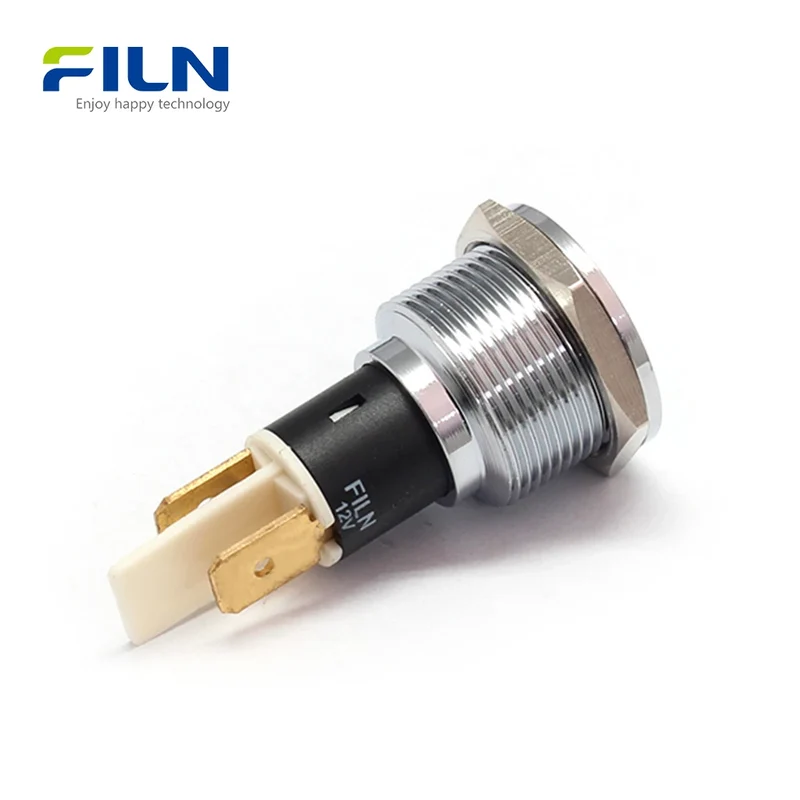

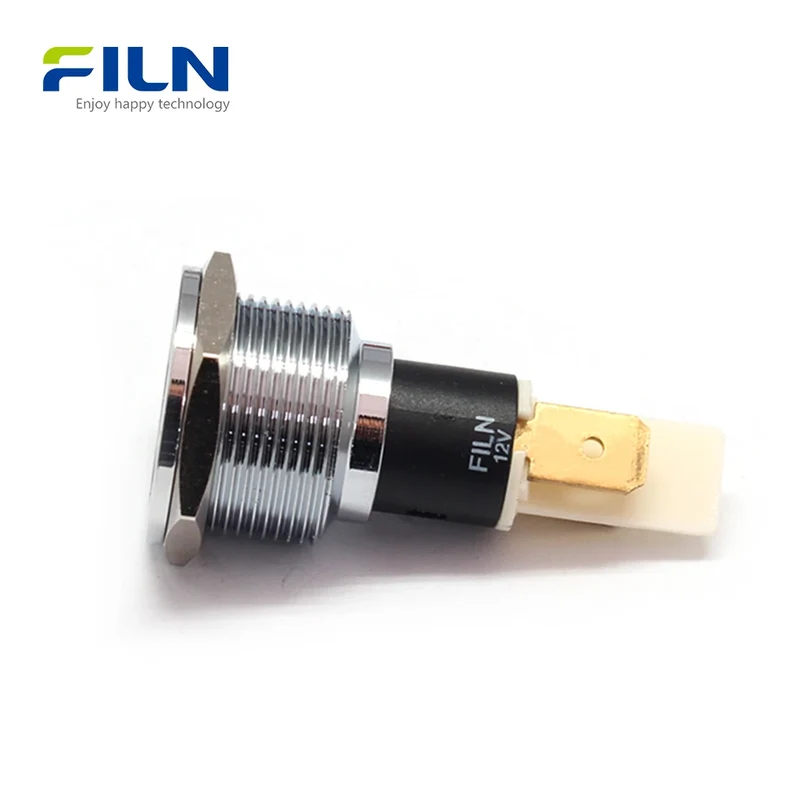

Pin Terminal Connectivity: The 2-pin terminal design is ideal for quick assembly and standardized wiring, providing a more modular approach compared to permanent wire leads.

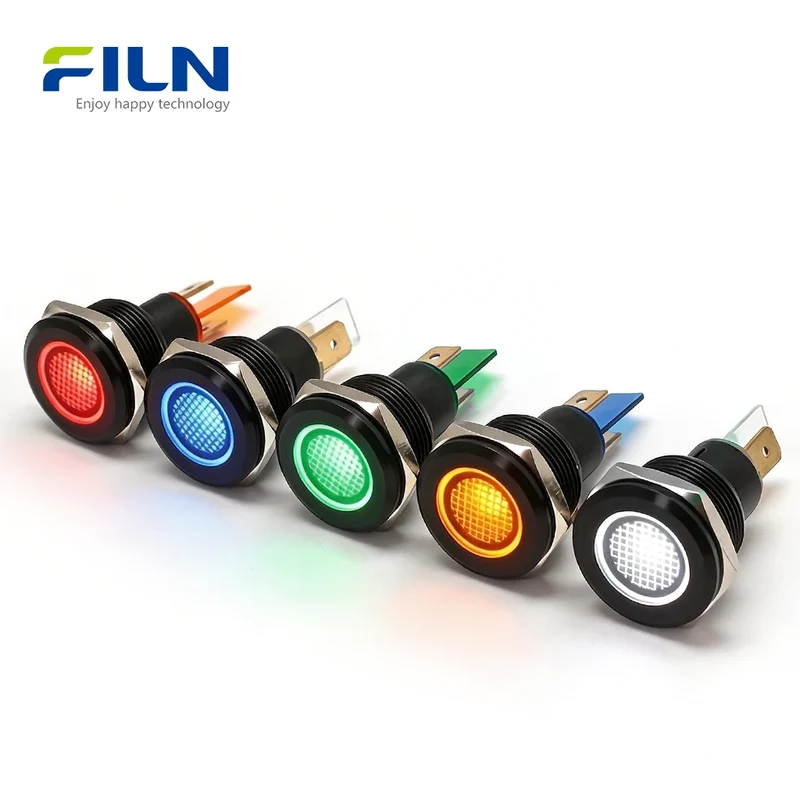

Dual-Color Shell Options: Choose between high-polish silver or professional matte black finishes.
Rugged Metal Housing: Built with heavy-duty copper alloy for superior heat dissipation and mechanical strength.
IP67 Waterproofing: Comes with a thick 22mm O-ring to ensure a perfect seal against liquids and dust.

Applications

These 22mm indicating lights are perfect for signal transmission in any large or small electrical equipment:

CNC Machinery and metalworking equipment
Industrial automation control stations
Power distribution boards and electrical cabinets
Commercial kitchen and medical sterilization equipment
Automotive and marine dashboard signaling

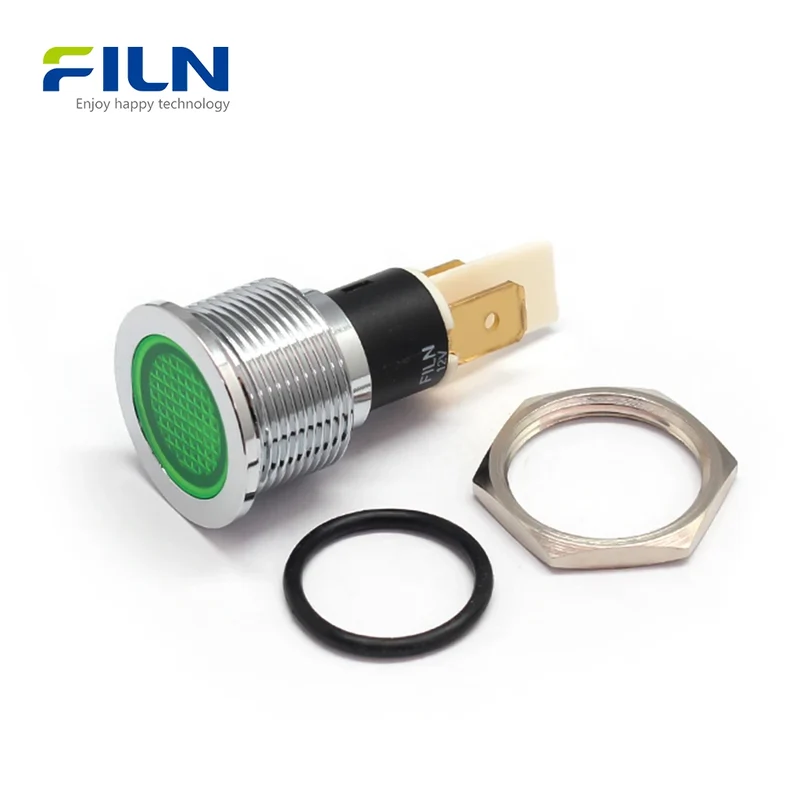

Installation Guide

Prepare a 22mm mounting hole in your panel.
Ensure the Silica gel O-ring is seated on the indicator head.
Insert the indicator through the panel from the front.
From the rear, slide on the M22 Nut.
Tighten the nut along the smooth threads to secure the unit.
The O-ring will compress to provide an IP67 seal, while the nut ensures the light remains vibration-proof.

What Are Indicating Lights?

Industrial indicating lights are essential components that provide visual feedback on the state of a circuit or machine. In a B2B context, the choice of a 22mm light is common because it fits standardized industrial panels perfectly. The pin terminal (also known as plug-in or spade terminal) is often preferred over direct wiring because it allows for faster maintenance and standardized harness assembly. Using a metal flat head ensures that the light doesn't protrude excessively, protecting the lens from impact in heavy-duty factory environments.

Indicating Lights for Sale - Factory Direct

This 22mm model is available for immediate purchase. FILN provides professional B2B support and wholesale pricing for global distributors.

Factory Direct: Direct from FILN for the most competitive pricing.
Full Customization: Custom voltages, wire lengths, and logo etching.
Quality Guaranteed: 100% test passing for all electrical properties.
Fast Delivery: Global logistics for large-scale industrial projects.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Why should I use flat head indicating lights?
Flat head lights sit flush against the panel, which looks better and prevents accidental damage in busy workspaces.

2. What is the benefit of the 2-pin terminal design?
Pins allow for easy connection using standard female spade connectors, making maintenance much faster than cutting and stripping wires.

3. Can I buy these indicating lights in black?
Yes, we offer both silver nickel-plated and black chrome-plated metal housings.

4. Are these lights suitable for 220V AC systems?
Yes, the FL1M-22FJ-1 supports 12V, 24V, 110V, and 220V. Custom voltages are available on request.

5. What is the function of the included O-ring?
The O-ring creates a watertight seal between the indicator head and the panel, achieving an IP67 rating.

6. What is the maximum thickness of the panel for installation?
The 22mm indicator with its long M22 thread can typically accommodate panels up to 10-12mm thick.

7. Do you provide UL or CE certification?
Yes, all FILN indicating lights are fully certified with CE, UL, and RoHS.

8. Is the LED light bright enough for outdoor use?
Our high-brightness LEDs are designed to be clearly visible even under bright industrial or outdoor lighting.

9. Can I customize the wire length if I don't want the pin terminal?
Yes, FILN is a factory and can produce these with custom wire leads and connectors upon request.

10. How do I purchase these directly from the factory?
You can buy through our website or send an inquiry to [email protected] for bulk B2B pricing.
