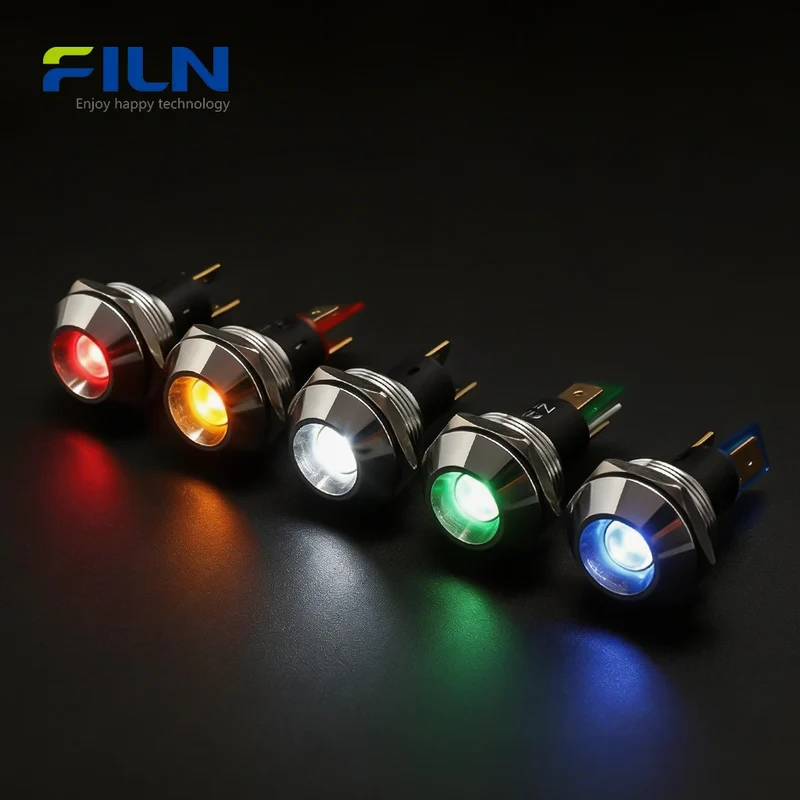

Indicator LED 22mm 12V 220V 2Pin Terminal for Industrial Panels Big Size Light FILN

Beschreibung

Product Overview

The indicator led manufactured by FILN is a premium industrial signaling solution designed for high-end machinery. Featuring a robust 22mm mounting size and a distinctive concave head design, this indicator provides superior visibility and mechanical protection. Our products are fully certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, ensuring compliance with global safety standards. Primarily used in industrial control panels, CNC machines, and automation equipment, these lights offer a long lifespan of 50,000 hours. The FL1M-22CJ-1 model supports multiple voltages from 12V to 220V and comes in various LED colors including Red, Green, Yellow, Blue, and White.

Quick Specifications

Mounting Hole	22mm (0.87 inch)
Voltage	12V, 24V, 110V, 220V (Customizable)

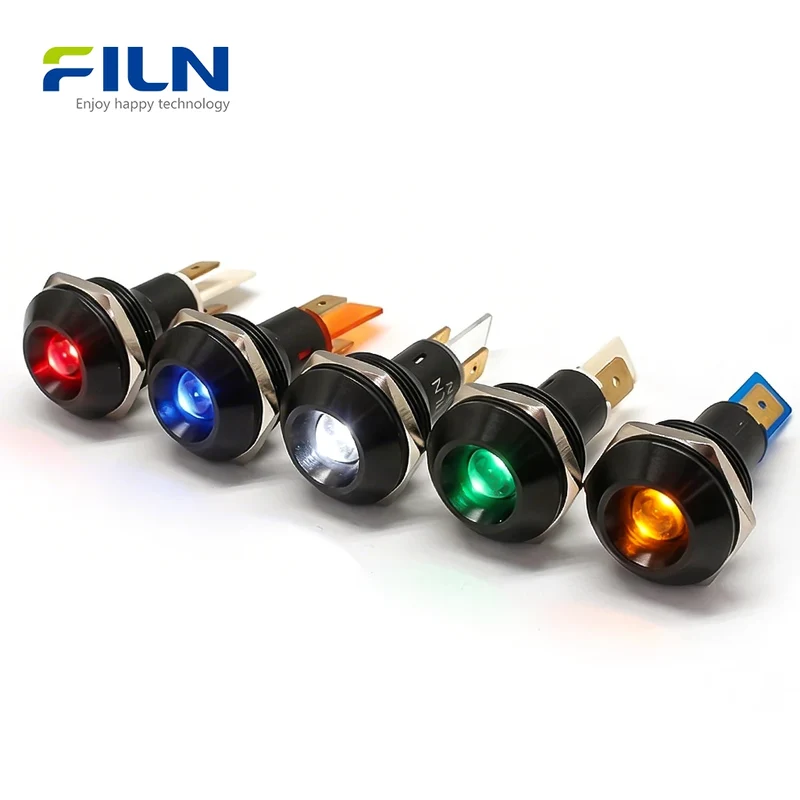

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Operating Temperature	-40℃ to +80℃
Lifespan	≥50,000 Hours
Wiring Type	2-Pin Type (Fast Connection)
Product Certification	UL, CE, VDE, RoHS, ISO9001

Component Material List

Component Name	Material	Note
Shell	Copper Alloy	Nickel or Chrome plated for corrosion resistance
Lamp Holder	PA66 Nylon	High strength and temperature resistance
Lampshade	PC Polycarbonate	High light transmission and impact resistance
Light Source	LED	Energy efficient, long life
Resistor	Carbon Film	Stable current protection
Pin	Brass	Excellent electrical conductivity
Nut	Copper Alloy	Secures light to the panel
O-ring	Silica gel	IP67 waterproof sealing
Plum Gasket	Stainless Steel	Anti-loosening reinforcement

Rated Working Parameters

Rated Voltage	Customized (3V to 380V)
Frequency (AC)	50Hz～60Hz
Rated Current	≤20mA

Component Materials

Housing	Metal (Silver/Black available)
Lens	Polycarbonate (PC)
Seal Ring	Silicone Rubber
Terminal	2-Pin Terminal
Wire Material	Not applicable (Direct Pin Connection)

General Characteristics

Application	Signal Indication / Control Panels
Part Name	FL1M-22CJ-1
Operating Temperature	-40℃～80℃
Storage Temperature	-40℃～85℃
Relative Humidity	≤85% at +40℃
Waterproof Rating	IP65 / IP67
Air Pressure	86~106Kpa

Electric Property

Property	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown or flashover

Durability Characteristics

Parameter	Test Condition	Requirement
Continuous Working Life	30mA 1000h	50,000 hours

Resistant Performance

Test Type	Condition	Result
High Temperature	80℃ 96h	No Damage
Low Temperature	-40℃ 96h	No Damage
Moisture Resistance	40℃ 90-95%RH 96h	Stable Operation
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 rounds)	Passed

Key Features

LED High Brightness: Large 22mm concave head design for enhanced light diffusion.

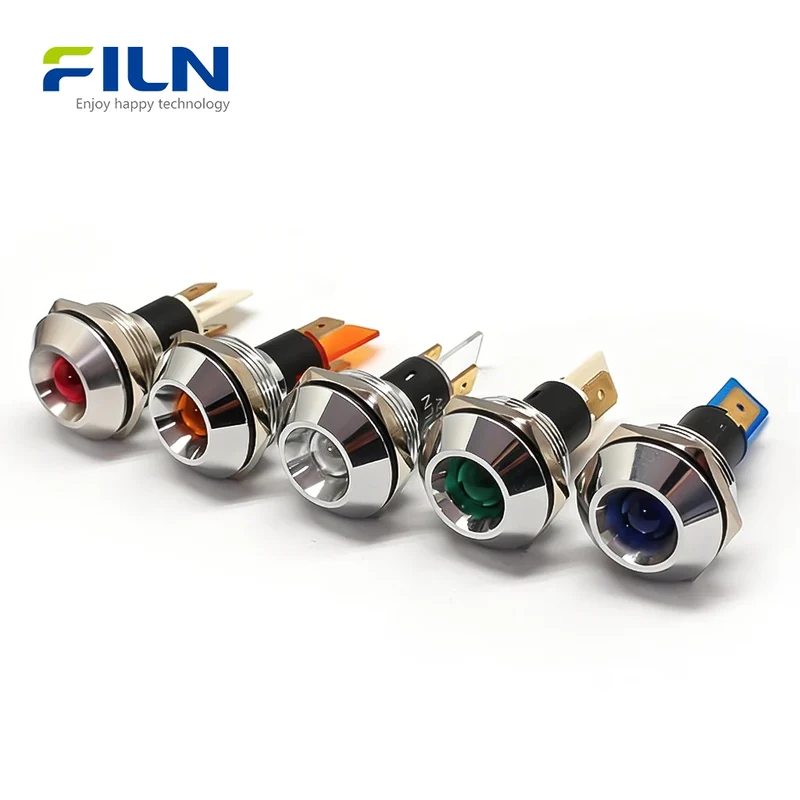

Industrial Durability: Metal housing available in silver or black chrome finish.

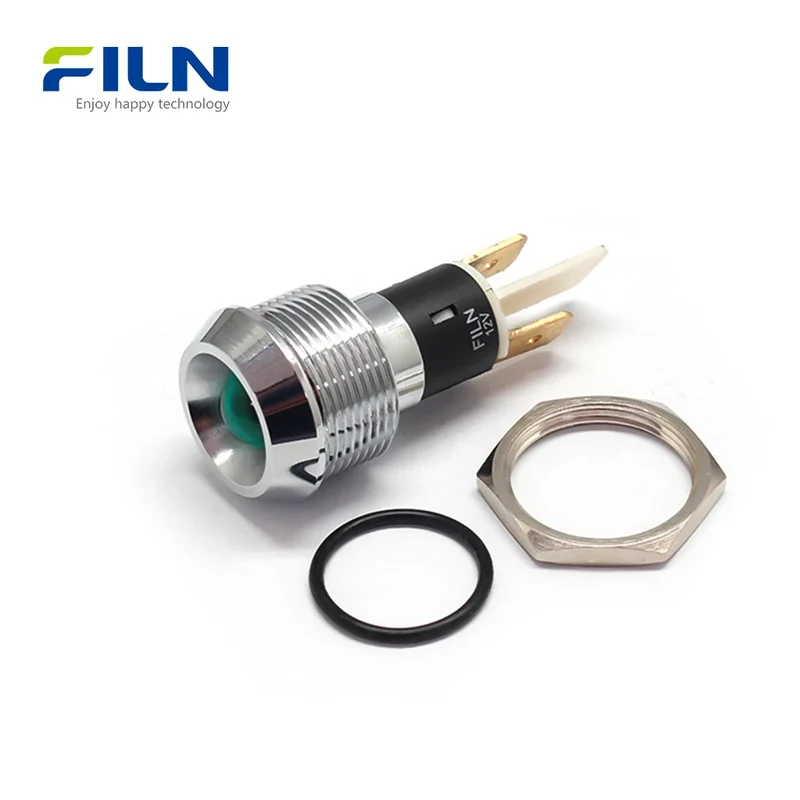

IP67 Waterproof: Includes a 22mm O-ring to prevent dust and water ingress.

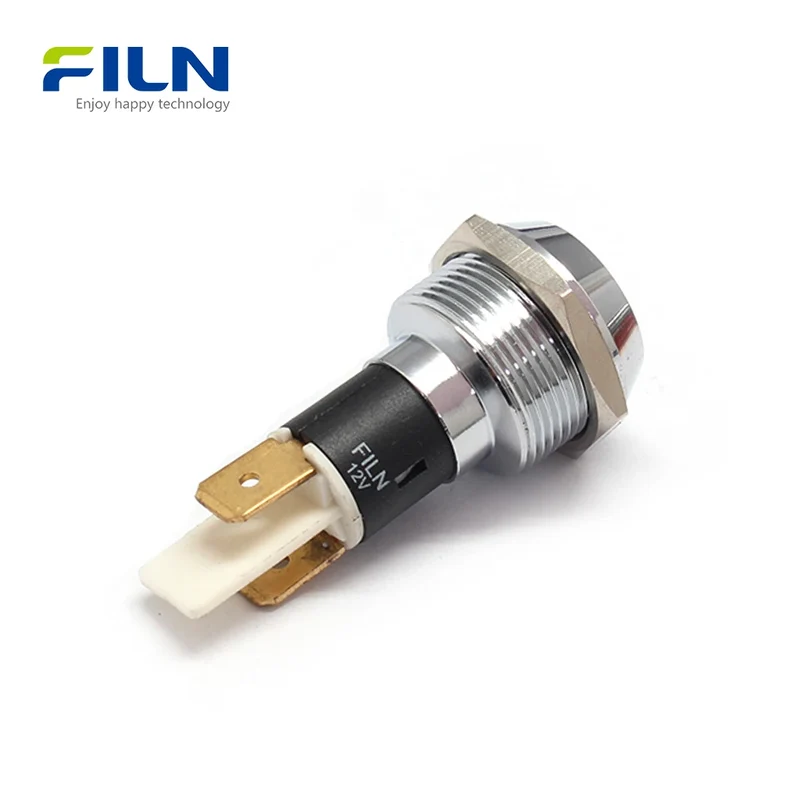

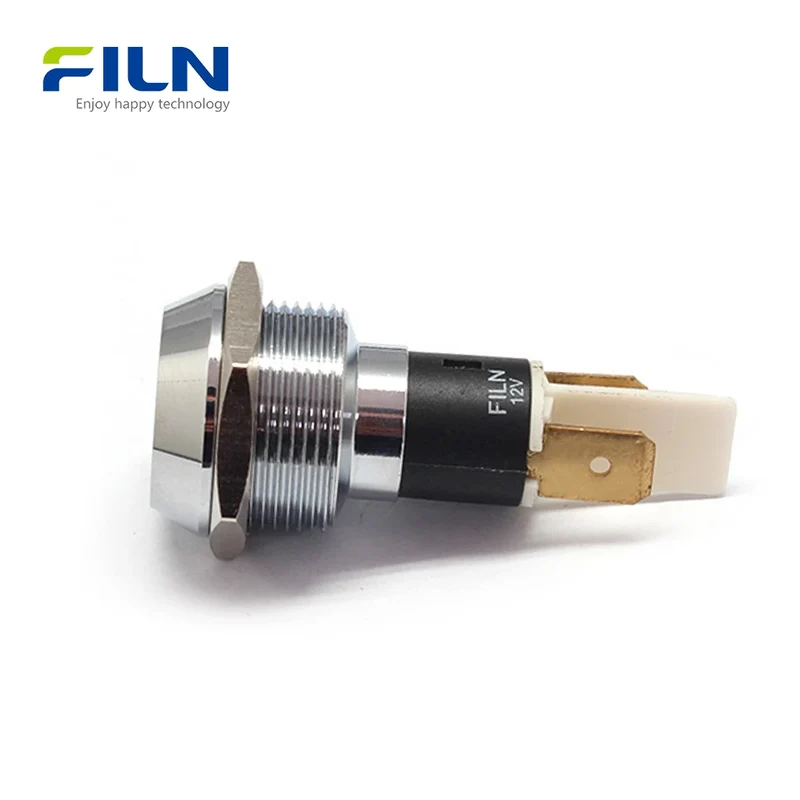

Fast Connection: 2-pin terminal design for quick and secure electrical installation.
Easy Mounting: Smooth M22 threads with a high-quality nut for stable panel fixation.

Applications

Industrial control panels and distribution boards
CNC machines and heavy-duty manufacturing equipment
Automation systems and robotic workstations
Electrical cabinets for infrastructure projects
Marine systems and outdoor weather-exposed panels
Medical devices requiring high-reliability status indicators

Installation Guide

Drill a 22mm (7/8") hole in the target control panel.
Insert the indicator LED through the hole from the front side.
Ensure the 22mm O-ring is positioned between the panel and the light head for a waterproof seal.
From the back of the panel, screw on the M22 nut.
Tighten the nut securely using a wrench to prevent rotation.
Connect your 12V-220V power source to the 2-pin terminals.

What Is an Indicator LED?

An indicator led is a critical visual signaling device used to convey the operational status of machinery and electronic systems. Unlike standard bulbs, industrial-grade LEDs provide vibration resistance and high energy efficiency. The 22mm variant is particularly popular in B2B applications because its large size allows operators to monitor machine status from a distance. The concave head design of this product is engineered to protect the lens from accidental impacts while reducing glare, making it ideal for bright factory environments.

Factory Direct Indicator LED for Sale

Purchase directly from the FILN factory to benefit from professional manufacturing and wholesale pricing. We specialize in custom solutions for global industrial clients.

Factory Direct: No middlemen, direct-to-customer pricing.
Voltage Customization: We support any voltage from 3V to 380V.
Wire Length & Connector: Custom wiring and plug-and-play connectors available.
Fast Global Shipping: Reliable logistics for bulk orders.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. What is the difference between pin terminal and wire lead indicator LEDs?
Pin terminals allow for quick blade connectors or soldering, whereas wire leads come pre-wired for direct splicing into a circuit.

2. Can I get a 220V indicator LED in blue?
Yes, FILN offers 220V options in Red, Green, Yellow, Blue, and White.

3. Is the 22mm indicator led suitable for outdoor use?
With an IP67 rating and a silicone O-ring, this light is fully protected against heavy rain and dust.

4. Does FILN support custom branding for B2B orders?
Absolutely. We provide OEM/ODM services including laser-etched logos and custom housing colors.

5. What is the benefit of a concave head design?
The concave head protects the lens from physical damage and provides a focused signal light that is easy to see under industrial lighting.

6. What materials are used in the indicator LED shell?
We use high-quality copper alloy with nickel or chrome plating for maximum corrosion resistance.

7. How do I install the 22mm signal light?
Simply drill a 22mm hole, insert the light with the O-ring, and tighten the rear M22 nut.

8. Does the indicator light come with a resistor?
Yes, high-quality resistors are built-in to handle specific voltages like 12V, 24V, or 220V safely.

9. Are these indicators UL certified?
Yes, FILN indicator lights carry UL, CE, and RoHS certifications for global export.

10. Can I order black shells instead of silver?
Yes, we offer both silver nickel-plated and black anodized/plated finishes for the 22mm indicator led.
